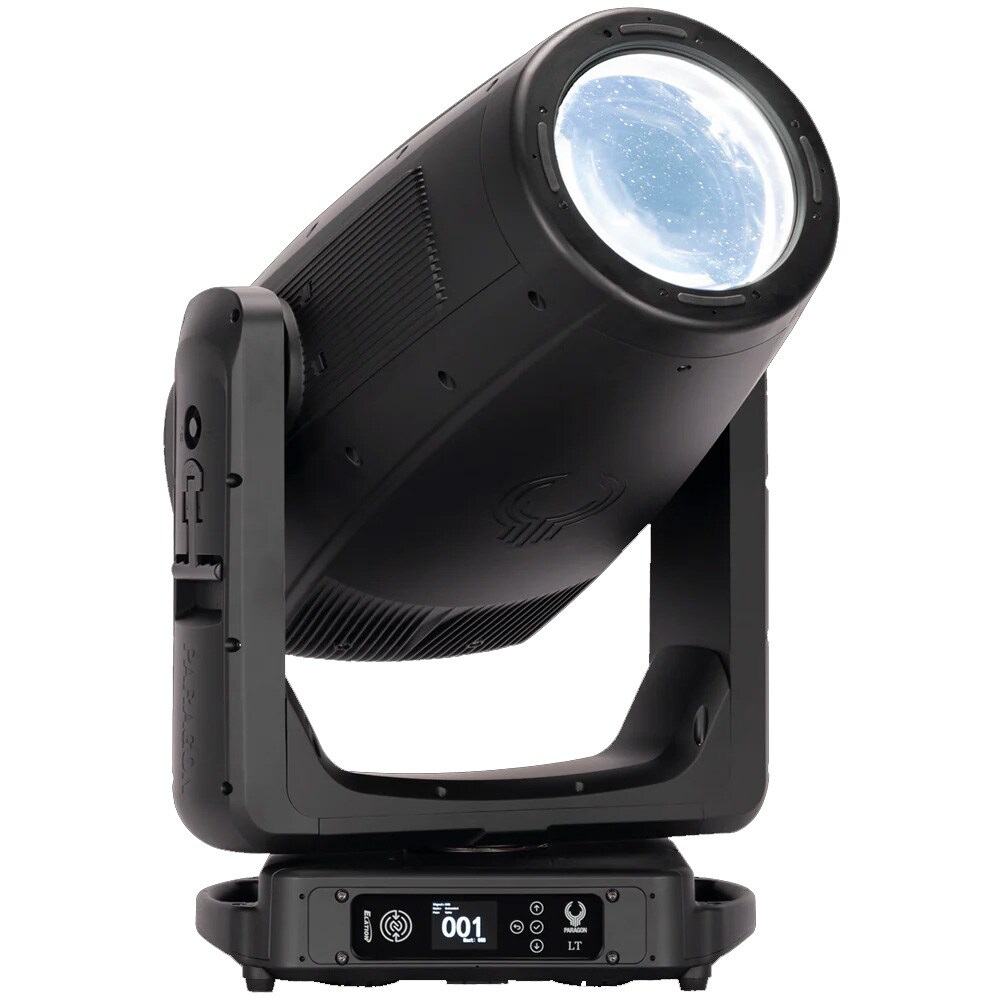

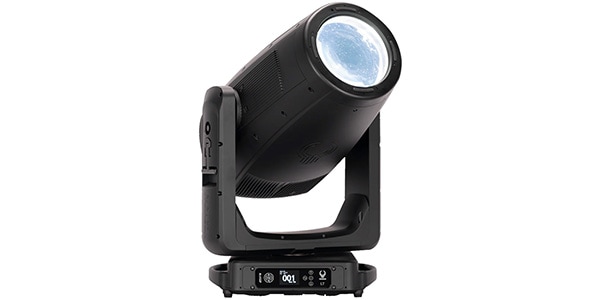

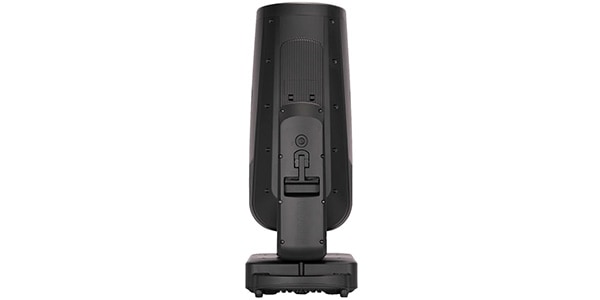

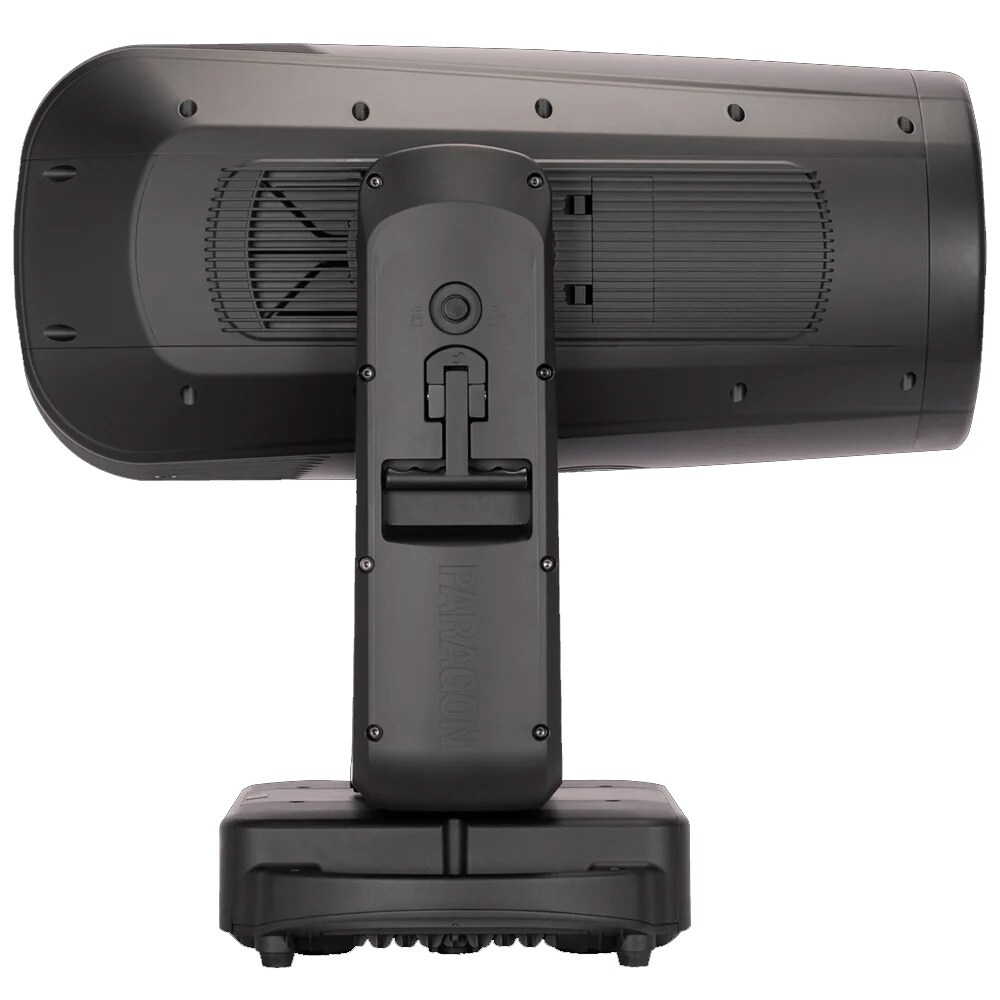

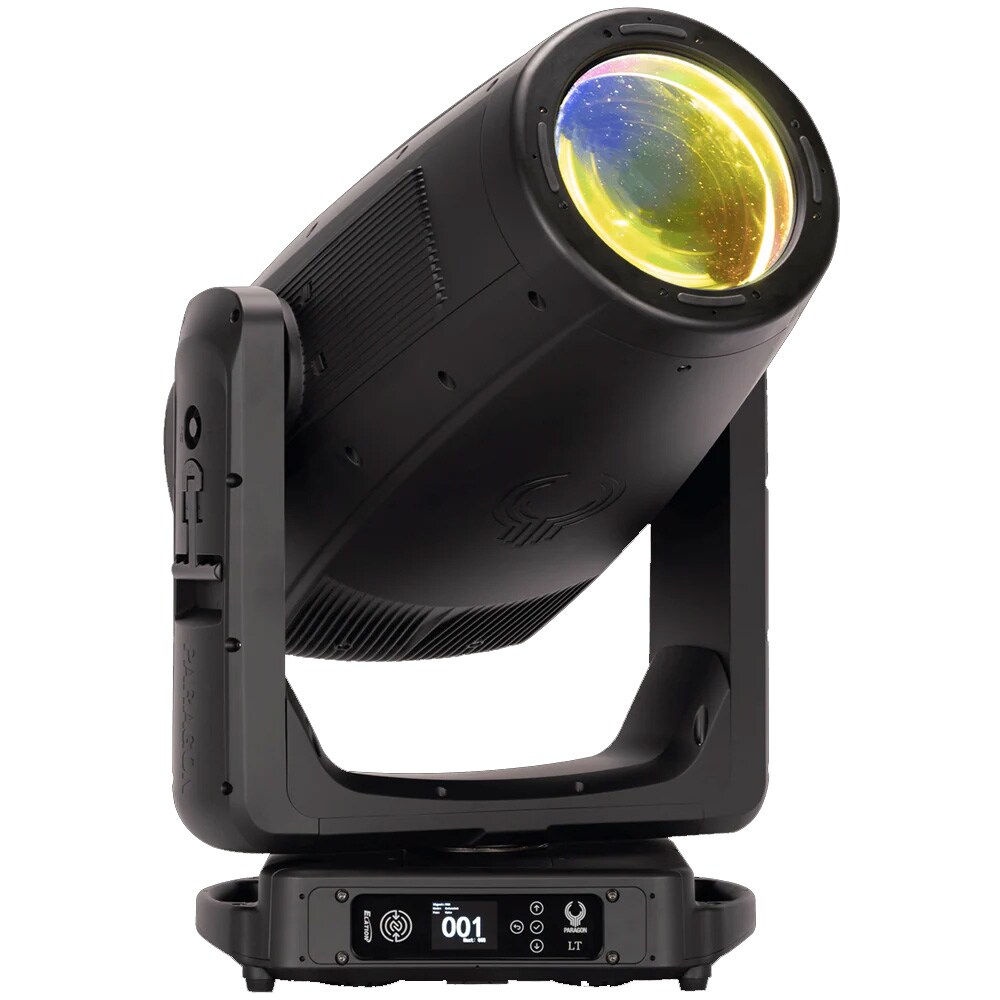

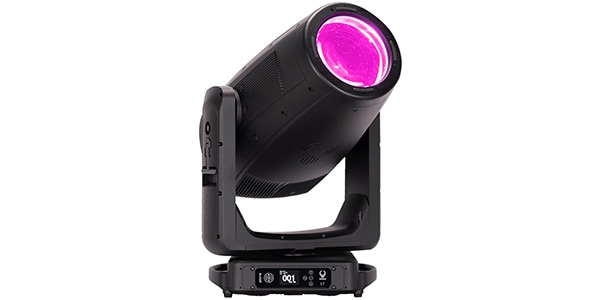

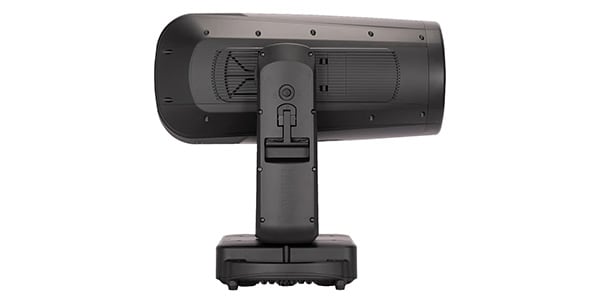

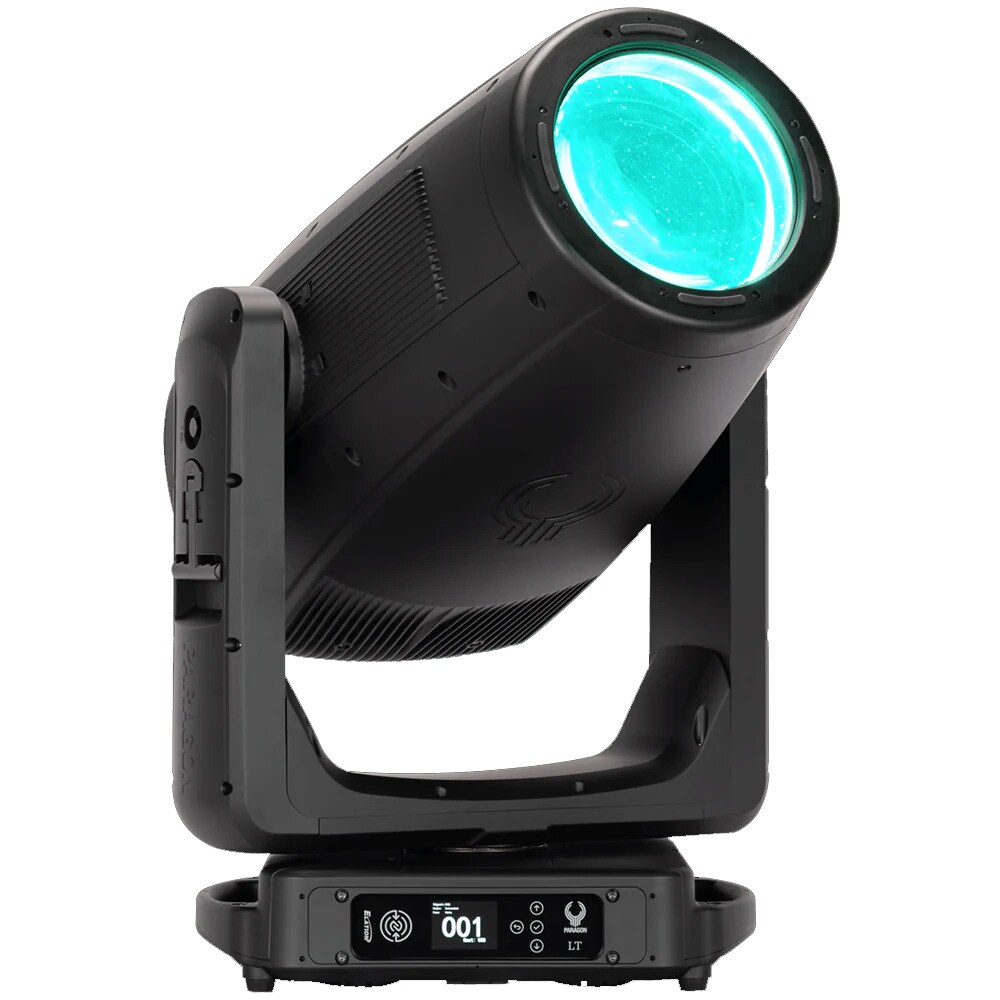

ELATION / PARAGON LT

The PARAGON LT is the brightest model in the series, combining profile, beam, and wash functions in one versatile moving light. Its 1300W engine delivers up to 50,000 lumens, with a 3.7°–49.2° zoom and variable CRI for accurate color. A compact, rugged IP54 design, easy lens changes, and extensive effects enable efficient lighting setups that can replace multiple fixtures.

■ SOURCE
- High Efficiency 1300W 6500K Variable CRI White LED Engine
- 30,000 Hour Average LED Life*
* Test lab conditions. May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

■ PHOTOMETRIC DATA
- 44000 Total Lumen Fixture Output @ CRI 80
- 50000 Total Lumen Output in Turbo Mode (CRI78)
- TruTone variable CRI up to CRI 93
- Front Lens 8" (200mm)
- Profile Lens (standard)
Zoom Range 3.7° - 49.2°
Beam Angle 3.4° - 43.9°
Field Angle 3.7° - 46.9°
Cutoff Angle 3.8° - 47.8°
- PC Lens (optional)
Zoom Range 3.5° - 47.2°
Beam Angle 3.5° - 43.4°
Field Angle 5.6° - 47.2°
Cutoff Angle 6.5° - 48.6°
- Fresnel Lens (optional)
Zoom Range 5° - 52.9°
Beam Angle 5° - 46.7°
Field Angle 10° - 52.9°
Cutoff Angle 15.1° - 59.9°

■ EFFECTS
- Motorized Zoom
- 4 Full Blackout Framing Blades, +/-45° Index
- +/-120° Framing Index
- Full 360° Bi-Directional Animation Wheel with variable Angle and Index orientation
- 4-Facet and Linear Rotating Prisms
- 2 Variable Frost Filters (Light and Wash)
- Motorized Iris with Variable Pulse Effects
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- DMX Controllable LED Refresh Rate
- Ultra Dimming 25000Hz
- Pan Angle: 540°
- Tilt Angle: 260°
- Motionless Reset

■ COLOR

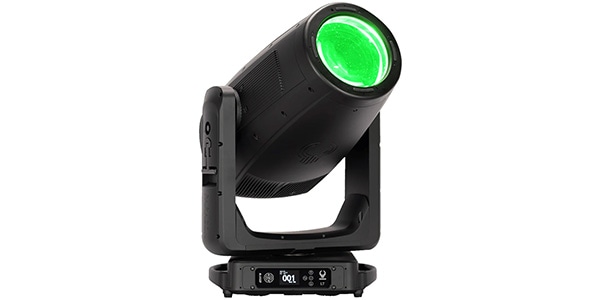

- CMY Color Mixing Array
- Optional SpectraColor RGB Array
- Linear CTO Color Correction
- 5 Dichroic Colors including Quad Color

■ GOBOS
- 3 Gobo Wheels
- 2×7 Rotating / Indexing Interchangeable Glass Gobos
- 5 Fixed Metal Gobos

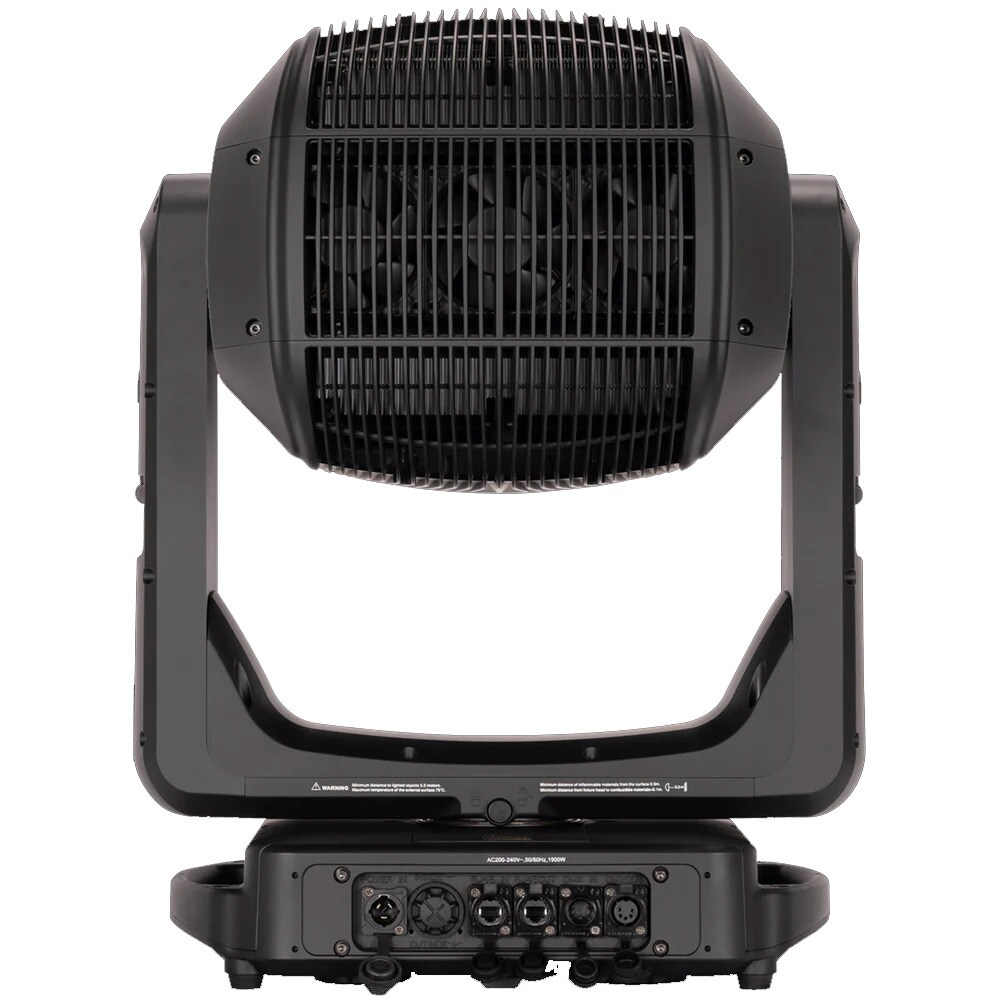

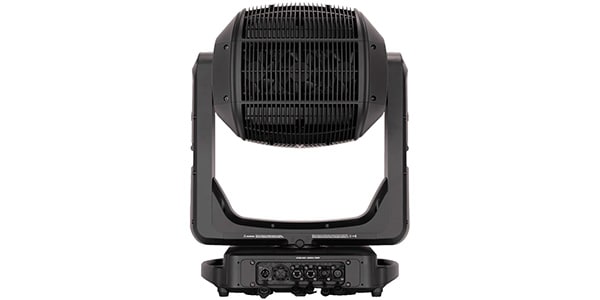

■ CONTROL / CONNECTIONS
- 4 DMX Channel Modes (44/67/47/73)
- 16-bit Pan, Tilt and Dimming Control
- Motorized Focus and Auto-Focus Presets
- DMX, RDM, Art-NET, sACN Protocol Support
- (4) Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- NFC
- Hibernation Mode (Power Save)
- IP65 Locking 5pin XLR In/Out
- IP65 Locking RJ45 Ethernet In/Out
- IP65 Locking Power In

■ SIZE / WEIGHT
- Length: 19.4 in (492mm)
- Width: 12.4 in (315mm)
- Height: 32.7 in (830mm)
- Weight: 96.1 lbs. (43.6 kg)
- Weight (w. RGB Module): 97.9 lbs. (44.4 kg)

■ ELECTRICAL
- AC 200–240V 50/60Hz
- Max Power Consumption 1900W
- -4°F to 113°F (-20°C to 45°C)

■ ORDERING INFORMATION
- PARAGON LT w/ SpectraColor RGB/CMY Module (PAR193)
- PARAGON LT w/ Standard CMY Module (PAR135)

■ INCLUDED ITEMS

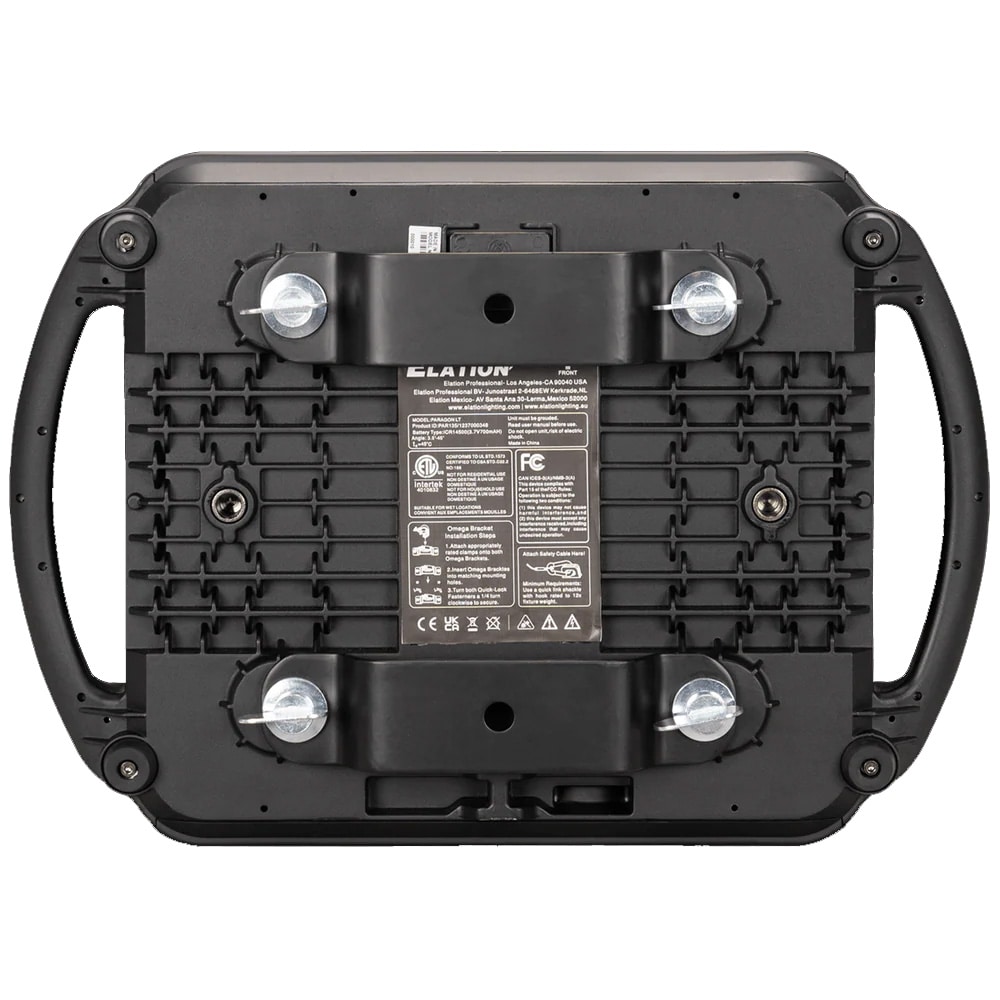

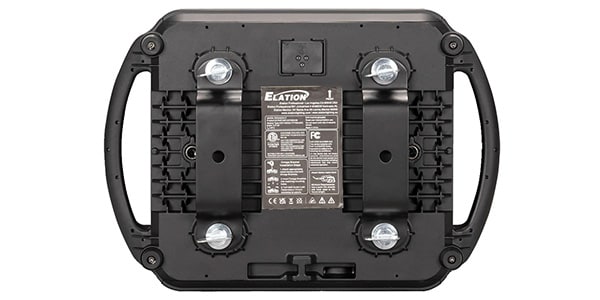

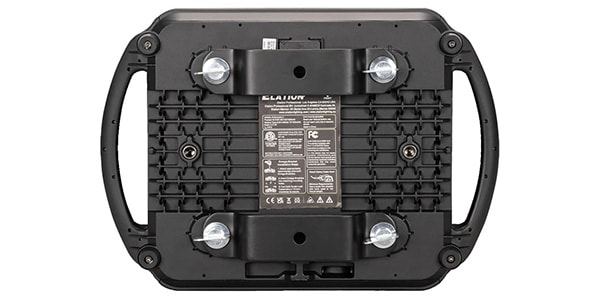

- Omega Brackets (x2)
- IP65 Rated Locking Power Cable
- Stainless Steel Safety Cable
- Foam Inlay

■ OPTIONAL ITEMS
- PARAGON LT RGB Module (PAR201)
- PARAGON LT PC Lens (PAR224)
- PARAGON LT Fresnel Lens (PAR213)
- PARAGON LT Snoot (PAR235)
