BOSS / PX-1 Plugout FX

＜＜Sep 2025 New Product！＞＞ BOSS's timeless effects deliver infinite inspiration.

BOSS Effects: Timelessly Loved Compact Pedals That Deliver Unique Inspiration Since its debut in 1977, the BOSS compact pedal series has inspired countless guitarists with its diverse lineup and cutting-edge sounds. Every model created possesses enduring appeal, continuing to spark fresh inspiration even today. Experience the distinctive compact pedals that have colored BOSS's history with the PX-1. Capturing the original's musical character in full, the PX-1 delivers timeless sound.

■Features
・An innovative compact pedal that lets you experience timeless BOSS effects
・Dedicates all DSP resources to a single effect, faithfully reproducing the original tone and response
・Switch and use up to 16 effects directly on the unit
・16 starter effects included
(OD-1, SP-1, PH-1, SG-1, CS-1, TW-1, SD-1, DS-1, CE-2, BF-2, PN-2, OC-2, PS-2, VB-2, DD-2, DF-2)
・Expandable with additional paid Model Packs available for purchase

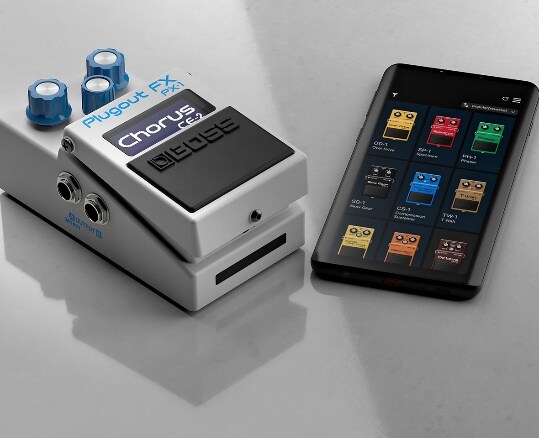

・Dedicated app BOSS Effect Loader (iOS/Android) connects via Bluetooth or USB Type-C

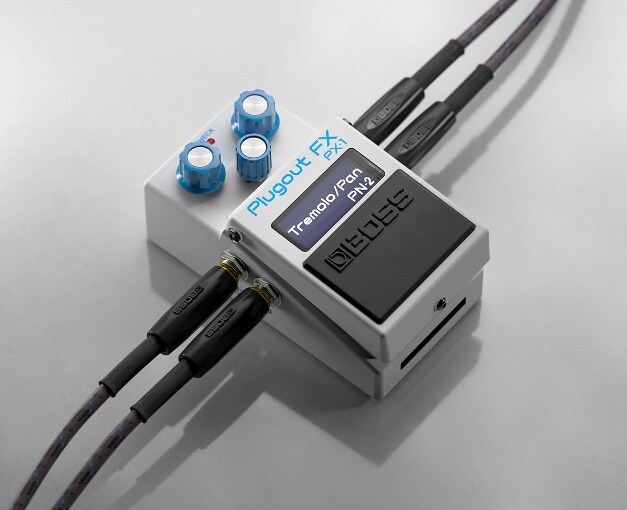

・Stereo input/output jacks
・CTL jack for optional expression pedal or up to two additional footswitches
・TRS MIDI input jack capable of receiving MIDI clock signals
・Dual power supply: included AC adapter or USB bus power
・Reliable 5-year warranty

■Main Specifications
・Sampling frequency: 48kHz
・AD conversion: 24-bit + AF method ※AF method (Adaptive Focus method) is Roland/BOSS's proprietary method that dramatically improves the AD converter's signal-to-noise ratio.
・DA conversion: 32-bit
・Nominal input level: INPUT A (MONO), INPUT B: -20dBu
・Maximum Input Level: INPUT A (MONO), INPUT B: +7dBu
・Input Impedance: INPUT A (MONO), INPUT B: 1MΩ
・Nominal Output Level: OUTPUT A (MONO), OUTPUT B: -20dBu
・Maximum Output Level: OUTPUT A (MONO), OUTPUT B: +7dBu
・Output Impedance: OUTPUT A (MONO), OUTPUT B: 1kΩ
・Recommended Load Impedance: OUTPUT A (MONO), OUTPUT B: 10kΩ or higher
・Bypass: Buffered Bypass

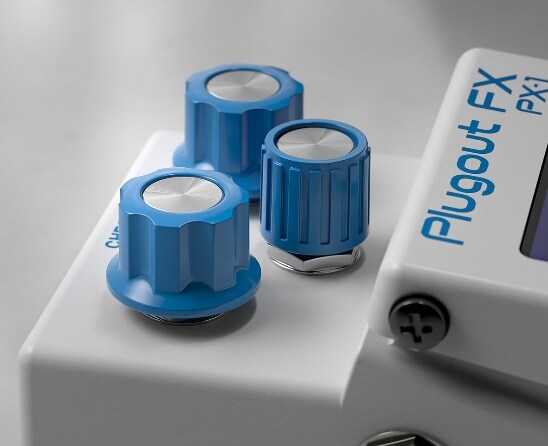

・Controls: LEFT knob, CENTER knob, RIGHT knob, Pedal Switch
・Indicator: CHECK Indicator
・Display: Graphic LCD 128×48 dots
・Connectors: INPUT A (MONO), INPUT B, OUTPUT A (MONO), OUTPUT B: Standard Type
・CTL1,2/EXP Jack: TRS Standard Type
・DC IN Jack
・MIDI IN Jack: Stereo Mini Type
・USB COMPUTER Jack: USB Type-C (R)
・Bluetooth: Supported Profiles: GATT (MIDI over Bluetooth Low Energy)
・Power Supply: AC adapter, USB port
・Current Consumption: 260mA (AC adapter), 420mA (USB)
・Dimensions: 73 (W) × 125 (D) × 56 (H) mm
・Weight (excluding AC adapter): 400g
・Included Accessories: AC adapter, warranty card, leaflet (Safety Precautions, Usage Precautions, Contact Information), Roland Cloud Activation Card
・Optional Accessories:
Foot Switch: FS-5U
Dual Foot Switch: FS-6, FS-7
Expression Pedal: FV-500H, FV-500L, EV-30, Roland EV-5
TRS/MIDI Connecting Cable: BMIDI-5-35, BMIDI-1-35, BMIDI-2-35, BCC-1-3535, BCC-2-3535
