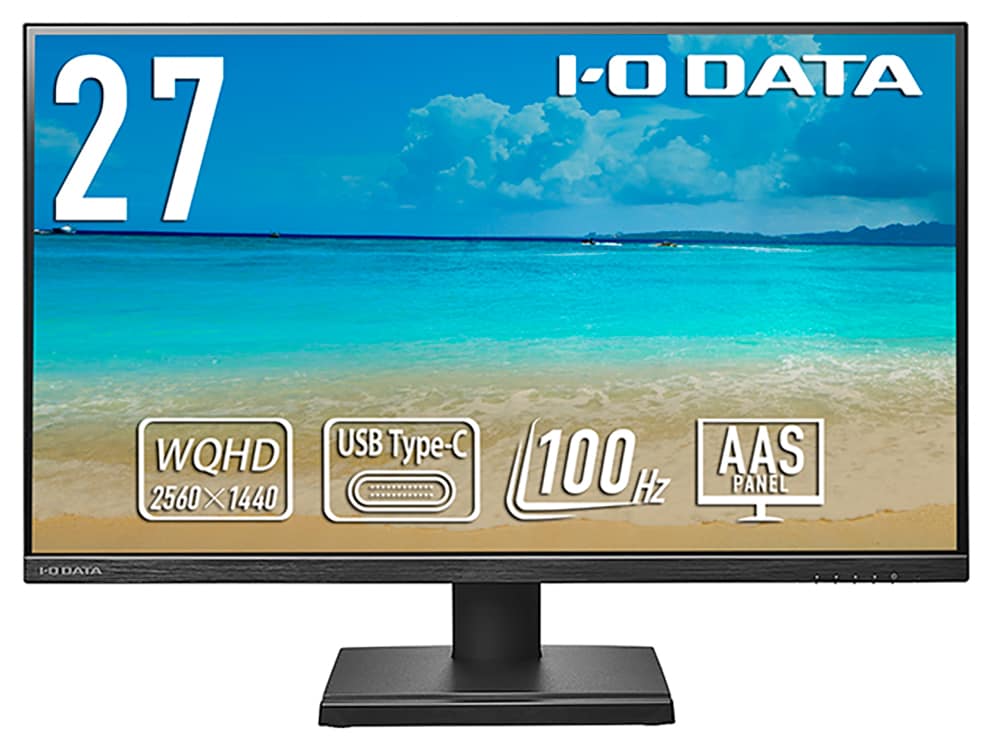

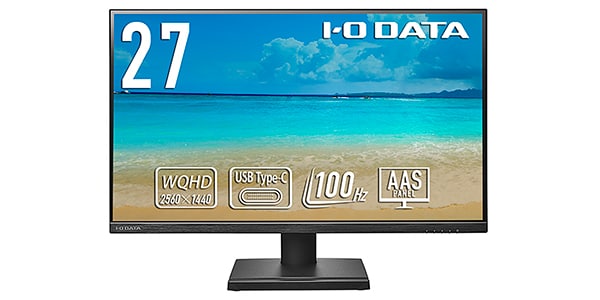

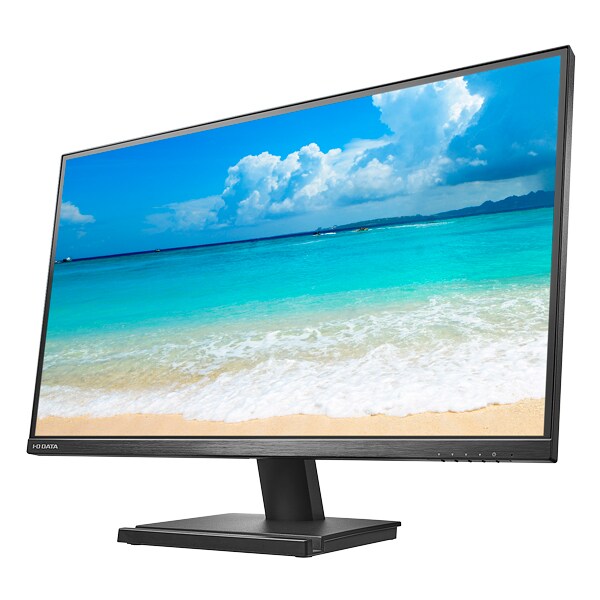

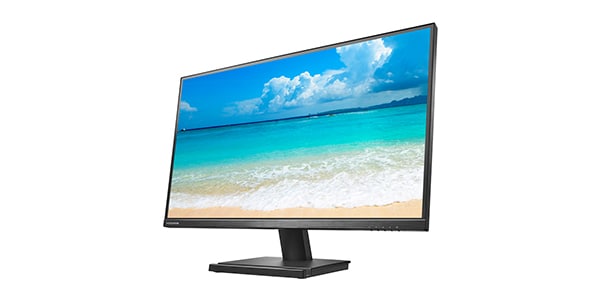

I-O DATA / LCD-CQ270SAX

This 27-inch WQHD LCD monitor supports both video output and power to a laptop via a single Type-C cable. It's perfect for PC work like DTM and video editing, as well as gaming with impressive graphics!

■Display Monitor
■Color: Black
■Panel Type/Display Method: 27-inch TFT Widescreen/AAS
■Panel Surface Treatment: Matte
■Maximum Display Resolution: 2560 x 1440
■Pixel Pitch: 0.2331 (H) x 0.2331 (V) mm
■Display Area: 596.736 (H) x 335.664 (V) mm
■Maximum Display Colors: 16.77 Million
■Viewing Angle: Vertical: 178° Left/Right: 178°
■Maximum Brightness (Typical): 250 cd/m²
■Contrast Ratio (Typical): 1300:1
■Response Time: 4 ms [Gray to Gray] *100 Hz with Overdrive Level 2
■Horizontal Scan Frequency
HDMI: 31-151 kHz
DisplayPort: 31-151 kHz
USB Type-C: 31-151 kHz
■Vertical Scan Frequency
HDMI: 59 .9-99.9Hz
DisplayPort: 59.9-99.9Hz
USB Type-C: 59.9-99.9Hz (USB setting 2.0) / 59.9-75.0Hz (USB setting 3.2)
■Maximum refresh rate: 100Hz

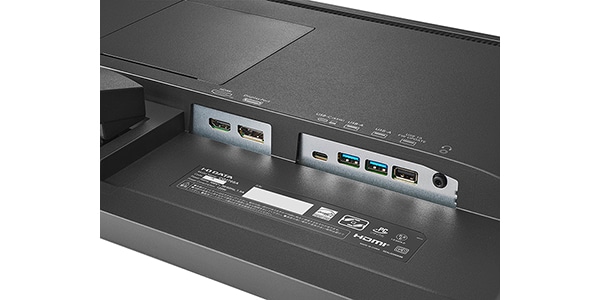

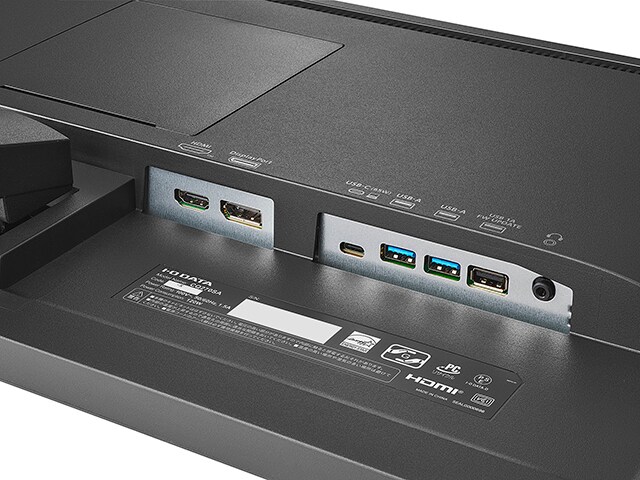

■Video input terminals: HDMI x 1, USB Type-C x 1, DisplayPort x 1
■Video output terminals: None
■RS-232C terminal: None
■LAN terminal: None
■USB hub port:
・Upstream
USB Type-C x 1: USB 5Gbps (USB 3.2 Gen 1), DisplayPort Alt Mode, USB PD 5V=3A/9V=3A/15V=3A/20V=3.25A (Max. 65W)
・Downstream
USB-A x 2: USB 5Gbps (USB 3.2 Gen 1) (Max. Maximum 5V/0.9A)
■USB Port (Other): USB-A x 1: USB 2.0 (Maximum 5V/1A, for maintenance)
■Audio Input/Output
Audio Input: None
Speakers: 2W + 2W (Stereo)
Headphone Jack: 3.5mm Stereo Mini Jack
Audio Output: None
■Rated Voltage: AC 100V 50/60Hz (Built-in Power Supply)
■Power Consumption
Maximum: 120W
Normal Use On mode: 16.7W
Annual power consumption: 56.4kWh
Standby power consumption: 1.1W
■Plug & Play: VESADDC2B
■Dimensions
With stand: Approx. 613 x 197 x 444mm (excluding protrusions)
Without stand: Approx. 613 x 49 x 364mm (excluding protrusions)
■Weight
With stand: Approx. 4.5kg
Without stand: Approx. 4.1kg

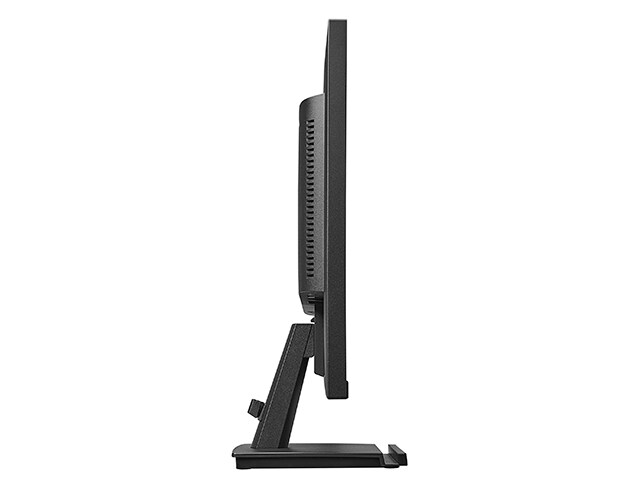

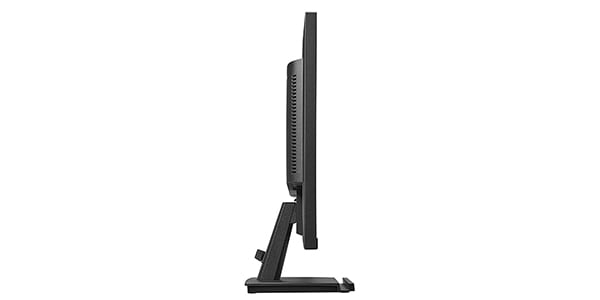

■Tilt angle: Up: 22° Down: 4°
■Swivel Angle: None
■Height Adjustment: None
■Pivot (Rotation): None

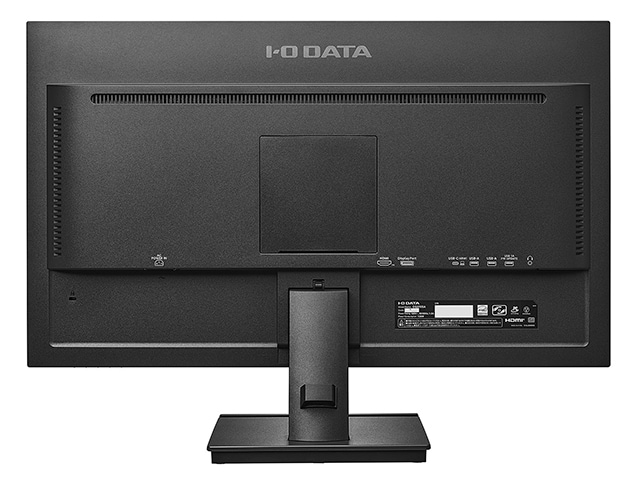

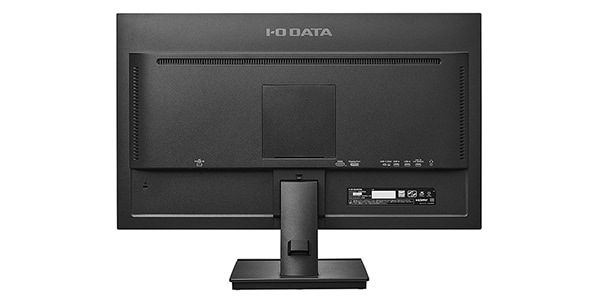

■VESA Mount Interface: Yes (100mm x 100mm)
■Mini PC Attachment Hole (PC Installation Requirements): None
■Anti-Theft Hole: Yes
■Packaged Weight/Dimensions: Approx. 7.4kg / Approx. 701 x 144 x 442mm
■Operating Temperature:
Operating: 0°C to 40°C
Stored: -20°C to 60°C
■Operating Humidity: 20%-80% (Non-condensing)
■Featured Technologies:
HDR: None
Variable Refresh Rate: None
Flickerless: Yes
Blue Light Filter: Yes
■Accessories: Power Cord (PSE Compliant), USB Cable (C-CUSB5Gbps (USB3.2 Gen1)), Please Read (Please Read), Stand, Stand Neck, Cable Hook
