I-O DATA / LCD-AD173SESW-A

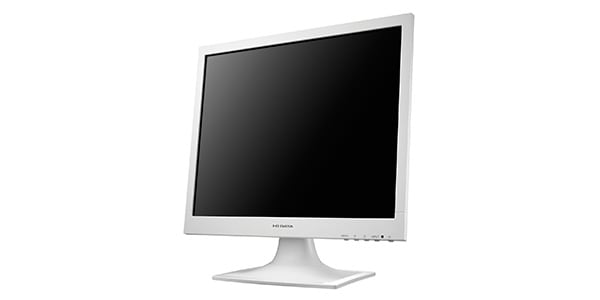

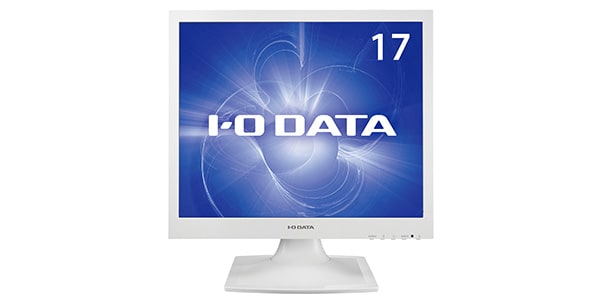

A 17-inch square LCD display with a flicker-free design that reduces backlight flickering and blue reduction that reduces blue light within the display itself.

■Display Monitor

【Compatible Devices】
■Compatible Devices: Windows PCs, Macs, Chromebooks

【Specifications】
■Color: White
■LCD Panel:

・Panel Type: 17-inch TFT Square LED/Non-glare/TN Panel

・Maximum Display Resolution: 1280×1024

・Pixel Pitch (mm×mm): 0.264(H)×0.264(V)

・Display Area (mm×mm): 337.92(H)×270.336(V)

・Maximum Display Colors: 16.77 million colors

・Viewing Angle: 160° Up/Down, 170° Left/Right

・Maximum Brightness (Typical Value): 250 cd/m²

・Contrast Ratio (Typical Value): 1000:1

・Response Time: 5ms

・Horizontal Scan Frequency (kHz): 24.8～80.0

・Vertical Scan Frequency (Hz): 56.3～75.0

* Video Input Terminals: Analog RGB, DVI-D (HDCP compatible)

* Audio Input/Output:

* Audio Input: Stereo mini jack φ3.5mm

* Speakers: 1W + 1W (stereo)

* Phone Jack: -

* Adjustment Functions:

* Video Settings: ECO, Brightness/ECO Step, Contrast, Color Temperature (6500K, 7200K, 9300K, User)

* Menu Settings: Display Time, Transparency, Screen Information, Language (Japanese, English)

* Other: Smoothing, Automatic Power Off (Off, Manual Restart, Automatic Restart), Reset

* Manual Adjustment: Size, Fine Adjustment, Horizontal Position, Vertical Position

* Direct Settings: Volume, Blue Reduction, Brightness/ECO Step, OSD Lock, Input Switching

* Rated Voltage: AC100V 50/60Hz (Built-in Power Supply)

* Power Consumption:

* Maximum: 14W

* Normal Use (On Mode): 8.8W

* Annual power consumption: 29.8kWh

* Standby power consumption: 0.5W

* Power management: VESA DPM compatible

* Plug & Play: VESA DDC2B

* Tilt angle/Swivel angle: Up 20° Down 0° / -

* VESA mount interface: Yes (100mm pitch)

* Anti-theft hole: Yes (security slot)

* External dimensions (W×D×H):

* With stand: 370×178×380mm

* Without stand: 370×49×320mm

* Stand: Removable

* Weight:

* With stand: 2.8kg

* Without stand: 2.5kg

* Packaging weight/dimensions (W×D×H): 3.8kg / 425×120×440mm

* Operating temperature range: 0～40℃, Stored -20～60℃

■ Operating humidity conditions: 20-80% (non-condensing)

■ Certifications/Legal Regulations: VCCI Class B, J-Moss Green Mark, RoHS Directive compliant (10 substances), International Energy Star Program, Ministry of Education, Culture, Sports, Science and Technology School Environmental Health Standards, PC Green Label (Ver. 14 ★★☆), Green Purchasing Law
