I-O DATA / LCD-D242SAX

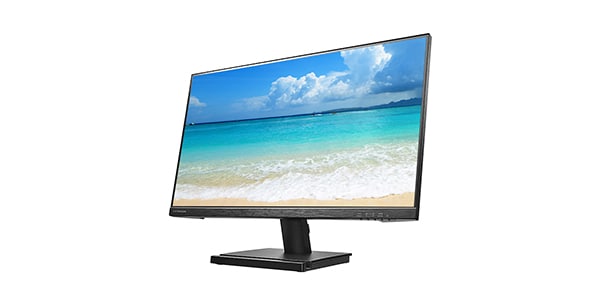

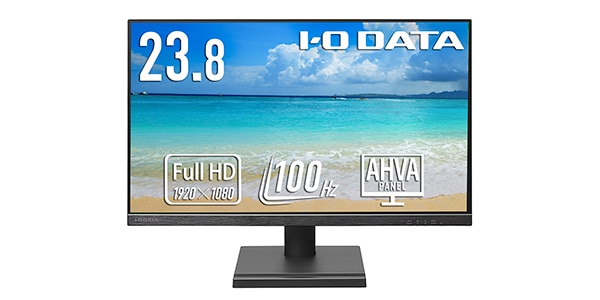

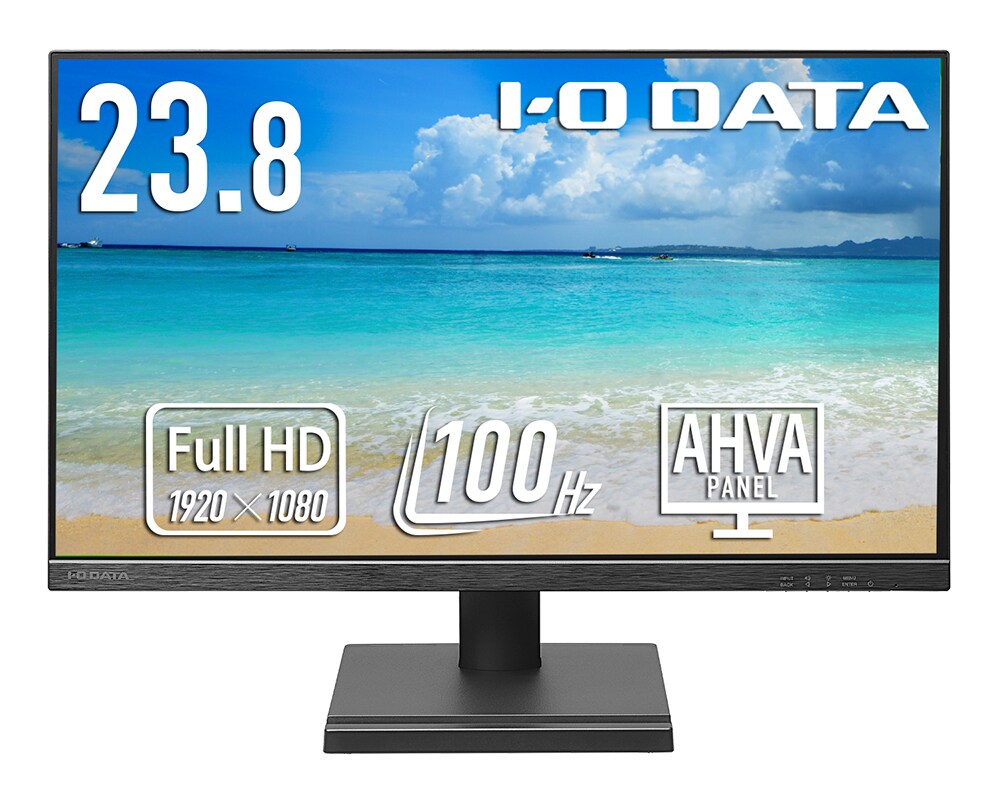

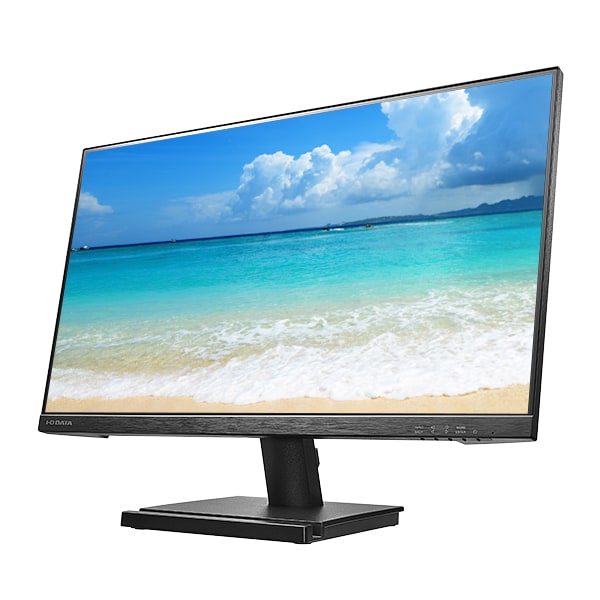

This is a 23.8-inch widescreen LCD monitor with a 100Hz refresh rate. The 100Hz refresh rate reduces image retention and improves visibility compared to standard monitors. It also features a three-sided frameless panel, giving it a clean, sleek look.

■Display Monitor
■Color: Black
■Size: 23.8 inches
■Panel Type/Display Method: TFT 23.8-inch Widescreen/AHVA
■Panel Surface Treatment: Non-Glossy
■Maximum Display Resolution: 1920 x 1080
■Pixel Pitch: 0.2745 (H) x 0.2745 (V) mm
■Display Area: 527.04 (H) x 296.46 (V) mm
■Maximum Display Colors: 16.77 million colors
■Viewing Angle: Vertical: 178°, Horizontal: 178°
■Maximum Brightness (Typical): 250 cd/m²
■Contrast Ratio (Typical): 1300:1
■Response Time: 4 ms [Gray to Gray] *100 Hz/Overdrive Level 3 Setting
■Horizontal Scan Frequency
HDMI: 30-110kHz
DisplayPort: 30-110kHz
■Vertical scan frequency
HDMI: 59-100Hz
DisplayPort: 59-100Hz
■Maximum refresh rate (at maximum resolution): 100Hz

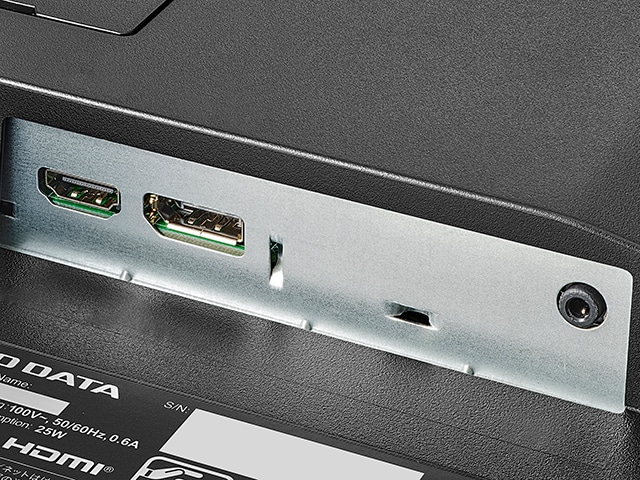

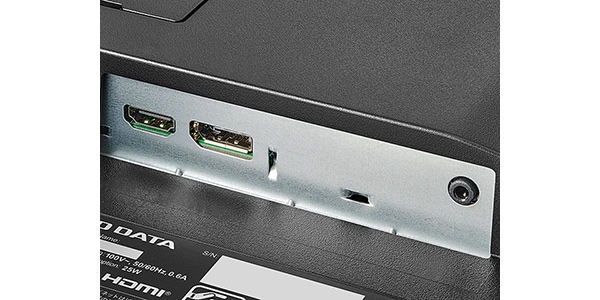

■Video input terminals: HDMI x 1, DisplayPort x 1
■USB hub port:
Upstream: None
Downstream: None
■USB port (other): None
■Audio input/output
Audio input: None
Speakers: 2W + 2W (stereo)
Headphone jack: 3.5mm stereo mini jack
Audio output: None
■Rated voltage: AC100V50/60 Hz (Built-in Power Supply)
■Power Consumption
Maximum: 25W
Normal Use (On Mode): 12.9W
Annual Power Consumption: 40.29kWh
Standby: 0.3W
■Plug & Play: VESADDC2B
■Dimensions
With Stand: Approx. 539 x ​​195 x 403mm (excluding protrusions)
Without Stand: Approx. 539 x ​​49 x 323mm (excluding protrusions)
■Weight
With Stand: Approx. 3.1kg
Without Stand: Approx. 2.7kg

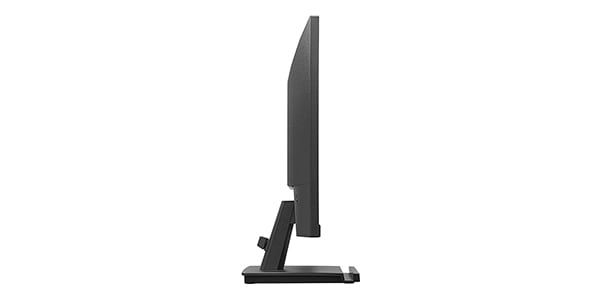

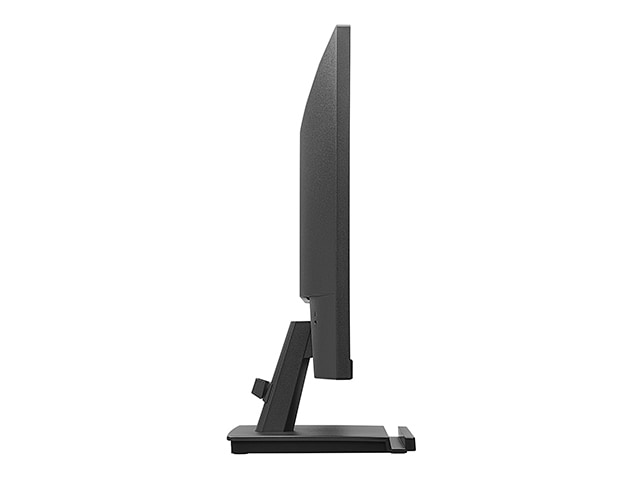

■Tilt Angle: Up: 21.5°, Down: 3.5°
■Swivel Angle: None
■Height Adjustment: None
■Pivot (Rotation): None
■VESA Mount Interface: Yes (100mm x 100mm)
■Wall Mount Interface: None
■Mini PC Attachment Hole (PC Installation Requirements): None
■Anti-Theft Hole: Yes
■Packaged Weight/Dimensions: Approx. 4.5 kg / Approx. 611 x 131 x 433 mm
■Operating Temperature Requirements
Operating: 0°C to +40°C
Stored: -20°C to +60°C
■Operating Humidity Requirements: 20% to 80% (Non-condensing)
■Featured Technologies
HDR: None
Variable Refresh Rate: None
Flickerless: Yes
Blue Light Filter: Yes
■Accessories: Power cord (PSE compliant), HDMI cable, DisplayPort cable, Please Read, Stand, Stand neck, Cable hook
