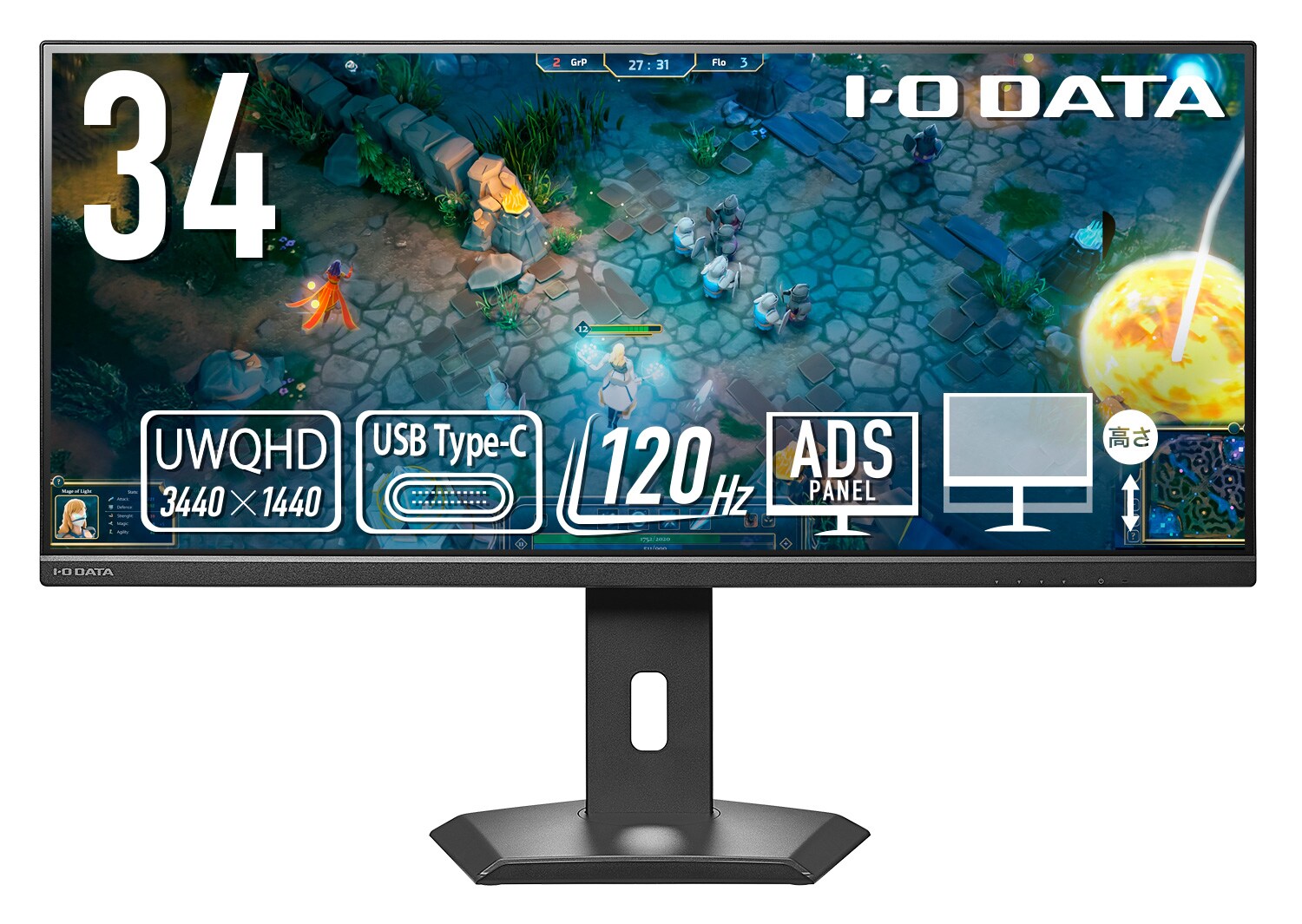

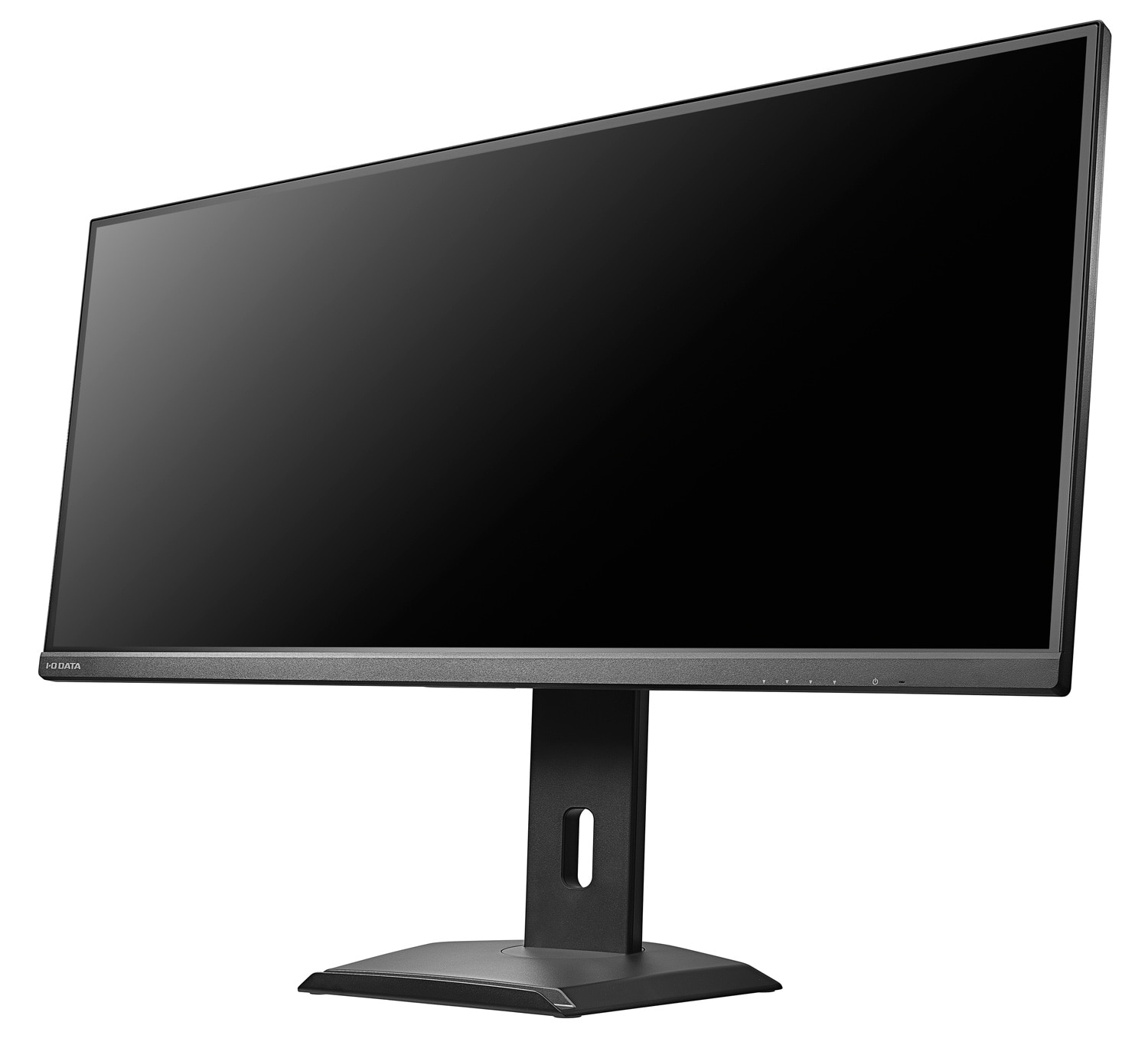

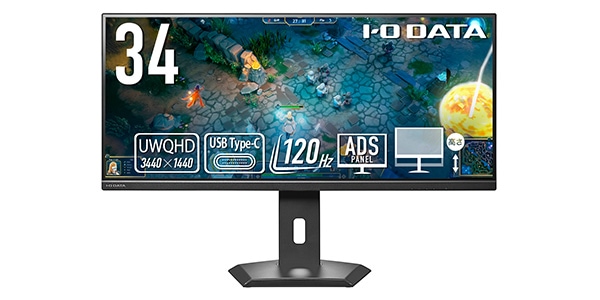

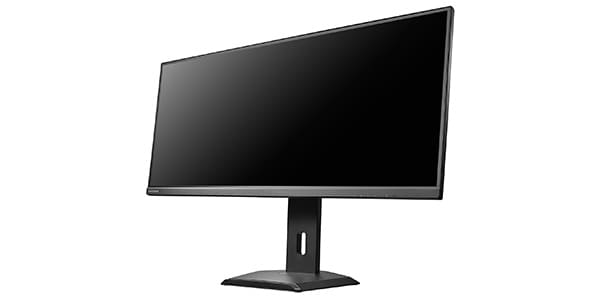

The 34-inch ultra-wide LCD display ""LCD-CWQ341SDB-FX"" can input video and supply up to 65W of power to a laptop computer with a single USB Type-C cable.

recommended item

recommended item


■Display Monitor

【Compatible Devices】

■Compatible PC Models: Windows PCs, Macs, Chromebooks

■Compatible Game Consoles: Nintendo Switch, PS4, PS4 Pro, PS5, Xbox Series X, Xbox Series S

*Compatibility may vary depending on the game console version.


■Tested Devices: The following devices (models and generations) can operate without using the AC adapter included with the device by using the bus power supply of the [USB 1A FW UPDATE] port of this product. (Please enable ""Quick Start"" on this product.)

・Microsoft Wireless Display Adapter, Microsoft 4K Wireless Display Adapter

・Fire TV Stick (3rd generation), Fire TV Stick 4K (1st and 2nd generation), Fire TV Stick 4K Max (1st and 2nd generation)

*A low power warning may appear on the screen, or some applications may not function correctly. In such cases, please use the AC adapter included with the device.


【Specifications】
■Color: Black
■Panel Type: TFT 34-inch Wide/ADS
■Panel Surface Treatment: Non-glare
■Maximum Display Resolution: 3440×1440
■Pixel Pitch (mm×mm): 0.2325(H)×0.2325(V)
■Display Area (mm×mm): 799.8(H)×334.8(V)
■Maximum Display Colors: 16.77 million colors (out of 1.07374 billion colors) *When using 10-bit input
■Viewing Angle: Up/Down: 178° Left/Right: 178°
■Maximum Brightness (Typical Value): 400 cd/m²
■Contrast Ratio (Typical Value): 1,000:1
■Response Time: 3ms [GTG] *When using 120Hz/Overdrive Level 2
■Horizontal Scanning Frequency (kHz):

・HDMI: 31.4~183.0

・DisplayPort: 31.4~183.0

・USB Type-C: 31.4–183.0 (when OSD USB setting is set to 2.0)

■Vertical Scan Frequency (Hz):

・HDMI: 29.9–120.0

・DisplayPort: 59.8–120.0

・USB Type-C: 59.8–120.0 (when OSD USB setting is set to 2.0)

■Maximum Supported Refresh Rate (Hz) [at Maximum Resolution]:

・HDMI: 100

・DisplayPort/USB Type-C: 120

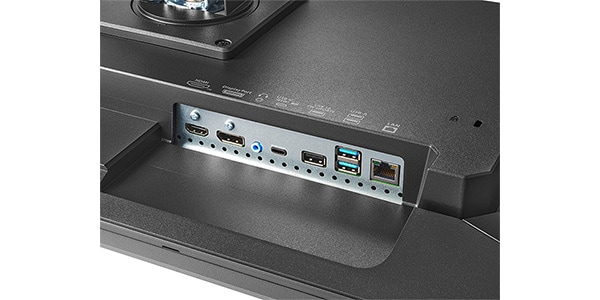

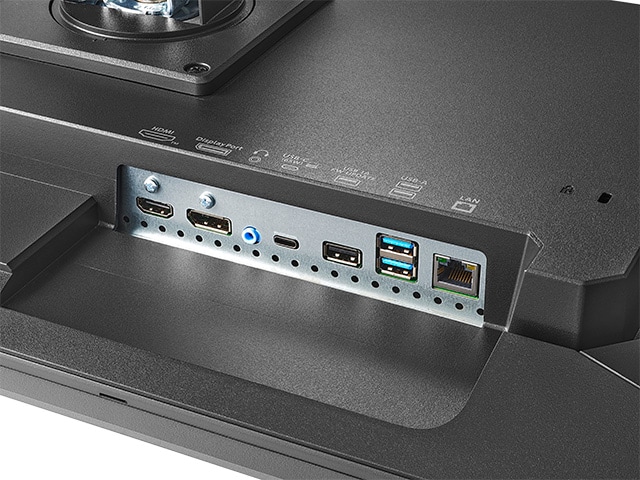

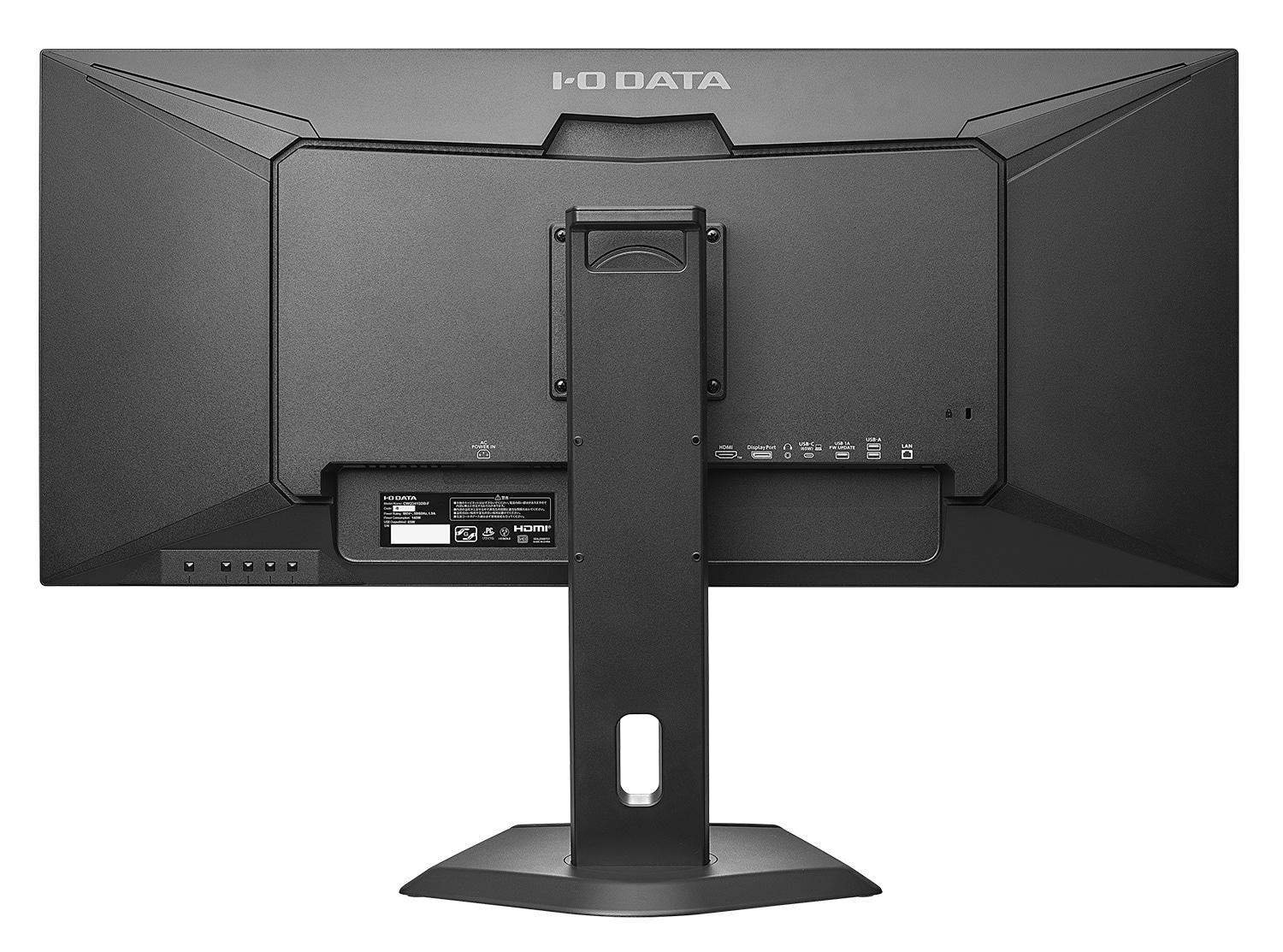

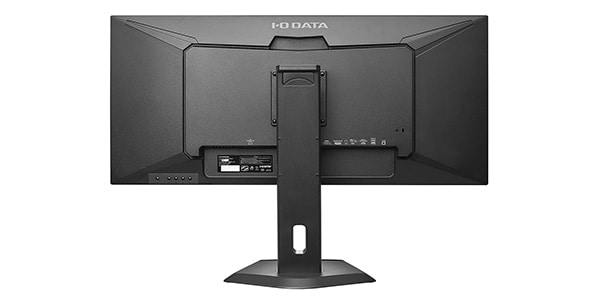

■Video Input Terminals: HDMI x 1, USB Type-C x 1, DisplayPort x 1

■Video Output Terminals: -

■RS-232C Terminal: -

■LAN Terminal: RJ-45 x 1 (1000BASE-T/100BASE-TX/10BASE-T)

■USB Hub Ports:

・Upstream: USB Type-C x 1 (USB 3.2 Gen1, DisplayPort Alt Mode, USB PD) (Maximum 65W)

・Downstream: USB-A x 2 (USB 3.2 Gen1 Max 5V/0.9A)

■USB Port (Other): USB-A x 1 (Power supply: 5V/1A, Maintenance)

■Audio Input/Output:

・Audio Input: -

・Speaker: -

・Headphone Jack: Stereo mini jack φ3.5mm

・Audio Output: -

■Rated Voltage: AC100V 50/60Hz (Built-in power supply)

■Power Consumption:

・Maximum: 140W

・Normal Use: 27.8W

・Annual Power Consumption: 85.3kWh

・Standby: 0.5W

■Plug & Play: VESA DDC2B

■External Dimensions (W×D×H):

・With Stand: Approx. 817×260×443~558mm *Excluding protrusions

・Without Stand: Approx. 817×61×367mm *Excluding protrusions

■Three-view drawing: PDF

■Weight:

・With stand: Approx. 9.3kg

・Without stand: Approx. 6.8kg

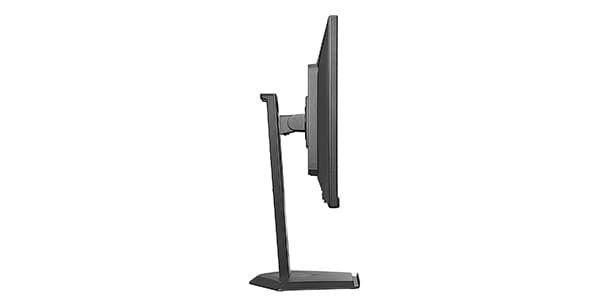

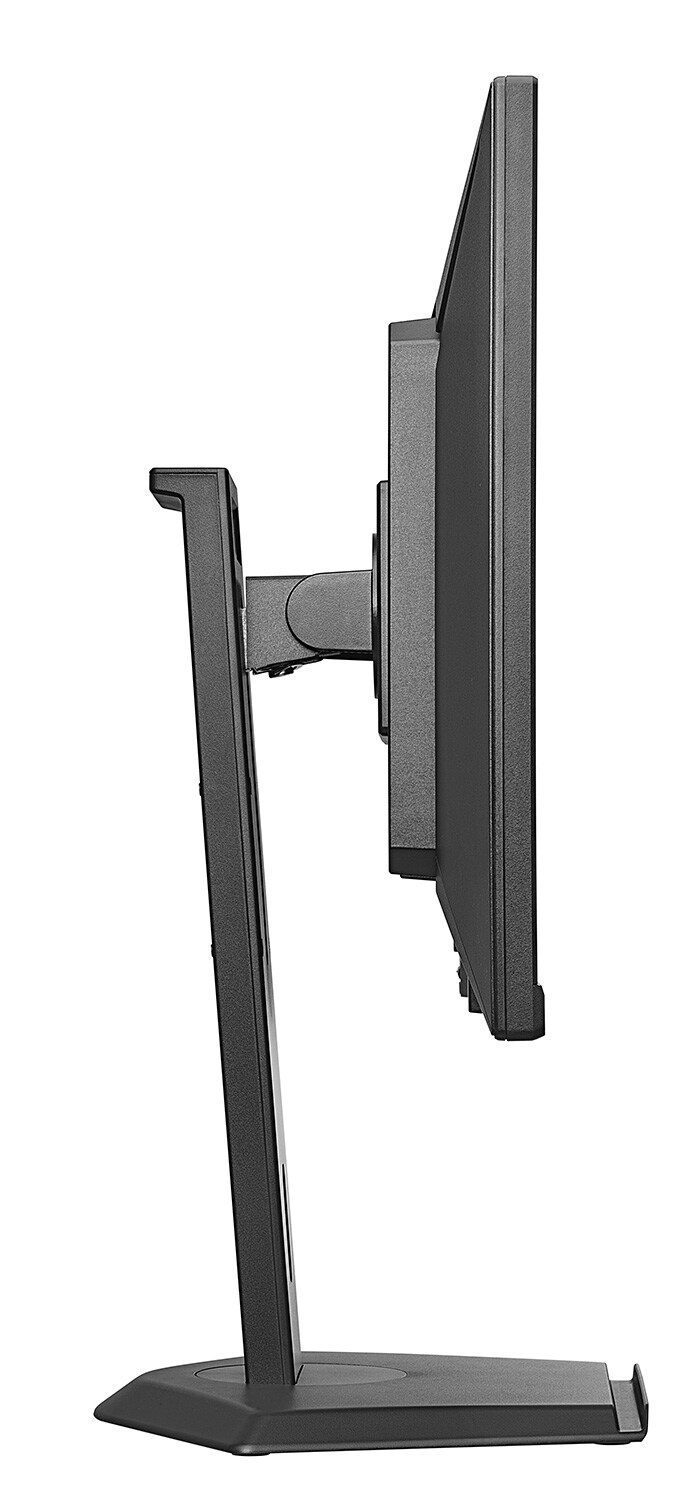

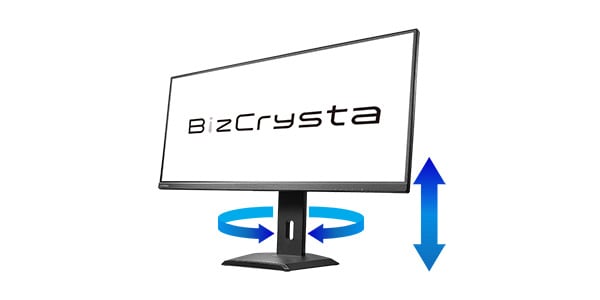

■Tilt angle: Up: 23° Down: 5°

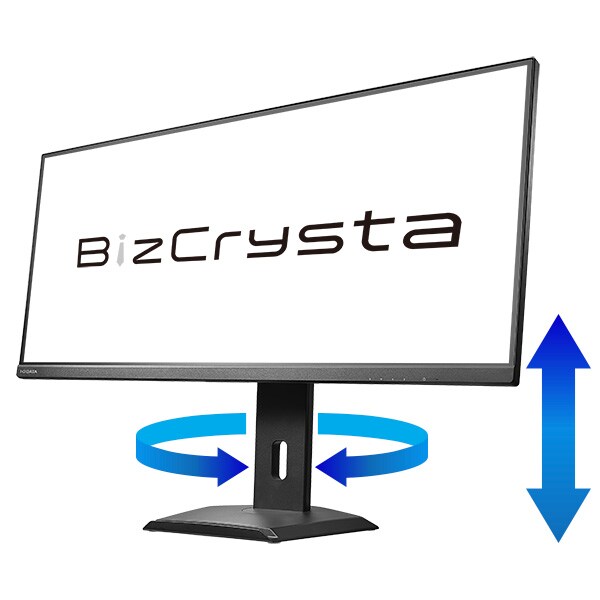

■Swivel angle: Left: 45° Right: 45°

■Height adjustment: 120mm

■Pivot (rotation): -

■VESA mount interface: ○ (100mm x 100mm)

*The freestyle stand of this product is attached to the VESA mount interface.

■miniPC Attachment Hole (PC Installation Requirements): VESA Mount Interface: 75mm x 75mm / Maximum Mountable Weight: 1.5kg or less / Screw Size: M4 x 30mm or larger (may vary depending on VESA mount thickness)

■Anti-Theft Hole (Kensington Security Slot): Yes

■Packaging Weight/Dimensions (W x D x H): Approx. 11.8kg / Approx. 900 x 220 x 471mm

■Operating Temperature Conditions:

Operating: 0℃ to 40℃

Storage: -20℃ to 60℃

■Operating Humidity Conditions: 20% to 80% (non-condensing)

■Estimated Assembly Time: Approx. 3 minutes (1 adult)

■Features:

HDR10 Input Support

Variable Refresh Rate: VESA Adaptive-Sync (DisplayPort, USB Type-C), HDMI 2.1 VRR (HDMI)

Flicker-Free: Yes

Blue Reduction: Yes

* Other features: Height adjustment, PbP compatible

* Certifications and regulations: VCCI Class B, RoHS compliant (10 substances), J-Moss Green Mark, Electrical Appliance and Material Safety Law (main unit), PC recycling mark

* Included accessories: Power cord (PSE compliant), HDMI cable, DisplayPort cable, USB cable (C-C USB 5Gbps USB 3.2 Gen1), ""Please Read"" document, base, miniPC mounting screws x 4, miniPC mounting nuts x 4
