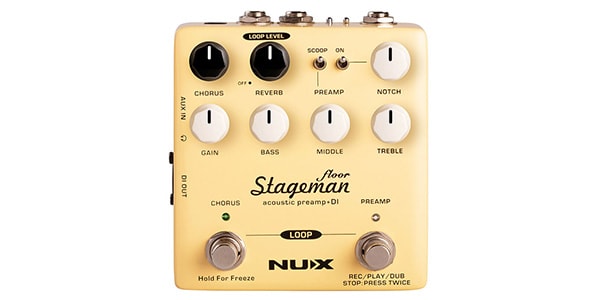

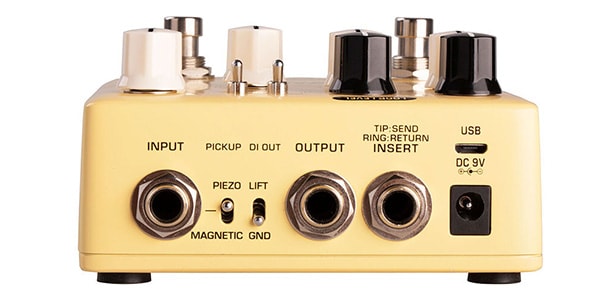

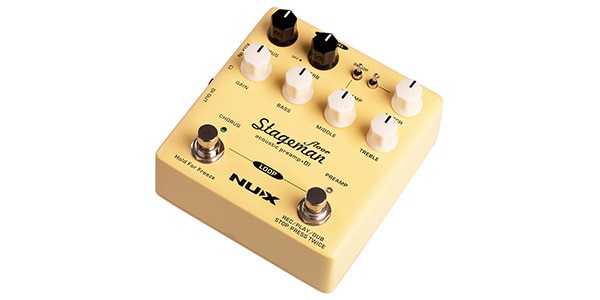

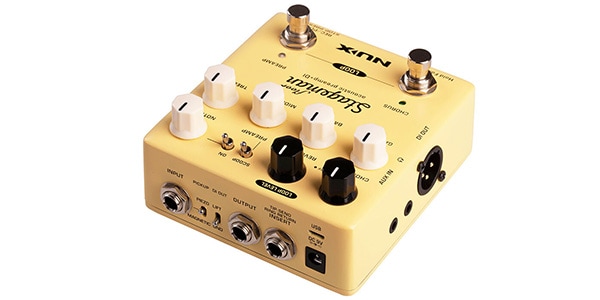

NUX / Stageman Floor

This analog-designed acoustic preamp features digital effects and a 60-second looper. It features a [LF] 3-band EQ (with MID scope toggle switch), a notch filter, and input gain control, delivering natural, rich headroom. It's ideal for creating a wide range of sounds for live performances and recording.

■Acoustic Guitar Preamp
■Input Impedance: 1MΩ (MAGNETIC), 4.7MΩ (PIEZO)
■Send Impedance: 1kΩ, Return Impedance: 1MΩ
■Sampling Rate: 44.1kHz
■A/D Converter: 32-bit
■Signal Processing: 32-bit
■Frequency Response: 20Hz~20kHz - ±1dB
■Noise Level: -110dBu (A-Weighting)
■Dynamic Range: 120dB
■Current Draw: 180mA
■EQ: TREBLE ±10dB @15kHz, MIDDLE ±10dB @1.8kHz, BASS ±10dB @80Hz
■Power: 9V DC (center negative; NUX ACD-006A recommended)
■Dimensions: 105(L) x 115(W) x 58(H) mm
■Weight: 445 g
