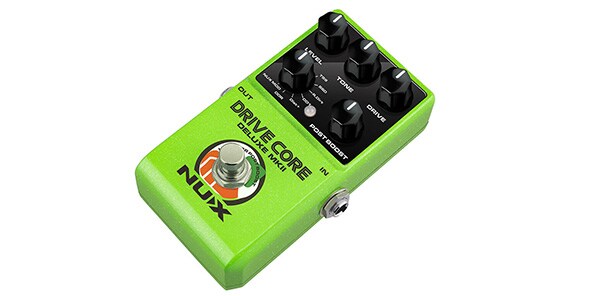

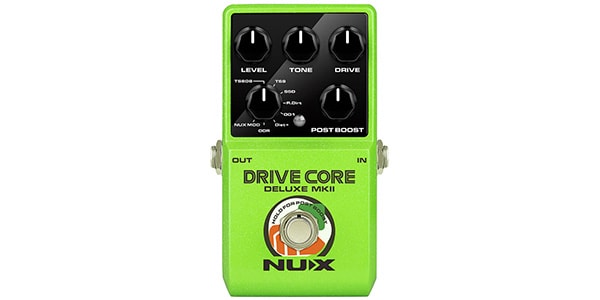

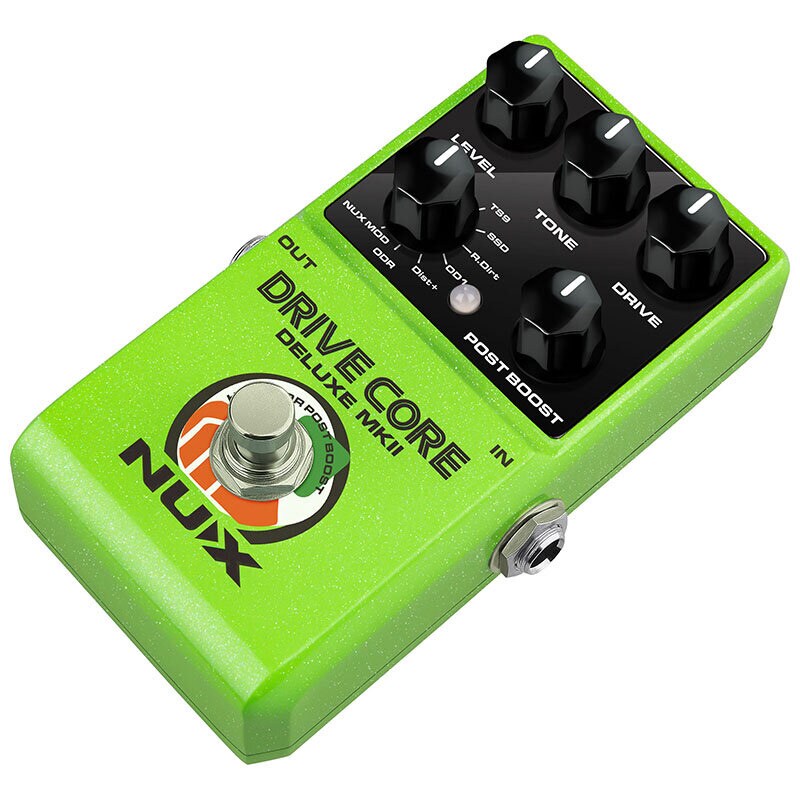

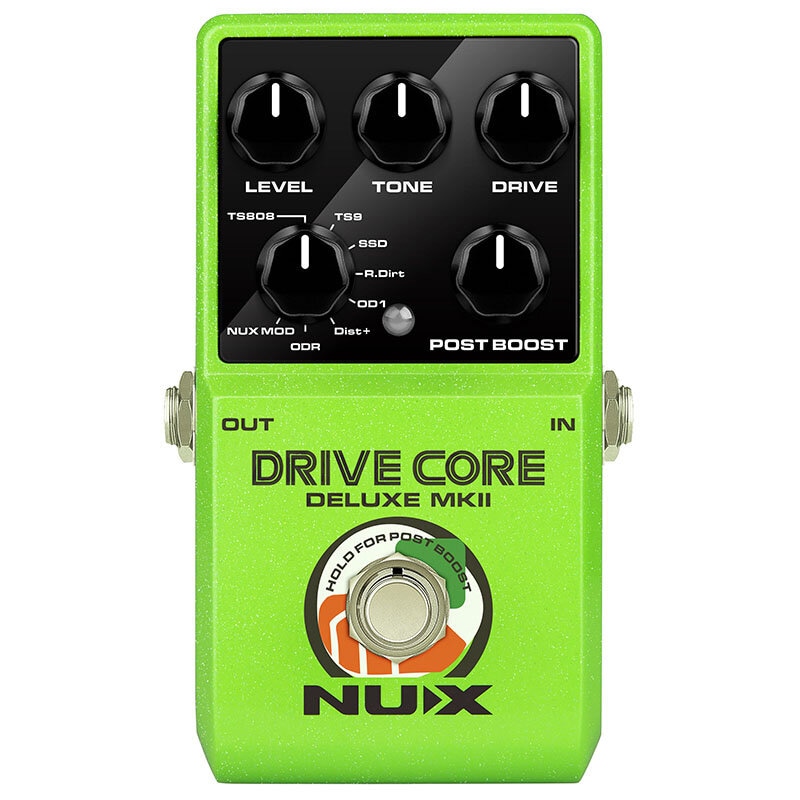

NUX / Drive Core Deluxe MKII

The Drive Core Deluxe MKII (WASABI DRIVE) is a combination overdrive pedal that combines eight analog circuits. Its high-quality relay circuitry allows for smooth switching, allowing you to recreate a wide variety of overdrive sounds with just one unit. It also features a post-boost that can be turned on/off by holding the footswitch, providing up to 7dB of boost.

■Features
- Eight iconic drive circuits condensed into one pedal.
TS808: Smooth and creamy overdrive from the Tube Screamer (JRC4558 Version), one of the world's most famous overdrives. It elevates the amp's sound and recreates an impressive tone.
TS-9: Recreates the warm and viscous sound of the Tube Screamer (TA75558 Version), arguably the most famous overdrive.
SSD: The NUX ""Steel Singer"" overdrive pedal, featuring the tone character of a famous California boutique amp.
R.Dirt: Recreates the Red Dirt overdrive sound, which is more distinct than the original Tube Screamer.
OD-1: Recreates the warm and smooth overdrive sound of a tube amp, a pedal released in 1977 and considered the foundation of overdrive.
Dist+: Used in a wide range of music genres, it recreates everything from natural overdrive to fuzz tones.
ODR-1: Recreates a German-designed natural overdrive pedal popular in Nashville. It offers a versatile yet unique sound.
NUX MOD: A bass-cut modification of the ODR-1. Useful for reducing low frequencies.

- Smooth switching between the 100% analog circuitry with a digital switching rotary knob.
- Equipped with a post-boost that provides up to 7dB of boost.
- True bypass.

■SPECIFICATIONS
Input impedance: 500kΩ
Output impedance: 820Ω
Power: 9V DC (negative tip), recommended adapter: NUX ACD-006A
Current Draw: 35mA
Dimensions: 122(L) x 72(W) x 47(H) mm
Weight: 270g
