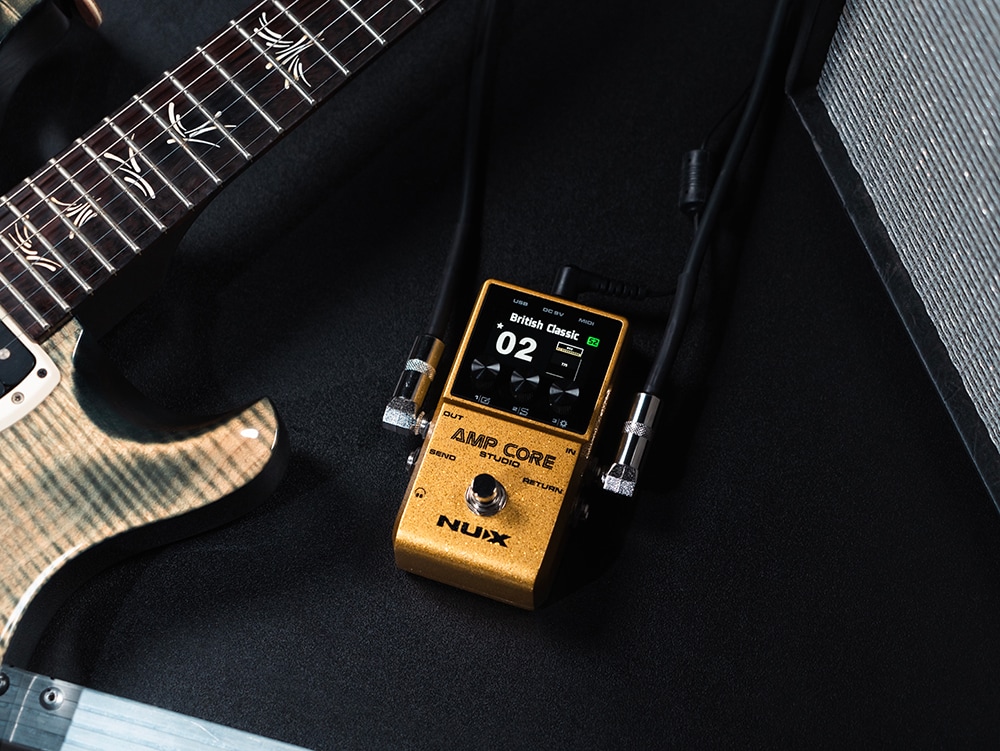

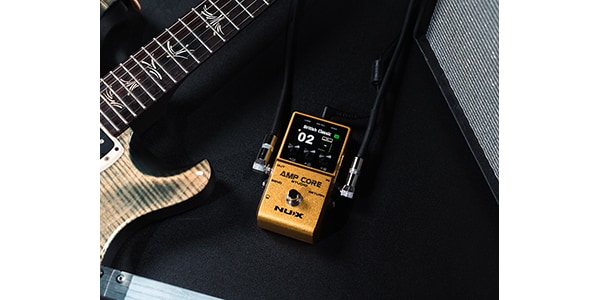

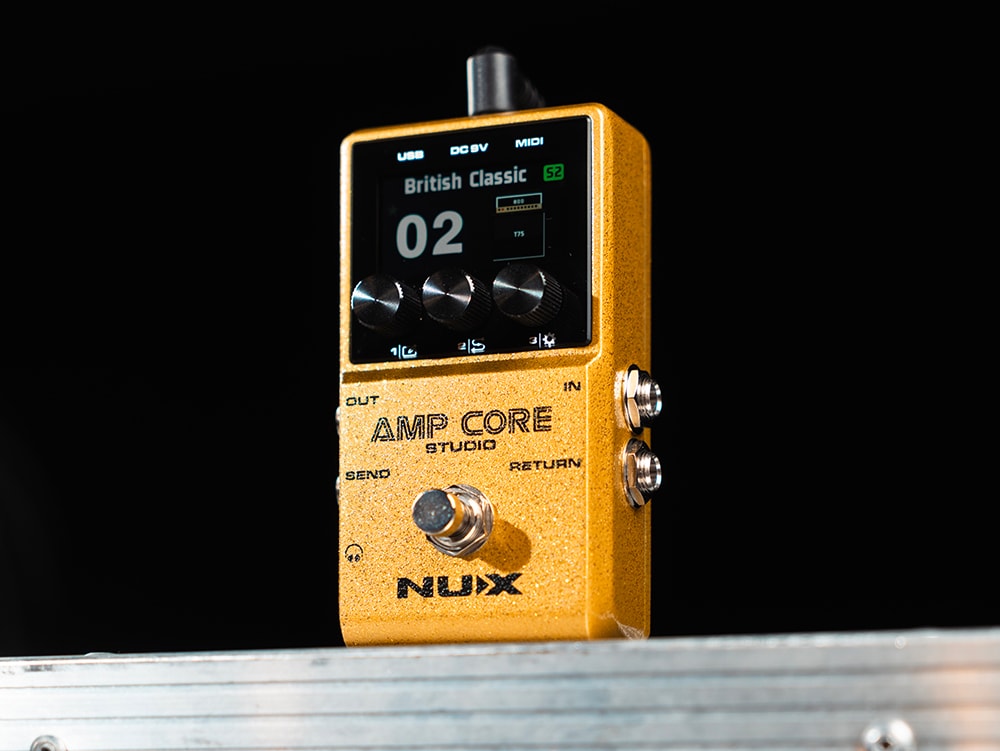

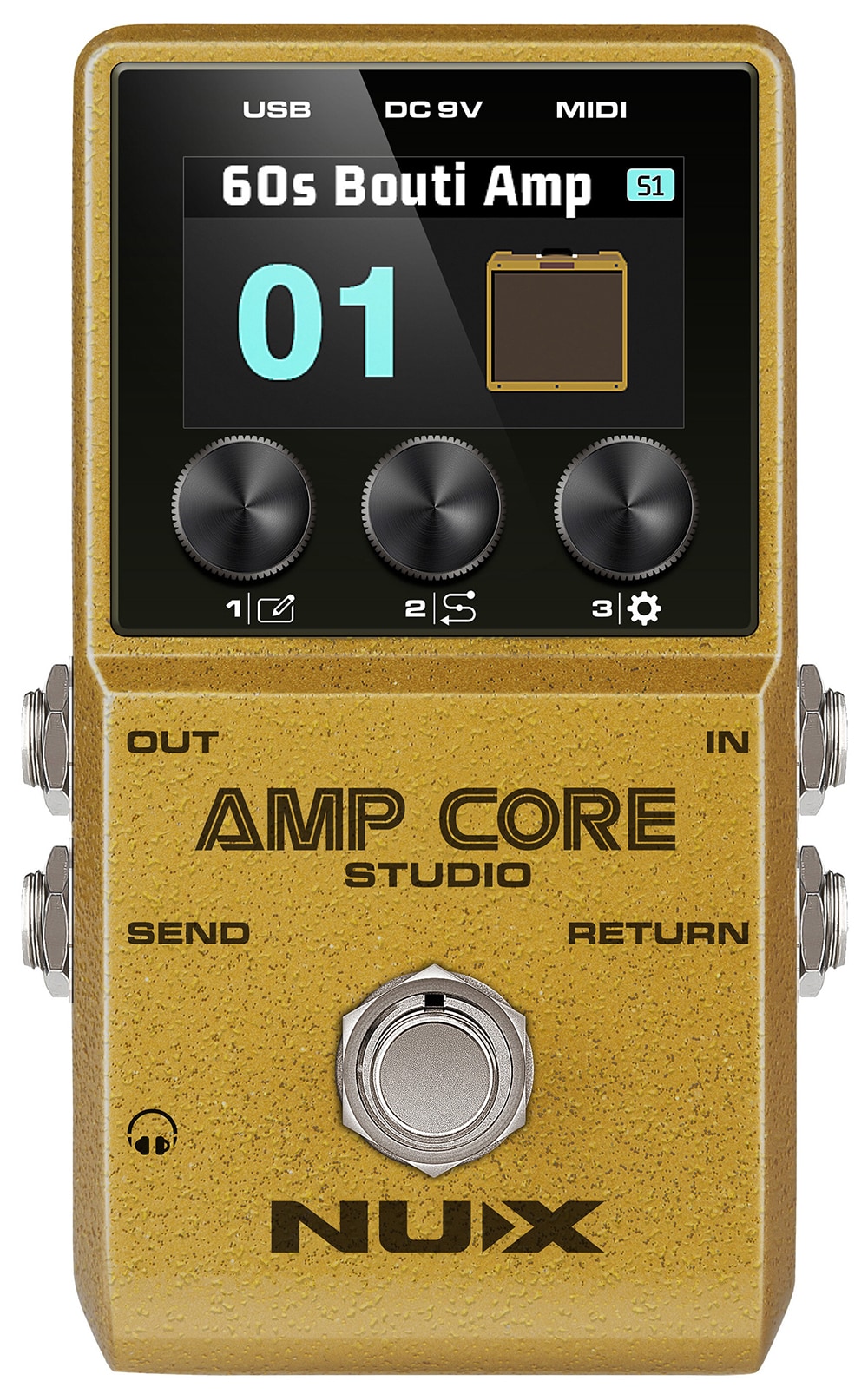

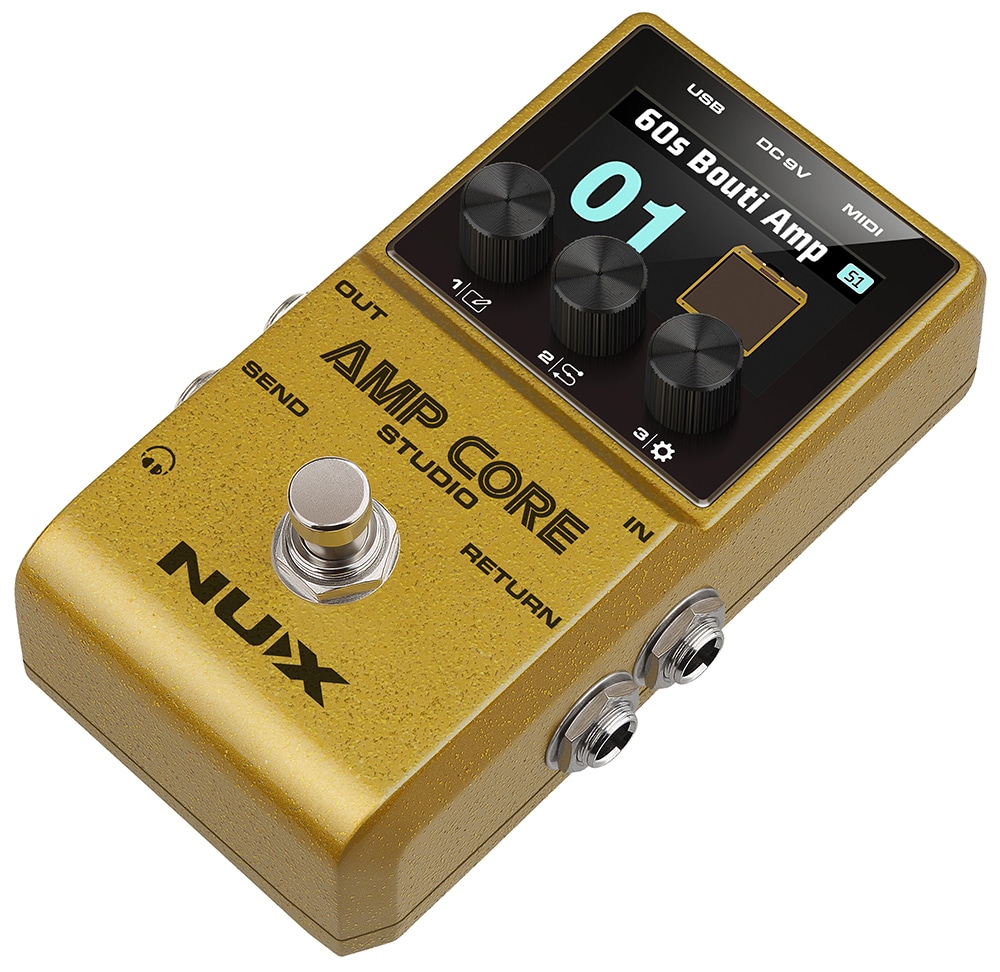

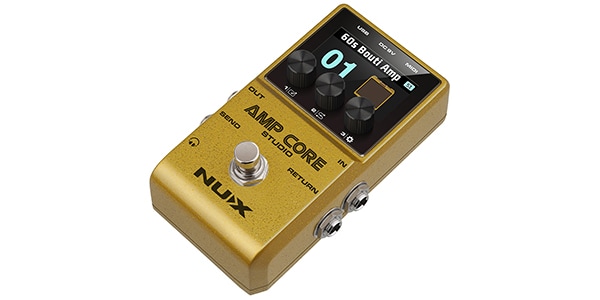

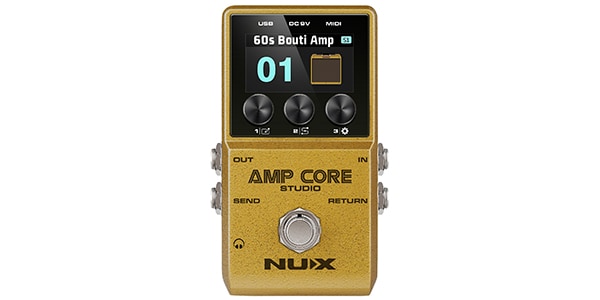

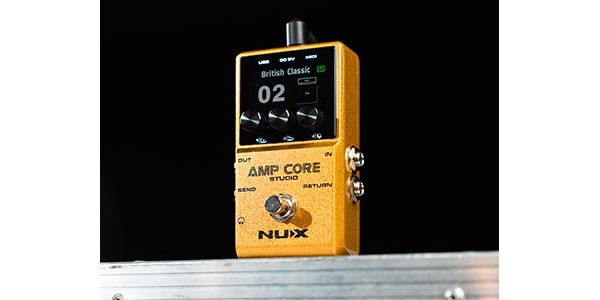

NUX / Amp Core Studio

This amp modeler recreates 26 legendary amp models with realistic sound and feel. It also features cabinet IRs, a noise gate, equalizer, send/return, and a headphone jack. Connect it to your PC for use as an audio interface and to load third-party IRs.

■Features
- 26 legendary amp models condensed into a compact pedal.
- TS/AC-HD (white box) amp modeling algorithm delivers authentic amp feel and playability.
- 33 cabinet IRs and 12 free slots for loading third-party IRs.
- Three scene modes allow seamless switching between different amp models.
- Built-in noise gate (NG), EQ, patch level (P.L.), and send/return (S/R) functions with adjustable connection order.
- Excellent sound quality with low 1.2 ms latency and a wide dynamic range of 108 dB.
- 48 kHz/32-bit high-precision processor delivers clear audio performance.
- Connect to a PC as an audio interface and use dedicated software to edit presets and load IRs.
- MIDI terminals allow control with external MIDI devices. A 1/8"" TRS - 5-pin MIDI cable is also included.
- Headphone jack included.

■SPEC
Sampling Frequency: 48KHz
AD converter: 24-bit
Signal Processing: 32-bit
Frequency Response: 20Hz-20KHz
Noise Level: -100dBu
Dynamic Range: 108dB
Power Consumption: 110mA-120mA
Input: IN, RETURN
Output: OUT, SEND, PHONES
Display: TFT color LCD display
Power: 9V negative tip power adapter
Dimensions: 122mm (L) x 72mm (W) x 48mm (H)
Weight: 264
