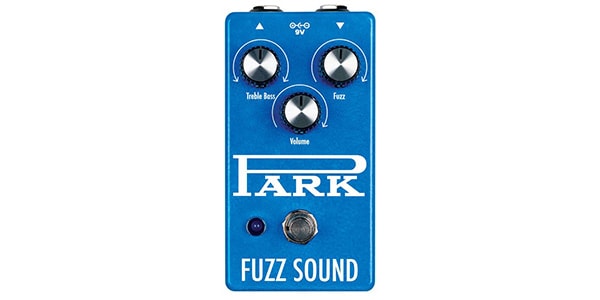

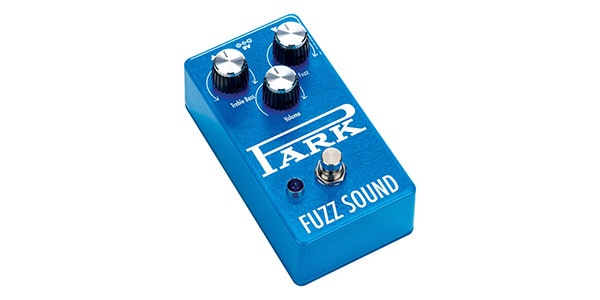

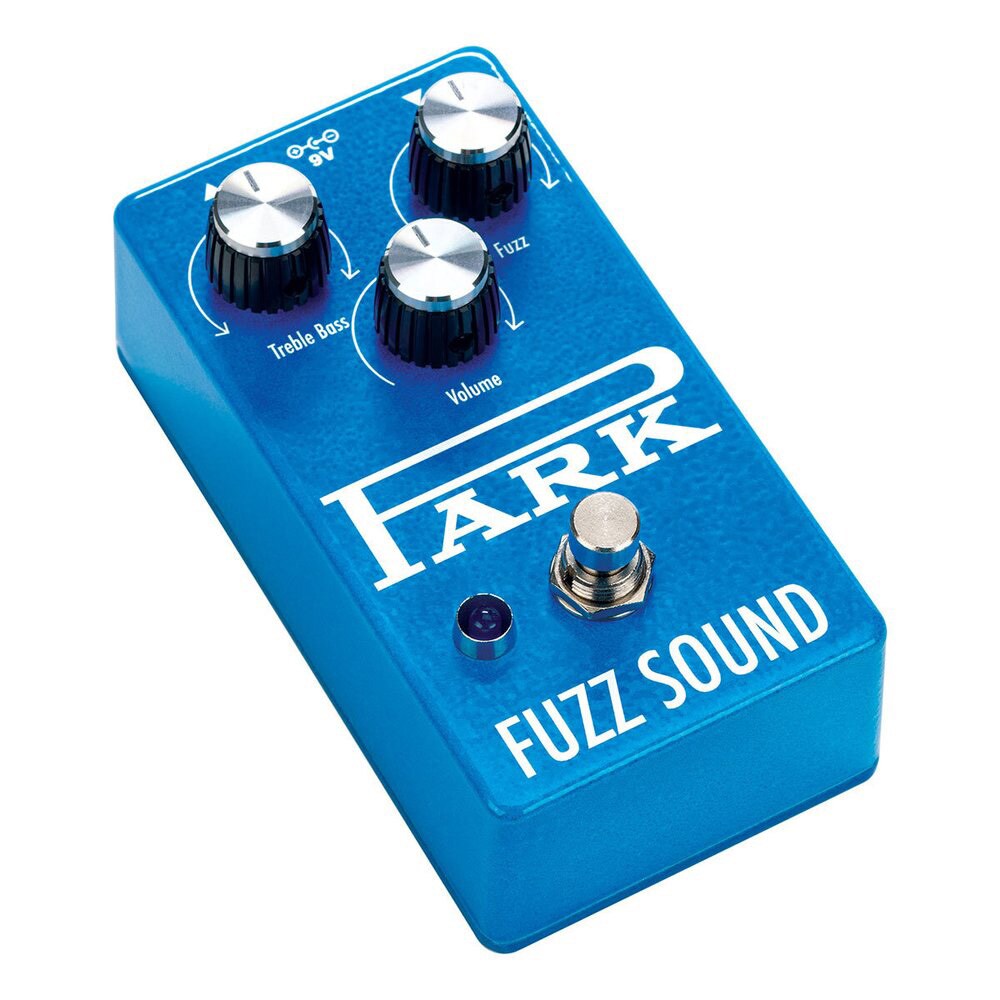

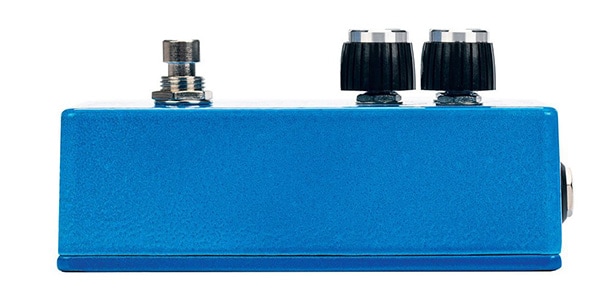

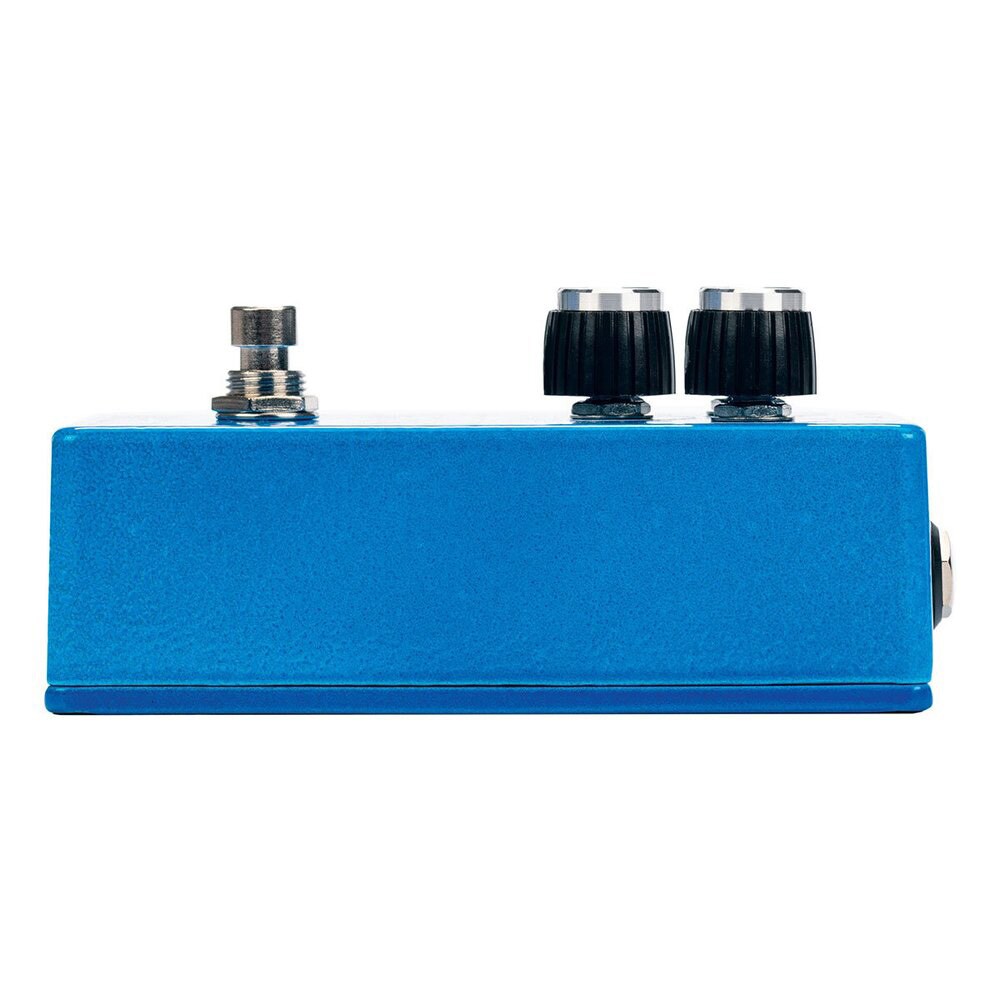

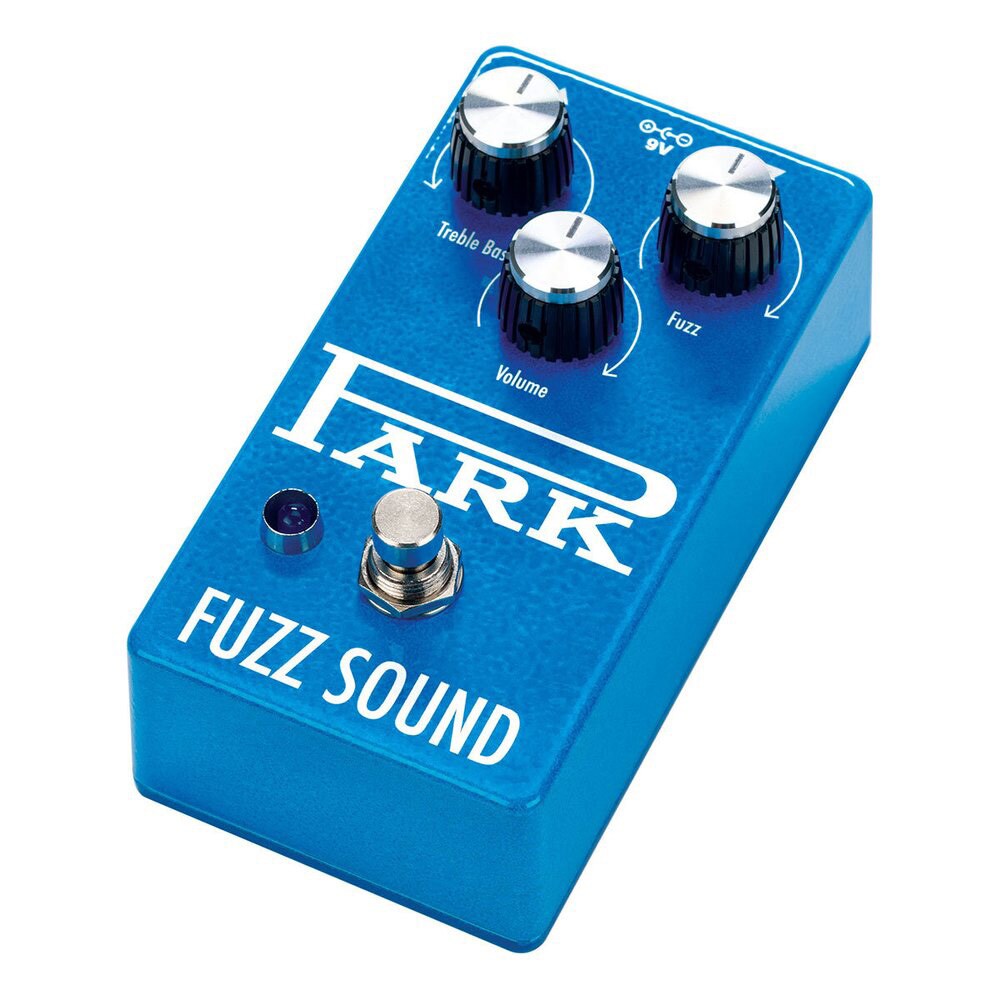

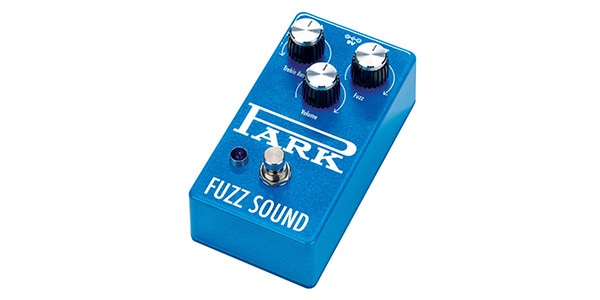

EARTHQUAKER DEVICES / Park Fuzz Sound

This Park Fuzz Sound is a collaboration between Earthquaker Devices and Park Amplifiers that faithfully reproduces the sound of the original Park Fuzz Sound, with improvements that make it compatible with modern players.

■Features
・Uses metal film resistors and capacitors to reduce noise
・Stable tone is achieved by manually selecting the matching of NOS germanium transistors one by one.
・Approximately twice the amount of fuzz than the original
・Equipped with a true bypass switch and LED in a small housing
・Can be used with regular power supply

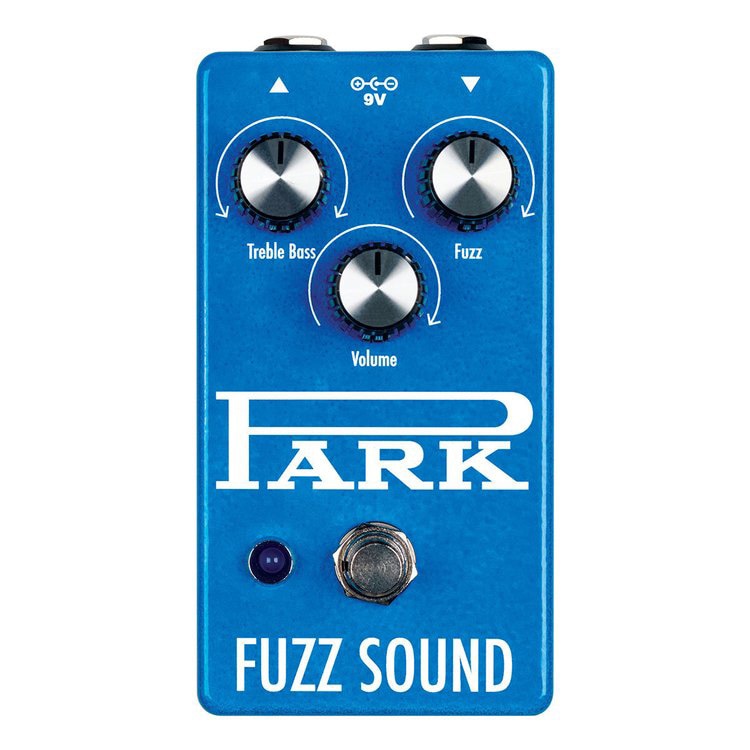

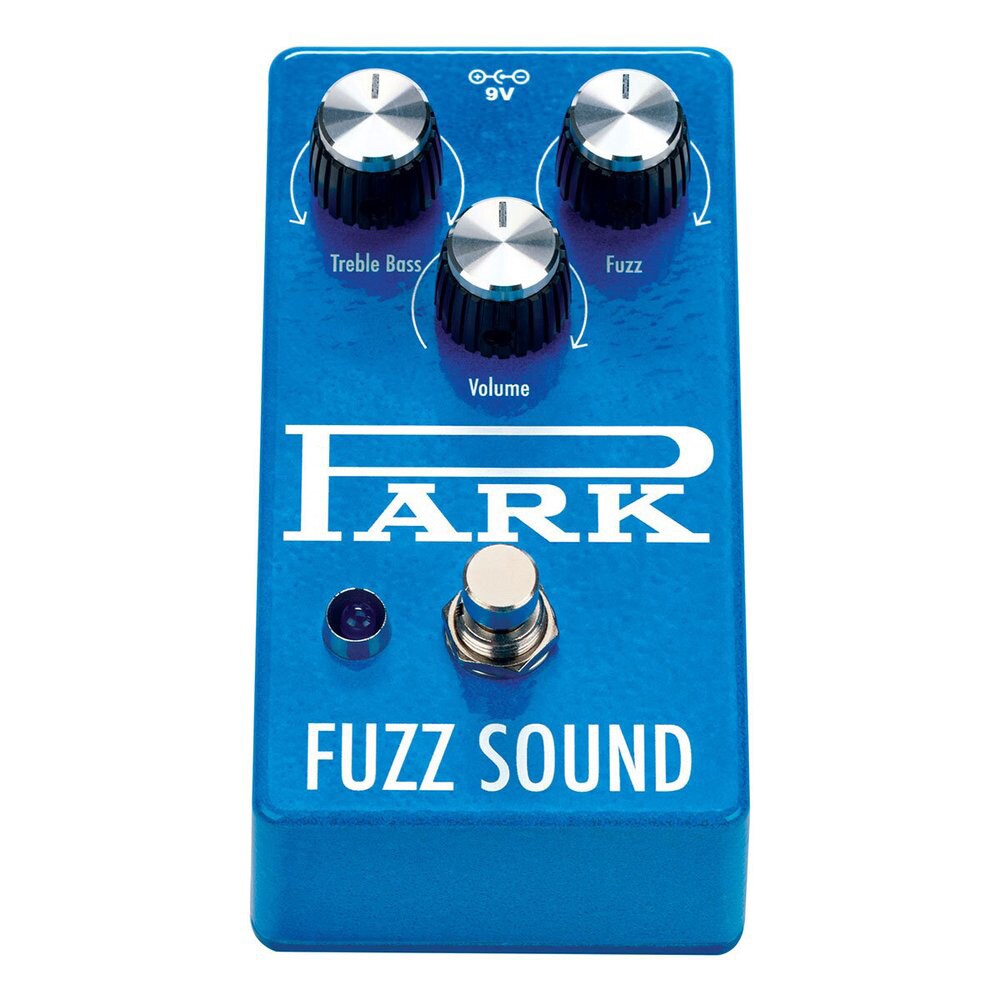

■Control
1. Treble/Bass: Tone settings. Turning it to the left brings out the high frequencies, and turning it to the right increases the bass and creates a thicker sound.
2. Volume: Volume setting.
3. Fuzz: Setting the amount of fuzz.

■SPEC
Dimensions: 121 x 64 x 57 (mm)
Current consumption: 3 mA
Input impedance: 100 kOhm
Output impedance: <1 kOhm

Switch: Adopts an electronic relay type true bypass, so no sound will be output without power.

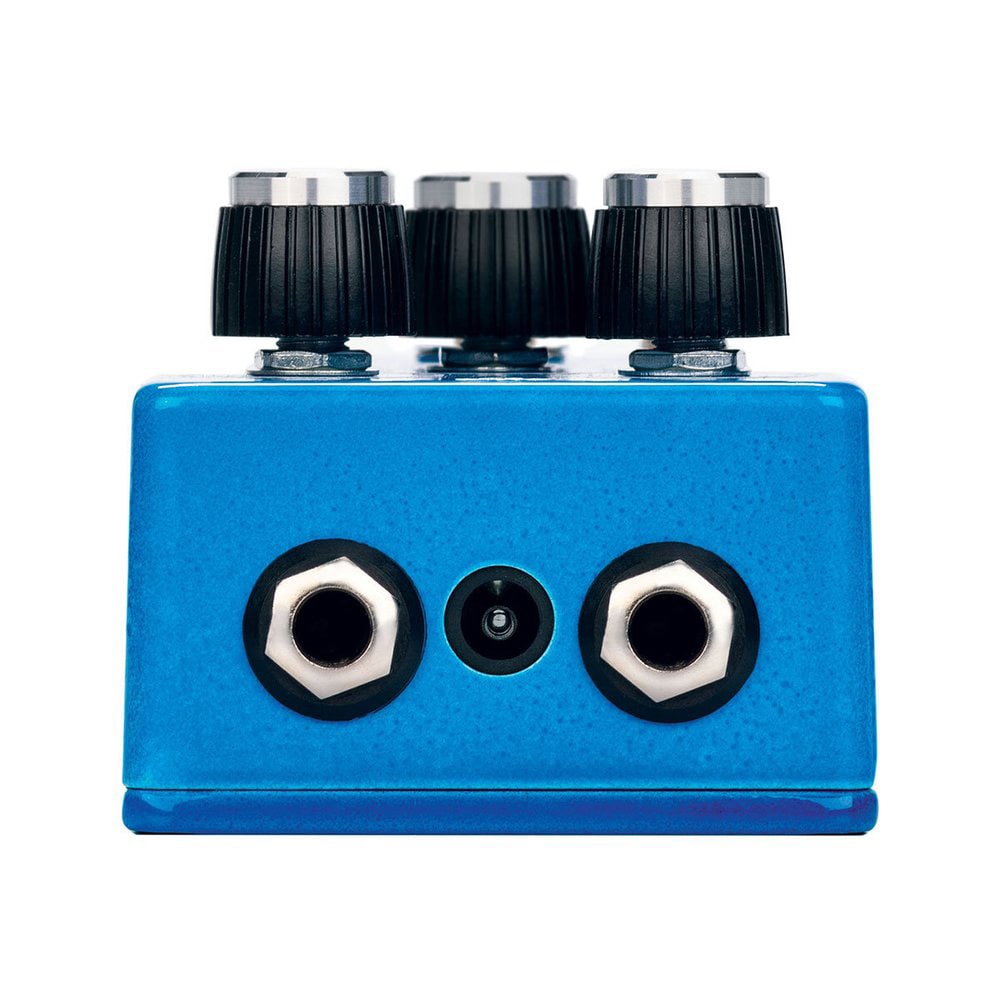

Power supply: This product can be used with a 9V, AC adapter and a 2.1mm center negative adapter. We do not recommend using daisy chains or non-transformer power adapters as they may generate noise. Also, please do not use a power supply exceeding 9V as this may cause a malfunction!
