API / asm164

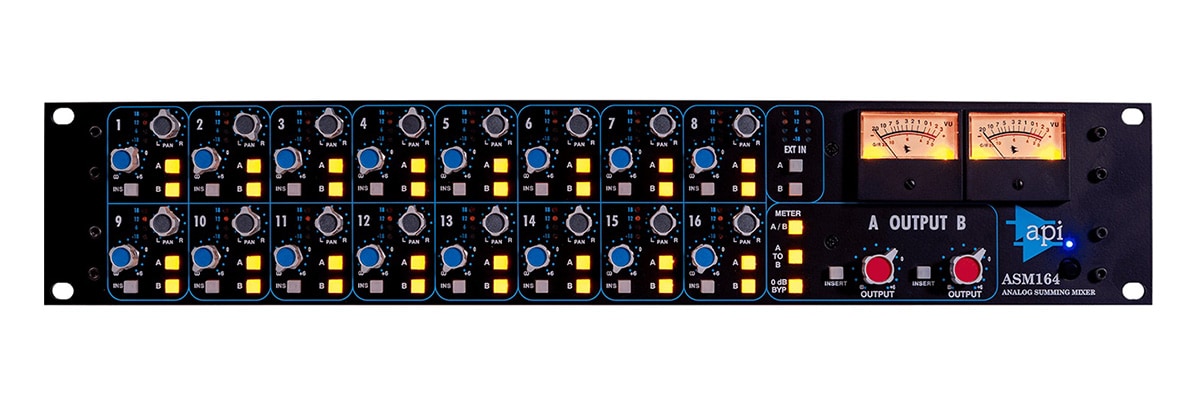

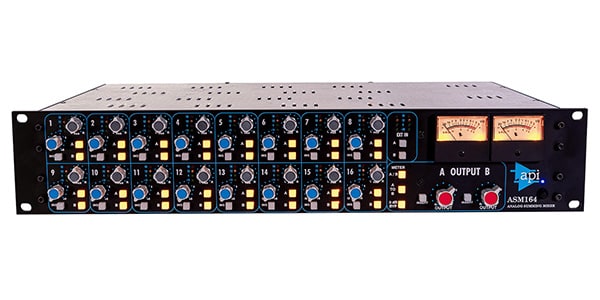

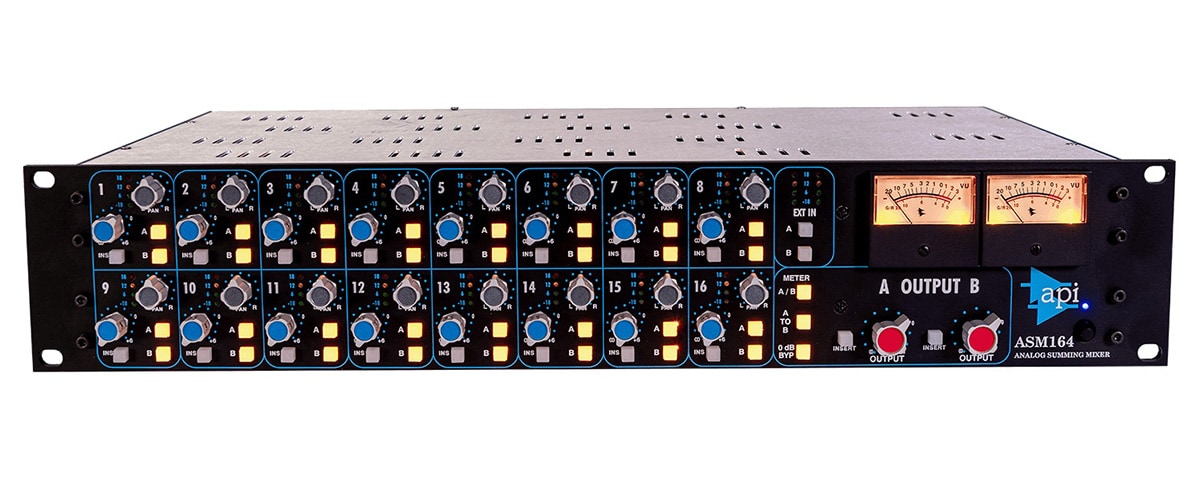

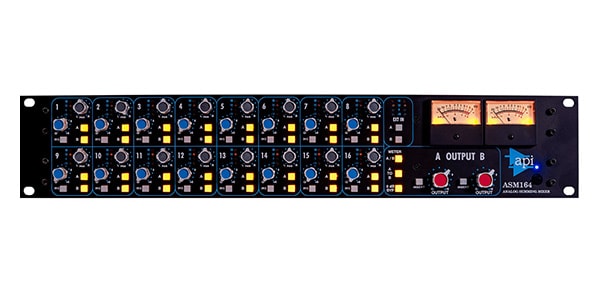

API/ASM164 is a 16ch analog summing mixer.

■16 channel analog summing mixer

ASM164 is a 16ch analog summing mixer.
Designed based on the summing section installed in THE BOX console, it is a professional studio specification that inherits API sound.
This is a great product that is convenient for installing API console-level summing functions in various situations such as project studios and home studios.

■ Main features

・16ch summing channel.
・DB-25 terminal (balanced/line level).
・0dB BYPASS switch (global).
-Equipped with API 2510 operational amplifier in the input section.
-Equipped with Send/Return for each channel.
-Equipped with a 4-stage LED meter on each channel.
- 2 stereo program buses (MIX-A, MIX-B).
- Routing from each channel to MIX-A and MIX-B is possible.
- Bread using a continuously variable pot (with center click).
・Level control using a 31-step pot.
- Stereo external input terminal (balanced) that can be routed to MIX-A and MIX-B.
・Equipped with API 2520 transformer in the output section.
- Analog & stereo output VU meter.

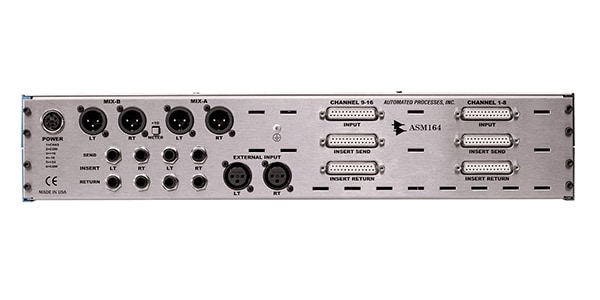

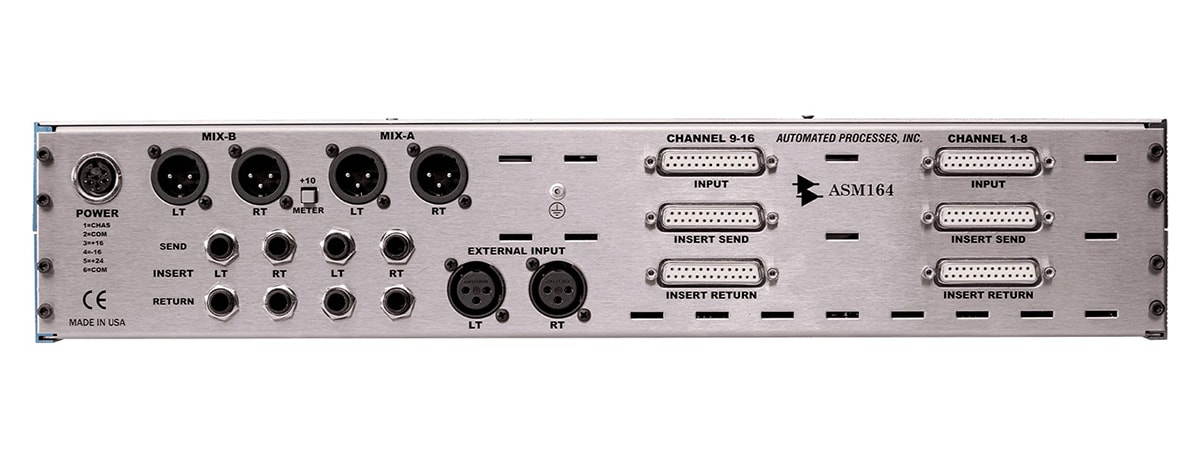

- Input and output terminals corresponding to various scenes are consolidated on the rear panel (balanced).
・External power supply unit.

Input impedance 30K Ω, Balanced
Output impedance 75 Ω, Transformer Coupled, Balanced
Maximum input level +25dBu
Maximum output level +25dBu
Frequency response +/-0.5dB from 20Hz to 40kHz
THD< 0.02% @+4dBu, 1kHz
S/N ratio -112dBr
Power 30w, external power
Dimensions: approx. 48.3cm x 8.9cm(2U) x 28.6cm
Weight 5.5kg
