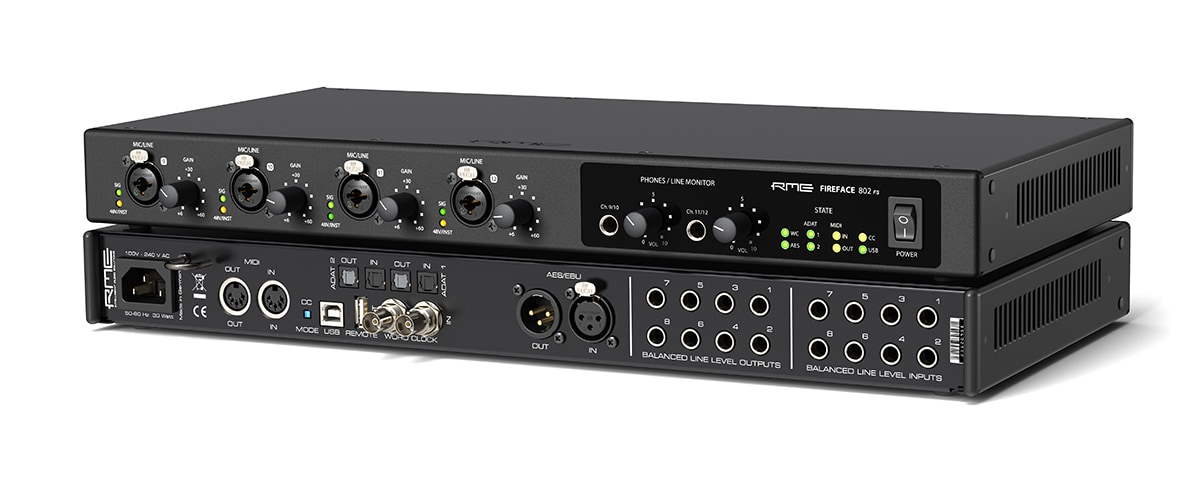

RME / Fireface 802 FS Anniversary Edition

The ``Fireface 802 FS'', which has undergone a new evolution as the successor to RME's famous Fireface 800, is a high-end audio interface that combines uncompromising sound quality and stability, extremely flexible functions, and simple operability into a 1U size housing. A special model commemorating the 20th anniversary of Fireface 800.

■Audio interface
■Fireface 800 20th anniversary model
*Product specifications are the same as regular products.

Fireface 802 FS is a 30-in/30-out 192 kHz high-end USB audio interface
Featuring ultra-low latency operation with RME USB 2 technology, ultra-reliable drivers, femtosecond jitter suppression with SteadyClock FS, individually settable reference levels for each input and output, four intuitive front panel gain knobs and level/status LEDs, fully standalone operation, and a class-compliant mode that adds professional inputs and outputs to your iPad. Furthermore, it can be used with the same operability on Windows/Mac.
The Fireface 802 is equipped with a variety of functions, including the DSP digital mixer TotalMix FX that provides flexible mix and patch bays, RME's proprietary audio measurement and analysis utility DIGICheck, and a USB controller ARC USB (sold separately) that can be connected directly to the main unit. FS provides professional performance in all applications including audio interfaces, mic preamps, AD/DD/DA converters (analog, ADAT, SPIDF, AES), monitoring mixers, digital format converters, matrix routers, and more.


Main specifications
・Buffer size/latency setting: selectable from 48 to 8192 samples
・DC coupling output: CV/Gate control compatible
・8 channels 24 bit/96 kHz recording/playback via ADAT optical (S/MUX)
・4 channels 24 bit/192 kHz recording/playback via ADAT optical (S/MUX4)
・Clock mode: slave, master
- Advanced master/slave clock automatic switching
- Excellent Bitclock PLL (audio sync) in ADAT mode
・SteadyClock FS: Extremely stable digital clock unaffected by jitter
・DDS technology: freely set sample rate
・SyncAlign: Maintains accurate alignment in sample units and prevents swapping between channels
・SyncCheck: Monitors the synchronization status of input signals and displays the results.
・TotalMix: Latency-free submix and full ASIO direct monitoring
・TotalMix: 1800 channel mixer with internal processing 46 bits
・TotalMix FX: 3-band EQ, low cut, reverb, echo, compressor, expander, auto level
・ARC USB (TotalMix remote controller sold separately) can be directly connected
・Class compliant mode compatible: Available for iOS devices
・Complete standalone operation
・MIDI input/output (16 channels, high speed low jitter MIDI)
・High power low impedance headphone output x 2
・DIGICheck DSP: Hardware-based level meter, Peak/RMS measurement

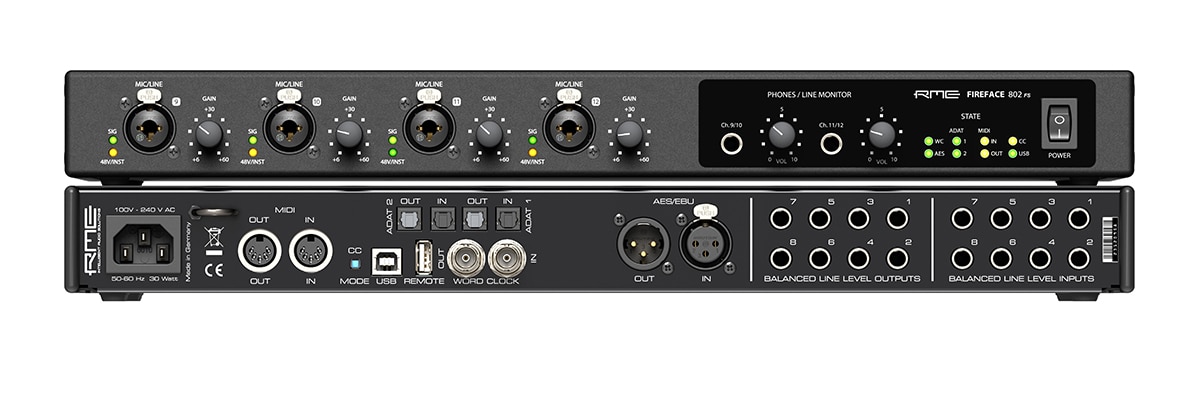

Input/output overview
・Front:
Analog (mic/instrument/line) input (XLR/TRS combo jack) x 4
Headphone output (6.3 mm TRS jack, servo balanced) x 2
The headphone output with an output level of +17 dBu can be used with either high-impedance or low-impedance headphones.
It also provides excellent sound quality.

・Back:
Analog TRS (line) input x 8
Analog TRS (line) output x 8
AES/EBU input/output x 1
USB terminal for ARC USB
MIDI input/output x 1
Word clock input/output x 1
ADAT or SPDIF optical input/output x 2
USB 2.0 terminal (also works with USB 3.0) x 1

■Operating environment

When connecting to a computer

Windows 7 or higher, Intel/M1/M2 Mac OS X (10.12 or higher)
USB 2.0 terminal or USB 3.0 terminal x 1
A computer with an Intel Core i5 or higher CPU

When connecting to an iOS device

Fireface 802 FS booted in CC mode
Apple iPad with iOS 9 or higher
iPhone with iOS 9 or higher
Apple iPad Camera Connection Kit (Doc or Lightning to USB type)
iPad Pro: USB-B to USB-C cable Connectable with just a cable (no adapter required)

■Included items
Power cable/ground adapter
USB 2.0 cable
Optical cable (TOSLINK)
Fireface 802 FS Japanese User Guide
DIGICheck Japanese User Guide
rubber feet
Warranty


*Detailed technical specifications are subject to change without notice.
Please refer to the manufacturer page below for the latest information.
