PLAYTECH / PDS750CPAMPSET

Variations

The PLAYTECH PDS-750 is equipped with full-fledged functions such as mesh heads for the snare and tom pads, a total of 431 types of sound source modules, and other excellent cost performance. It is a great value set that includes a drum throne and speakers so you can enjoy playing from the day you receive it. This model is popular with a wide range of players, from beginners who are just starting to play drums to experienced players who want to enjoy playing seriously.

※Some specifications will be changed from August 2019.
- Changed from curved rack with curved pipes to straight rack without curves
- Changed the finish of the sound source module from glossy to matte
- Changed the design of the mesh pad
- Changed the design of the rack stand
*The images and videos shown are of the conventional design before the specification change.

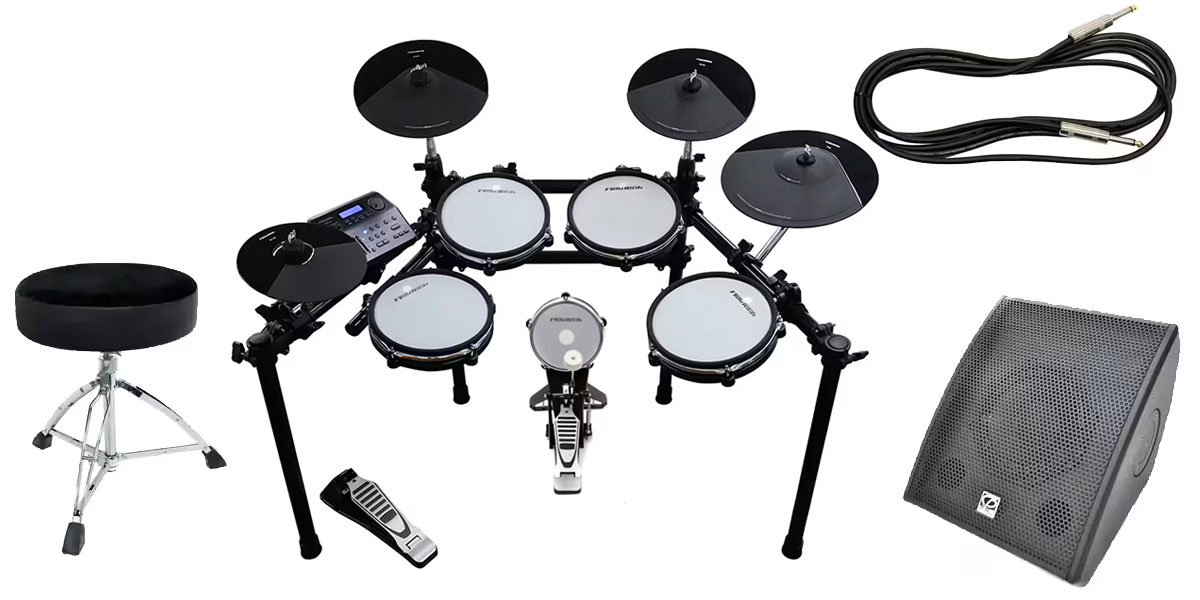

■Electronic drum set
■Kit configuration
・Sound module x 1
・Snare mesh pad 10"" x 1
・Tom-tom mesh pad 10"" x 2
・Floor tom mesh pad 10"" x 1
・Hi-hat 8"" x 1
・Crash cymbal 12"" x 2 *Choke playing supported
・Ride cymbal 14"" x 1 *Edge, bow, and bell can be played separately, choke playing supported
・Kick pad 8"" x 1
・Hi-hat controller x 1
・Drum throne x 1 (PLAYTECH/DTC5000X)
・Speaker x 1 (CLASSIC PRO/CPM108P)
■Accessories: Drum sticks, tuning key, mini driver, kick pedal
■Sound module
Voices: 697 High quality sound
Drum kit: 20 presets + 20 user kits
Input/output terminals: Headphones (mini stereo) terminal, LINE IN (mini), LINE OUT (standard phone L/R), USB (Type B)
Patterns: 55 types, drum patterns can be muted
Metronome function: On/Off, tempo, voice, beat, tap
Recording function: 15 songs
Power supply: 12V DC
■Installation space
Depth approx. 100cm x width approx. 150cm
(Chair not included in depth.)
*Please note that the required space will vary depending on the setup. When installing, please refer to the above and consider a space with as much space as possible.
*Connect crash cymbal 2 to external trigger terminal 1 (EXT1) with the included cable. (Initial setting)
*The USB terminal can only send MIDI signals to a PC or external device. It does not support receiving audio signals on the sound module side. Please note this in advance.
