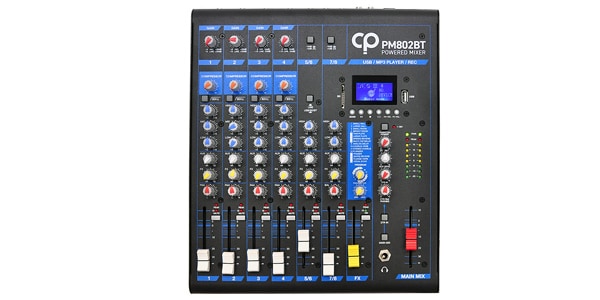

CLASSIC PRO / PM802BT

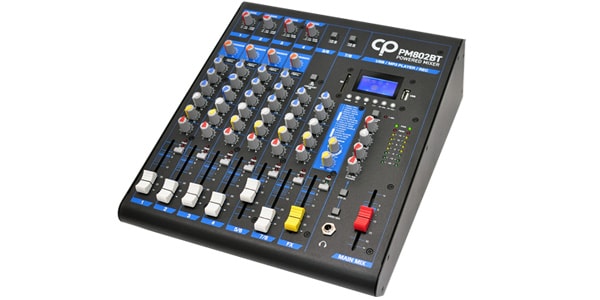

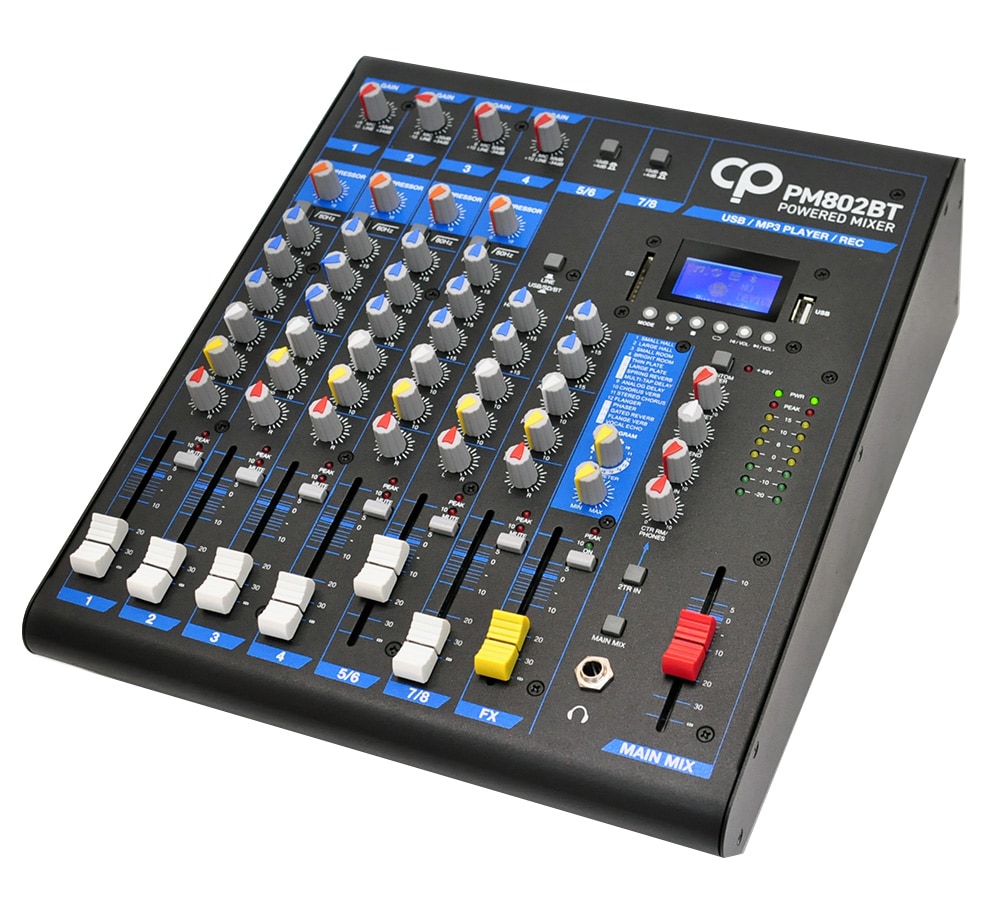

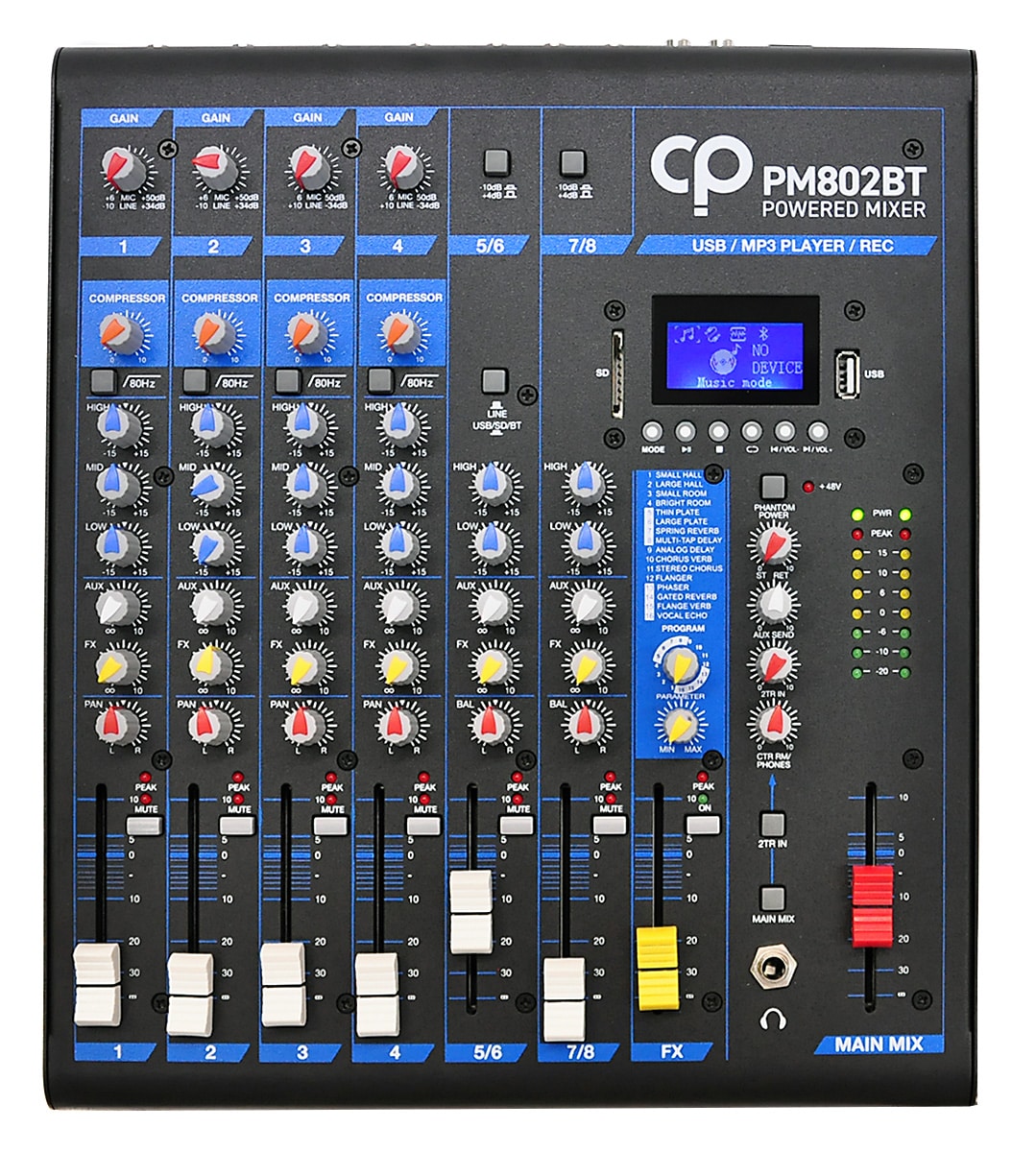

CLASSIC PRO/PM802BT is a compact 8-channel powered mixer packed with a variety of functions. It is equipped with 16 high-quality effects, a USB/SD/Bluetooth player for recording/playback, and +48V phantom power. It has a built-in power amplifier so you can directly connect passive speakers. It is suitable for a wide range of uses, including parties, karaoke, music lessons, speeches, school events, and band performances.

■Powered mixer
■8ch
■75W(4Ω)x2
■4.4kg

The ""PM602BT"" and ""PM802BT"" pack a variety of functions required on-site into a compact body. In addition to a compressor to even out the volume and a parametric equalizer to correct the sound quality, they also have a +48V phantom power supply and are compatible with condenser microphones. In addition, they also have a USB/SD card/Bluetooth player function that allows recording and playback, and 16 high-quality multi-effects. The output section has a built-in 75W x 2 (4Ω) power amplifier, so you can quickly build a full-fledged PA system by simply connecting passive speakers directly. The ""PM602BT"" has two systems, and the ""PM802BT"" has four systems of microphone/line inputs, making it a great choice for any occasion, including parties, karaoke, music lessons, speeches, school events, and band performances.

[Main features]

- PM602BT has 2 mic/line inputs, PM802BT has 4

- 2 stereo inputs

- Compressor on mic input

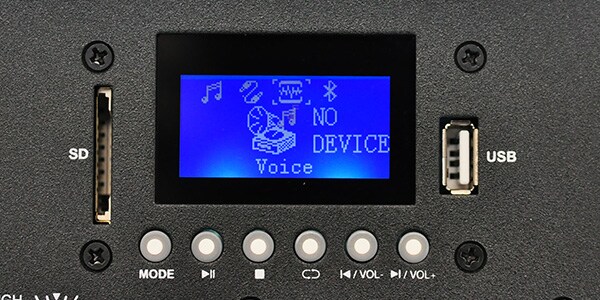

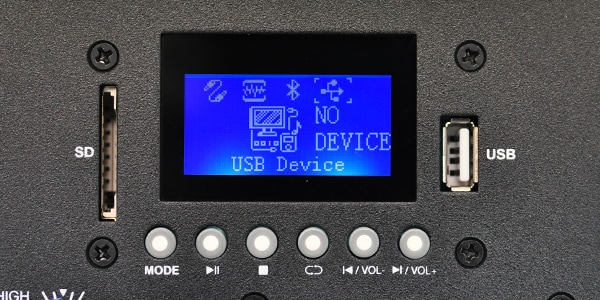

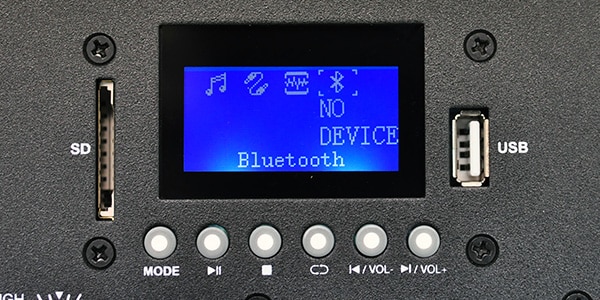

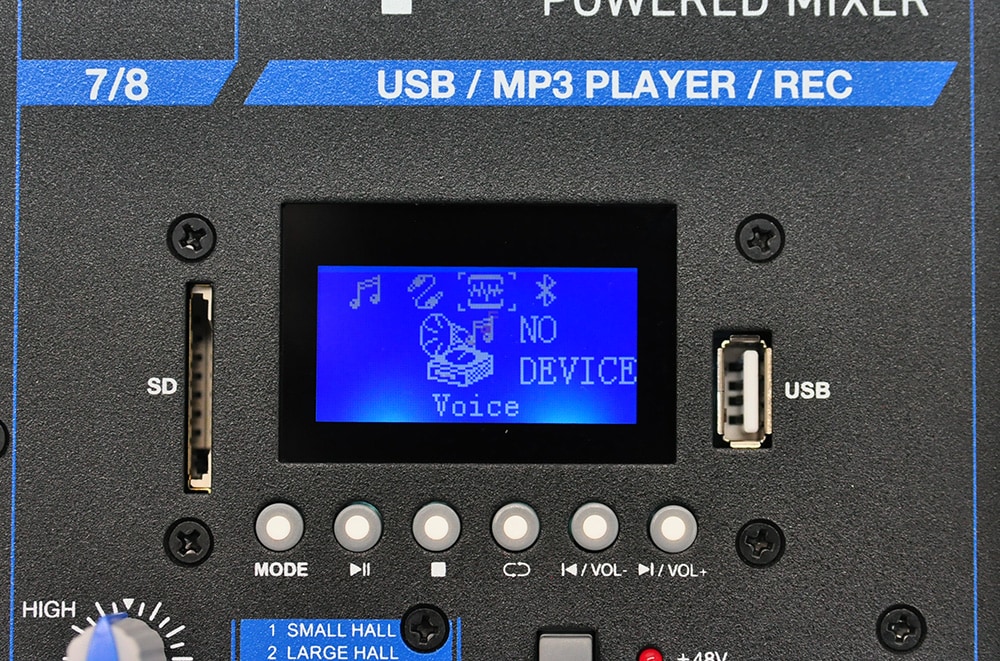

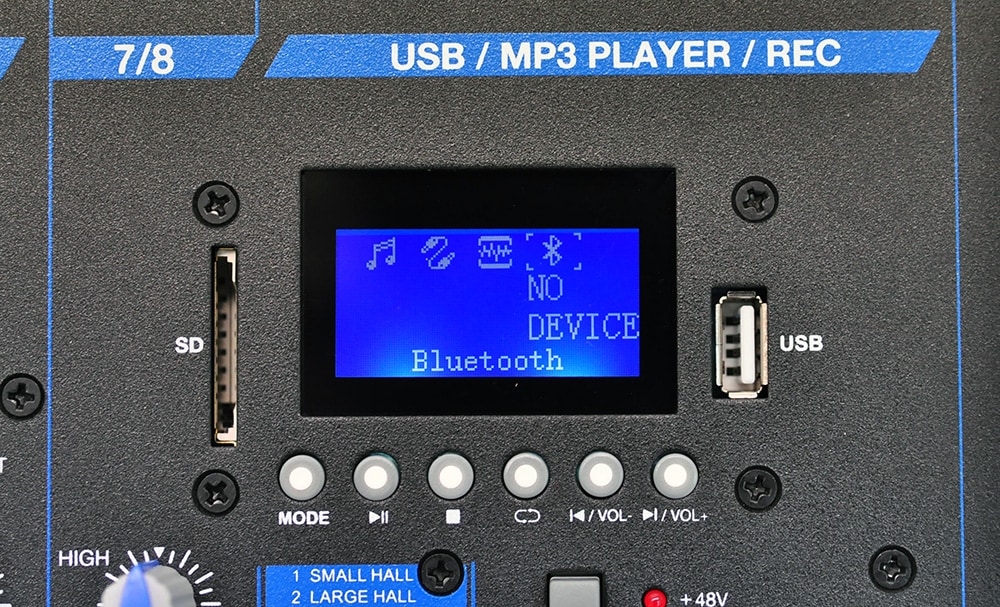

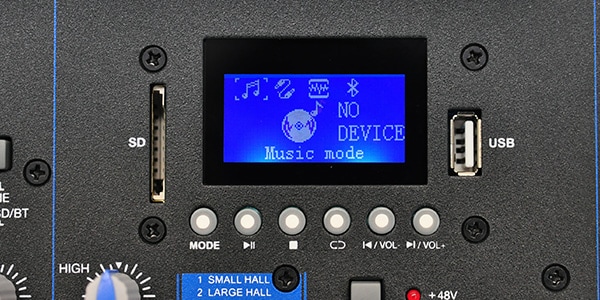

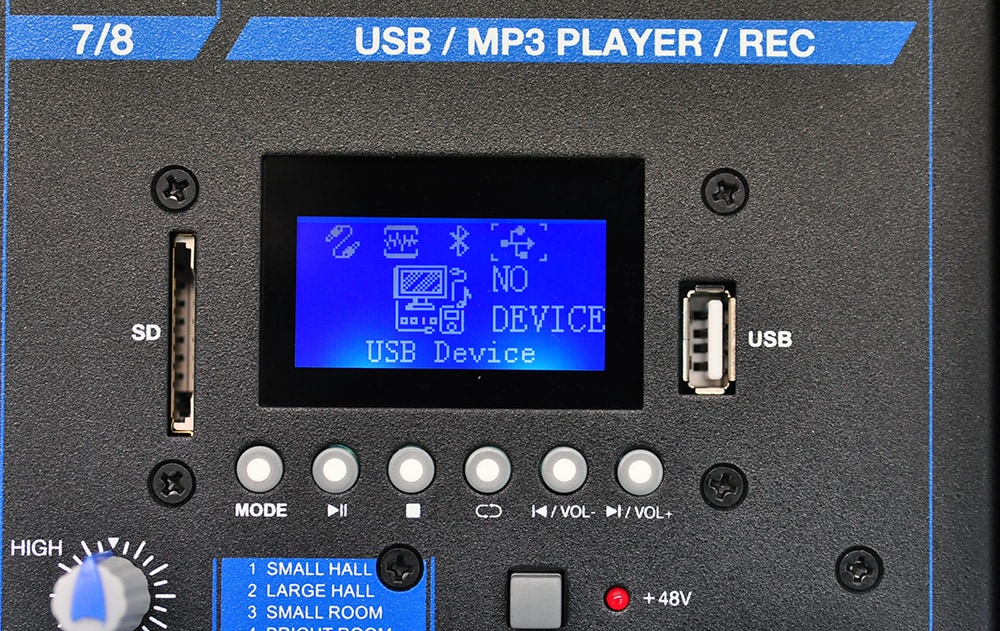

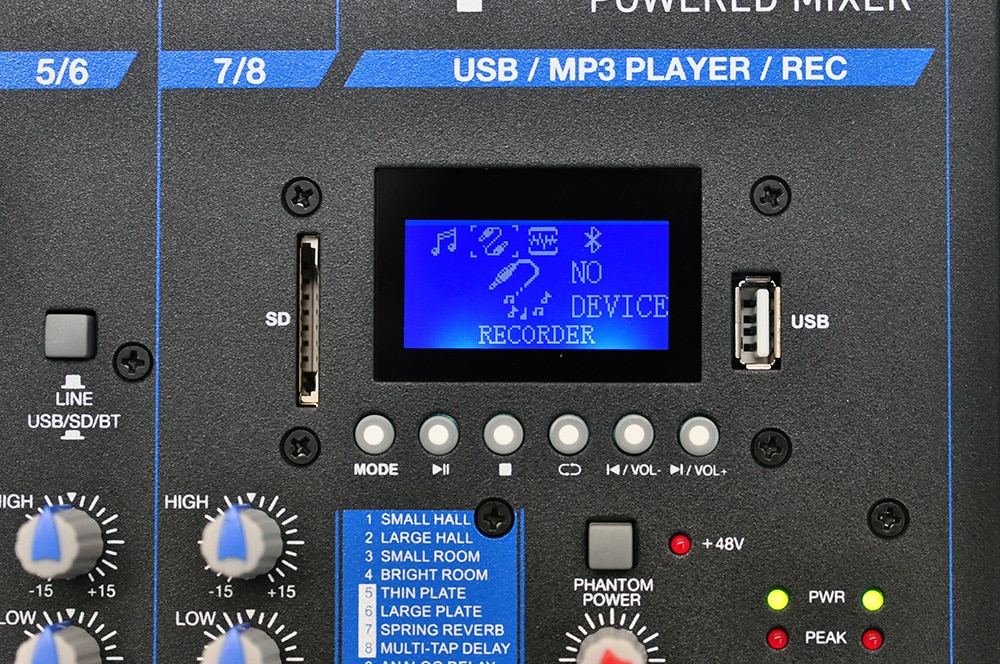

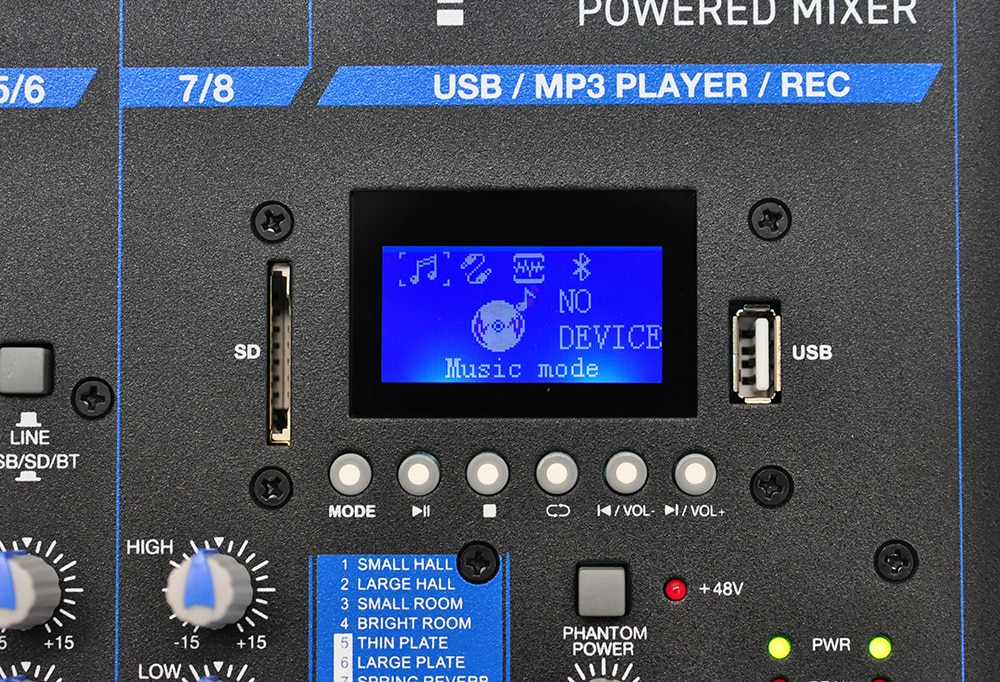

- Built-in USB/SD card playback/recording function, Bluetooth playback function

- +48V phantom power

- 16 types of multi-effects

- 2x8 segment LED meter to check output level

- Compatible with 100V-240V universal power supply

- Equipped with 2ch power amplifier (75W (4Ω) x 2, 40W (8Ω) x 2)

[Specifications]

■Mono input

Input terminal: Balanced XLR (mic), TRS phone (line)

Frequency response: 10 Hz to 30 kHz, +/-3 dB

THD&N: 0.03% (mic), 0.005% (line) (+4 dBu, 22 Hz to 20 kHz, A-weighted)

Compression: Gain: 0 to 9 dB, Threshold: 20 dB to 5 dB
S/N ratio: 115 dB
Maximum gain: 75 dBu (mic input, main output)
EQ:
HI: +/-15 dB @12 kHz
MID: +/-15 dB @2.5 kHz
Low: +/-15 dB @45 Hz
Low-cut filter: 80 Hz, 18 dB/Oct.

■Stereo input
Input terminal: Unbalanced TS phone (line)
Frequency response: 10 Hz to 55 kHz, +/-3 dB
THD&N: 0.005% (+4 dBu, 22 Hz to 20 kHz, A-weighted)
EQ:
HI: +/-15 dB @12 kHz
Low: +/-15 dB @60 Hz

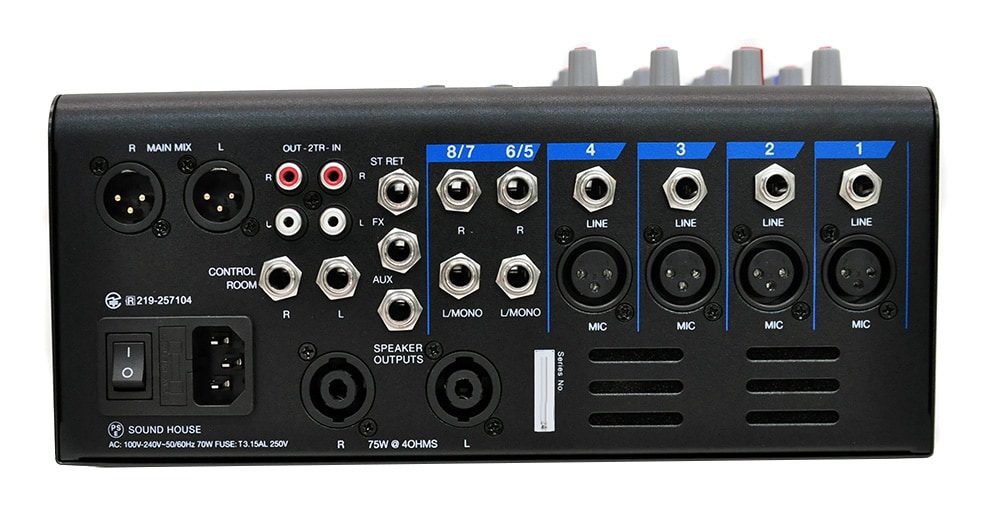

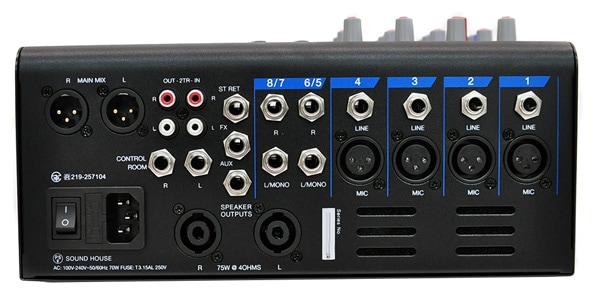

■Impedance
MIC input: 1.4 kΩ, balanced XLR
LINE input: 10 kΩ, unbalanced TS phone
2 TR input: 10 kΩ, unbalanced RCA
ST RETURN input: 10 kΩ, unbalanced TS phone
MAIN MIX output: 120 Ω, balanced XLR
CTR ROOM output: 100 Ω, unbalanced TS phone
AUX/FX SEND output: 75 Ω, unbalanced TS phone
2 TR output: 1 kΩ, unbalanced RCA
PHONES output: 100 Ω, unbalanced TRS phone

■Effects
A/D & D/A converter Sample frequency 24 bit, 16 programs

■Bluetooth
Version: 5.0
Supported codecs: SBC, AAC

■Main
Noise (bass noise): -100 dBu (reference: +4 dBu) (fader O dB, all input channel knobs set to minimum, EQ knobs set to center)
Maximum output:
MAIN MIX: +27 dBu/balanced, +22 dBu/unbalanced
CTR OUT: +22 dBu
AUX: +22 dBu
FX: +22 dBu
Amplifier output: 75W@ 4 Ω x 2 (RMS), 40W@ 8 Ω x 2 (RMS) *2Ω is not supported

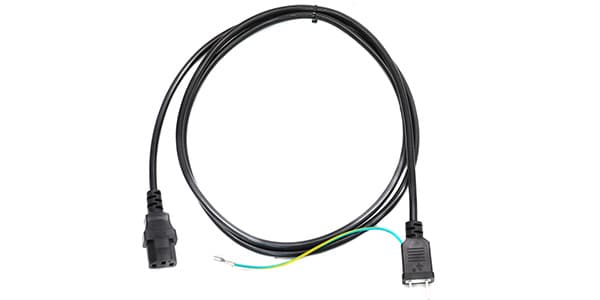

Power supply: 100-240 VAC 50/60 Hz
Fuse: 20mm T3.15A
Power consumption (1/8 POWER): 70W
Dimensions and weight
Dimensions (D x W x H): 330 x 280 x 128 mm
Weight: 4.4 kg

There was an error in the printing on the CLASSIC PRO/PM602BT and PM802BT and in the instruction manual.
Affected section: Page 6, Effect list, Prg# 8
Incorrect: Multi-tap Delay
Correct: PING PONG DELAY
