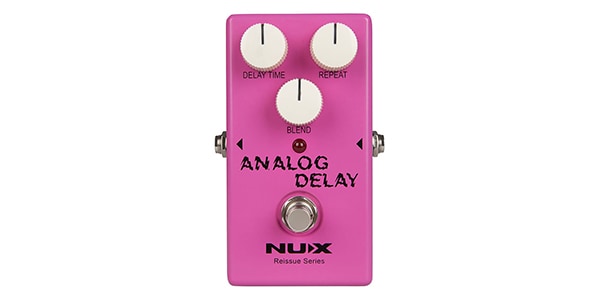

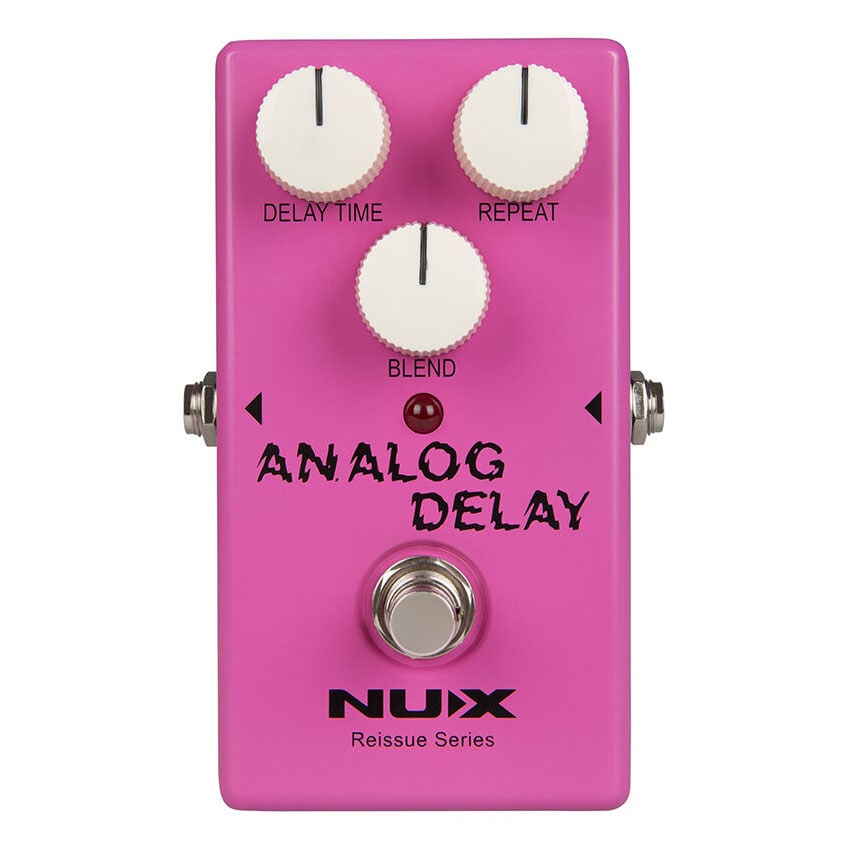

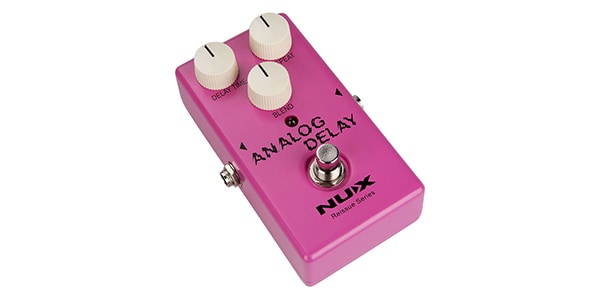

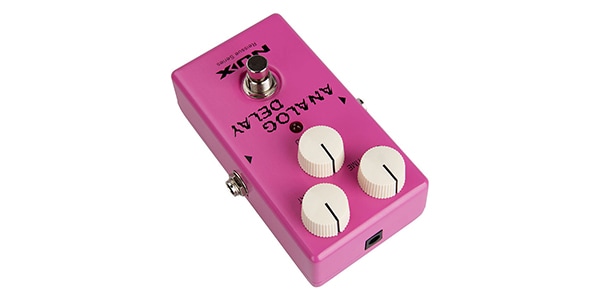

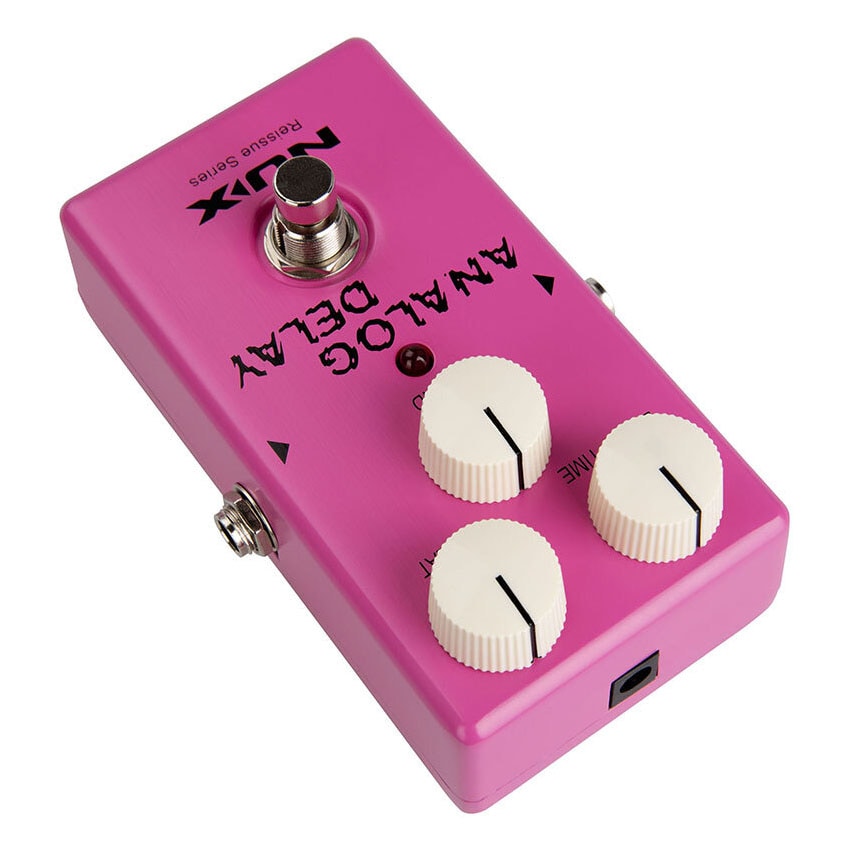

NUX / Analog Delay

The Analog Delay pedal uses 100% analog circuitry using 3205 and 3102 BBD chips. Recreates a warm analog delay effect from the 80s.

- Vintage Analog Delay Effect
- Pure Analog Bucket-Brigade Circuit
- True-bypass Hardware Switching

Input Impedance:1MΩ
Output Impedance: 10kΩ
Current draw:< 20 mA
Power:9V battery or AC adapter (9V DC, Negative tip)
Dimensions: 121(L) x 77(W) x 48(D) mm
Weight:230g
