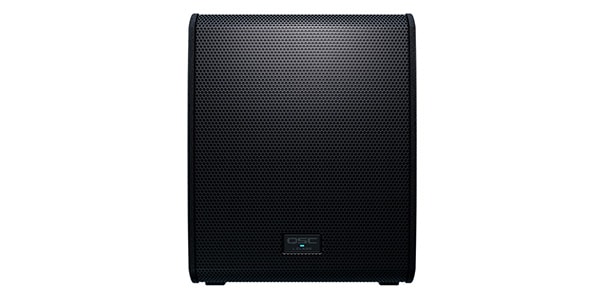

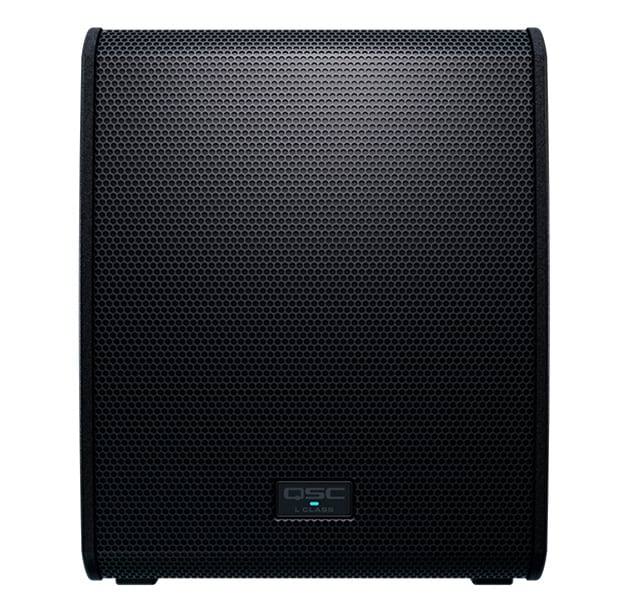

QSC / LS118 Powered Subwoofer

The QSC/LS118 is an 18-inch, 4000W active subwoofer.

Delivering an outstanding audio experience and outstanding performance with system intelligence and premium components, the LS118 was designed with a deep understanding of customer needs and application requirements. The LS118 can be easily configured and deployed in a wide range of applications, from simple and portable plug-and-play setups to advanced network-enabled AV production and fixed installations.

Featuring a QSC Acoustic Linear Phase (ALP) design, they can operate seamlessly and consistently with QSC loudspeakers within the same sound system. It also supports daisy-chaining of analog, network-compatible digital audio (DanteR), and AC power (PowerCON TRUE1). Furthermore, by configuring two or more LS118s in a cardioid configuration, you can maximize front low-frequency output while suppressing unnecessary energy to the sides and rear.

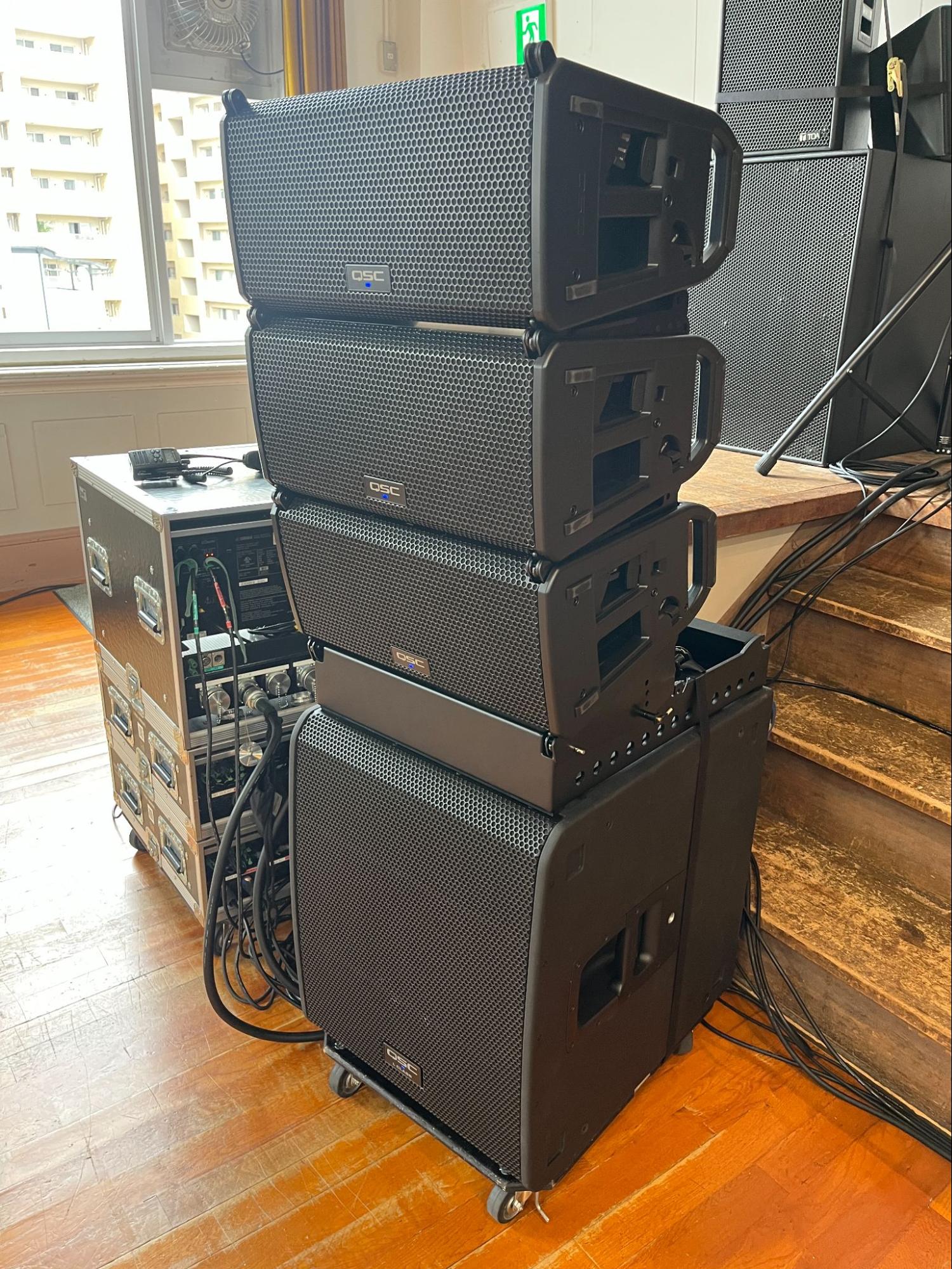

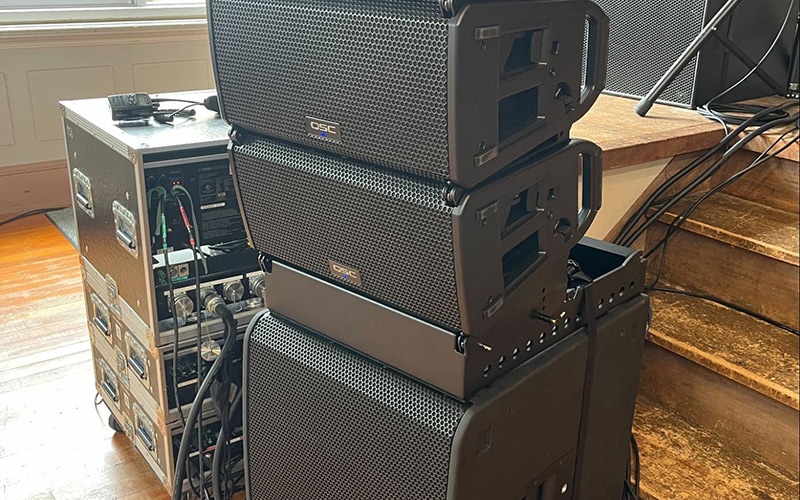

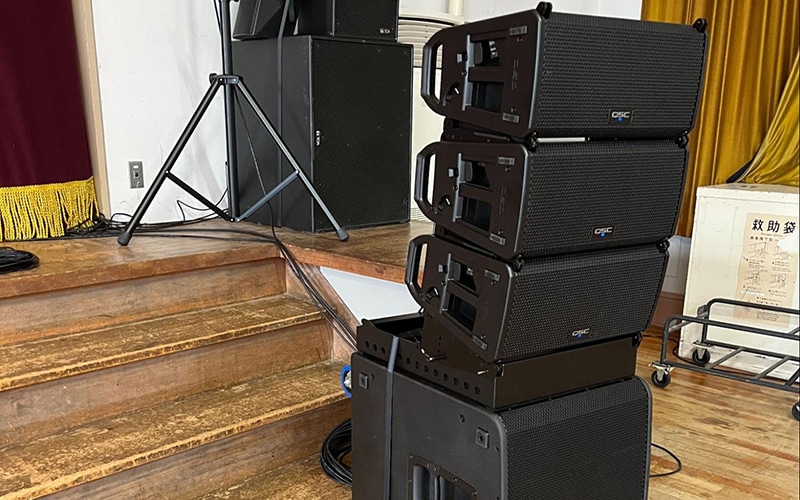

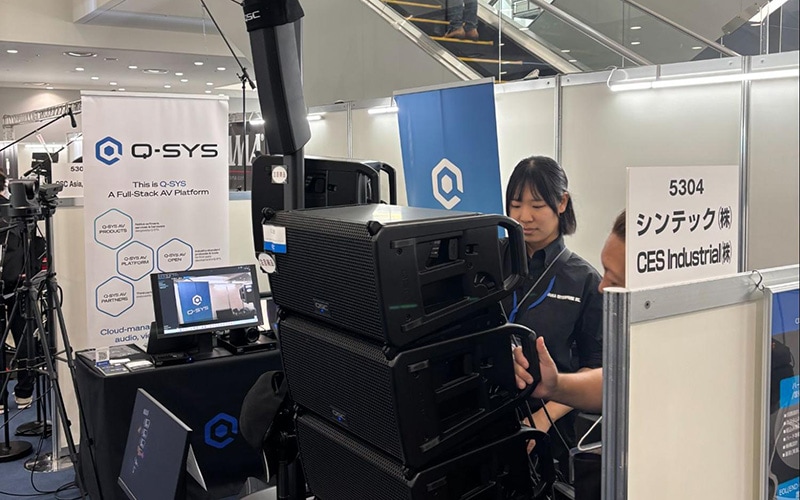

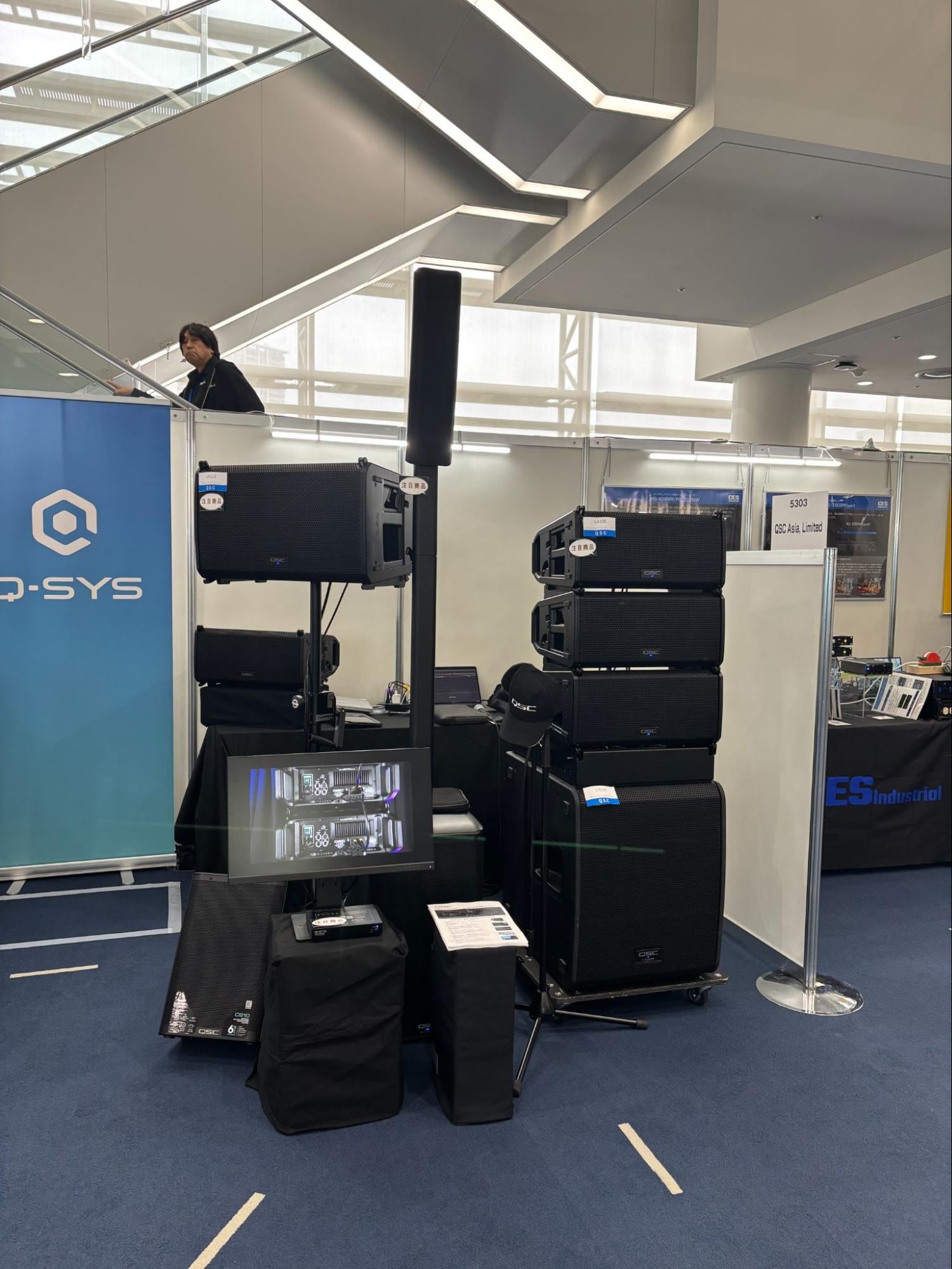

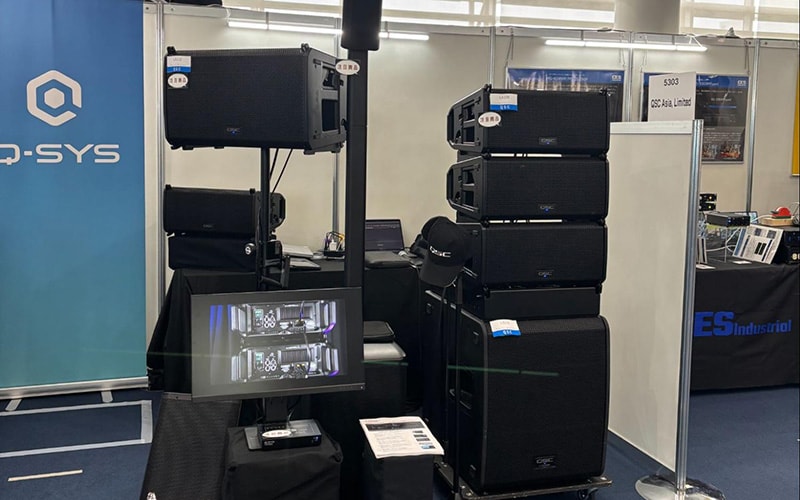

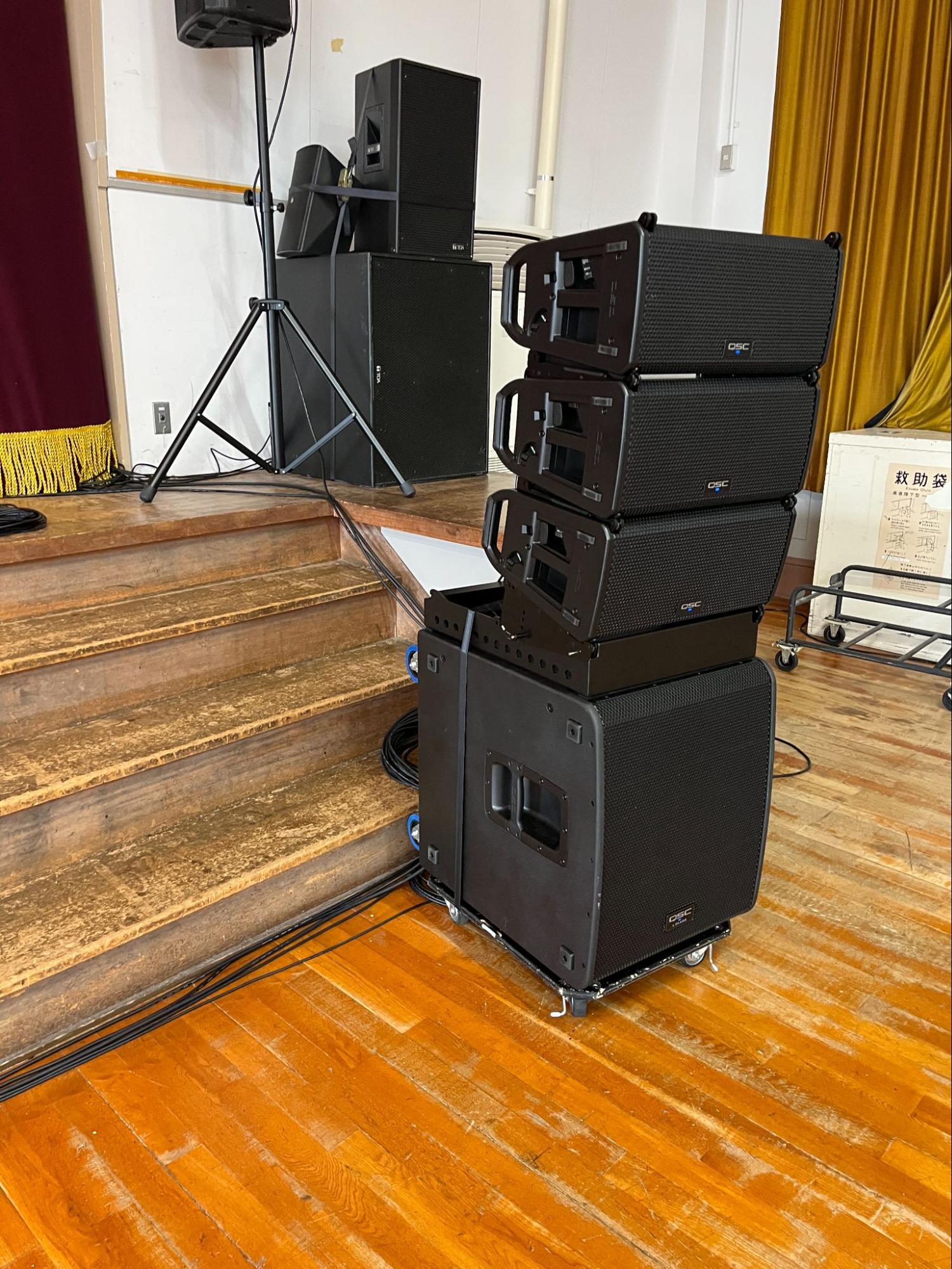

When combined with LA108 or LA112 active line array loudspeakers, they can be mounted in both horizontal and vertical orientation using array frame/ground stack adapters or speaker poles.

■Features
・Very high output (138 dB peak SPL) and powerful low-frequency performance
Equipped with a specially designed 18 inch (460 mm) long excursion direct radiator driver
・Energy-efficient Class D amplifier module with 4000 W peak output (equipped with Power Factor Correction function) significantly reduces AC power consumption
・Acoustic Linear Phase (ALP) design provides high compatibility with QSC speakers within the same audio system, providing a uniform listening experience throughout the venue
- QSC SysNav? (System Navigator) app allows you to easily design, configure, control, monitor, and process signals for individual subwoofers, entire arrays, or groups of them.
- Compatible with digital audio-over-IP (DanteR) and interoperable with other audio devices. Additionally, provides seamless control and monitoring of the Q-SYS ecosystem
- Compatible with omnidirectional or cardioid radiation mode (minimum of 2 units required for cardioid configuration)
・DEEP? mode can be selected for extremely low frequency extension
- Robust wooden enclosure with polyurea coating for excellent durability
・Equipped with low noise and sturdy 4-wheel casters
・Supports both vertical and horizontal installation (M20 threaded pole holder)
・Can be used in combination with LA108 and LA112 active line array speakers

■Specifications
Configuration：Direct radiating, active subwoofer
LF Transducer: 460 mm (18-inch), cone
Frequency Response (-6 dB): 41 Hz - 98 Hz
Frequency Range (-10 dB): 35 Hz - 111 Hz
Nominal Coverage Angle: Omni-directional or cardioid radiation modes (cardioid setup requires min. 2 units)
Maximum Rated SPL (peak): 138 dB @1 m
Amplifier (peak): Class D, 4000W
Cooling：Low noise, variable speed fan
Controls:
　Rotary push encoder
　2 x Push buttons (Menu, ID)
Display Screen: 61 mm (2.4-inch) Full color display area (240 x 320 pixels)
Indicators:
Power LED
　Limiter active LED
　Standby active LED
　2 x Signal LED

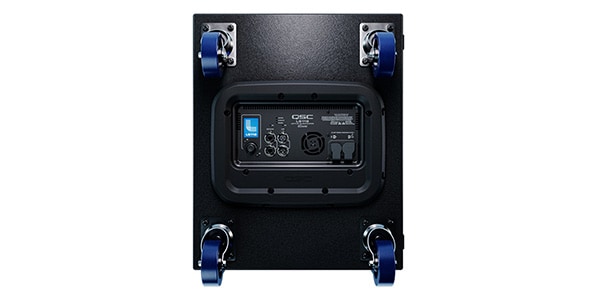

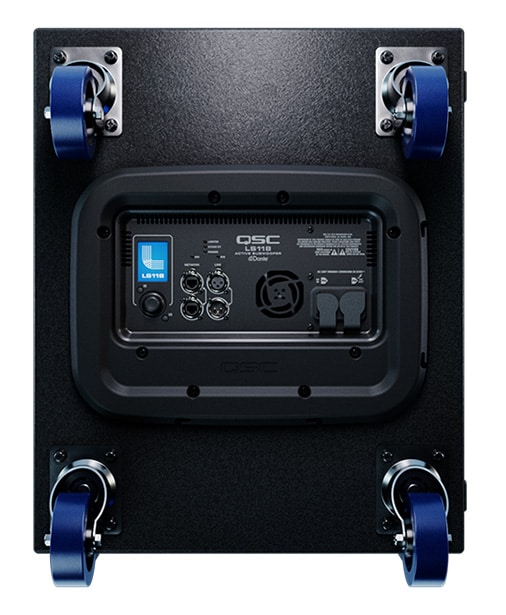

Connectors：
　XLR Female (Analog In)
　XLR Male (Analog Thru)
　2 x RJ45 EtherCON (DanteR and QSC SysNav? In/Thru)
　2 x PowerCON TRUE1 (AC Power Inlet/Outlet)
AC Power Input：Universal power supply 100~240VAC, 50~60Hz
AC Power Consumption: 100VAC, 3.6A / 120VAC, 3.0A / 230VAC, 1.7A
Enclosure Material: 15 mm birch plywood with Polyurea coating
Attachment Points:
　8 x M10 (for individual vertical or horizontal suspension/flying)
　2 x M20 (for vertical or horizontal loudspeaker pole or ground-stack deployments)
Color: Black (RAL 9011)
Grille: 16 GA powder coated steel
Dimensions (H × W × D): 640 × 520 × 790 mm
Net Weight: 50 kg / 110 lb (including casters)
Shipping Weight: 62.6 kg / 138 lb
Included Accessories: 4 x Heavy-duty, low noise 4-inch casters, 1 x PowerCON TRUE1 power cable
Regulatory: UL, CE, FCC Class B
