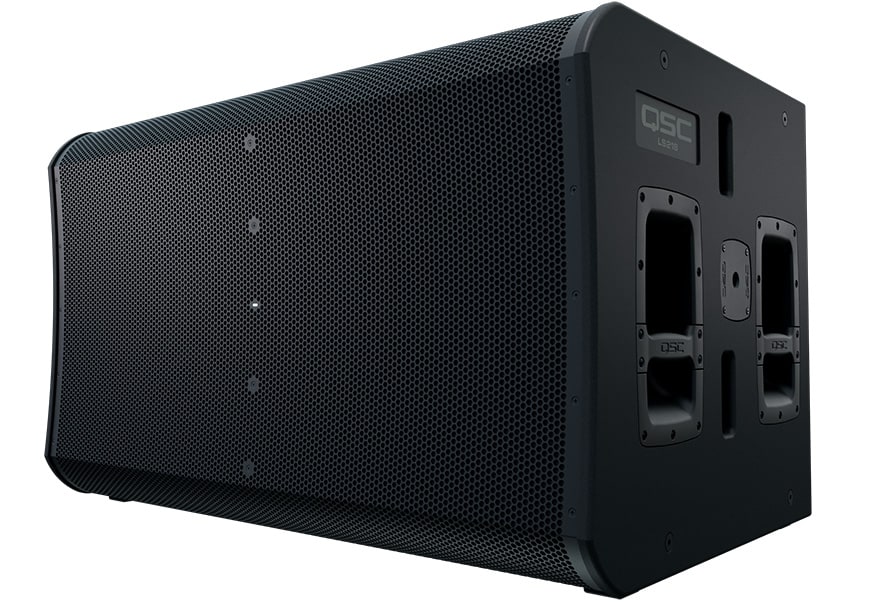

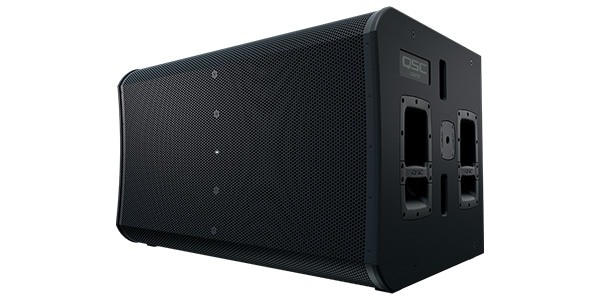

QSC / LS218 Powered Subwoofer

<> The QSC LS218 is an active subwoofer equipped with dual 18-inch drivers and a 5,000W Class-D amplifier. With an overwhelming output of up to 141dB and rich ultra-low frequency reproduction, it is ideal for large-scale live performances and events. It also supports Dante, advanced system management via the SysNav app, and cardioid operation, providing excellent expandability and operability.

■ Powered Subwoofer

■ 18-inch x 2

The LS218 is a next-generation intelligent active subwoofer that combines cutting-edge technology, sophisticated engineering, and superior operability. It delivers high performance in an easy-to-install package.

System intelligence and high-quality components deliver superior performance and an exceptional audio experience. The LS218 was developed with a deep understanding of customer needs and real-world operating environments. It can be easily set up and deployed in a wide range of applications, from simple portable plug-and-play systems to advanced network AV systems and fixed installations.

It employs QSC's proprietary Acoustic Linear Phase (ALP) design, allowing for easy combination of QSC speakers within the same system while maintaining phase compatibility. It also supports daisy-chaining of analog audio, network digital audio (Dante?), and AC power (PowerCON TRUE1).

Using two or more LS218s allows for a cardioid configuration, maximizing low-frequency energy to the front of the system while suppressing unwanted low-frequency radiation to the sides and rear. When paired with the LA108 or LA112 active line array speakers, it supports both vertical and horizontal mounting using an array frame/ground stack adapter or speaker pole.

■Key Features

? Extremely high sound pressure level of up to 141dB (Peak) and excellent bass reproduction capabilities

? Equipped with two 18-inch (460mm) long-excursion direct radiator drivers

? Features a high-efficiency 5000W Peak Class D power amplifier. Power Factor Correction enables low power consumption.

? QSC Acoustic Linear Phase (ALP) design provides excellent phase matching between QSC speakers within the same system, delivering a uniform listening experience throughout the venue.

? The QSC SysNav? (System Navigator) app allows for easy design, configuration, control, monitoring, and signal processing of individual subwoofers, entire arrays, and groups. Supports network audio via Dante? and enables seamless control and monitoring with the Q-SYS Ecosystem via Q-SYS Inventory Extensions.

? Features omnidirectional (Omni) and cardioid emission modes (two or more units required for cardioid configuration)

? Includes a DEEP? mode for extended ultra-low frequencies

? Durable wooden cabinet with Polyurea coating

? Equipped with an M20 pole socket for both vertical and horizontal mounting. Can be used in combination with array frame/ground stack adapters and speaker poles.

* Ideal for use with LA108/LA112 active line array speakers.

■Specifications

■System Configuration: Direct Radiator Active Subwoofer

■Low-Frequency Driver: 460mm (18-inch) Cone Type x 2

■Frequency Response (-6dB): 35-98Hz (DEEP? Mode: 32-98Hz)

■Frequency Response (-10dB): 33-111Hz (DEEP? Mode: 29-111Hz)

■Directional Characteristics: Omnidirectional / Cardioid (Cardioid configuration requires 2 or more units)

■Maximum Sound Pressure Level (Peak): 141dB SPL (1m, Peak)

■Power Amplifier Output (Peak): Class D, 5000W

■Cooling Method: Low-noise, variable-speed fan

■Controls:

Rotary Push Encoder

Push buttons x 2 (Menu, ID)

■Display: 61mm (2.4-inch) full-color display (240 x 320 pixels)

■Indicators

Power LED

Limiter Active LED

Standby Active LED

Signal LED x 2

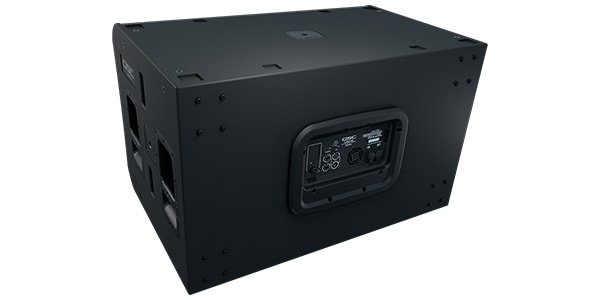

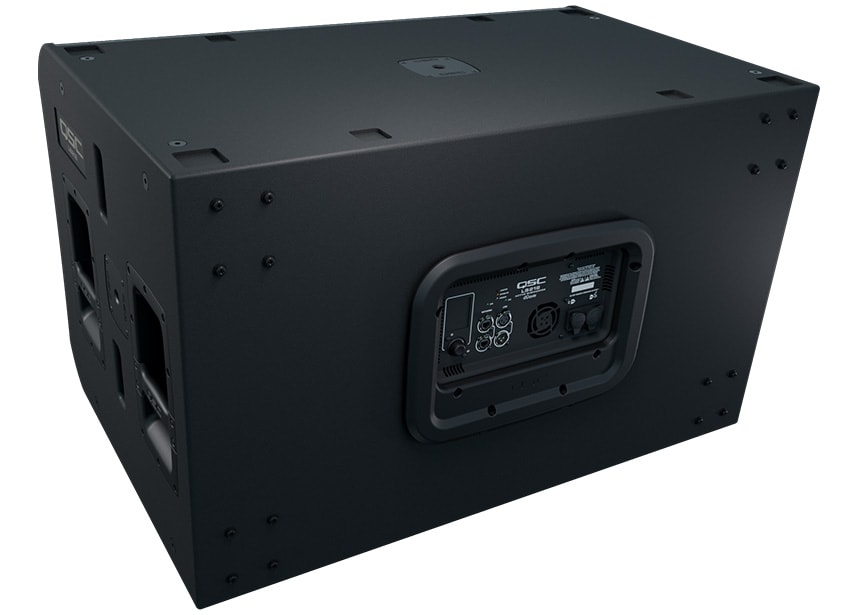

■Input/Output Terminals

XLR Female (Analog Input)

XLR Male (Analog Through)

RJ45 EtherCON x 2 (Dante?/QSC SysNav? In/Thru)

PowerCON TRUE1 x 2 (AC Input/AC Output)

■Power Supply: 100-240VAC, 50-60Hz Universal Power Supply

■Current Consumption: 100-240V, 3.7A-1.8A, 50/60Hz

■Cabinet Material: 15mm Birch Plywood (Polyurea Coating)

■Color: Black (RAL9011)

■Grille: 16-gauge Powder-coated Steel

■External Dimensions (H×W×D, excluding casters): 638 × 1,023 × 696 mm

■Packaging Dimensions (H×W×D): 1,200 × 800 × 724 mm

■Weight: 83.5 kg

■Packaging Weight: 96.6 kg

■Accessories: PowerCON TRUE1 power cable ×1

■Optional Accessories

CASTER KIT-L

SP-16X

SP-26

SP-36

218-CVR

218-CVRX

218-CART

M10 KIT-W

LS-KIT-J
