The Drawmer/CMC2 is a low-cost, thin, and compact desktop monitor controller that uses the same circuitry as the MC2.1 and MC3.1. Developed primarily for home studios, it offers a more cost-effective solution.
The Drawmer CMC2 is a low-cost, thin, and compact desktop monitor controller that uses the same circuitry as the MC2.1 and MC3.1. Developed primarily for home studios, it offers a more cost-effective solution.
In addition to two balanced TRS phone inputs, it is equipped with a 3.5mm stereo mini AUX input, and the input level can be adjusted using the controls. The outputs are equipped with two sets of monitors, a subwoofer, and headphones, and the levels can be controlled individually. While it has basic functions such as phase inversion and Mono & DIM, it has a thin overall footprint and a footprint of 18 x 16 cm.
All of Drawmer's monitor controllers are designed with the policy of ``hearing exactly as recorded.'' The use of active circuitry faithfully reproduces the audio signal while eliminating many of the problems associated with passive circuits, making the monitor controller reliable and accurate.
●Circuit design that achieves ultra-low noise and high reproducibility
●Source switch allows 3 inputs (TRS phone x 2, 3.5mm stereo mini x 1) to be activated in various combinations
●Equipped with two balanced stereo speaker outputs and one mono speaker/subwoofer dedicated output. Can be switched in any combination, including individually, simultaneously, A/B comparison, etc.
●The large volume knob is equipped with specially designed parallel quad potentiometers for excellent channel matching and smooth operation.

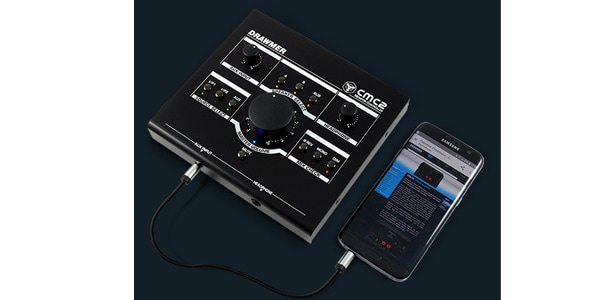

●Equipped with a headphone output with level control and a 3.5mm stereo mini input on the front. Can connect MP3 players, smartphones, etc.
●In addition to phase inversion, Mono, and DIM, it is equipped with functions that allow comprehensive mix checking, such as an easy-to-access Mute switch.
● Equipped with anti-theft slot
●Thin overall design with a footprint width of 18 cm and depth of 16 cm.
●Rugged and stylish chassis that can withstand studio use

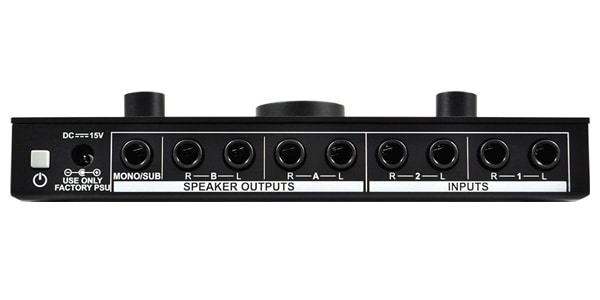

■Input
I/P1, I/P2 (balanced TRS phone)
AUX (3.5mm stereo mini)

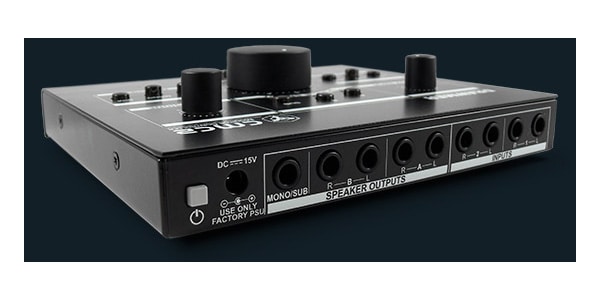

■Output
A, B (balanced TRS phone)
MONO (balanced TRS phone) for monaural speakers/subwoofers
■Dimensions: 164 x 183 x 45 mm Including controls, power socket, and legs
■Mass: 1.1 kg
*Opened, outlet special item
