DRAWMER / MC3.1 モニターコントローラー

DRAWMER / MC3.1 モニターコントローラー

  • DRAWMER / MC3.1 モニターコントローラー画像1
  • DRAWMER / MC3.1 モニターコントローラー画像2
  • DRAWMER / MC3.1 モニターコントローラー画像3
  • DRAWMER / MC3.1 モニターコントローラー画像4
  • DRAWMER / MC3.1 モニターコントローラー画像5
5
  • メーカーサイトManufacturer Site
  • 製品マニュアルProduct Manual
The Drawmer MC3.1 retains the clarity, fidelity, and transparency of the MC2.1 while adding and expanding inputs and controls, along with enhanced channel routing and a wedge-shaped chassis. It offers a wide range of applications, intuitive operation, and accurate and faithful reproduction capabilities.
The Drawmer MC3.1 retains the clarity, fidelity, and transparency of the MC2.1 while adding inputs and controls, expanding channel routing, and adopting a wedge-shaped chassis. It's a versatile monitor controller with intuitive operation and accurate, faithful playback capabilities.

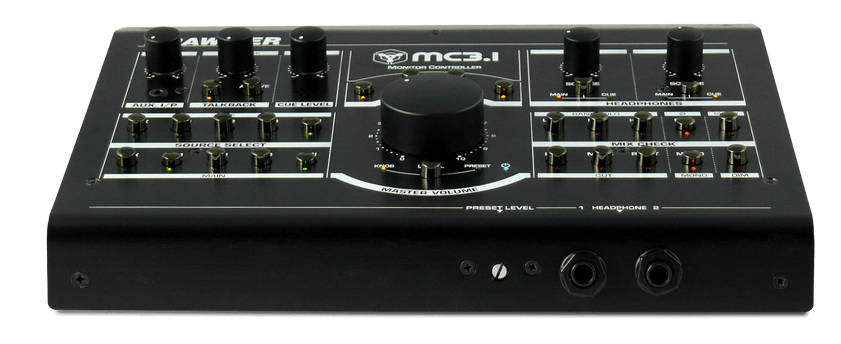

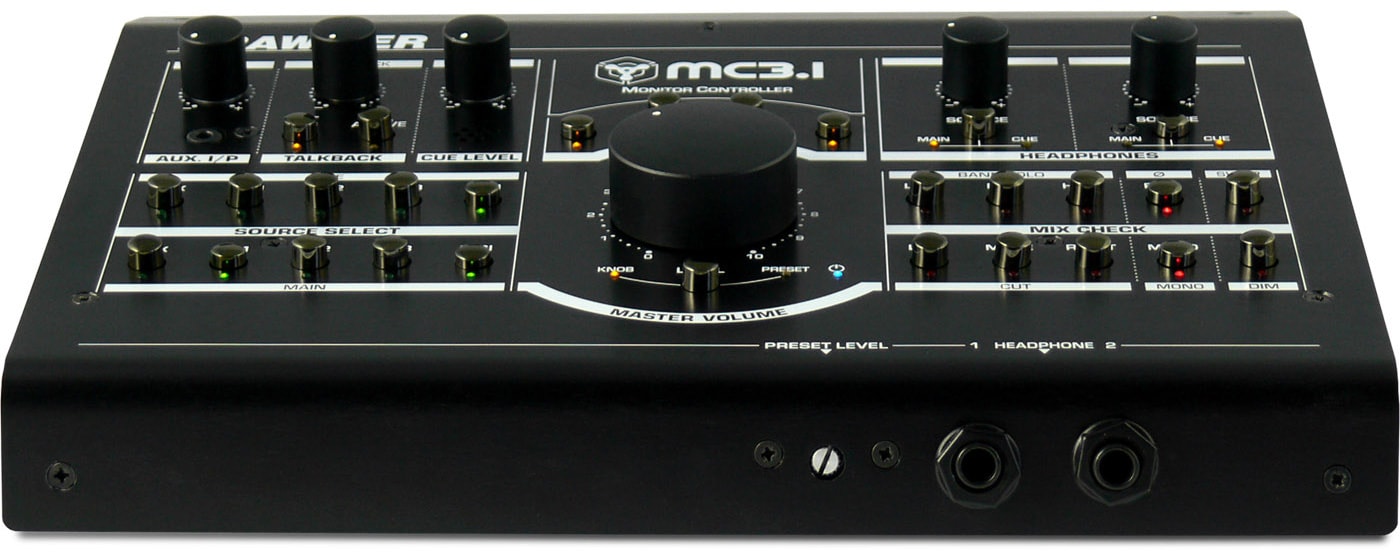

In addition to digital AES/SPDIF (24-bit/192kHz) inputs, it adds an AUX input with level control on the front panel for easy connection of MP3 players, smartphones, tablets, etc., providing a total of five independent input sources. It features a full cue mix function with level control, allowing separate selection of the main output or cue output and two headphone amplifiers, enabling each artist to hear a completely different mix from the engineer. A dedicated cue mix output is also provided. Output levels can be adjusted using the front-panel preset volume controls. This allows engineers to listen to the mix at the same volume repeatedly with the press of a button, eliminating the need for fine-tuning of controls.

It features three stereo balanced speaker outputs and one mono speaker/subwoofer output. Left and right trim controls are located on the bottom of the unit, allowing for complete control over level matching. Furthermore, each can be switched individually or simultaneously, in any order, allowing you to listen to multiple speakers with the same subwoofer, or turn off the subwoofer entirely.

Other improvements include the addition of a mix check function with Lo, Mid, and High solo switches, allowing you to check the overlap between Lo and Mid frequencies and the stereo image width. Left and right channel swapping is also possible. Talkback is possible via the built-in microphone, footswitch, and external microphone.

Can you trust the sound of your current monitor controller? Is the sound colored? Drawmer designs all of its monitor controllers with the policy of ""sounding exactly as recorded."" They employ active circuitry to faithfully reproduce audio signals, eliminating many of the problems associated with passive circuitry, and ensuring consistent sound quality. As a result, the accuracy of their monitor controllers is reliable.



■ Ultra-low noise, high fidelity circuitry design.

■ Main and cue source switches can be activated in various combinations.

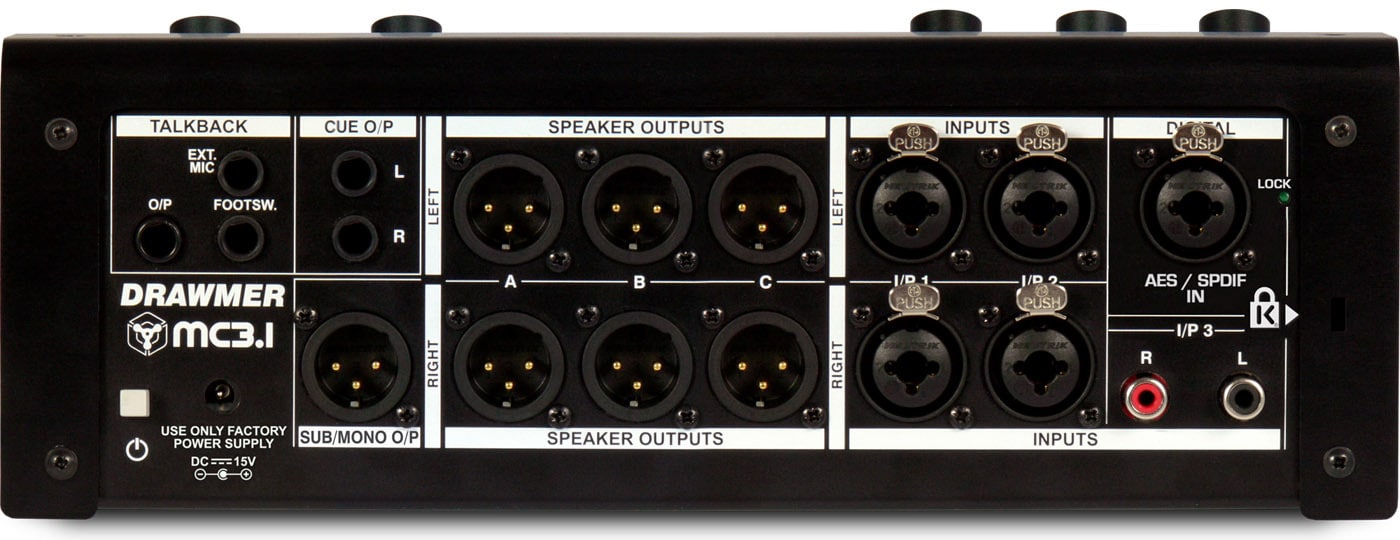

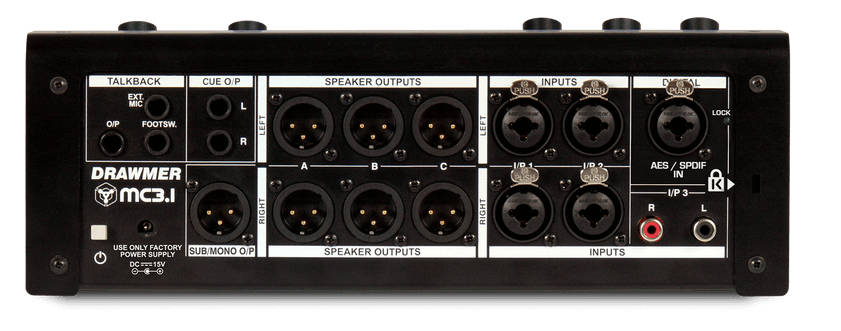

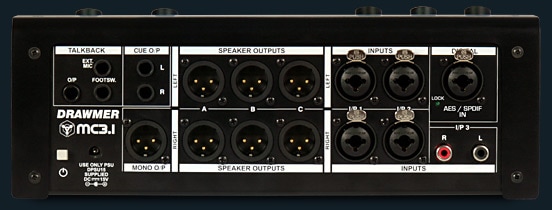

■ Equipped with a total of 5 inputs. Rear panel (I/P1, I/P2, I/P3, Digi): Balanced XLR/phone combo x 2, stereo RCA x 1, digital AES/SPDIF (XLR/phone combo) x 1. Front panel (AUX): 3.5mm stereo mini x 1.

■ Equipped with 3 balanced stereo speaker outputs and 1 dedicated mono speaker/subwoofer output. Each channel can be switched in any combination, including individual, simultaneous, and A/B comparison.

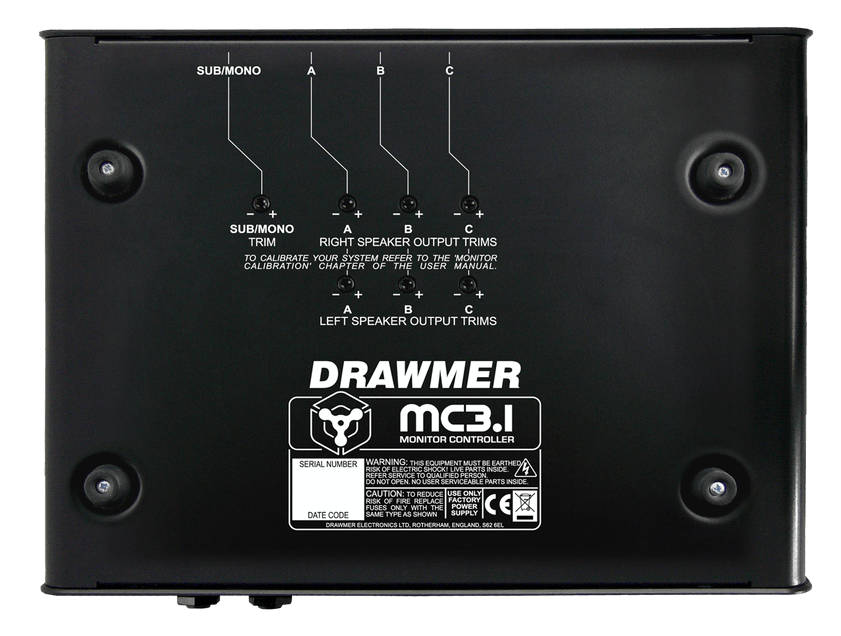

■ Level matching can be performed separately for each channel using the trim potentiometer on the bottom of the unit.

■ Delay-type relay protection is included for all speaker outputs to prevent noise during power on/off.

■ Quad potentiometers, specially designed for the main and preset level controls, are arranged in parallel for excellent channel matching and smooth operation.

■ Two headphone amplifiers are included, allowing for separate level control of the main and cue channels, enabling the artist and engineer to listen to different mixes.

■ A 3.5mm stereo mini jack and level control are located on the front panel. MP3 players and smartphones can be connected.

■ Volume can be adjusted for the artist using the cue level control.

■ A talkback microphone with level control is included. Switching between the built-in microphone and an external microphone, a mono output terminal, and switching between headphone output and cue output can be done via the front panel or footswitch.

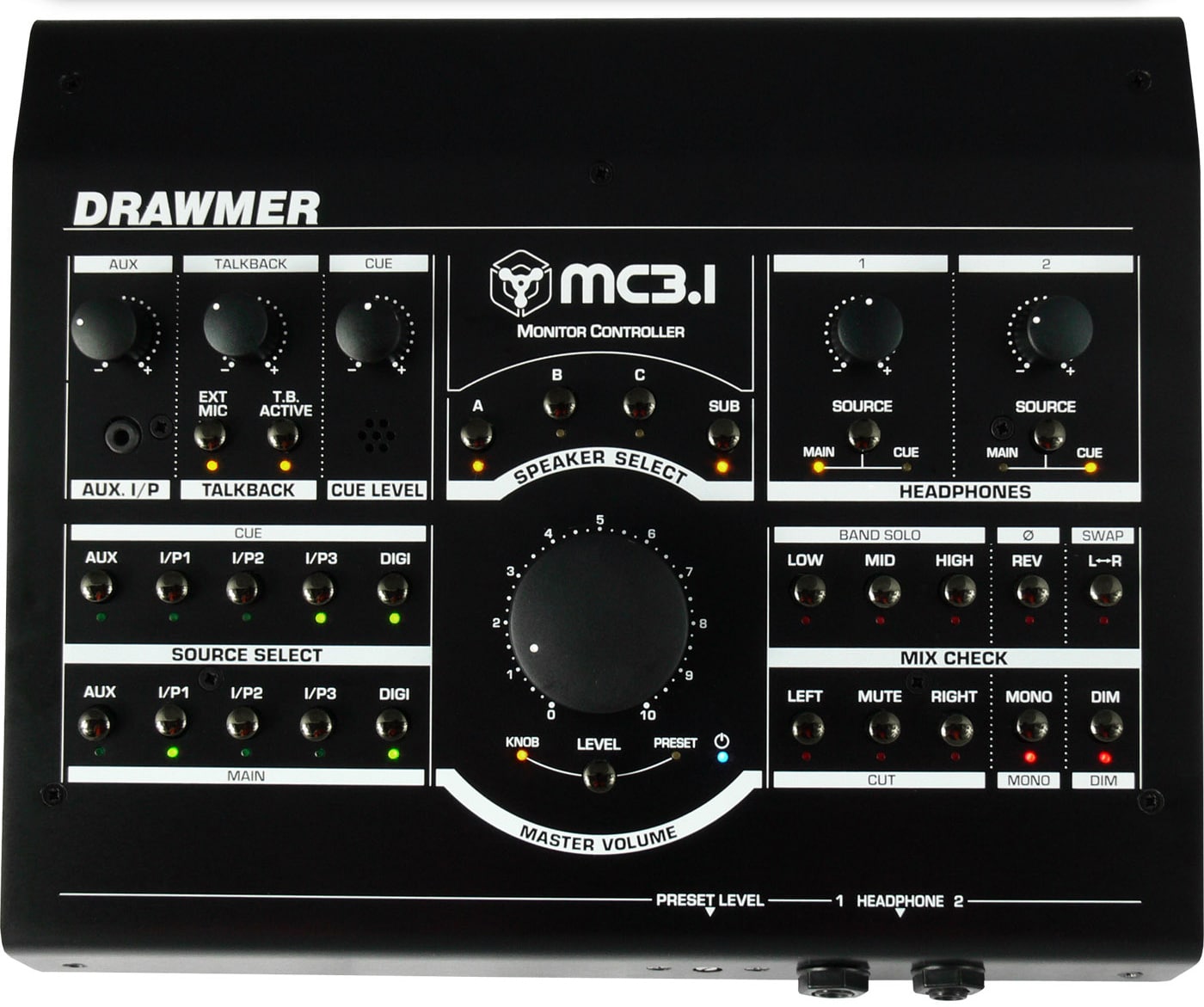

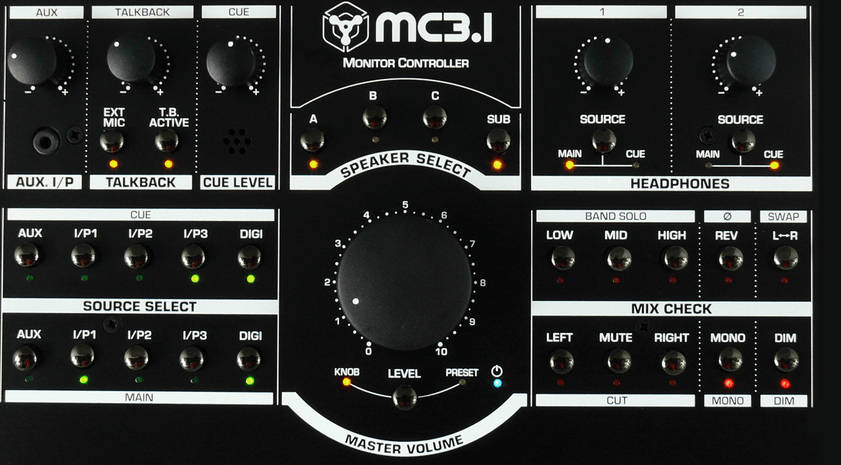

■ Features comprehensive mix checking functions including Low, Mid, High, Solo, Dim, and L/R Mute.

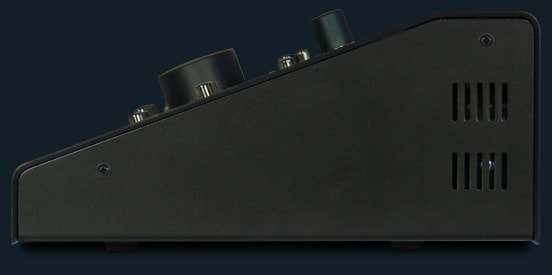

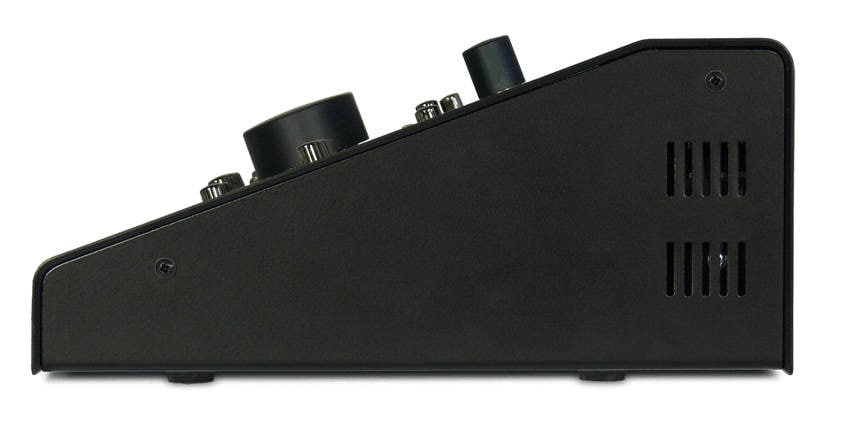

■ Robust wedge-shaped steel chassis and stylish brushed aluminum cover.


■Inputs

? Analog

I/P1 (Balanced XLR/TRS phone combo x 2)

I/P2 (Balanced XLR/TRS phone combo x 2)

I/P3 (Stereo RCA AUX (front panel) 3.5mm stereo mini)

? Digital

AES/SPDIF input (Balanced XLR (AES)/TRS phone (SPDIF) combo x 1)

■Outputs

A, B, C (Stereo balanced output)

MONO (Mono speaker/subwoofer)

■Dimensions: 220 x 275 x 100 mm (including controls, power socket, and feet)

■Weight: 2.5 kg

MC3.1

Monitor Controller

Ultimate Control, Accurate & Transparent

機器ではなく、音楽を聴く!

MC2.1の成功を基に開発されたMC3.1モニター・コントローラーは、正確で透明感があり、同じ品質で作られています。MC3.1は、録音されたサウンドを色付けすることなく忠実に再現しますが、より多くの入力、より優れたコントロール、拡張チャンネル・ルーティング、デスクトップの「ウェッジ」フォーム・ファクターなど、大幅に拡張された機能を備えています。

The Ultimate Feature Set

さらに、デジタルAES/SPDIF(24bit/192kHz)入力を追加し、合計5つの個別に切り替え可能なソースを提供します。これには、MP3プレーヤーやスマートフォン、タブレットを簡単に接続できるレベルコントロール付きのフロントパネルAUX入力も含まれます。レベルコントロール付きのフルキューミックス機能により、メインまたはキュー出力と2つのヘッドフォンアンプのソースを個別に選択できるため、例えばアーティストはエンジニアとは全く異なるミックスを聴くことができます。専用のキュー・ミックス出力も用意されています。

Preset Volume

前面のセカンダリー・プリセット・ボリューム・コントロールは、モニターに繰り返し校正可能な出力レベルを提供し、エンジニアはスイッチを押すだけで、毎回同じ音量でミックスを聴くことができます。

Well Connected

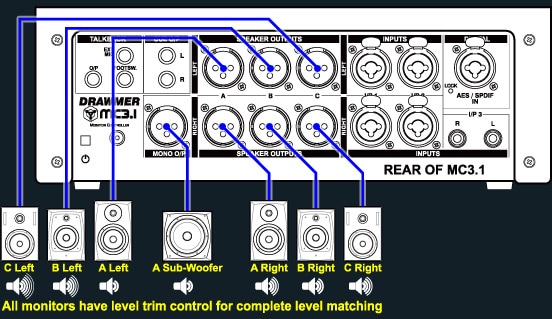

MC3.1には3系統のステレオ・バランス・スピーカー出力と、モノラル・スピーカー/サブウーファー専用出力が搭載されており、それぞれユニット下部に左右のトリムが付いているため、レベル・マッチングを完全にコントロールすることができます。さらに、それぞれを個別に、または同時に、任意の順番で切り替えることができます。同じサブウーファーで複数のスピーカーを聴いたり、サブウーファーを完全にオフにしたりすることもできます。

The Features Don't End There....

ミックス・チェック機能が追加され、ロー、ミッド、ハイのソロ・スイッチにより、例えばローがミッドにどのようににじむか、あるいはそれぞれのステレオ幅を聴くことができるようになったほか、左右のチャンネルを入れ替えることもできるようになりました。トークバックは、内蔵マイクに加えて外部マイクも使えるようになり、フットスイッチ操作にも対応しました。

Tough & Secure

スマートでスタイリッシュである一方、頑丈な筐体はスタジオでの衝撃や衝撃に耐え、使用されている高品質のコンポーネントと相まって、MC3.1は長く安心して使用できるように作られています。
