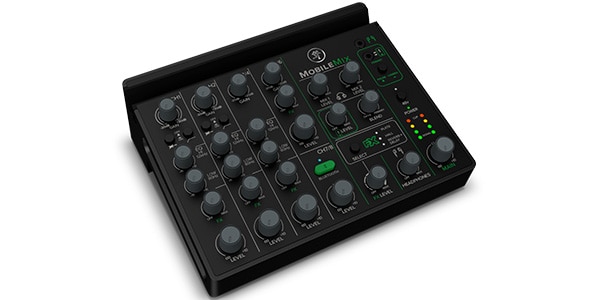

MACKIE / MobileMix

MACKIE/MobileMix is ??a USB-powered mixer recommended for streaming.

Video production/live PA/live distribution 8 channels/USB-powered mixer

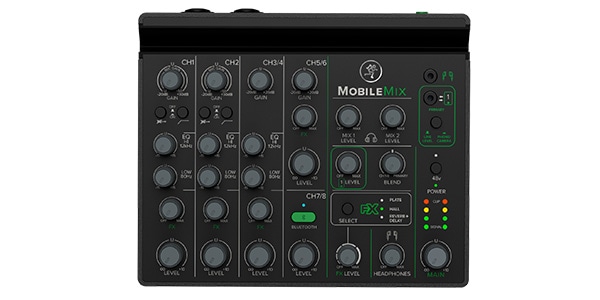

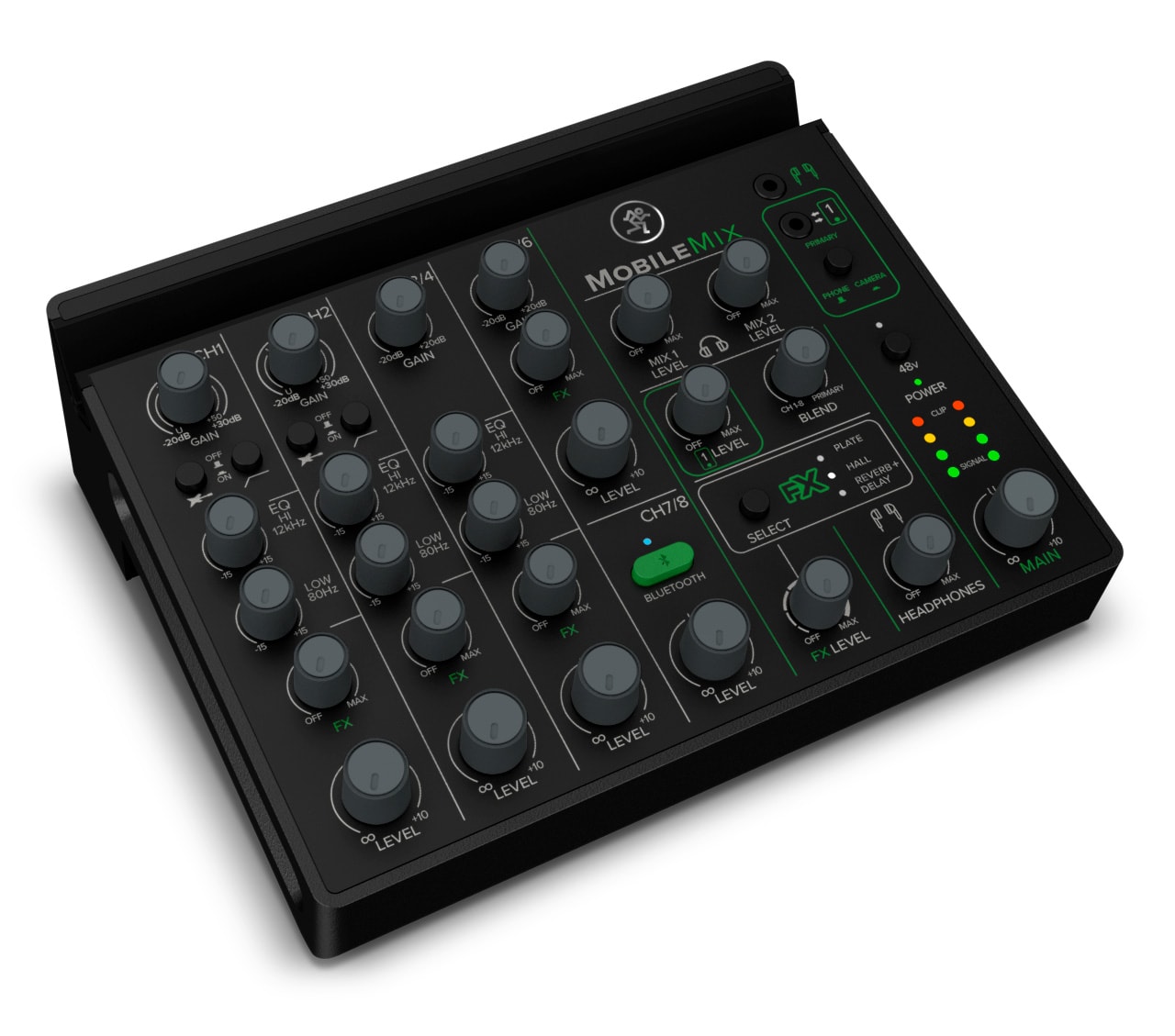

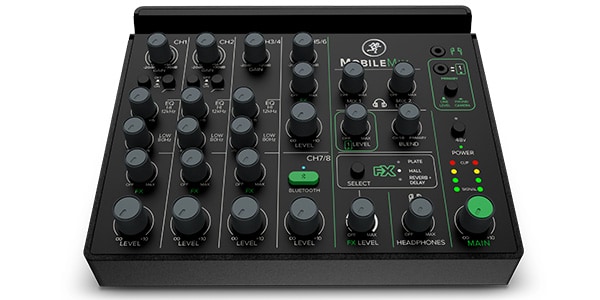

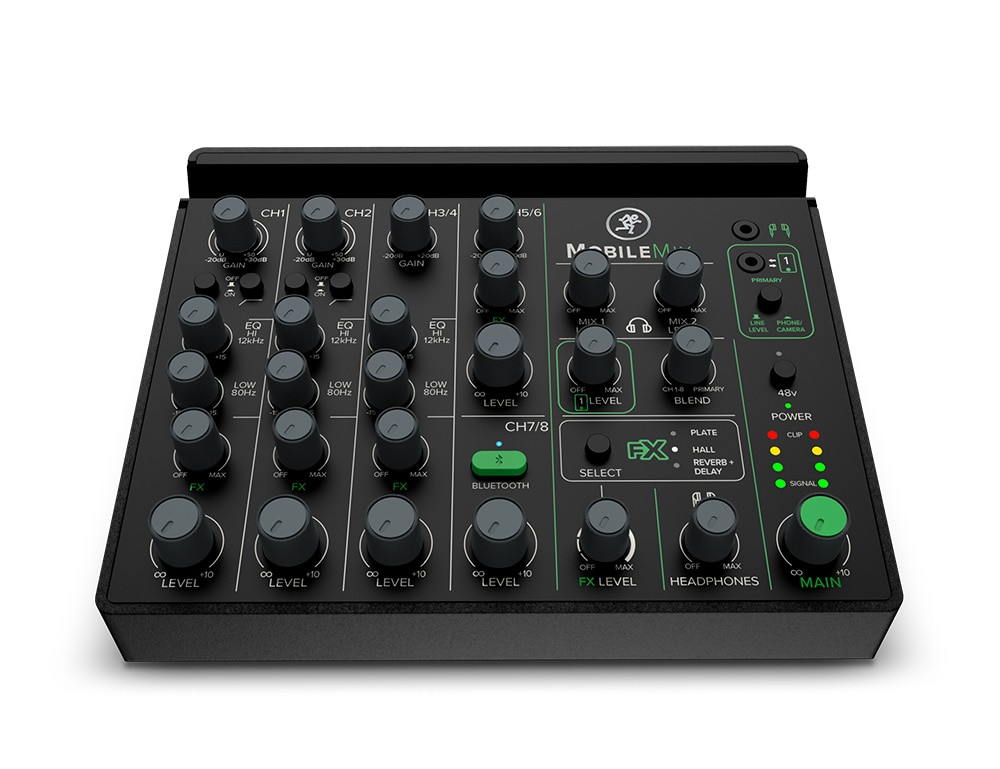

MobileMix is ??a compact mixer that can be driven by USB bus power and is ideal for video content production, live sound, live distribution, etc. Equipped with 2 monaural microphone/instrument preamplifiers, Bluetooth? input with mix-minus function that can avoid howling, 2 stereo line inputs, 2-band EQ, and 3 latest effect engines. Mackie MobileMix is ??an all-in-one mobile mixer with all the features you need.

■Professional sound anytime, anywhere
MobileMix is ??a compact mixer that can be powered not only by USB bus power from a PC but also by a general mobile battery. (Please prepare a mobile battery separately)

■USB bus power drive

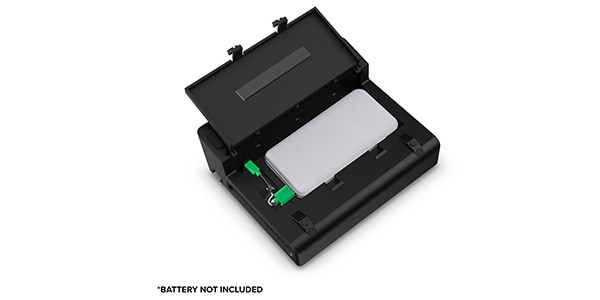

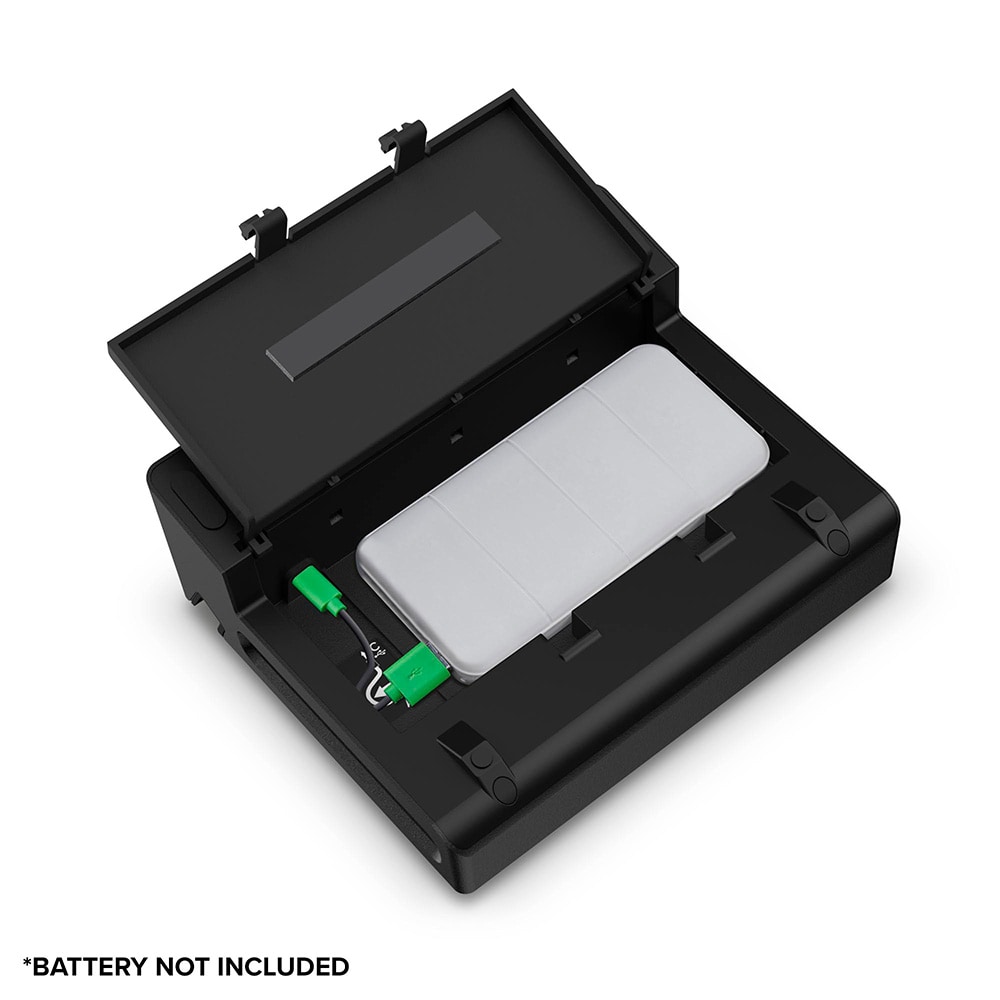

MobileMix is ??a USB bus-powered mobile mixer. As long as you have a mobile battery* for your smartphone, you can use it even in places where there is no outlet. What's more, MobileMix has a space on the bottom that can store a mobile battery, turning it into a battery-powered mixing console.
*Please prepare a mobile battery separately.
*Mobile battery recommended specifications: Output 5V 1.2A or more, USB A output terminal equipped
*Storable mobile battery size: width 140 x depth 70 x height 7.5/mm or less
*MobileMix's USB C terminal is for power only. This unit does not have a USB audio interface function.

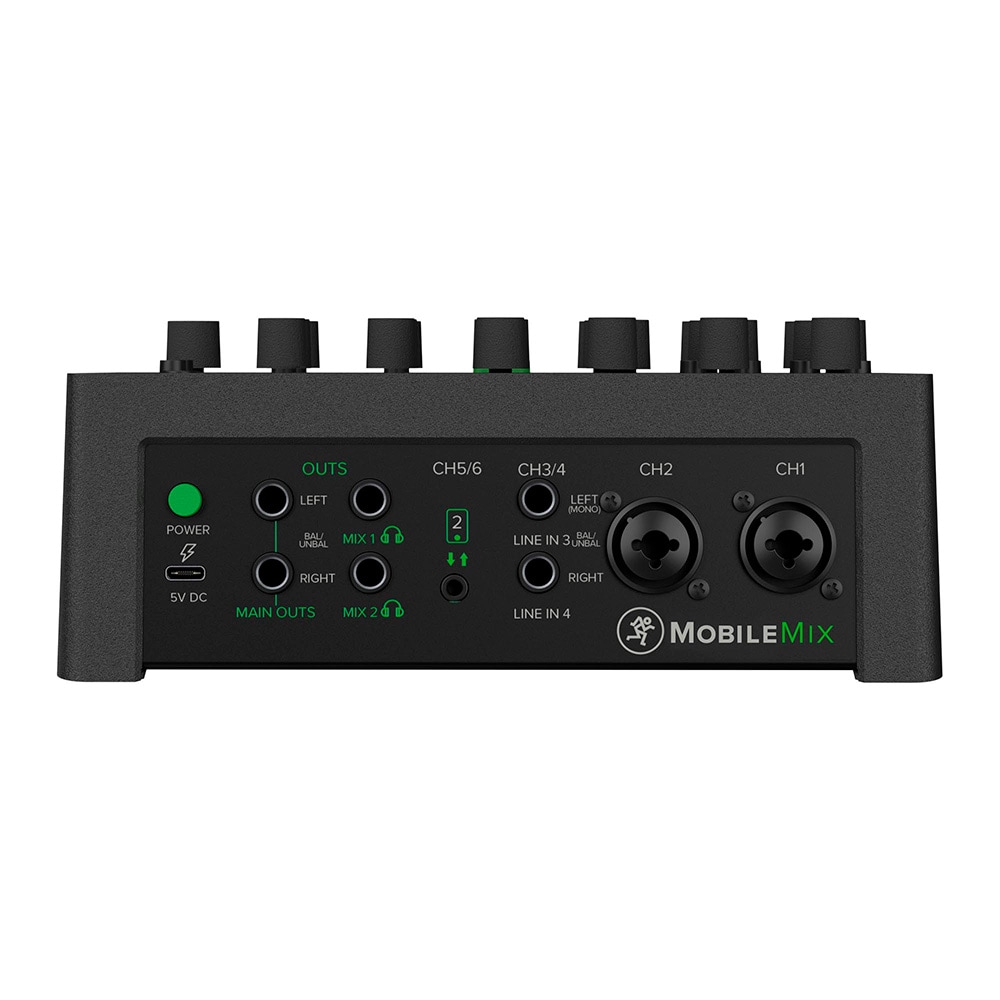

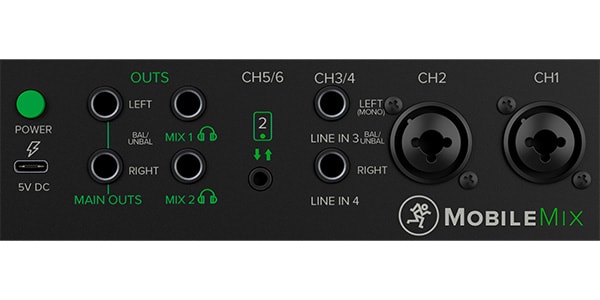

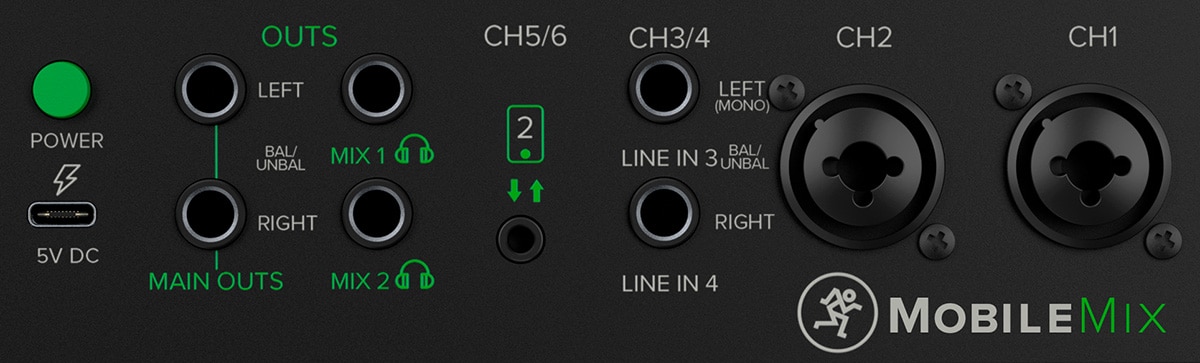

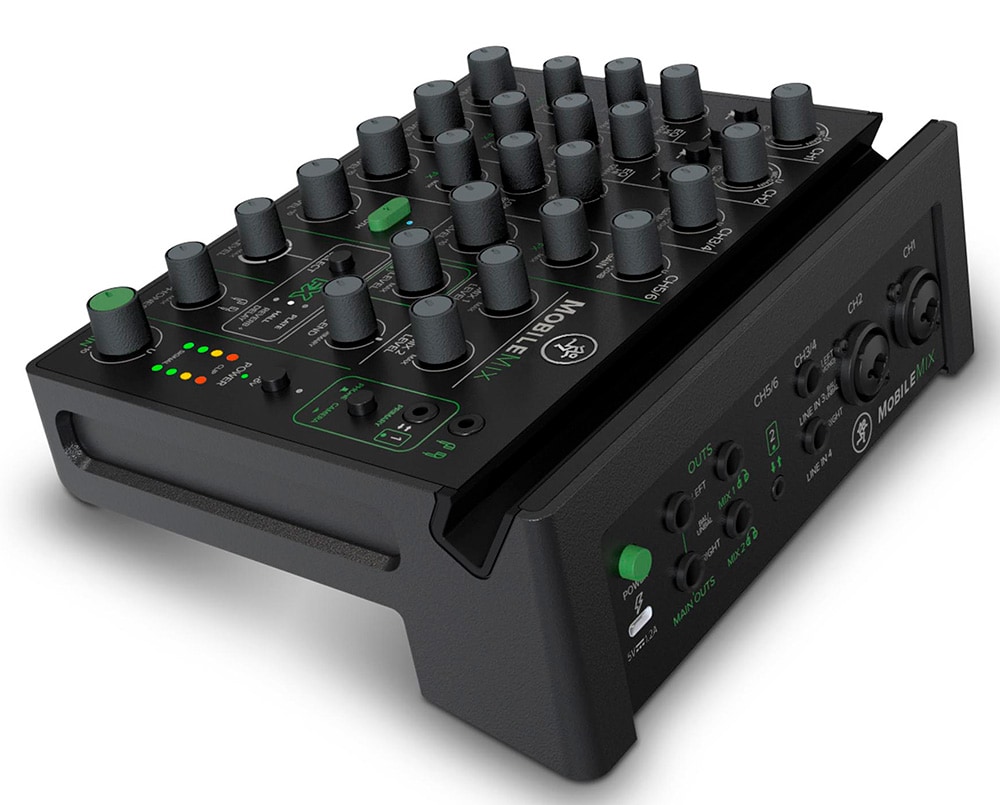

■Flexible TRS/TRRS line input

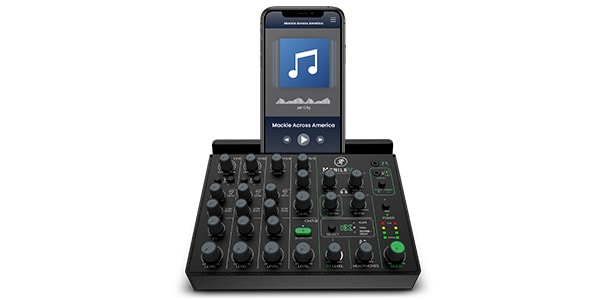

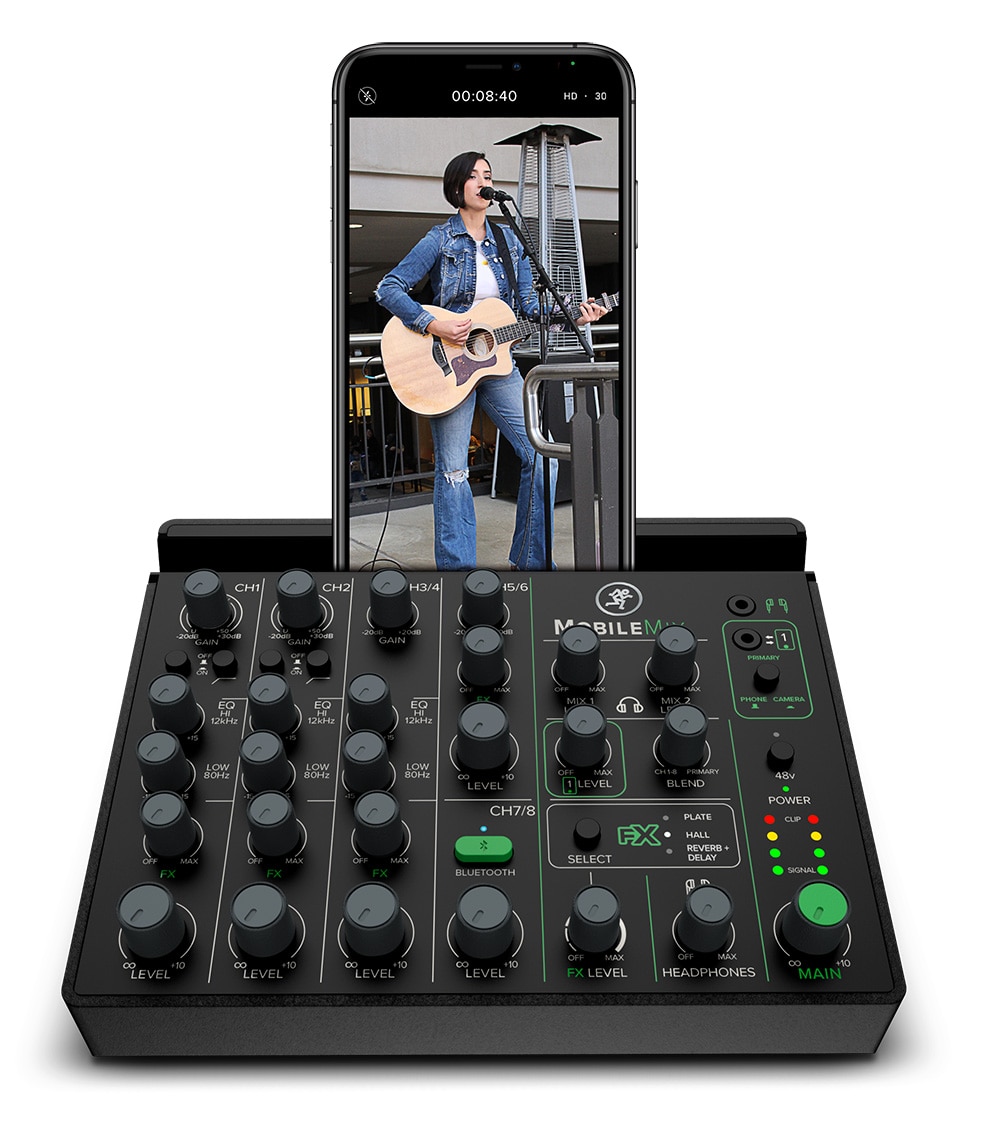

Equipped with two TRRS terminals that can connect audio signals from smartphones and digital single-lens reflex cameras. In addition, the stereo line input with 2 TRS terminals (L/R) allows you to input various external sources such as audio players, live mixing boards, computers, keyboards, and other line-level instruments.

■Two-way BLUETOOTHR equipped with MIX MINUS technology to avoid feedback

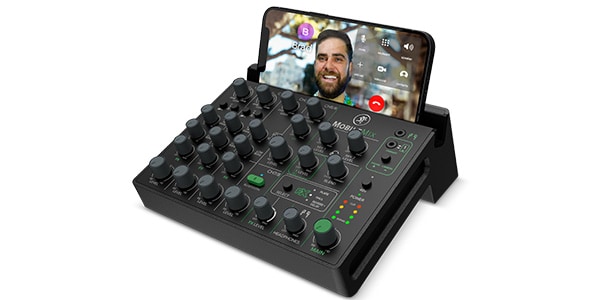

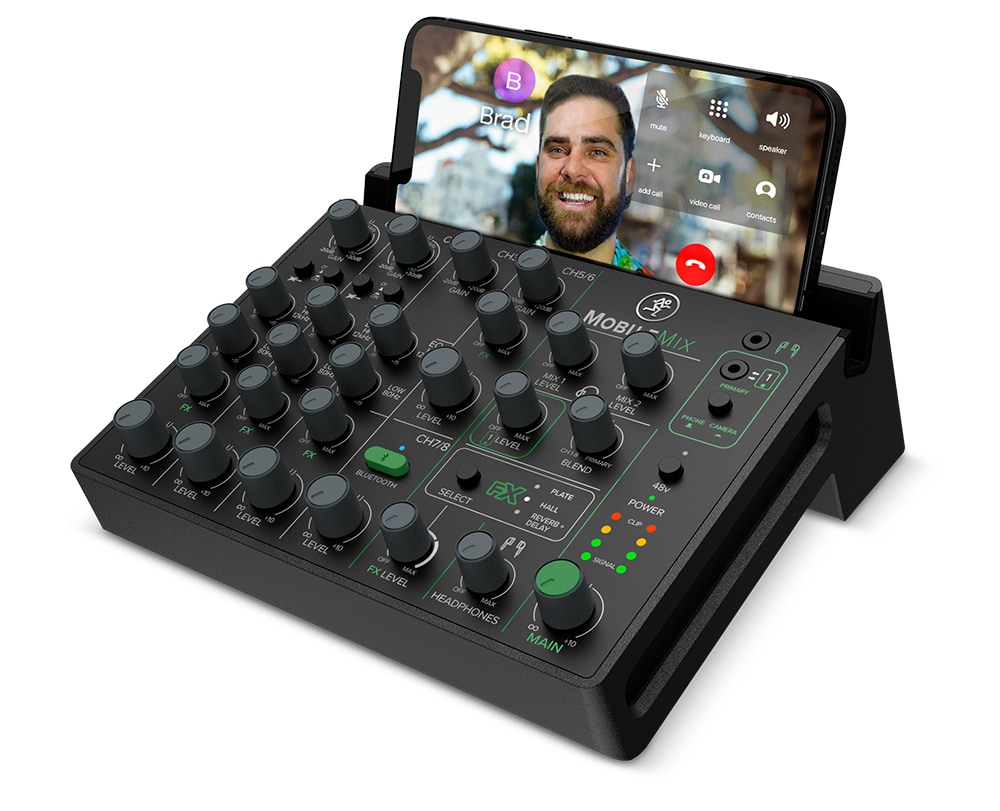

MobileMix can send and receive audio wirelessly using a dedicated Bluetooth channel. You can wirelessly play music from your Bluetooth device and record it on another device. The Mix Minus technology feature also prevents feedback and ensures clear audio from your phone.

■Professional microphone preamplifier x 2 that also supports musical instrument input
MobileMix is ??equipped with a professional mic preamp that reflects a quarter of a century of experience and results. Equipped with two full-featured mic preamp inputs (XLR-1/4"" combo jacks) equipped with a Hi-Z impedance switch for high-impedance electric guitars and passive instruments, a low-cut filter, and 48V phantom power for condenser microphones.

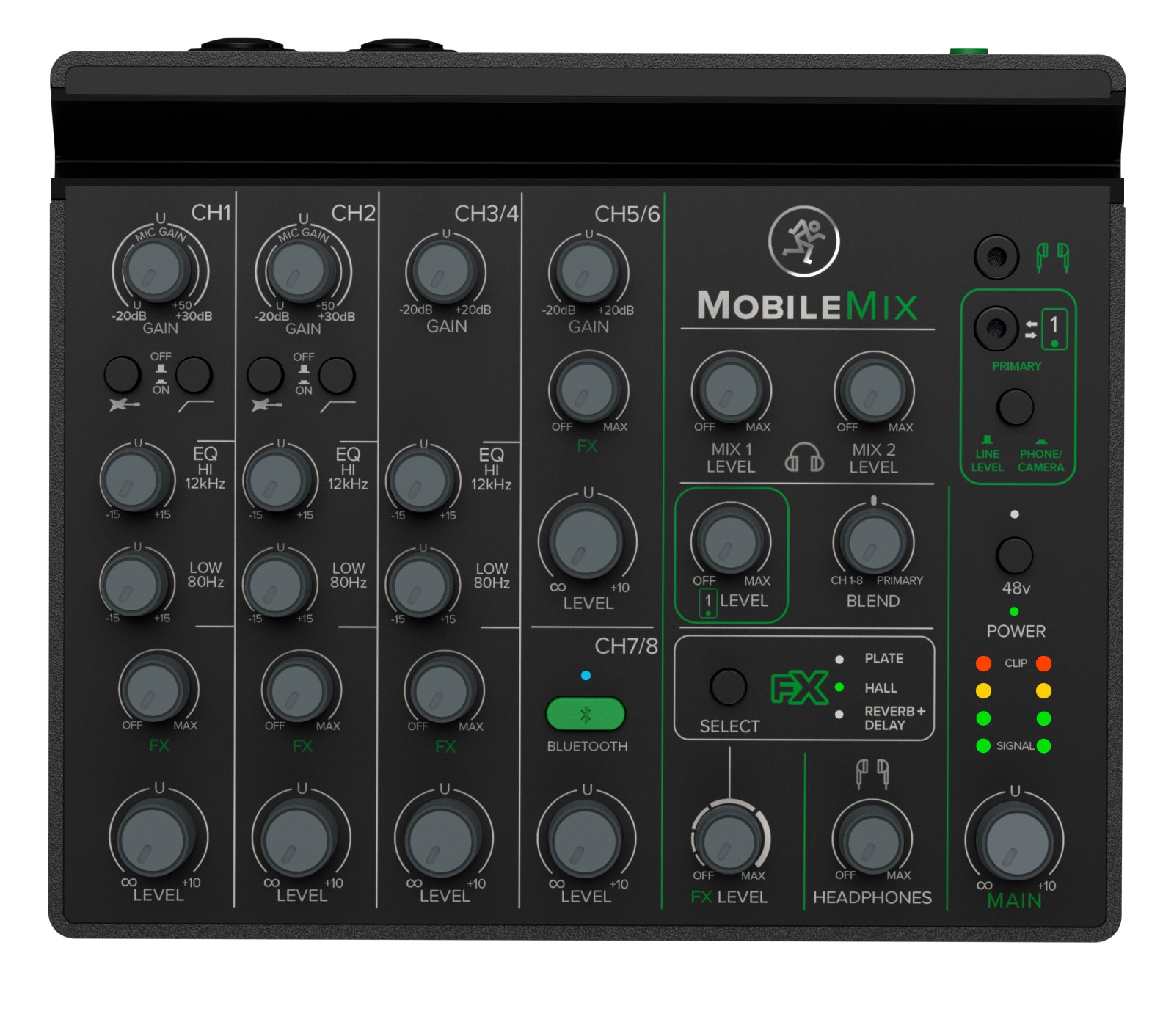

■Channel EQ
It's okay even during live streaming. All input and output channels can be instantly controlled using physical control knobs. This is a privilege unique to analog mixers. Of course, you can enjoy mixing with the proven Mackie professional sound.

[Main specifications]
■USB bus power drive that can connect a mobile battery or power adapter (mobile battery sold separately)

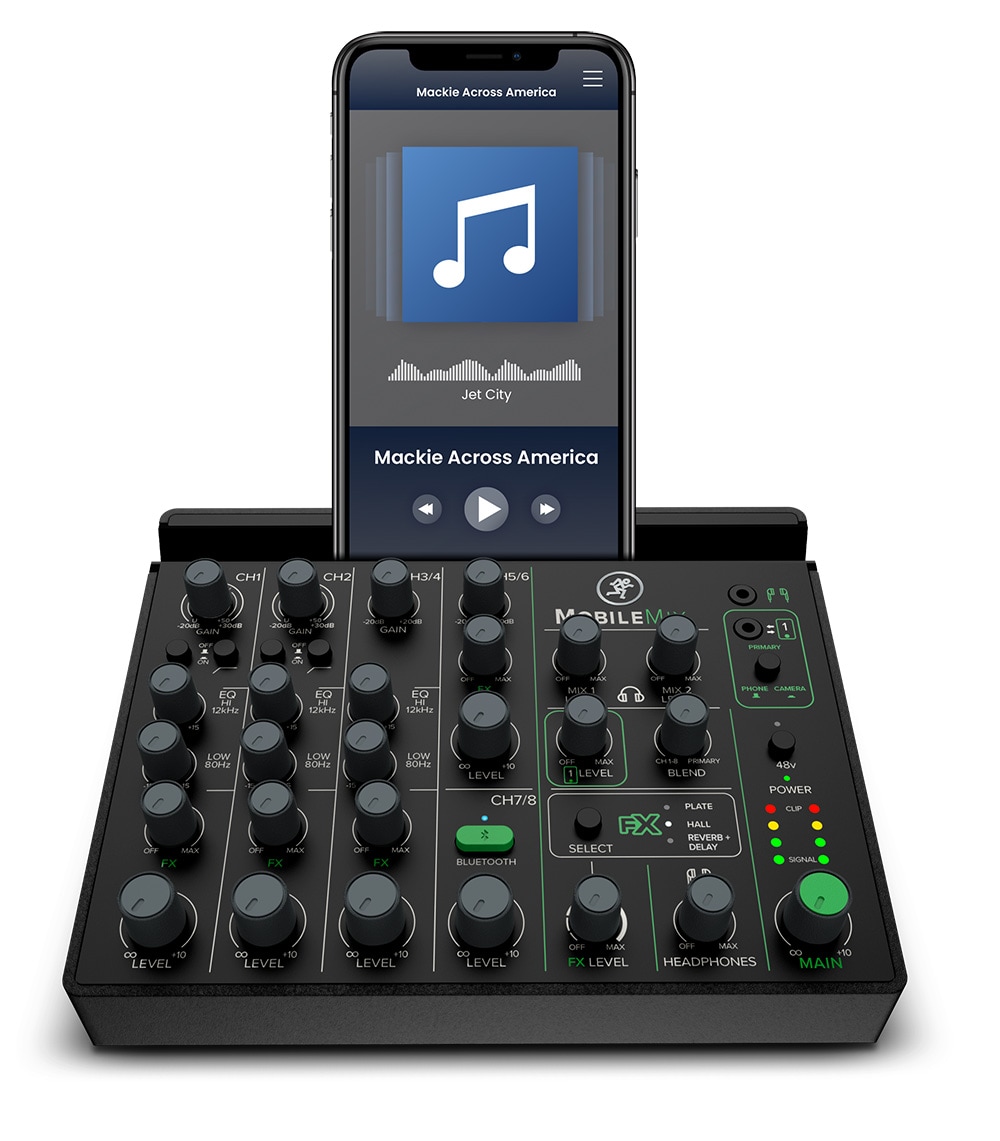

■Separate mixed analog output for smartphone, tablet, and digital SLR camera audio
■Bluetooth input/output with MixMinus technology allows simultaneous recording and streaming, including calls, without echo
■Microphone/instrument (Hi-Z) input x 2 XLR combo terminal: Can supply phantom 48V, with LOW CUT switch
■Synthesizer, keyboard, line sound source compatible stereo input x 1 system
■Two-way TRRS connector compatible with smartphones and cameras, etc.
■3 types of reverb whose level can be adjusted for each input channel
■Stereo MIX OUT x 2 with independent level control that can be used for output of PA systems, monitors, etc.
■Stereo mini headphone output with level control
■Storage space for mobile battery (mobile battery sold separately)
