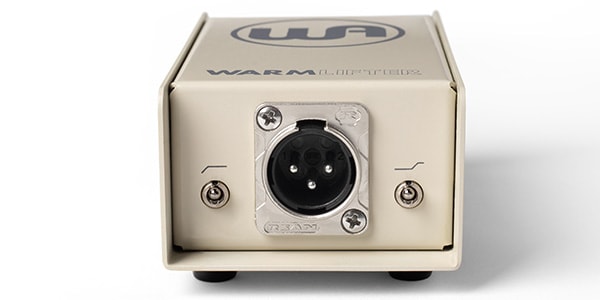

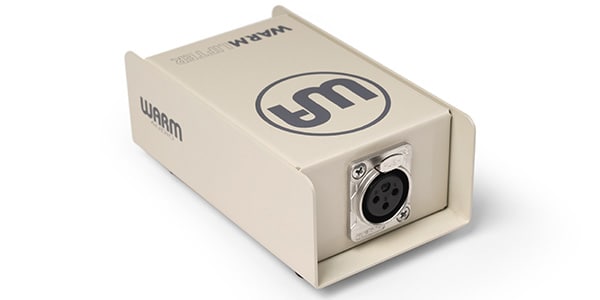

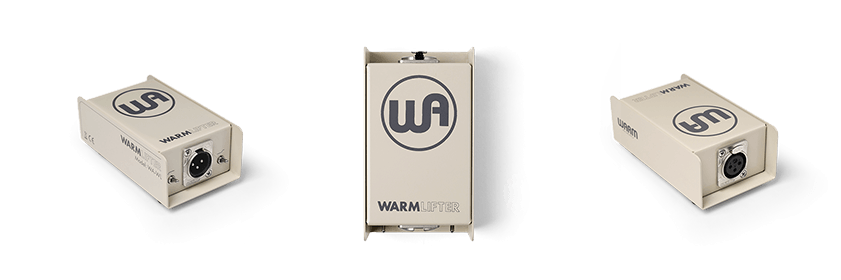

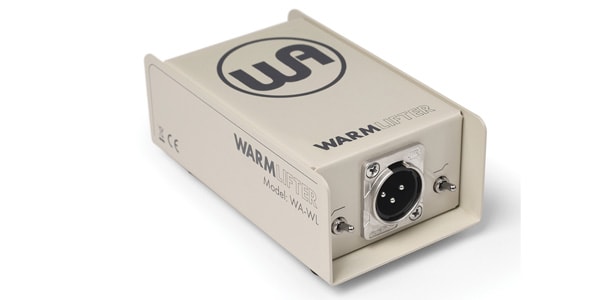

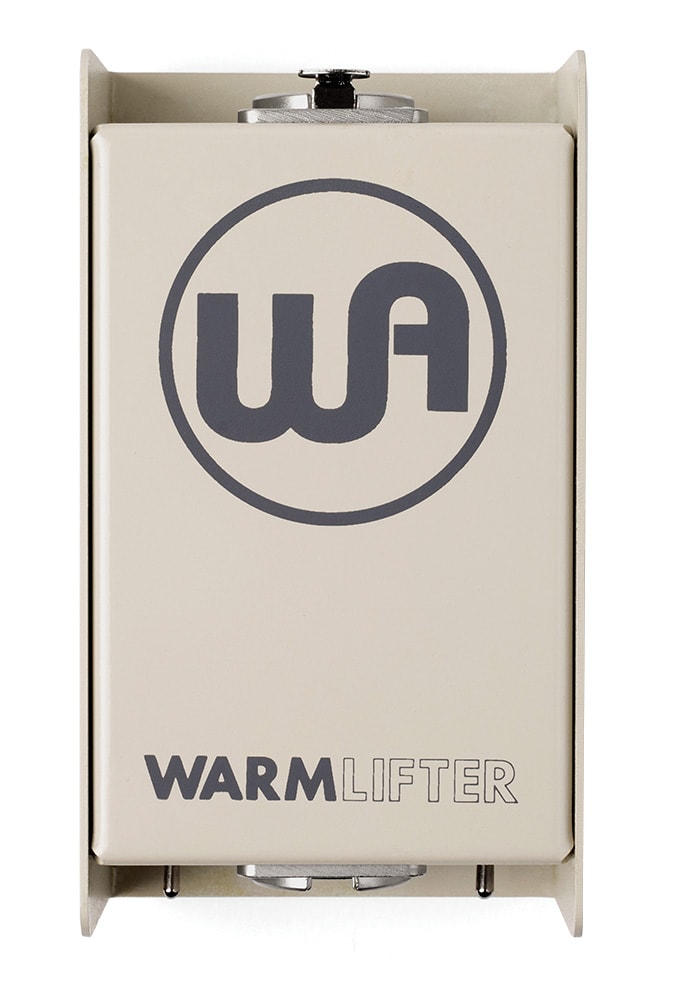

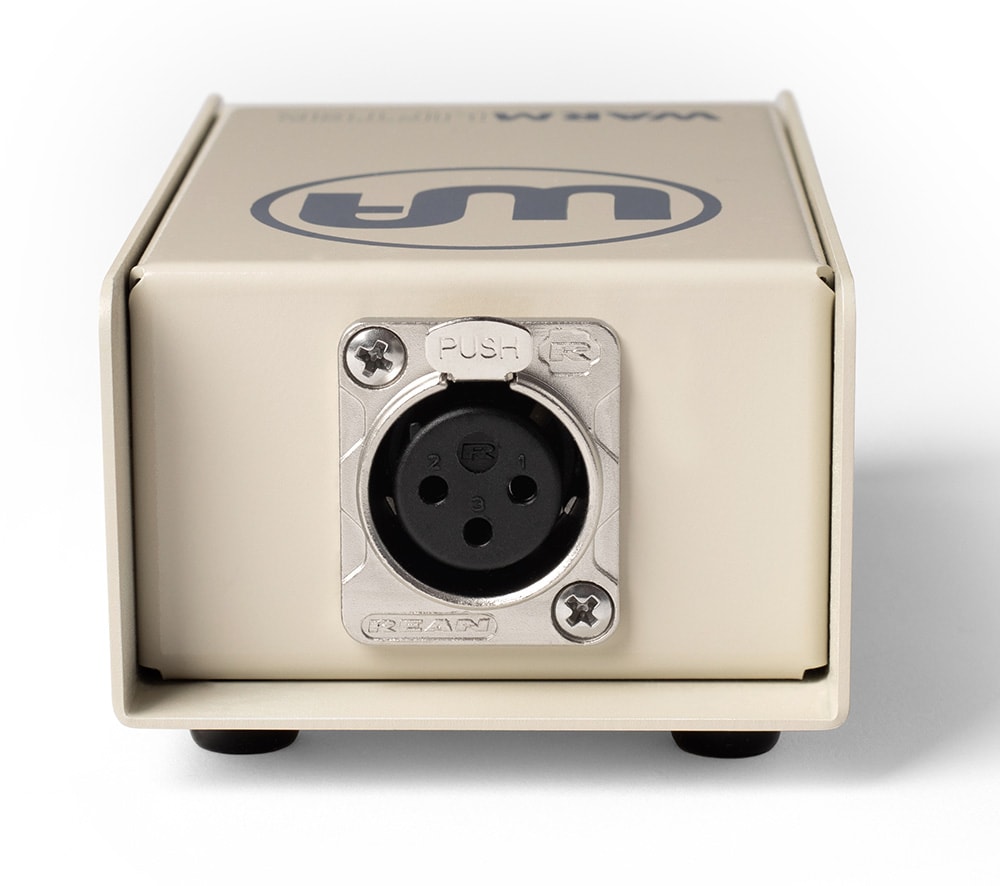

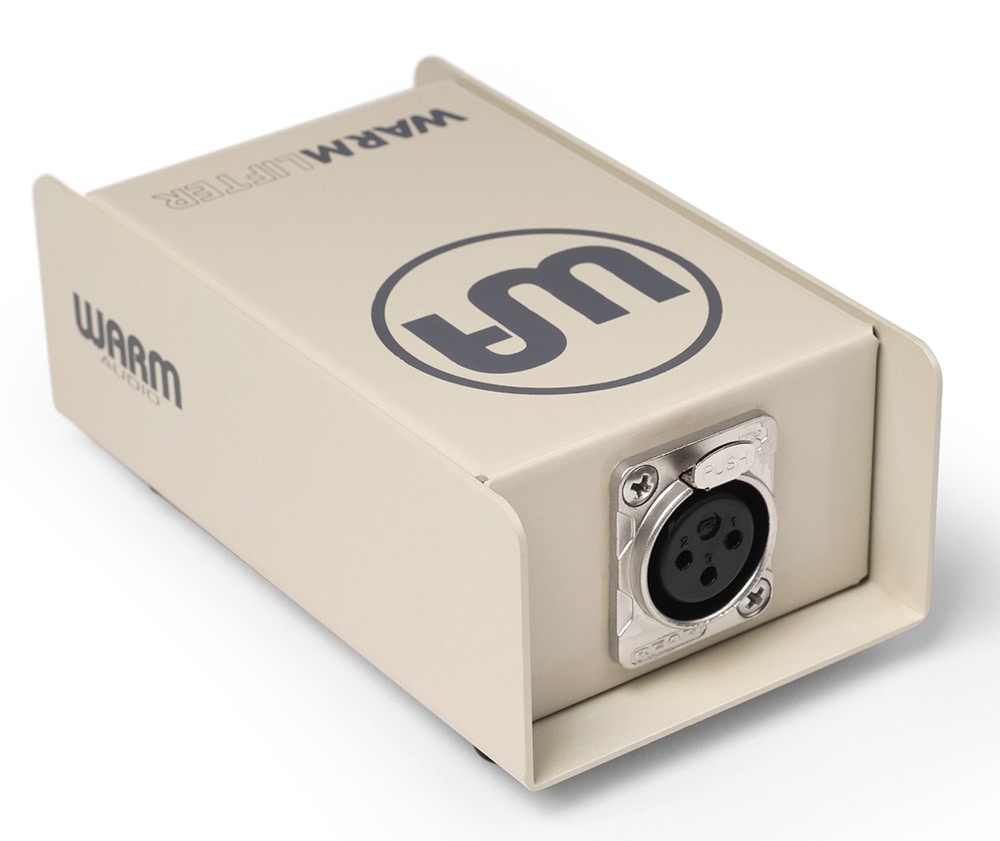

WARM AUDIO / WARM LIFTER

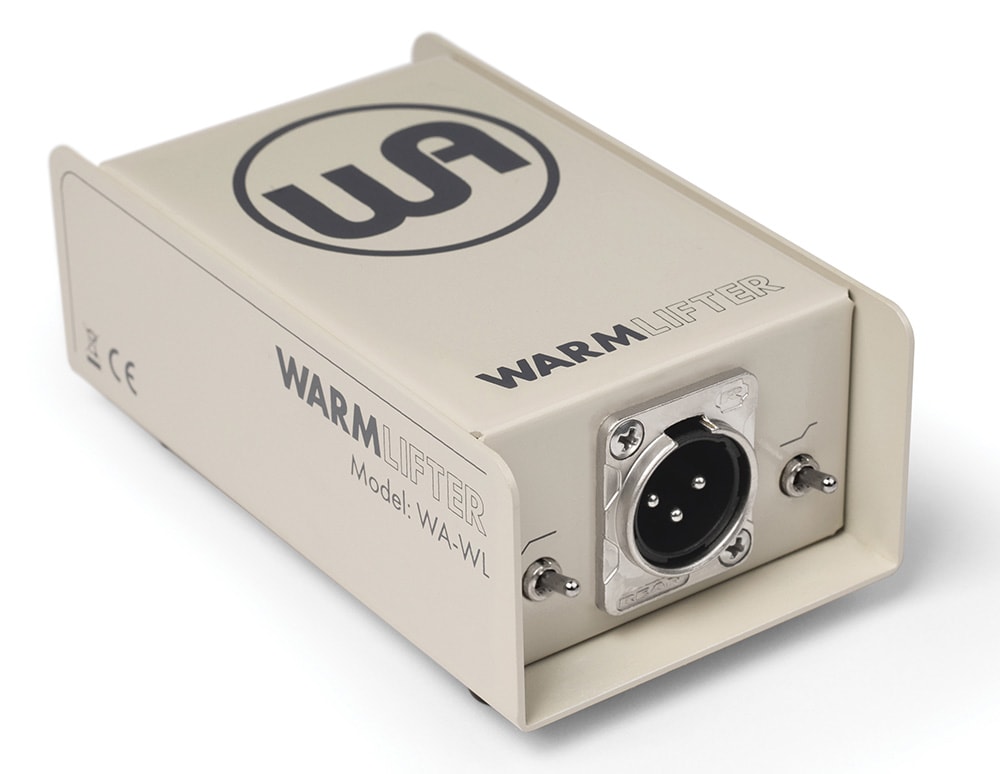

WARM AUDIO/Warm Lifter is an in-line active mic preamp designed for low-output dynamic and ribbon mics. It has premium features for live and studio use. The Warm Lifter provides 26dB of true analog gain for any low-power mic, boasting a 100Hz high-pass filter and 3kHz high-shelf boost.

■Inline active mic preamp

■Specifications
Ultra-low noise JFET input
In/out balanced signal path
Selectable 100 Hz (12 dB) high pass filter, 3 kHz (2.5 dB) high shelf boost
Input impedance: 2.4kΩ, output impedance: 150Ω
Maximum input: -11 dBu (218mV rms) | Maximum output: 15 dBu (4.36V rms)
THD+N @ 15dBu: -100dB (0.001%)
Output noise: 7.75 uV (A-weighted) (at 150 Ω input)
Frequency response: 10-100kHz +/-0.2dB
48V phantom power, current consumption: 4.7mA

■Main uses
Vocals and instrument performances in the studio using low-output ribbon microphones and dynamic microphones
Narration/Podcast using low output ribbon and dynamic microphones
For low output microphones connected directly to audio interfaces
Compensation for signal loss due to long cable runs

■Low output microphone magic:
Provides 26 dB of clean gain for low output microphones including passive ribbons and certain dynamic models. Especially when connected directly to an interface, it ensures optimal performance in both recording and live situations where additional gain is required for accurate detail and frequency response.

■True 26dB clean gain
Regardless of the microphone, it always provides 26dB of clean output gain. Unlike other in-line preamps, signal boosters, and lifters, the circuit design ensures there is no impedance ""mismatch"" between the microphone and the Warm Lifter, allowing you to record without signal loss or phase issues.

■Add flexible frequency filter:
A selectable 100Hz high-pass filter removes hard-to-control low frequencies to improve clarity and detail. Plus, it features a selectable 3 kHz high-shelf boost that boosts mids and highs for better clarity and detail, even in dark mics.

■Impedance mismatch:
The input impedance is 2.4kΩ, which acts as a matchmaker between low-power microphones and interfaces/mixers, solving common impedance mismatch problems such as signal loss, frequency response changes, and phase issues.

■Studio sound and ready-to-use functions:
It has an ultra-low noise JFET input and a fully balanced (in/out) signal path, and operates with 48V phantom power. The incredibly robust construction increases the value of the product, making it one of the audio devices you'll always want to have by your side.

■Manual testing in Austin, Texas
Like all Warm Audio equipment, each piece is carefully hand tested and inspected in Austin, Texas by skilled technicians with a passion for music production.
