amphion / One25A

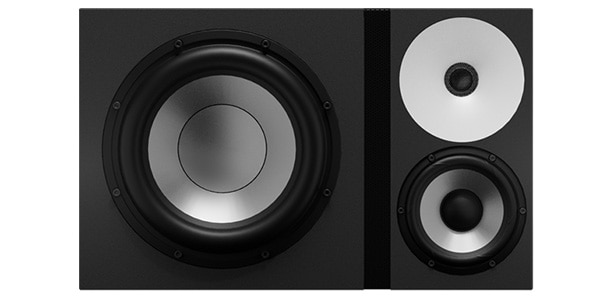

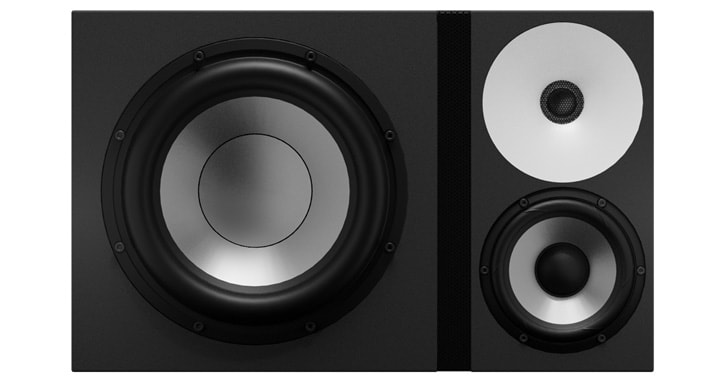

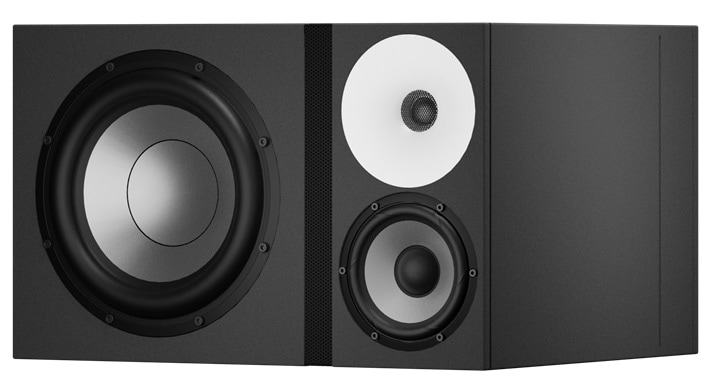

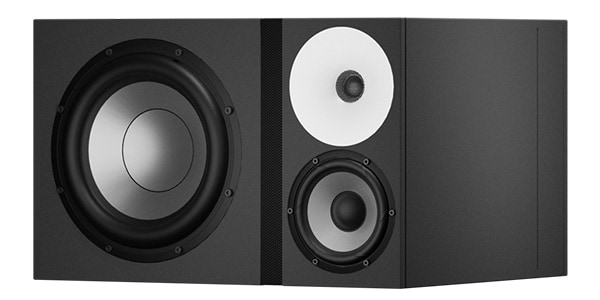

amphion / One25A is a 10-inch studio monitor speaker.

1 active nearfield monitor, 10 inches

A 3-way active studio monitor that reproduces Amphion's wide range and pure sound.
Dual sealed cabinets and a hexagonal bass enclosure eliminate trapped midrange, keeping all frequencies clear.
The power amplifier, which does not pass any unnecessary DSP or AD/DA, has sufficient headroom, and the protection limiter only operates when necessary.

[Speaker unit part]
Equipped with a newly developed 1-inch tweeter, 5 1/4-inch squawker, and the same 15-inch woofer as the Base series.
Crossover point is 100Hz/2000Hz.
Like other Amphion products, it uses highly sealed plywood. Therefore, the unit is designed to make a strong sound.
The rubber of each unit has a different hardness, which can be said to be a characteristic of our focus on sound.

[Power amplifier section]

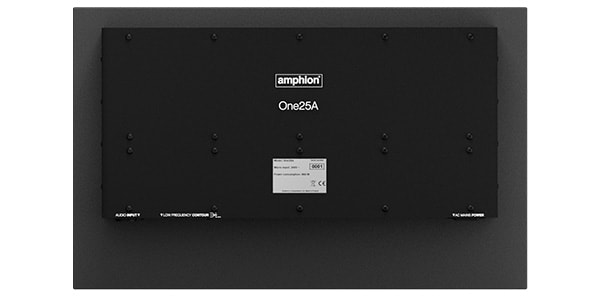

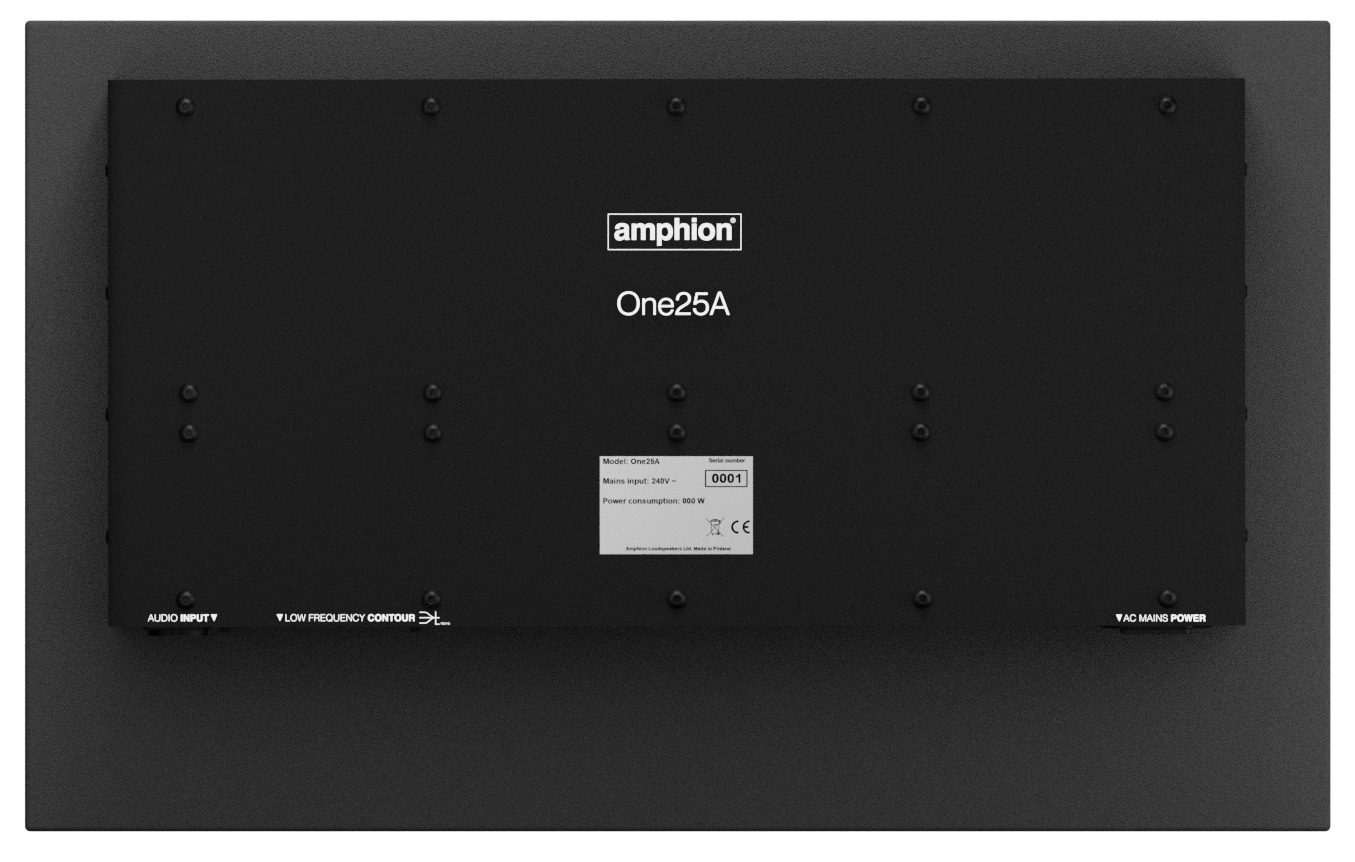

A 700W power amplifier is installed on the back. The power amp section is equipped with a power switch and step-type bass control.
To protect the delicate drivers and electronic components, the power amplifier is housed in a separate box that can be removed.

*Removal of the power amplifier requires removing the cover.
*The speaker and power amplifier are connected with a 4-core speakon cable. If the power amplifier is removed, two separate 4-core speakon cables (female/male) are required for each unit.

【specification】
Operating principle: Active, 3-way, sealed cabinet
Tweeter: 25 mm/1” titanium
Mid: 15 cm / 5?” aluminum
Bass: 25 cm/10” aluminum
Crossover point: 100Hz/2000Hz
Amplifier power: Bass 700W
　　　　　　　　　 Tweeter & Midrange 2 x 205W
　　　　　　　　　 THD + N 0,002%
Frequency response: 20 - 22 000Hz (-3dB)
Max SPL: 112 dB
Connections: Balanced XLR Input
Mains: 1x Female XLR, pin 2-hot
100-120 / 220-240 V, 50-60 Hz
Measurements (H x W x D): 316 x 510 x 487 mm
Weight: 41 kg
