amphion / Amp700

The Amp700 is an 8-channel multi-channel Class-D power amplifier that delivers 350W x 2 at 8Ω and 700W x 2 at 4Ω load.

Power Amplifier, 2 x 350W (8Ω), for Amphion

A synergistic combination of the finest modern Class D and traditional Class A…

Amphion's philosophy is to develop innovative products that are high-performance and long-lasting. The Amp700 delivers unwavering control and tight, fast, high-resolution power to maximize monitor performance. The Amp700 provides 350W x 2 at 8Ω and 700W x 2 at 4Ω load, ensuring ample headroom for the highest level of performance.

To reach the required performance level, a buffer stage was developed, adding a subtle touch of Class A sound to the Class D topology for further sound enhancement. The Amp700 is the perfect partner for all Amphion models and other passive monitors.

Output: 2 x 700W, 4Ω / 2 x 350W, 8Ω

Dynamic Range: 117dB

Power Supply: 100V-240V (Universal)

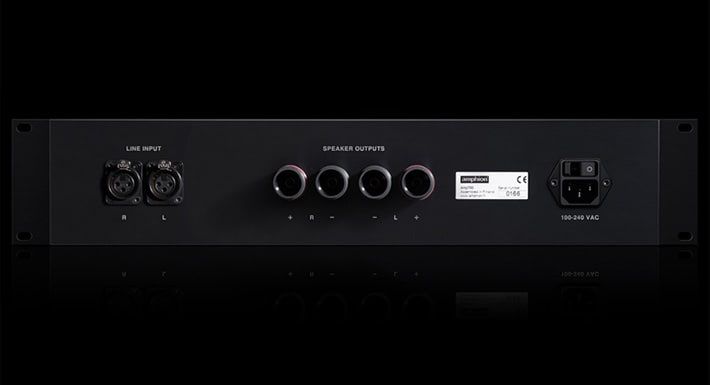

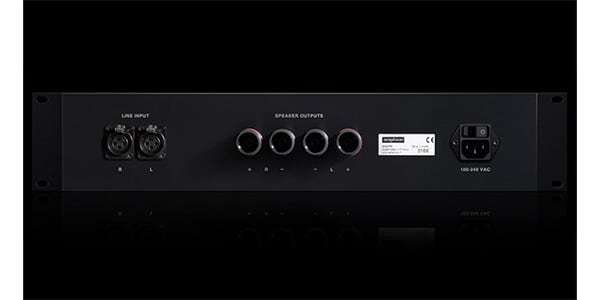

Input: 2 x Neutrik XLR Inputs

Enclosure: 19-inch, Rackmount (2U), Aluminum Enclosure

Dimensions (W x H x D): 483 x 88 x 260 mm

Weight: 5.5kg

Technology: AMS amplifier technology (Patented Technology)

Input Voltage: 230/115V (Automatic Select)

Certifications: CE / EuP / Energy Star

Input: 2 x Neutrik XLR Inputs

Speaker Connector: 3-way Binding Post

Power Switch: Front Panel
