Line 6 / HX Stomp キャリングバッグセット

We’re sure many guitarists have thought, “I’d love to use a Helix, but it’s too big to fit on my pedalboard…” The HX Stomp is the perfect solution—not only for those just starting out, but also for those who’ve already built their pedalboards. This set includes a convenient dedicated carrying case.

■Set Contents
・Line 6 / HX Stomp Multi-Effects Processor
・PROTECTIONRACKET / LPTRAHXSTOMP (HXS-A002-00) Case for HX Stomp

■Key Specifications
・Same DSP chip and HX modeling engine as the Helix
・Features over 300 effects and amp models found in the Helix, M Series, and Line 6 legacy products
・Supports up to 6 simultaneous amp, cabinet, and effect chains (including loopers and IRs)
・3 capacitive touch footswitches with color LED rings
・1/4-inch stereo input/output
・Dual TRS “expression pedal/footswitch” inputs
・Stereo effects loop (mono/stereo TRS send, stereo return)
・USB audio interface (multi-in/out)
・Headphone output

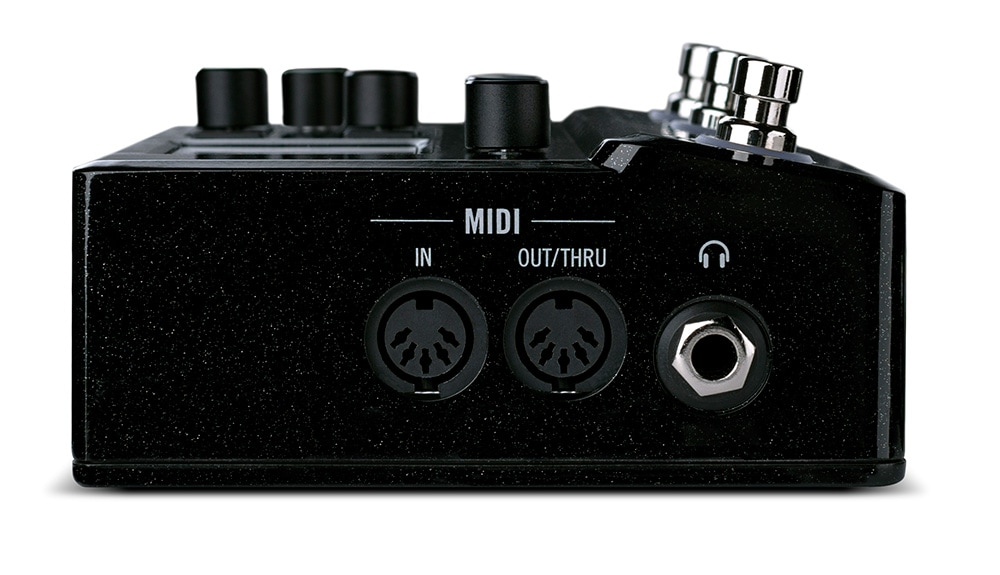

・MIDI (in, out/through)
・Dimensions: 64 (H) × 122 (D) × 170 (W) mm
・Weight: 820 g
・Power adapter included

■Overview
・An ultra-compact professional guitar processor
・The HX Stomp delivers the same amp, cabinet, and effect sounds as the Helix in a compact package

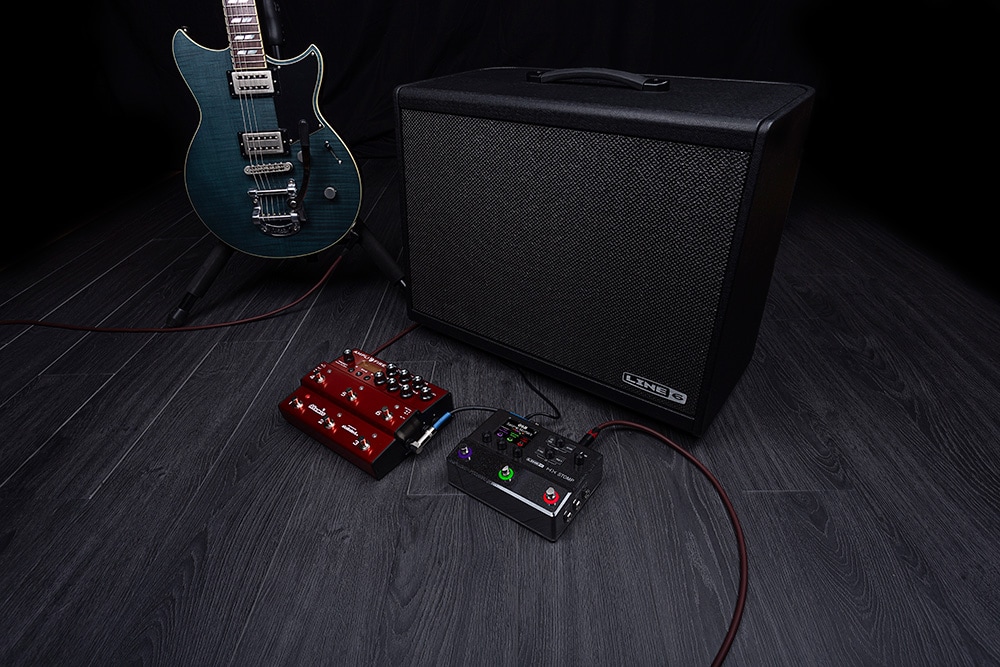

・It integrates seamlessly into a variety of environments and applications, from standard amp-and-pedal setups to direct output to PA systems for live performances and studio recording
・Retaining the DSP and HX modeling technology found in the Helix, it can be easily added to your existing pedalboard.
・It features over 300 types of amps, cabinets, and effects, plus a looper and popular effects found in stompbox modelers such as the Line 6 M-Series and DL4.
・The HX Stomp supports a wide range of applications, including use as a subsystem, lightweight live gear, advanced tone shaping when combined with other guitar processors, an audio interface, or an all-in-one guitar/bass rig.

■Key Features
1. Functions as a powerful all-in-one pedal
In a form factor slightly larger than a compact effects pedal, it features over 300 effects and amp models from the Helix/M series and Line 6’s legacy products. Up to six effects can be used simultaneously. Three capacitive touch footswitches with color LED rings enable intuitive effect selection and editing. Add external footswitches or an expression pedal for even more flexible control. Two effects loops are also provided, allowing you to insert your favorite pedals into presets. Using the HX Edit software, you can easily edit amps and effects on your computer, then save and recall them as presets.

2. As a Subsystem or the Ultimate Compact System
It functions both as backup gear for rehearsals and live performances and as a self-contained, ultimate compact system. It’s easy to send the signal directly to a PA mixer or connect it to a stage amp, and it supports the 4-cable method. You can use up to six amp/cabinet/effect/IR blocks simultaneously to build the tone you want. Using the audio interface function, you can even create tracks in your hotel room after a live show.

3. Ideal for Bass
It offers a wide range of tones tailored for bassists. From captivating amp and cabinet models to effects, it covers the full spectrum of sounds bassists seek. You can produce authentic amp tones while simultaneously sending effects-processed signals directly to the PA mixer, or combine two completely different signal paths to create unique bass tones. It provides exceptional flexibility for tone shaping.

4. Tone Expandability
By connecting the HX Stomp to the effects loop of your favorite modeler or profiler, you can add over 70 additional amp models and over 200 effects. The HX Stomp’s six blocks are added to your modeler’s DSP power, allowing you to add and use up to six different amp models and effects simultaneously. You can also sync presets, tempo, and other parameters using a single MIDI cable.

5. Versatile Features Including Recording and Re-amping
With a wide dynamic range of 123dB, it functions as an ultra-low-noise, DSP-driven USB audio interface. It provides 24-bit/96kHz multi-channel audio and MIDI connectivity for Mac and Windows. In addition to inputs featuring flexible impedance circuits that enable realistic amp and pedal responses, it also includes DI and re-amping functions. You can also record directly to an iPhone or iPad using the separately sold Apple Camera Connection Kit.

■Included Items
HX Stomp Cheat Sheet (Please read this first!)
AC Power Adapter
USB Cable
Warranty Card

■Dedicated Case
PROTECTIONRACKET / LPTRAHXSTOMP(HXS-A002-00) Case for HX Stomp
