EBS / DynaVerb Limited Edition

Variations

DynaVerb Limited Spring Edition is a reverb effect that simulates the natural reverberation of a variety of spaces, from vast concert halls to small rooms. Three new reverb types have been added as special editions: Reversed, Gated, and Spring, allowing you to enjoy a wide variety of effects.

DynaVerb's transparent reverb adds depth and expression to your performance, creating a sound that is full of presence.

A studio-quality stompbox

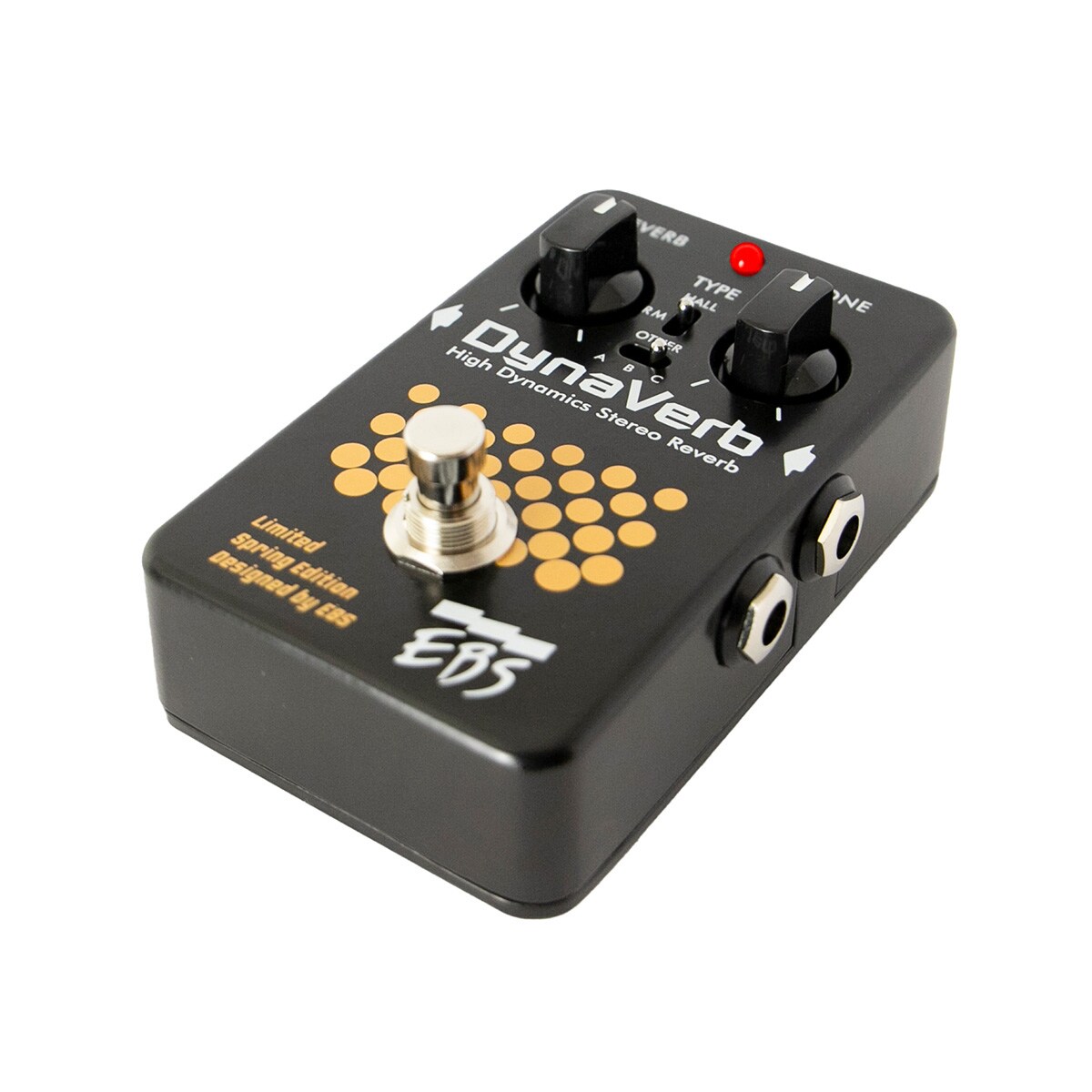

DynaVerb Limited Spring Edition is a professional-grade stereo reverb pedal. It is a versatile reverb pedal that features three new types of reverb (Reversed, Gated, and Spring) and three types of Hall and Room reverbs.
The new DynaVerb can add studio-quality effects to all kinds of instruments, not just basses, but also guitars, keyboards and vocals.

Easy to use

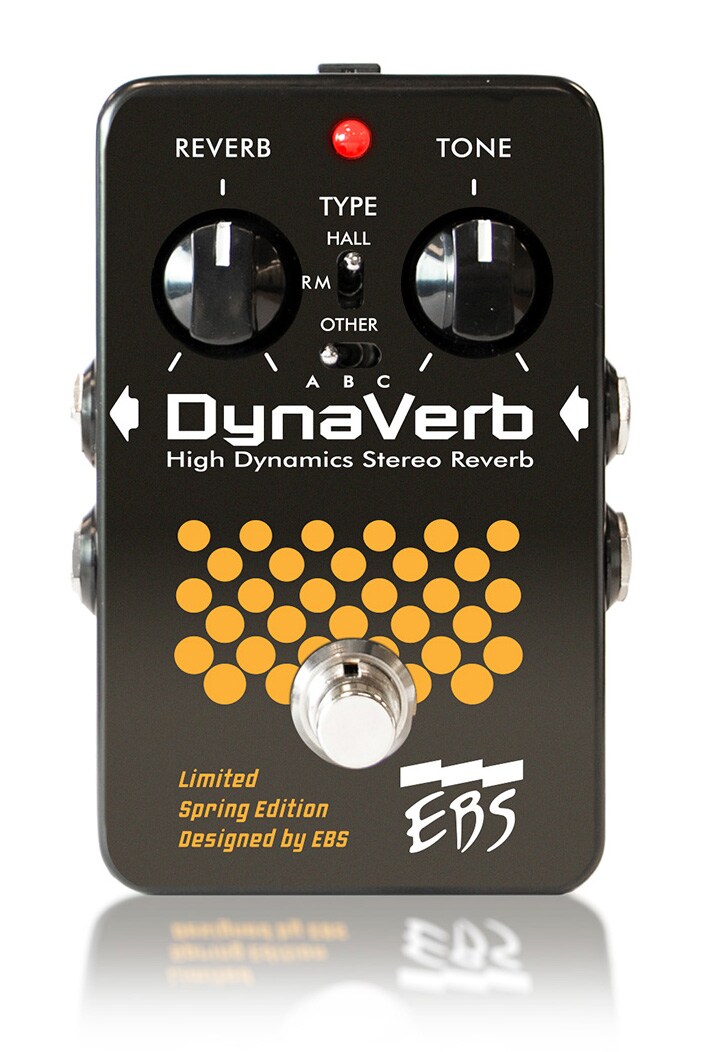

It's very easy to use. The REVERB knob sets the mix level between the wet signal (the effect sound) and the dry signal (the input sound). The TONE knob adjusts the treble of the effect. The two centre switches select the effect type, and each type has three options (A, B, C), which can be used to customise the sound.
For details, please refer to the programme matrix table.

Parallel Mode
The 24-bit digital circuitry provides outstanding sound quality on stage and in the studio. If required, the pedal can be set to parallel mode by operating the switch on the pedal board. The weight has been reduced from 400g of the conventional studio edition to 245g.

Specifications
Nominal Input Level ? 8 dBv
Input Impedance 1 Mohms stereo 500 kohms mono
Dry Bandwidth +0 / -3 dB 20 ? 20k Hz
Reverb Bandwidth +0/-3 dB 20 ? 20k Hz
Tone Low Pass Filter min / max 1 / 20 kHz
Reverb Types 3 Halls, 3 Rooms, and 1 Reversed, 1 Gated, and 1 Spring-type effect.
Sampling Frequency 48 kHz
Dynamic Range 107 dB A-weighted
Dimensions (L x W x H) 2.8 x 4.5 x 1.4″ (70 x 115 x 35 mm)
Weight 245g (0.54 lb.)
Bypass True Bypass
Power Requirements 9 ? 18 V DC Regulated, 80 mA max.** EBS recommends the use of the EBS AD-9 Pro DC adapter (not included).
