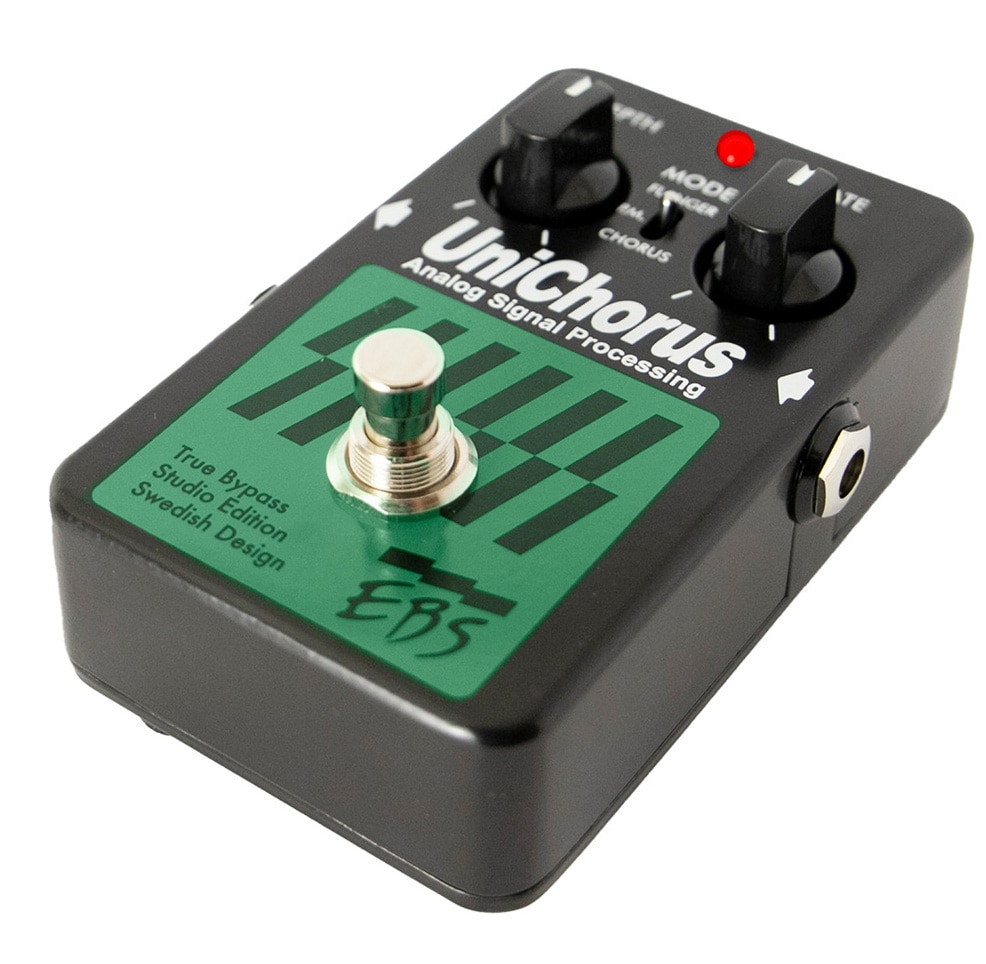

EBS / UNICHORUS-SE REVISION2

UniChorus Studio Edition Rev2 has evolved even further as the highest quality stereo chorus. It provides beautiful, wide, high quality chorus effect to add color to your bass sound.

Unleash your creative potential with UniChorus
design. Provides studio-quality chorus sound for live performances, recordings, and any situation.
The internal mix control allows you to adjust the balance between the wet signal (effect sound) and dry signal (input sound). It does not impair the original sound of the instrument.

25 years of evolution condensed into a new lightweight casing
The new UniChorus Studio Edition features improved headroom, noise reduction, a true bypass switch, and voltage overload protection. Furthermore, the weight of the new casing has been significantly reduced from 440g to 235g.

What can you do with UniChorus?
? Enhances sound spaciousness
It creates a spacious sound and adds depth and dimension to your bass sound. This creates a chorus sound that is louder and has more presence.

? More versatile modulation
Chorus, pitch modulation, and flanger can be selected to create a variety of modulation effects, from subtle modulation to more powerful pitch shifts.

It's not just a pedal for bass players.
UniChorus provides the best chorus sound not only for basses, but also for guitars, keyboards, and any other instrument.

■Specifications
Nominal Input Level? 8 dBv
Input Impedance 700 Kohms
Bandwidth +0/-3 dB 20 ? 20 kHz
Delay Bandwith +0/-3 dB 200 ? 8 kHz
Delay Level mix min/max -oo ? +3 dB
Center Delay Time Flange 3ms
Chorus 5.5ms
Pitch Modul. 10ms
Modulation Depth min/max +/- 50% of nominal delay time
LFO Range min/max 0.15 - 7.5 Hz
Bypass True Bypass
Dimensions (L x W x H) 2.8 x 4.5 x 1.4″ (70 x 115 x 35 mm)
Weight 235g (0.52 lb.)
Power Requirements 9-12V DC Regulated, 35mA max
