BOSS / KATANA-AIR EX

KATANA-AIR EX is a desktop amplifier equipped with BOSS's superior wireless technology that allows you to perform with professional sound extremely easily.

Two 5’ custom speakers are mounted in a carefully crafted wooden cabinet, tuned in an ideal balance to bring out the best of each speaker.
The cabinet responds dynamically to the player's touch, giving a rich, stage-amplified sound. The carefully selected pre-amplifiers and extensive effects suite allow you to play with a professional sound regardless of the genre.
Simply connect the included transmitter to your guitar/bass for easy performance without cumbersome cables.

Furthermore, by connecting to an iOS/Android device via Bluetooth, you can wirelessly play back audio, create sounds using the dedicated app and use the convenient practice function. It can also be powered by AA batteries or an optional rechargeable battery, so you can perform anywhere.
Combining authentic sound with the ease of use of a wireless system, the KATANA-AIR EX is the perfect amp for guitarists looking to improve their skills.

1. a desktop amp that combines the generous sound of up to 35 W output*1 with BOSS wireless technology.
2. tight, punchy sound from a wooden cabinet with bass reflex port and two 5’ (12 cm) speakers
3. five highly expressive amp types from the KATANA Amp series. 4. over 60 different BOSS amp types.
4. more than 60 built-in BOSS effects
5. a fully wireless system that uses BOSS's unique technology to reproduce high-quality guitar sounds with ultra-low latency. 6.
6. transmitter included for up to 12 hours of continuous use on a single charge. 7.
7. on-board memory function for storing up to six amp and effects settings
Dedicated BOSS TONE STUDIO for KATANA-AIR app for iOS and Android for even more detailed sound creation and efficient practice. 9.
9. support for BOSS TONE EXCHANGE, an online platform that allows users to freely share live sets.
10. USB terminal with audio interface functionality 11.
11. stereo LINE OUT terminal with cabinet simulation for direct output to the PA 12.
12. powerful stereo speaker system with AUX IN or Bluetooth for high-quality audio playback.
13. connectivity with optional EV-1-WL Wireless MIDI Expression Pedal / FS-1-WL Wireless Footswitch
Powered by supplied adapter, 8 AA batteries or optional rechargeable battery (Roland BTY-NIMH/A)
1 The KATANA-AIR EX has a maximum output of 20 W when using batteries or rechargeable batteries (Roland BTY-NIMH/A) and 35 W when using the AC adapter.

Main specifications
Output < AC adapter> Maximum output: 35 W (17.5 W + 17.5 W)
＜Rated output: 20 W (when using alkaline batteries, NiMH batteries or rechargeable battery pack (sold separately: Roland BTY-NIMH/A))
Regulated input level INPUT: -10dBu (1M Ω) AUX IN: -10dBu
Regulated output level LINE OUT (L/MONO, R): -10 dBu
Speakers 12 cm (5 in) x 2

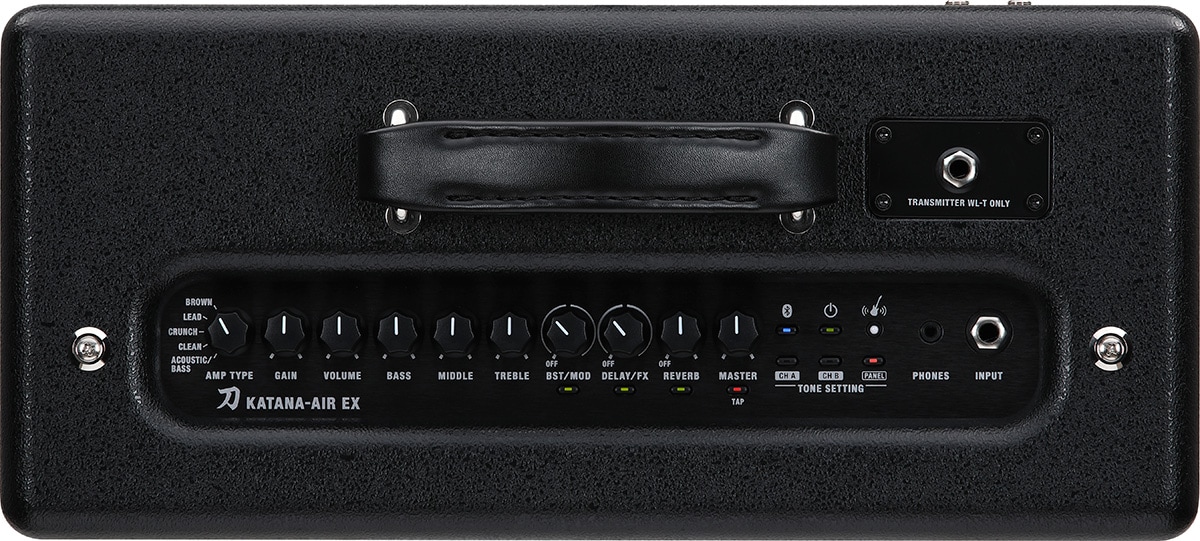

Controls [POWER] button, [Bluetooth] button, [MASTER] knob
＜ AMPLIFIER > AMP TYPE knob, GAIN knob, VOLUME knob
＜ BASS knob, MIDDLE knob, TREBLE knob.
＜ BST/MOD knob, BST/MOD button, DELAY/FX knob, DELAY/FX button, TAP button, REVERB knob, REVERB button
＜ TONE SETTING > CH A button, CH B button, PANEL button
Indicators POWER, Bluetooth, Guitar Wireless, PANEL, CH A, CH B, BST/MOD, DELAY/FX, REVERB, TAP

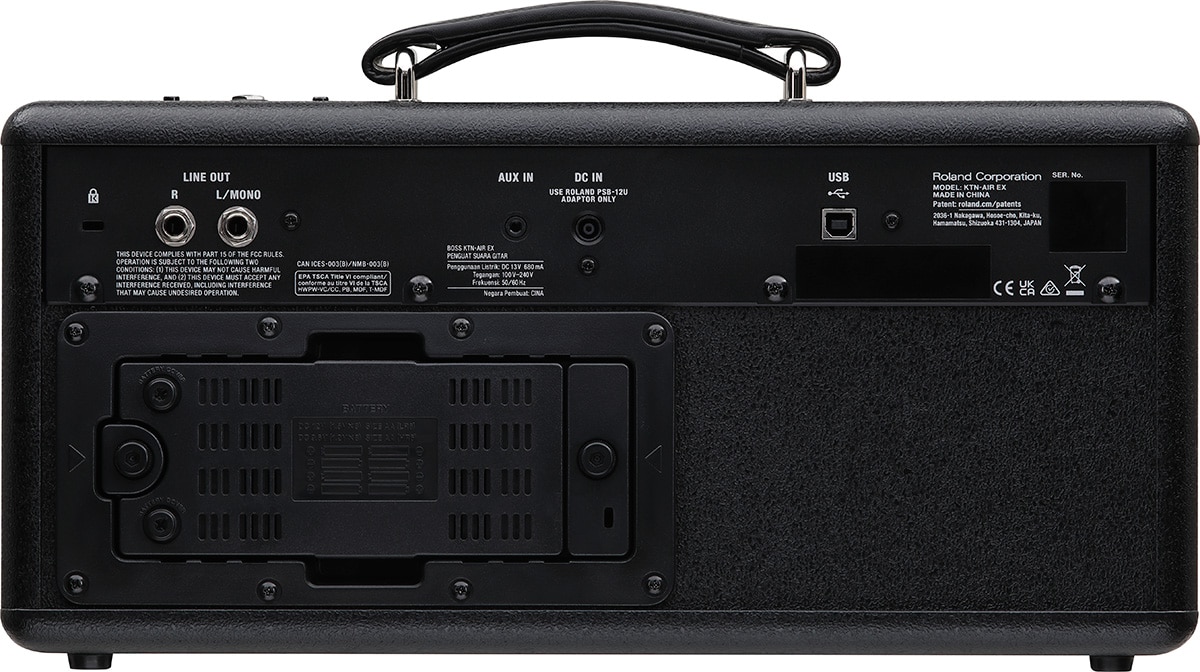

Connection terminals INPUT terminal: standard type
AUX IN terminal: stereo mini type
PHONES terminal: stereo mini type.
TRANSMITTER IN terminal: stereo standard type
LINE OUT (L/MONO, R) terminal: standard type
USB terminal: USB B type
DC IN terminal
Power supply AC adaptor (DC13V)
Alkaline battery (AA) x 8
Ni-MH batteries (AA) x 8
Rechargeable battery pack (sold separately: Roland BTY-NIMH/A)
Current consumption 680mA
Battery life in continuous use Alkaline batteries: approx. 7 hours
Ni-MH batteries: approx. 10 hours (when using 2500mAh capacity)
Rechargeable battery pack (sold separately: Roland BTY-NIMH/A): approx. 16 hours
Varies depending on battery capacity and usage conditions.
External dimensions 414 (W) x 192 (D) x 236 (H) mm
Weight 5.6 kg (excluding batteries)
AccessoriesInstruction manual, safety instructions leaflet, transmitter, AC adaptor, power cord, 2P-3P converter, warranty card
Optional rechargeable battery pack: Roland BTY-NIMH/A
Wireless MIDI expression pedal: EV-1-WL
Wireless footswitch: FS-1-WL

Transmitter (WL-T)
Regulated input level INPUT: -10dBu (1M Ω)
Control [POWER] button
Indicator BATTERY
Connection terminals Input terminal: stereo standard type
DC IN 5V terminal: USB micro B
Power supply Lithium-ion battery
Obtained from DC IN 5V terminal
Current consumption 47 mA
Continuous use time approx. 12 hours
External dimensions 87 (W) x 22 (D) x 36 (H) mm
Weight 43g
