RME / Fireface 802 FS

The Fireface 802 FS is the successor to RME's legendary Fireface 800 and is a high-end audio interface that combines uncompromising sound quality and stability, extremely flexible features and simple operability in a 1U-sized case.

■Audio interface
The Fireface 802 FS is a high-end USB audio interface with 30 inputs and 30 outputs, supporting 192 kHz.
It features ultra-low latency operation thanks to RME USB 2 technology, extremely reliable drivers, femtosecond (1/1000 trillionths of a second) jitter suppression thanks to SteadyClock FS, individually configurable reference levels for each input and output, four intuitive gain knobs and level/status LEDs on the front panel, full standalone operation, and a class-compliant mode that adds professional input and output to your iPad. It can also be used with the same operability on Windows/Mac.
The Fireface 802 FS is equipped with a variety of functions, including the DSP digital mixer TotalMix FX that enables flexible mixing and patchbay, RME's proprietary audio measurement and analysis utility "DIGICheck", and the USB controller ARC USB (sold separately) that can be connected directly to the main unit, providing professional performance for a wide range of uses, including as an audio interface, microphone preamplifier, AD/DD/DA converter (analog, ADAT, SPIDF, AES), monitoring mixer, digital format converter, and matrix router.

Main specifications

- Buffer size/latency settings: selectable from 48 to 8192 samples

- DC coupled output: supports CV/Gate control

- 8-channel 24 bit/96 kHz recording and playback via ADAT optical (S/MUX)

- 4-channel 24 bit/192 kHz recording and playback via ADAT optical (S/MUX4)

- Clock mode: slave, master

- Advanced master/slave clock automatic switching

- Superior Bitclock PLL (audio synchronization) in ADAT mode

- SteadyClock FS: Highly stable digital clock that is not affected by jitter

- DDS technology: Freely set sample rate

- SyncAlign: Maintains accurate alignment in sample units and prevents swapping between channels

- SyncCheck: Monitors the synchronization status of input signals and displays the results

- TotalMix: Latency-free submix and full ASIO direct monitoring

- TotalMix: 1800-channel mixer with 46-bit internal processing

- TotalMix FX: 3-band EQ, low cut, reverb, echo, compressor, expander, auto level

・Direct connection to ARC USB (TotalMix remote controller sold separately)

・Class compliant mode support: available for iOS devices

・Fully standalone operation

・MIDI I/O (16 channels, high-speed low jitter MIDI)

・2 x high-power low impedance headphone outputs

・DIGICheck DSP: hardware-based level metering, peak/RMS metering

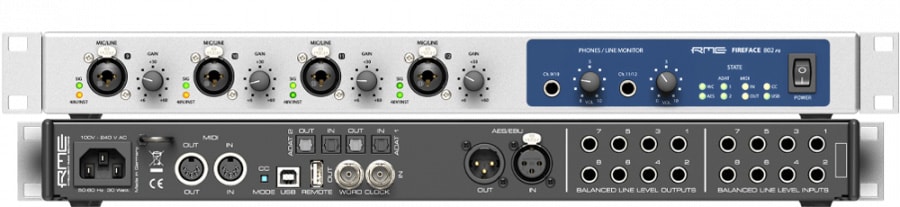

Input/Output Overview

・Front:
4 x analog (mic/instrument/line) inputs (XLR/TRS combo jacks)

2 x headphone outputs (6.3 mm TRS jacks, servo-balanced)

Headphone outputs with an output level of +17 dBu provide excellent sound quality for both high and low impedance headphones.・Rear:
8 x Analog TRS (line) inputs
8 x Analog TRS (line) outputs
1 x AES/EBU input/output
USB connector for ARC USB
1 x MIDI input/output
1 x Word Clock input/output
2 x ADAT or SPDIF optical input/output
1 x USB 2.0 connector (also works with USB 3.0)

■ Operating environment

When connecting to a computer

Windows 7 or later, Intel/M1/M2 Mac OS X (10.12 or later)
1 x USB 2.0 connector or USB 3.0 connector
Computer with Intel Core i5 or higher CPU

When connecting to an iOS device

Fireface 802 FS running in CC mode
Apple iPad running iOS 9 or later
iPhone running iOS 9 or later
Apple iPad Camera Connection Kit (Doc or Lightning to USB type)
iPad Pro: USB-B to USB-C Can be connected with just a cable (no adapter required)

■What's included
Power cable/ground adapter
USB 2.0 cable
Optical cable (TOSLINK)
Fireface 802 FS Japanese user guide
DIGICheck Japanese user guide
Rubber feet
Warranty card

*Detailed technical specifications are subject to change without notice.
