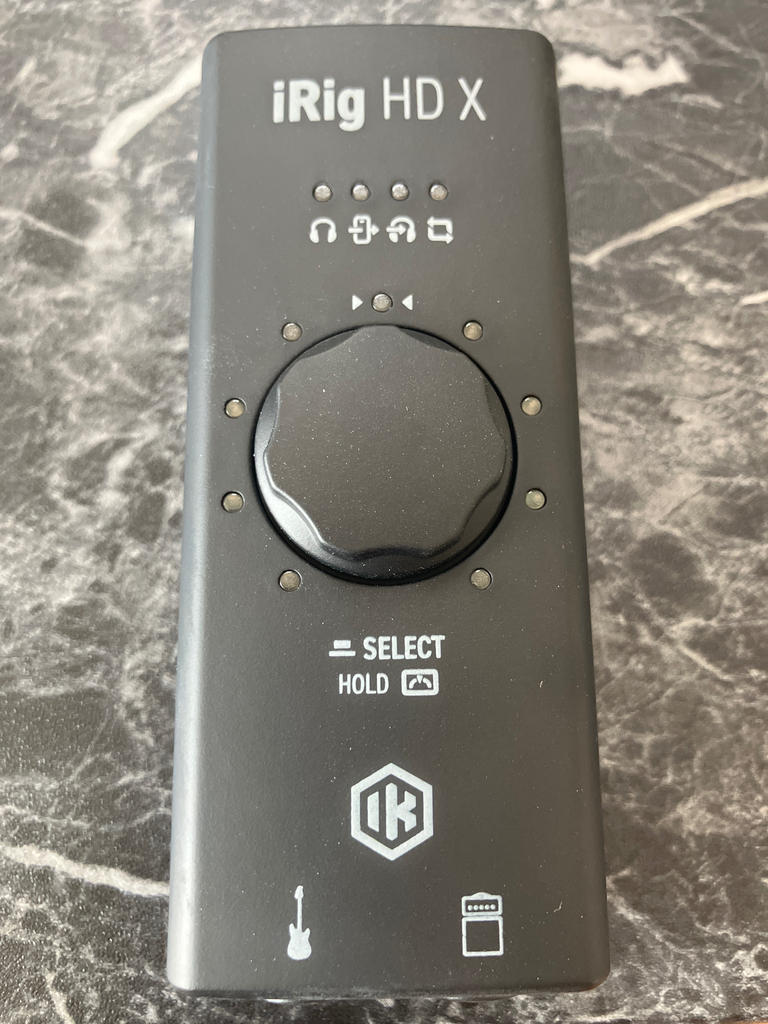

IK MULTIMEDIA / iRig HD X

The IK MULTIMEDIA / iRig HD X is the successor to the highly popular guitar/bass digital audio interface, iRig HD. With the addition of Loopback functionality, it's a compact device that's also great for streaming.

Guitar amp/effects system for iPhone/iPad/Mac

It has been reborn with a host of new features, including a headphone output terminal with adjustable monitor volume, a 1/4-inch standard output terminal for connecting to an amp, and an FX/THRU switch that lets you switch between effects and dry sound, while retaining the basic specifications with a high-quality A/D converter that supports 24 bit/96 kHz despite its pocket-sized design. It also comes with a full version of AmpliTube 4, which can be used with Mac/PC computers and iOS devices.

Main features
・Direct connection to iPhone, iPad, Mac / PC with included Lightning and USB-C cables
・Loopback function included, making it a compact device suitable for streaming
・Single knob interface for controlling all main functions with a single knob
・Built-in tuner that starts up quickly
・Suitable for practice, jamming, recording and streaming
・Standard 1/4’ amp output for connecting to an amp, pedalboard or FRFR speaker
・Loopback+ function that allows you to send guitar tones from apps such as AmpliTube to live streaming apps
In addition to TONEX SE and AmpliTube 5 SE for Mac/PC, AmpliTube CS for iOS (with the same functions as the paid version unlocked) and TONEX SE are included.
For details of the bundled software, please check the manufacturer's page below.
https://www.ikmultimedia.com/products/irighdx/index.php?p=apps


■Specifications
- Quantisation: 24-bit A/D, D/A conversion
- Sample rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Device connection terminal: USB Type-C

Instrument input
Input impedance: 1 MΩ
Maximum input level: 9 dBu
Frequency response: 20 Hz to 20 kHz (-3 dB) @ 96 kHz
Dynamic range: 115 dB(A)

Amplifier Output
Output Jack: Unbalanced
Output Impedance: 3.3 kΩ
Output Level: 0 dBFS = -2 dBu
Frequency Response: 15 Hz to 40 kHz ±1 dB (at 96 kHz sample rate)
Dynamic Range: 97 dB (A)

Headphone output
Output impedance: 22 Ω
Maximum output level: Approx. 8 mW @ 32 Ω load
Frequency response: 15 Hz to 40 kHz ±1 dB (at 96 kHz sample rate)
Dynamic range: 95 dB (A)

Contents
iRig HD X main unit
USB-C to USB-C cable (60 cm)
USB-C to Lightning cable (60 cm)
Dimensions
99 mm x 42 mm x 25 mm
Weight
54 g

■Operating environment and specifications

Please check the latest operating environment on the manufacturer's website below.

https://hookup.co.jp/products/ik-multimedia/irig-hd-x/spec
