ELATION / FUZ528

Variations

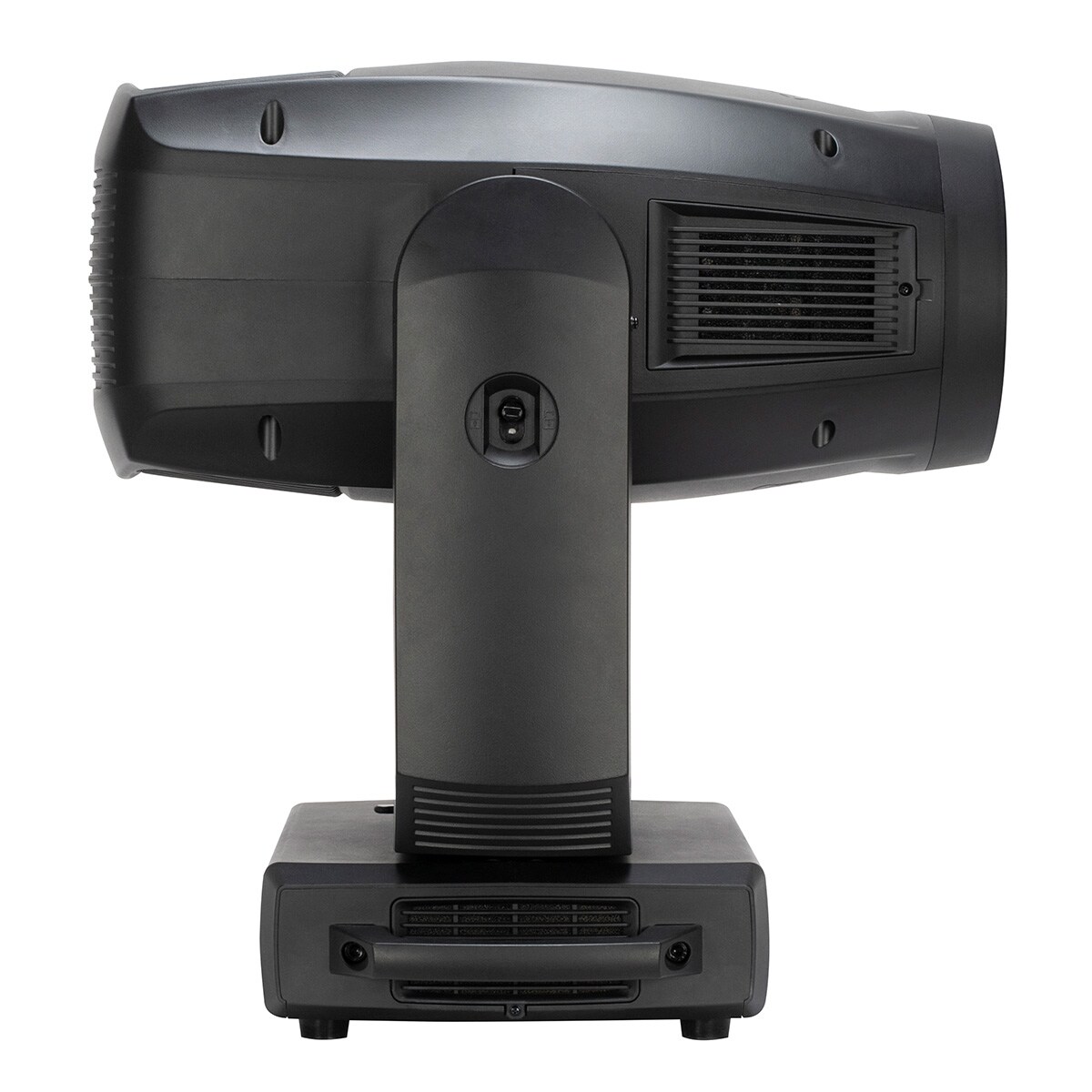

ELATION's ""FUZE MAX SPOT"" is a moving head designed for lighting applications in theaters, televisions, etc. Equipped with an 800W, 5-color homogenized LED, it delivers a powerful output of 21,000 lumens while ensuring accurate color reproduction.

■Light source
- 800W 6,500K RGBMA LED engine
- Average LED lifespan 30,000 hours (*Note 1)

■Photometric data
- Total luminous output: 21,000 lumens
- CRI (Color Rendering Index): 92

- Zoom range: 7° - 53°
- Beam angle: 6.6° - 50.3°
- Field angle: 7.8° - 55°

■Effect
- Motor driven zoom
- Dual variable frost filters (medium/wash)
- 4-sided round prism, 4-sided linear prism
- Motor driven iris
- Variable 16-bit dimming curve mode
- High speed electronic shutter and strobe
- Pan angle: 540° / 630°
- Tilt angle: 250°

■Color
- RGBMA color array
- CMY emulation
- Variable CCT: 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book

■Gobo
- Two 6-element rotating/indexable interchangeable glass gobos
- One 7-piece fixed exchangeable glass gobo
- animation wheel

■Control/Connection
- 4 DMX channel modes: (RGBMA 34/44) (CMY 32/40)
- 16-bit pan, tilt and dimming controls
- LED frequency can be adjusted with DMX
- Supports DMX, RDM, Art-NET, sACN protocols
- 4 button touch control panel
- Full color 180° reversible LCD menu display
- Adjustable movement with 16-bit resolution
- 5 pin DMX input/output
- Locked Ethernet input/output
- Power cable input with IP65 lock
- wired digital communication network

■Size/weight
- Length: 462mm
- Width: 540mm
- Width with snoot: 590mm
- Vertical height: 719mm
- Vertical height with snoot: 771mm
- Center spacing (without snoot): 662mm
- Center spacing (with snoot): 757mm
- Weight: 34.5kg

■Power supply
- AC 100V 50/60Hz
- Maximum power consumption: 1214W
- Temperature range: -10°C to 45°C
- BTU/hour (+/- 10%): 3839.66

■Certification/grade
- CE | cETLus | IP20

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
