ELATION / FUZ546

Variations

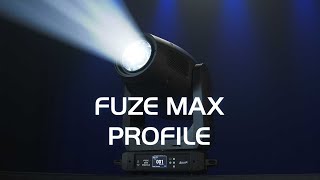

This moving head is equipped with ELATION's 800W RGBMA LED and is suitable for a wide range of applications such as exhibitions, stages, and AV events. It delivers a powerful output of 21,000 lumens while ensuring accurate color reproduction.

■ Light source
- 800W 6,500K RGBMA LED engine
- Average LED lifespan of 30,000 hours (*Note 1)

■ Photometric data
- Total output 21,000 lumens
- CRI 92
- Zoom range 7° - 53°
- Beam angle 6.6° - 50.3°
- Field angle 7.8° - 55°

■ Effect
- Motorized zoom
- 4 rotating full blackout framing blades, ±60° index
- Dual variable frost filters (medium/wash)
- 4 facets round, 4 facets linear prism
- Motorized Iris
- Variable 16-bit dimming curve
- Electronic shutter and strobe
- Pan angle: 540°/630°
- Tilt angle: 250°

■ Color
- RGBMA color ray
- CMY emulation
- Variable CCT 2400K - 8500K
- Green/magenta shift
- Virtual Gel Swatch Book

■ Gobo
- 1x 6 rotation/index adjustable glass gobo
- 1x 7 fixed replaceable glass gobos
- animation wheel

■ Control/Connection
- 4 DMX channel modes (RGBMA 40/61) (CMY 38/57)
- 16-bit pan, tilt, and dimming control
- DMX adjustable LED frequency
- DMX, RDM, Art-NET, sACN protocol support
- 4 button touch control panel
- Full color 180° reversible LCD menu display
- Adjustable movement with 16-bit resolution
- 5 pin DMX input/output
- Locking Ethernet input/output
- IP65 locking power input
- With wired digital communication network

■ Size/weight
- Length: 462mm
- Width: 540mm
- Width with snoot: 590mm
- Vertical height: 719mm
- Vertical height with snoot: 771mm
- Center spacing (without snoot): 662mm
- Center spacing (with snoot): 757mm
- Weight: 34.6kg

■ Electricity/Heat
- AC 100-240V - 50/60Hz
- Power consumption up to 1126W
- 14°F to 113°F (-10°C to 45°C)
- BTU/hour (±10%) 3839.66

■Optional accessories
- 7030100797 - Snoot

■ Approval/Evaluation
- CE | cETLus | IP20 | FCC

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
