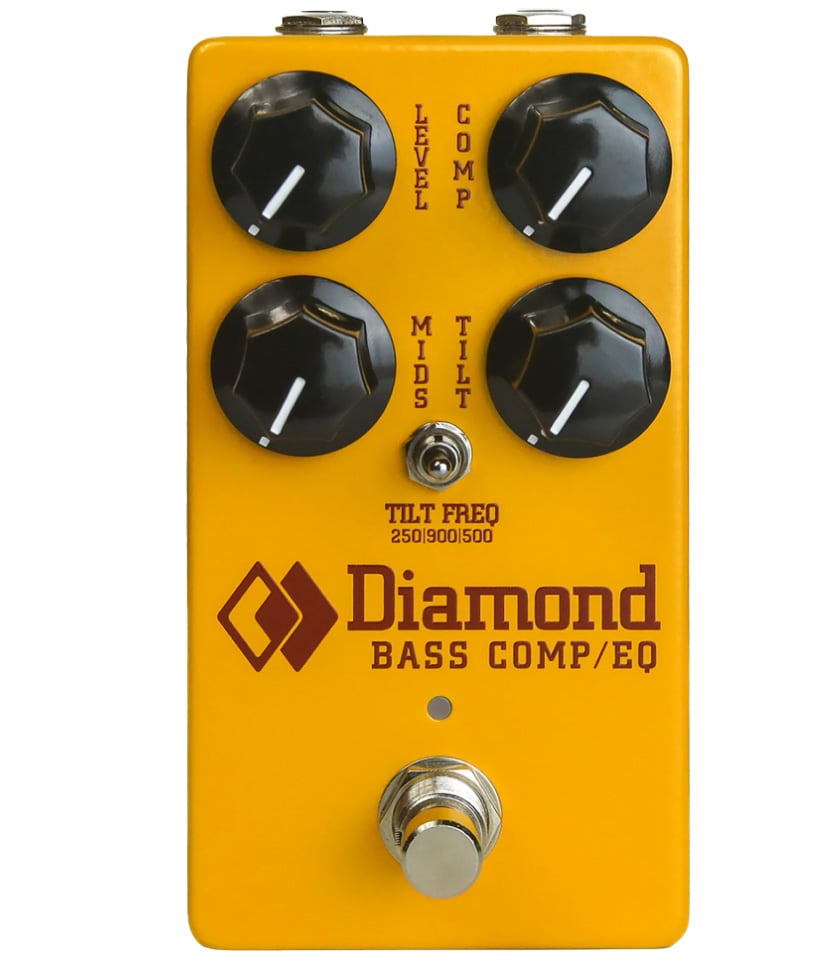

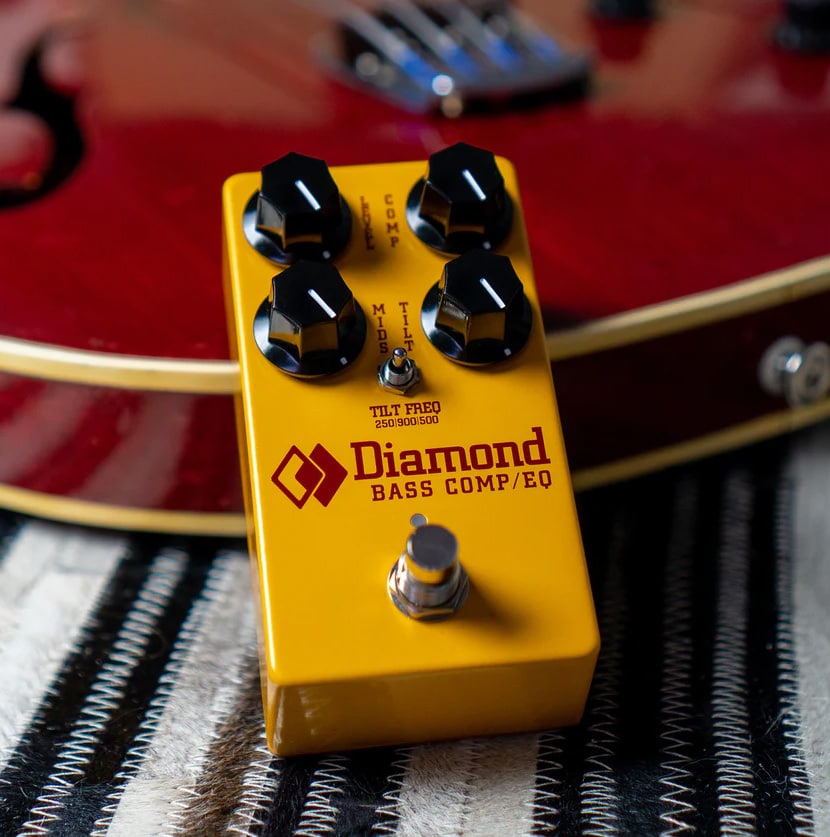

SolidGoldFX / Diamond BASS COMP/EQ

The long-awaited revival of the Diamond Pedal by the SolidGoldFX brand. The toggle switch Tilt allows you to switch between three frequencies, and the new EQ section with a +/-10dB mid control allows for a wide range of sound making.

■Bass effector compressor
■Diamond Pedal
■Tilt EQ frequency: 250, 500, 900Hz +/-6dB
■Mid EQ frequency: 800Hz +/-10dB
■Input impedance: >1MΩ
■Output impedance: <10KΩ
■True bypass
■Power consumption: 22mA (when driven at 9V)
■Power supply: 9-18VDC 2.1mm center negative

■Dimensions: D122 x W66.98 x H39.64mm
■Weight: 280g
■Country of origin: Canada


~From the agency page below~
In 2021 during the global pandemic, Polyblend Systems was forced to close its doors along with its Diamond brand.
In order to continue and perpetuate the history of the great Diamond brand, SolidGoldFX has acquired the brand, trademark, and intellectual property rights.
After two years of research, development and manufacturing, Greg and his new Montreal-based team have introduced five new flagship pedals based on the original design: BASS COMP/EQ, COMP/EQ, DRIVE, MEMORY LANE and TREMOLO.
Diamond's development will continue and its DNA will continue to live on.

*SolidGoldFX and Diamond are manufactured at the same factory in Montreal, Canada, but this does not mean that the two brands will be integrated. The original circuit remains unchanged, but the long-awaited return is now a modern version with updated parts and manufacturing processes.
