J. ROCKETT AUDIO DESIGNS / THE ARCHER SELECT

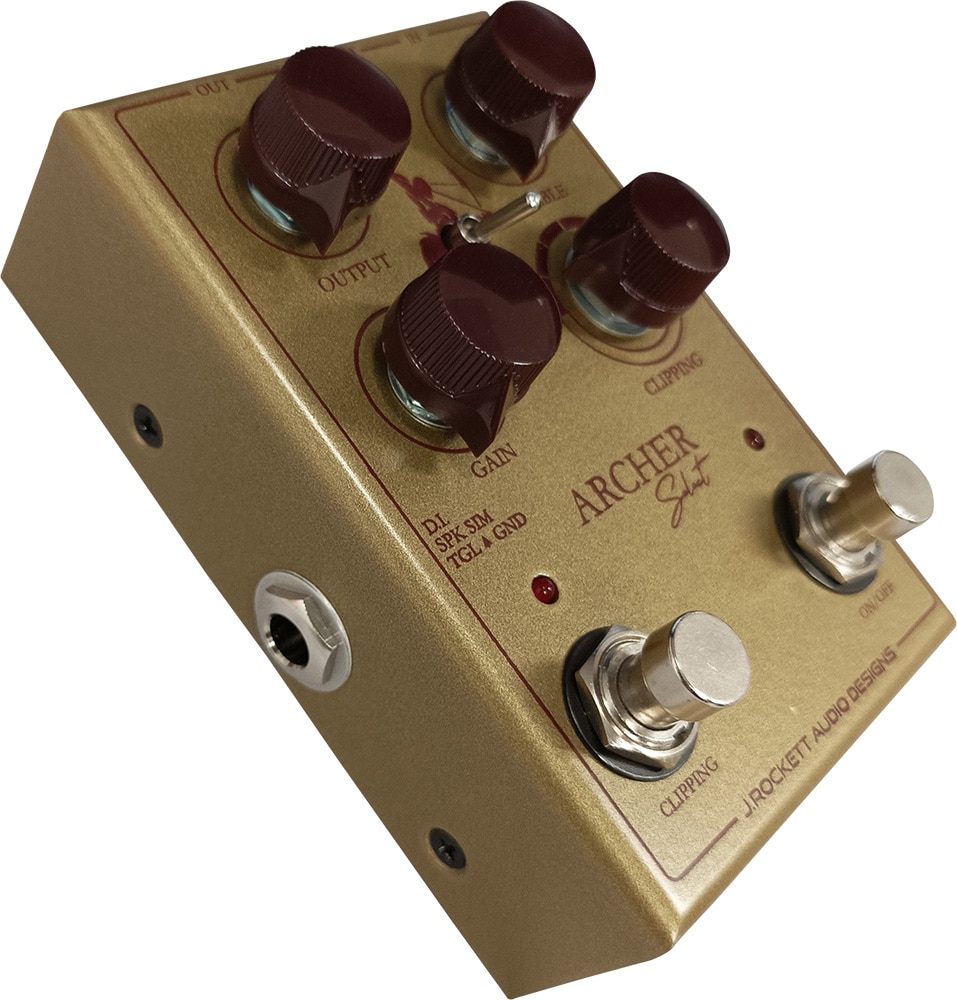

THE ARCHER SELECT is a boost/overdrive pedal equipped with 7 clipping diodes.

The Archer Select has a total of 7 types of clipping diodes (OA10, 1N270, 1N695, 1N34A, D9B, D9E, RED LED) installed, including 4 types with light-emitting diodes, in addition to the 3 types used in the Archer, Archer Icon and The Jeff Archer.

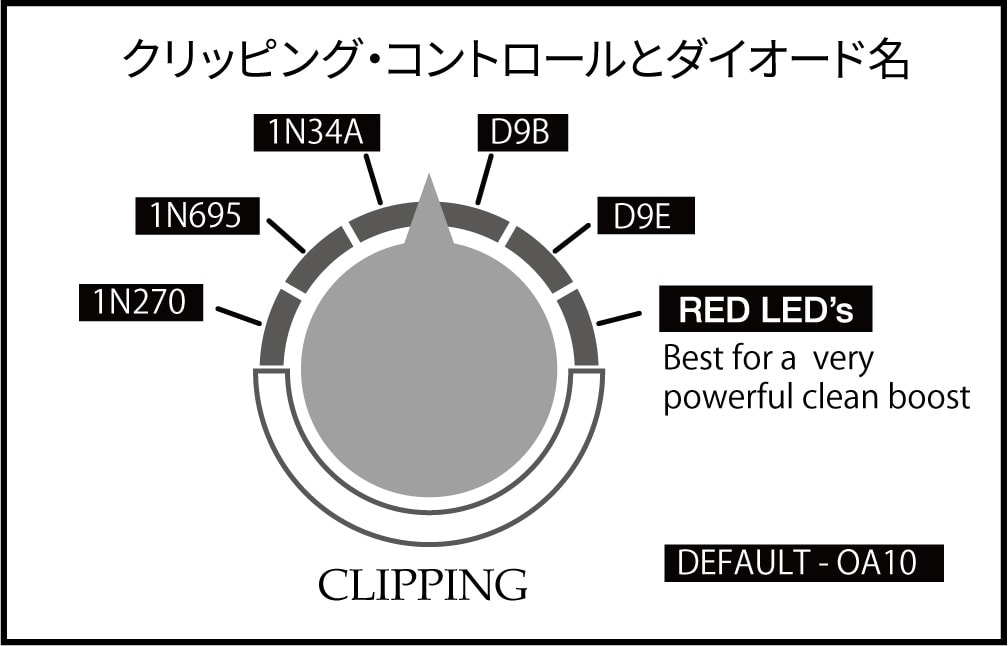

You can switch between these clipping diodes using the clipping control and clipping footswitch.
It has simple controls for gain and treble to adjust distortion, but by switching between the clipping diodes, you can create a variety of K-style tones, from boost to stack drive.

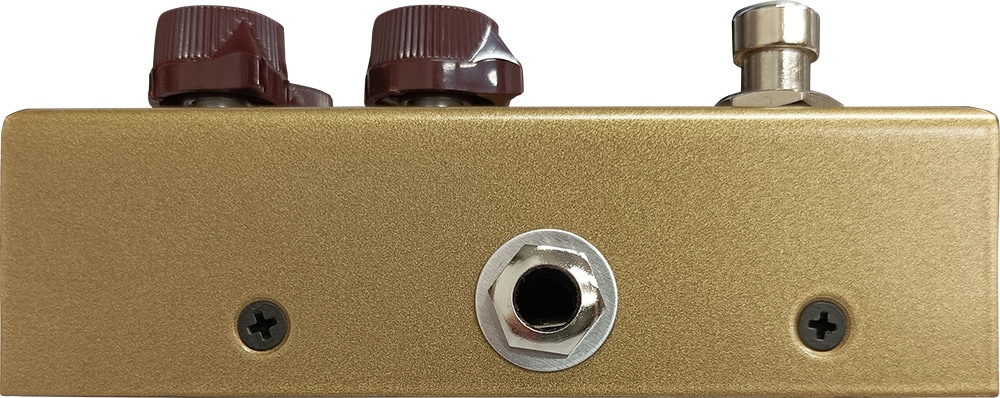

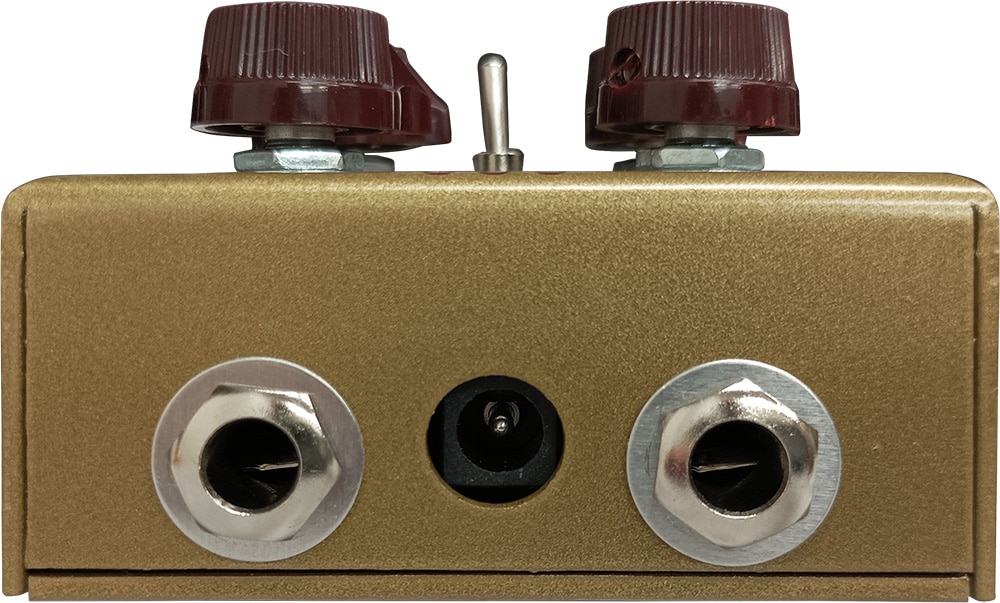

The guitar input and output and power input terminals are on the back, and the D.I. output terminal is on the left side.
The D.I. output has a built-in D.I. speaker simulator based on a British 4×12 cabinet. It can be used for various purposes, such as outputting directly to a mixer or connecting to an external interface for direct recording.
It has a sturdy metal casing similar to the existing Archer, and is very compact in size. It is powered by a power supply (sold separately).

Controls: Output, Treble, Gain, Clipping
Switches: Ground/Lift switch, Effect On/Off, Clipping On/Off
Input/Output Terminals: Input, Output, D.I. Out, DC In
DC In compatible plug size: 2.1mm (inner diameter) / 5.5mm (outer diameter)
Power supply: 9VDC (sold separately)
Current consumption: 30mA
Size (maximum external dimensions): 109(L)×73(W)×46(H)mm
Weight: approx. 486g
*Be sure to use a centre-negative polarity for the separately sold power supply
. The Archer Select has a total of 7 different types of clipping diodes (OA10, 1N270, 1N695, 1N34A, D9B, D9E, RED LED) installed, including the 3 types used in the Archer, Archer Icon and The Jeff Archer, and 4 types including light-emitting diodes.
You can switch between these clipping diodes using the clipping control and clipping footswitch.
It has simple controls for adjusting gain and treble, but by switching between the clipping diodes, you can create a variety of K-style tones, from boost to stack drive.
The guitar input and output and power input terminals are on the back, and the D.I. output terminal is on the left side.
The D.I. output has a built-in D.I. speaker simulator based on a British 4x12 cabinet. It can be used for a variety of purposes, such as outputting directly to a mixer or connecting to an external interface for direct recording.
It has a sturdy metal casing like the existing Archer, but is very compact in size. It is powered by a power supply (sold separately).

Controls: Output, Treble, Gain, Clipping
Switches: Ground/Lift switch, Effect On/Off, Clipping On/Off
Input/Output Terminals: Input, Output, D.I. Out, DC In
DC In compatible plug size: 2.1mm (inner diameter) / 5.5mm (outer diameter)
■Power supply: 9VDC (separately sold power supply)
■Current consumption: 30mA
■Size (maximum external dimensions): 109(L)×73(W)×46(H)mm
■Weight: approx. 486g
*Be sure to use a separately sold power supply with a centre minus polarity.
