NUX / Duotime NDD-6

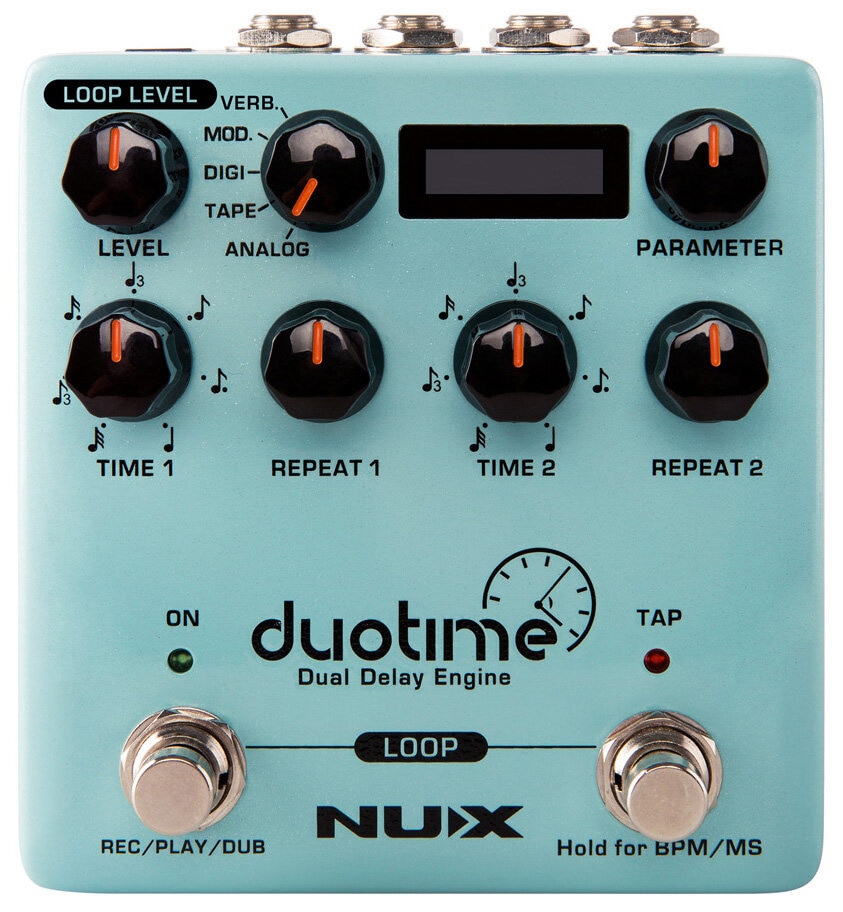

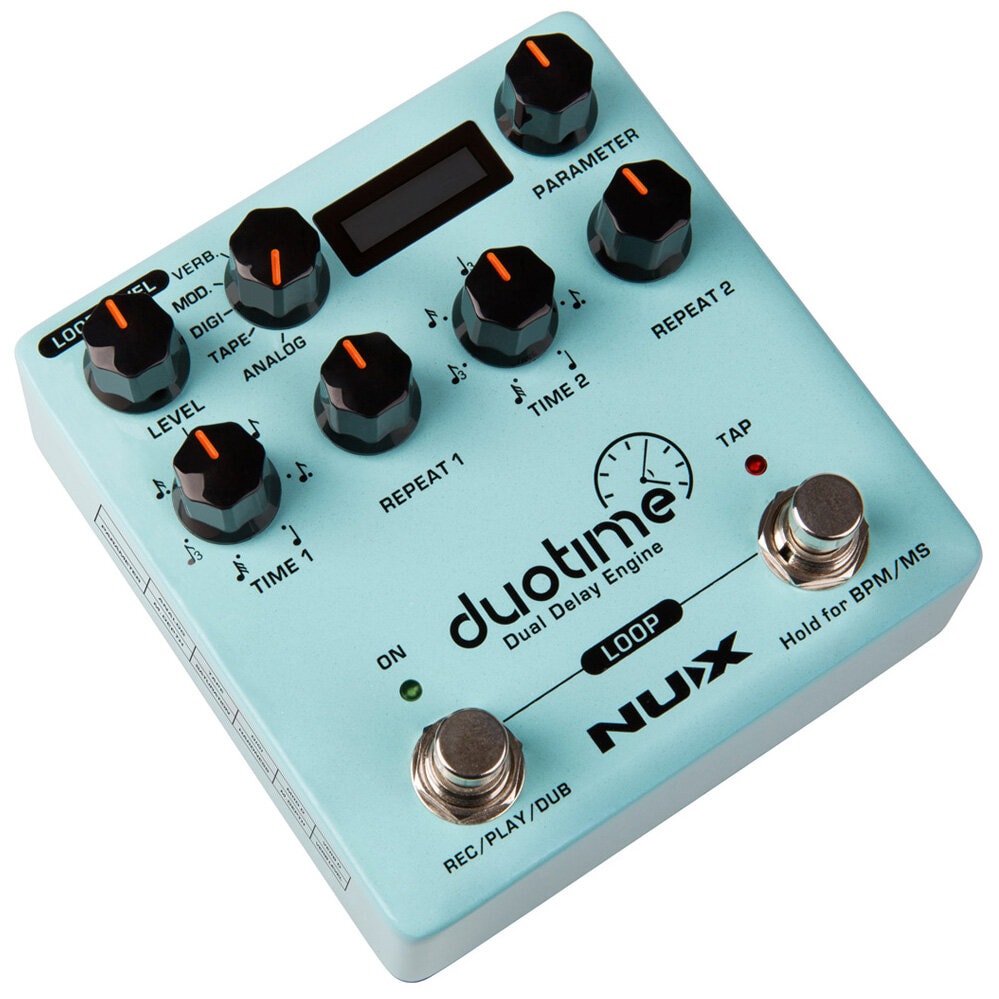

The Duo Time is a dual delay pedal with independent time/subdivision/repeat knobs. It has five delay models and is a multi-functional model that realizes the compact size and simple control that musicians desire. It also has a loop mode (looper function).

■Delay types
・ Analog Delay (40ms~402ms): Analog delay based on BBD. It also reproduces the natural infinite feedback of old-school BBD delay.
・ Tape Echo (55ms~552ms): Tape echo based on the RE-201 Tape Echo algorithm and NUX Core Image Technology. It also reproduces the saturated distorted sound and infinite feedback and pitch-shift flange of a tape echo machine.
・ Digi Delay (80ms~1000ms): Based on the latest digital delay algorithm, it adds a non-digital flavour inspired by Strymon and Neunaber to achieve a more musical sound.
MOD Delay (20ms~1499ms): A unique and wonderful modulation delay based on the Ibanez DML algorithm. It selectively reproduces the musical tones of the experimental nature of the delays released in the 80s.
VERB Delay (80ms~1000ms): A plate reverb algorithm with added shimmer is used to reproduce a three-dimensional delay sound. It provides a unique atmosphere.

■ Connection example

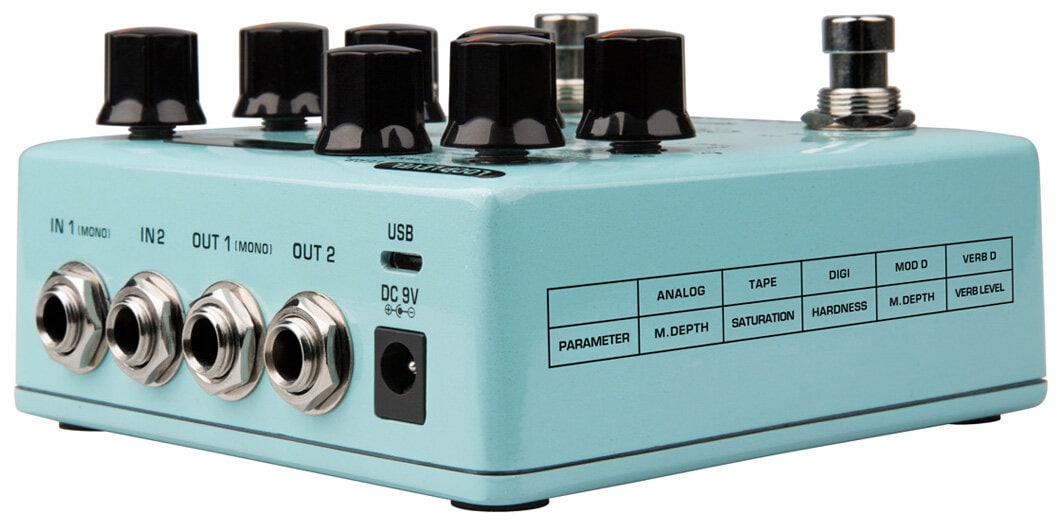

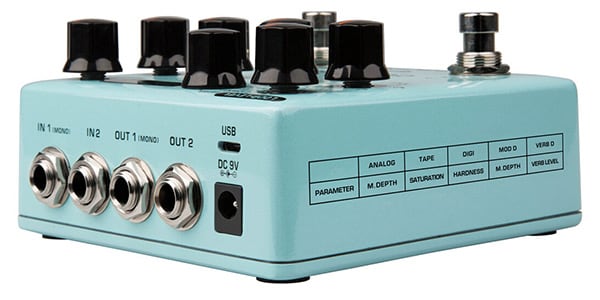

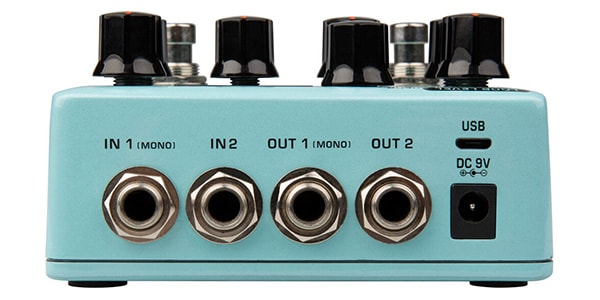

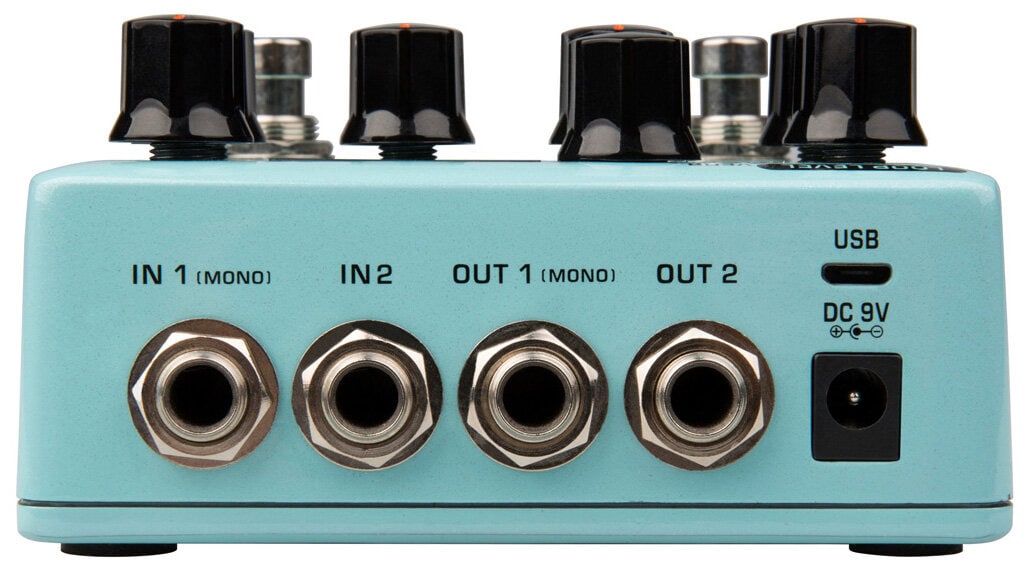

Monaural input:
The signal from the guitar connected to IN1 flows through the two delays.
In the case of monaural output, the mix of Delay 1 and 2 is output from OUT1.
In the case of stereo output, Delay 1 is output from OUT1 and Delay 2 is output from OUT2.
Connect a guitar to IN1 and from OUT1 to IN2. By outputting from OUT2, it is also possible to use two delays
connected in series.
Stereo input:
The signal of the guitar connected to IN1 and 2 respectively flows into the two delays.
Delay 1 is output from OUT1 and Delay 2 is output from OUT2.

Specifications
Sampling rate: 48kHz
A/D Converter: 32Bit
Signal Processing: 32Bit
Frequency Response: 20Hz~20kHz - ±1dB
Input Impedance: 5MΩ
System Latency: 1ms
Output Impedance: 1kΩ
Dynamic Range: 102dBu
Power: 9VDC (Negative tip, Optional ACD-006A adapter)
Current Draw: less than 150mA
Dimensions: 105(L) x 115(W) x 58(H) mm
Weight: 440 g
