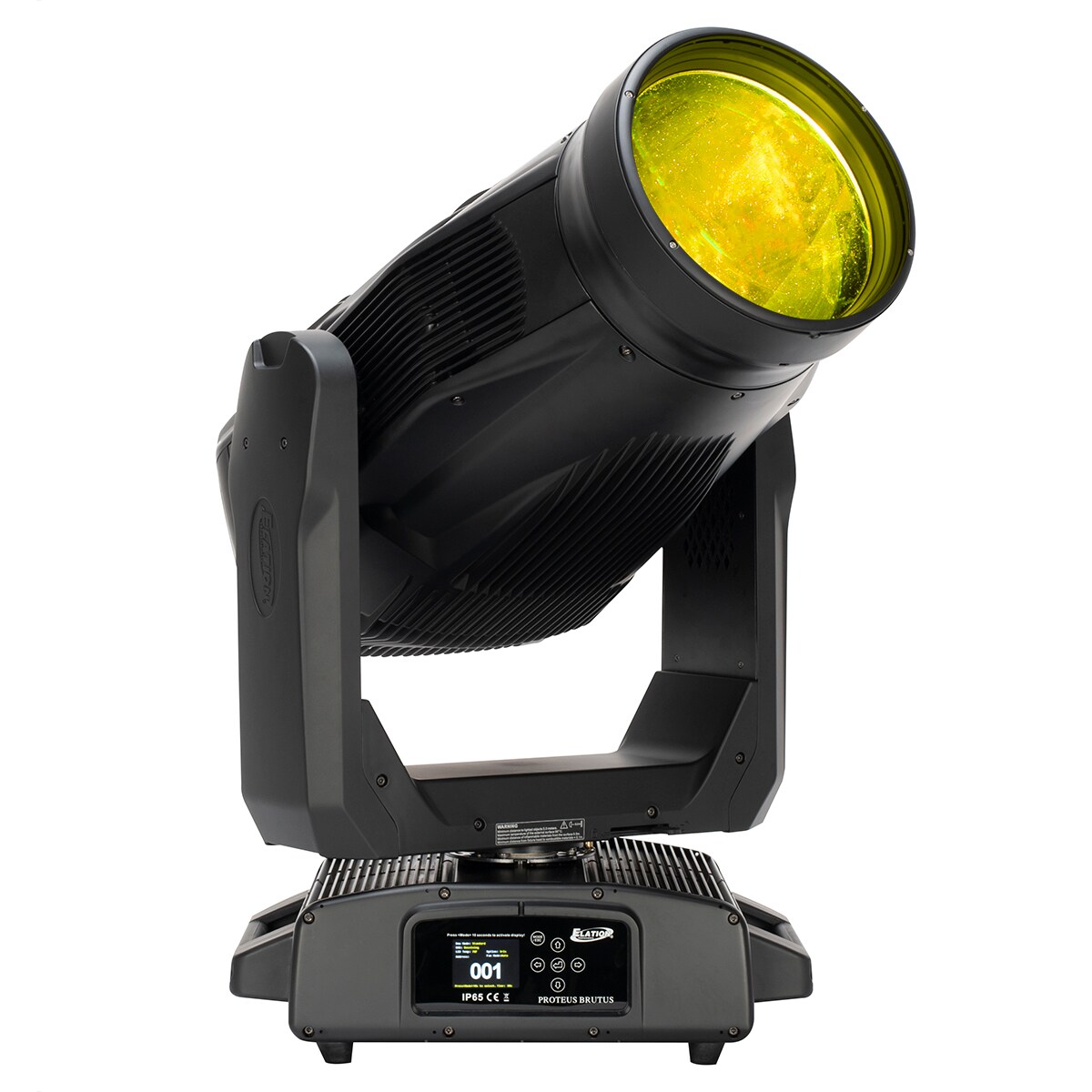

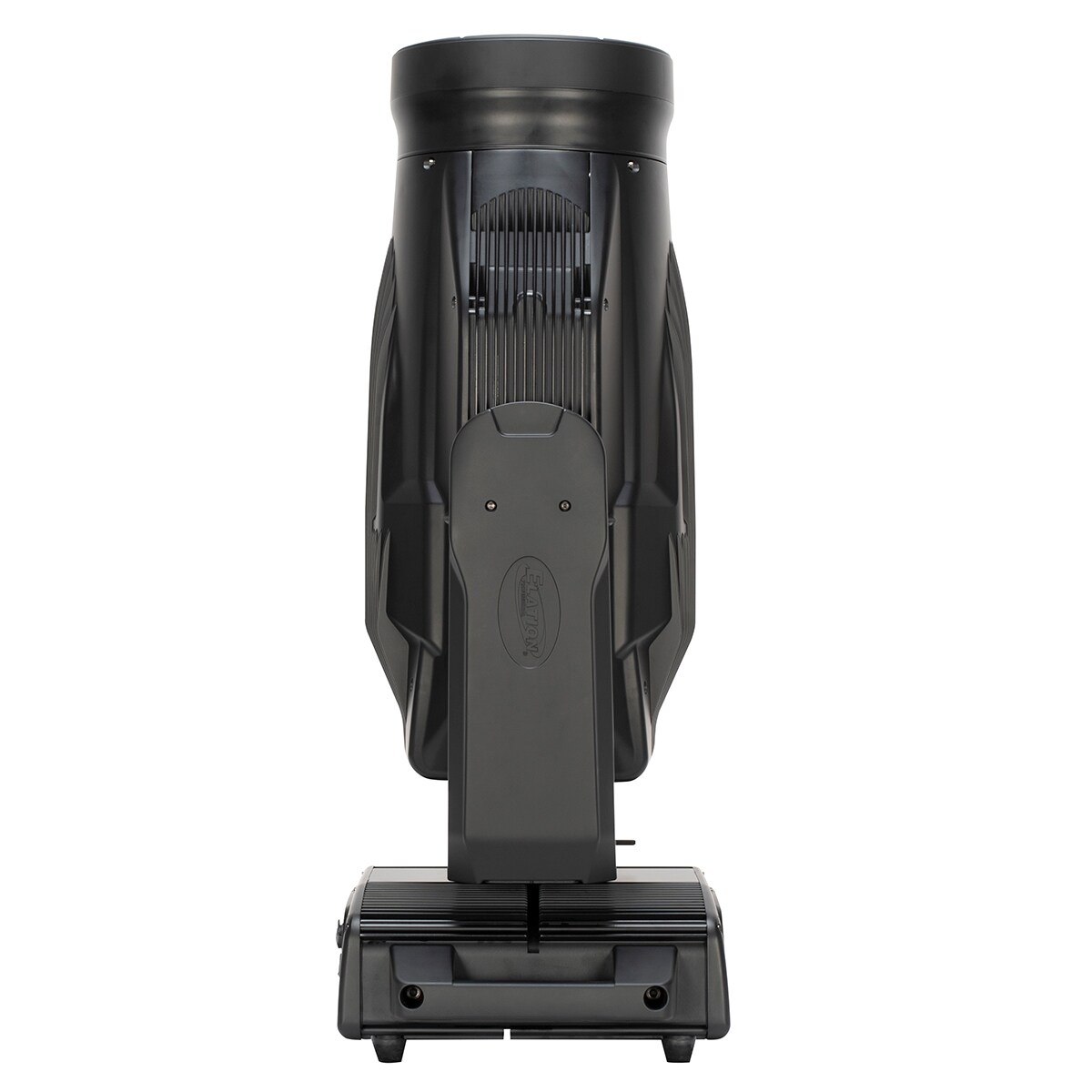

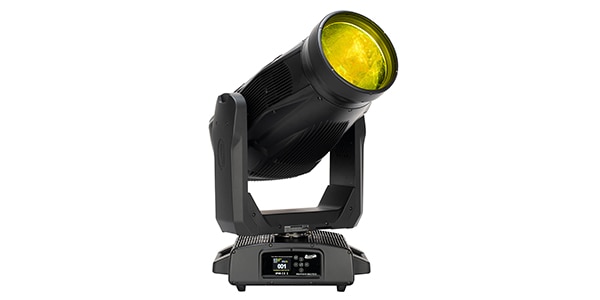

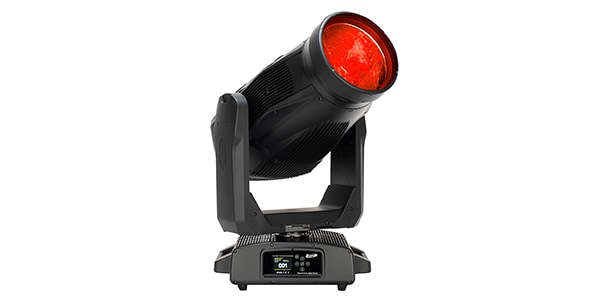

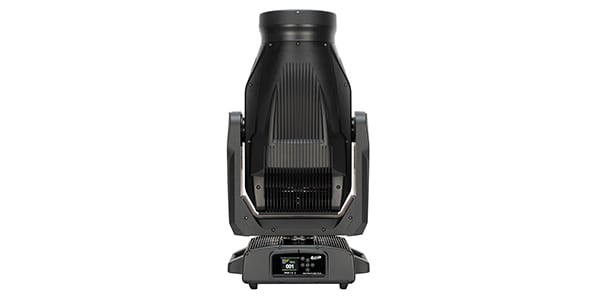

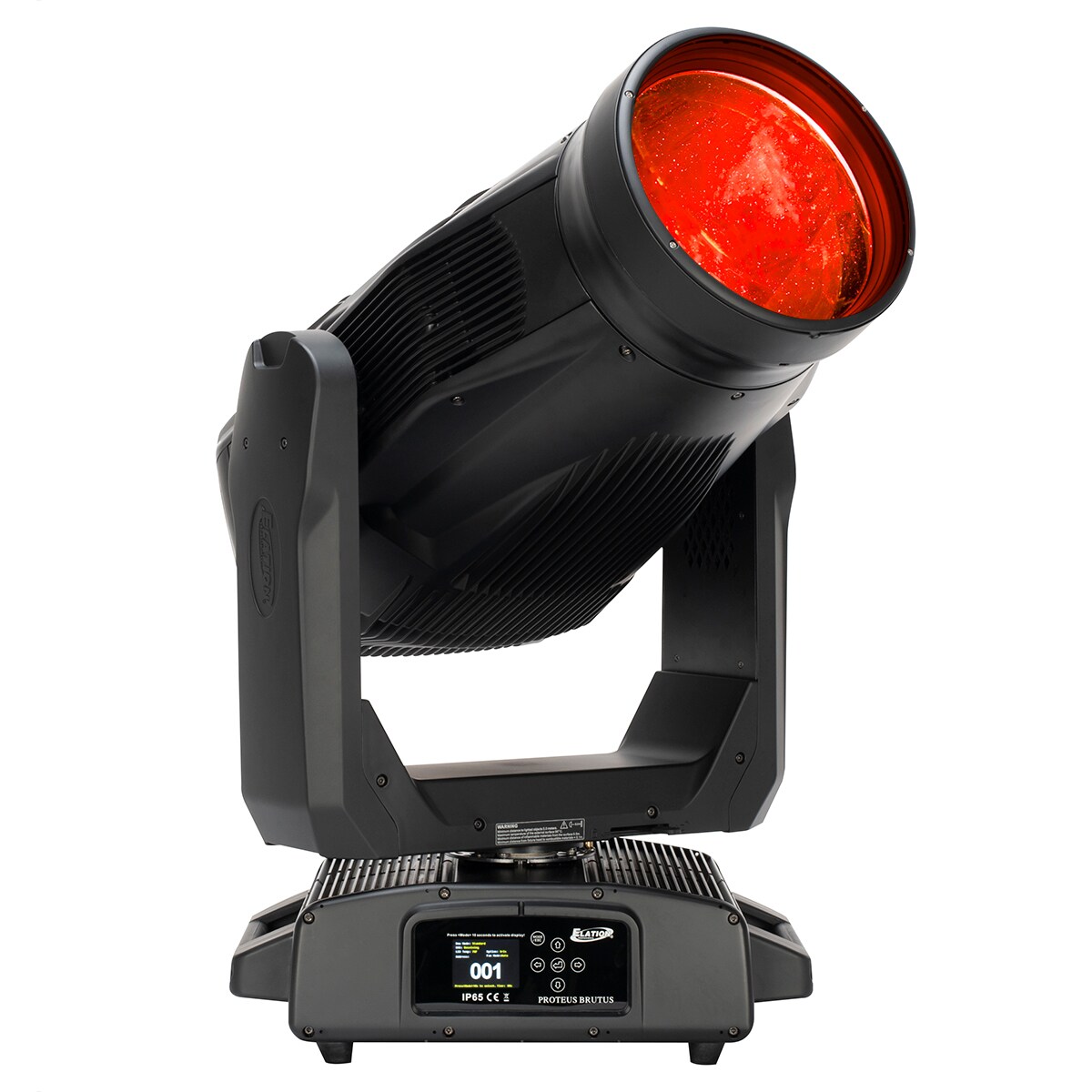

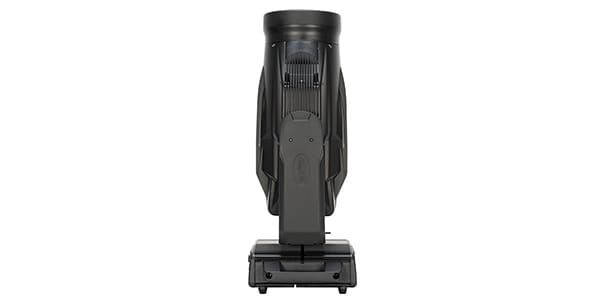

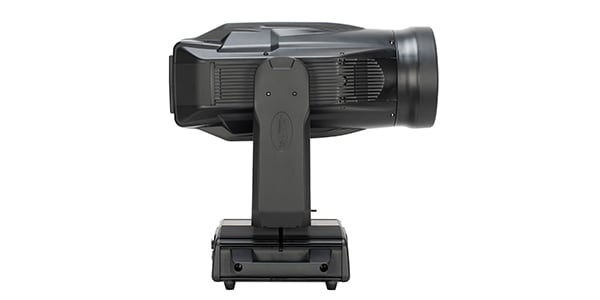

ELATION / PRB201

Variations

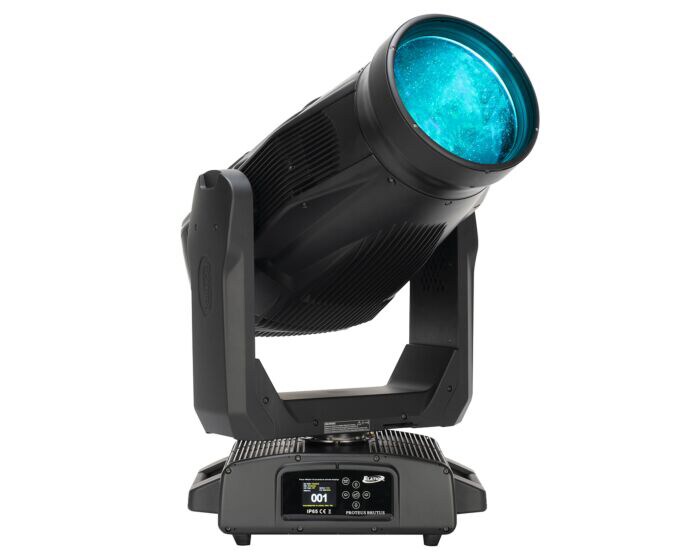

IP65 rated wash-type moving head with up to 75,000 lumens of brightness and excellent color control, suitable for a variety of indoor and outdoor applications. It has a dustproof and waterproof design and many effects.

■ Light source
- 1200W 6,500K Bright White LED Engine
- Average LED lifespan 30,000 hours (*Note 1)

■ Photometric data
- Total lumen output: 75,000
- CRI: 70+ (82+ when using HCRI filter)
- 2:1 peak field
- Zoom range: 4.5° - 45°
- Beam angle: 4.4° - 39.4°
- Field angle: 6.8° - 49.7°

■ Effect
- Motor zoom (220mm / 8.7 in front aperture)
- Full 360° interactive animation wheel
- Variable frost filter
- Motorized iris and variable pulse effects
- Variable 16-bit dimming curve mode
- High speed electronic shutter and strobe
- DMX controllable LED refresh rate
- Pan angle: 540°/630°
- Tilt angle: 266°

■ Color
- CMY color mixing
- Linear CTO color correction
- 6 dichroic colors (including high CRI filters and UV)

■ Gobo
- 6 rotation/index interchangeable beam shaping and FX gobos

■Optional framing module
- 4 rotating full blackout framing blades
- +/-45° framing index

■ Control/Connection
- 4 DMX channel modes (25/36/34/56)
- 16-bit pan, tilt, and dimming control
- Motorized focus
- DMX, RDM, Art-NET, sACN protocol support
- 6 button touch control panel
- Full color 180° reversible LCD menu display
- Power saving mode (hibernation)
- 5 pin XLR DMX input/output
- IP65 RJ45 Ethernet input/output
- IP65 locking power cable input
- wired digital communication network

■ Size/Weight
- Length: 643.6mm
- Width: 456.9mm
- Height: 869mm
- Weight: 47.2kg

■ Power supply
- AC 100V 50/60Hz
- Maximum power consumption: 1,700W
- Operating temperature range: -20°C to 45°C

■ Approval/Evaluation
- CE | cETLus | IP65 | UKCA

Note 1: Under test laboratory conditions. May vary due to factors including, but not limited to, environmental conditions, power/voltage, usage pattern (on/off cycles), controls and dimming.
