SEQUENTIAL（Dave Smith Instruments） / Trigon-6

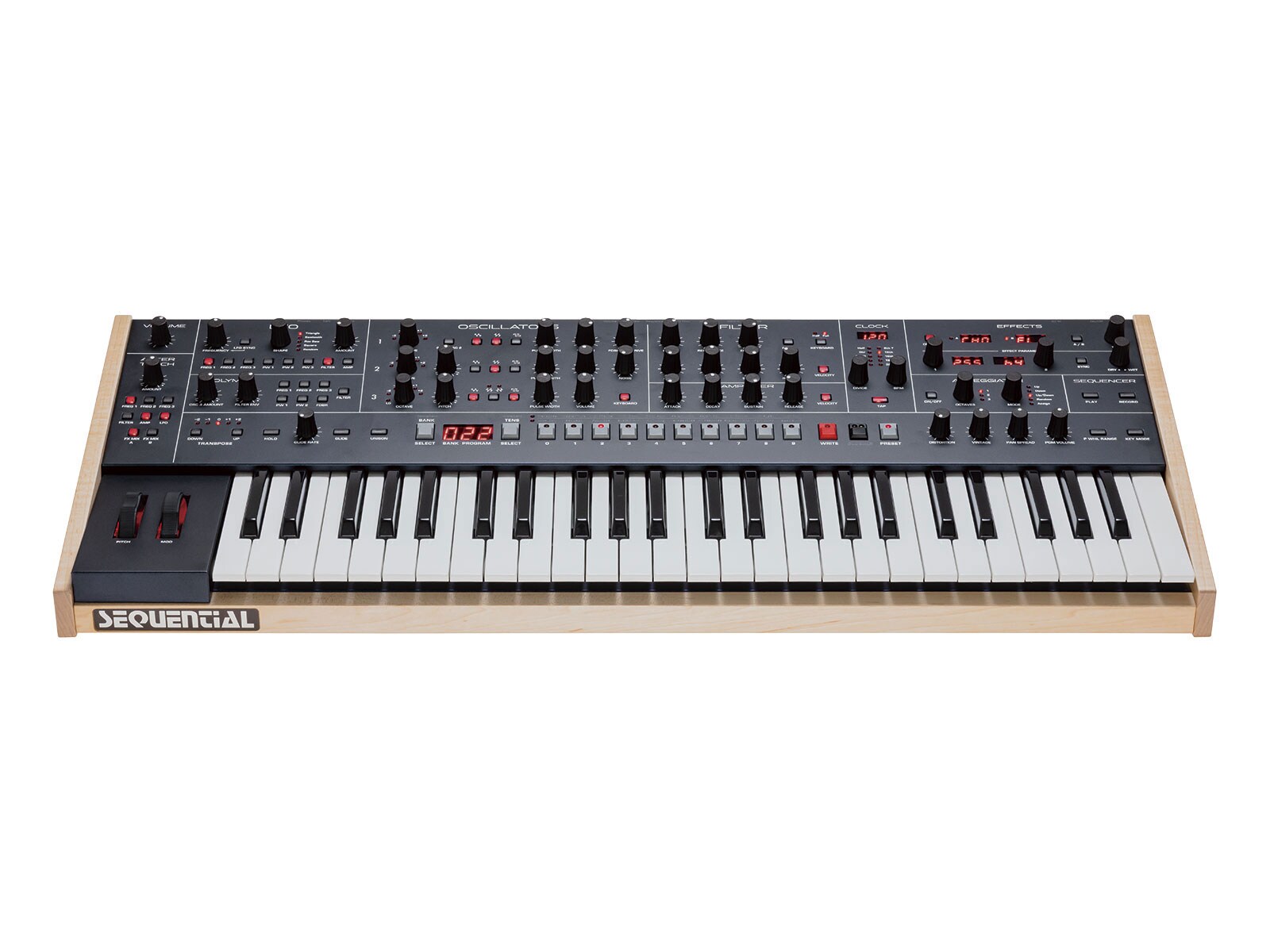

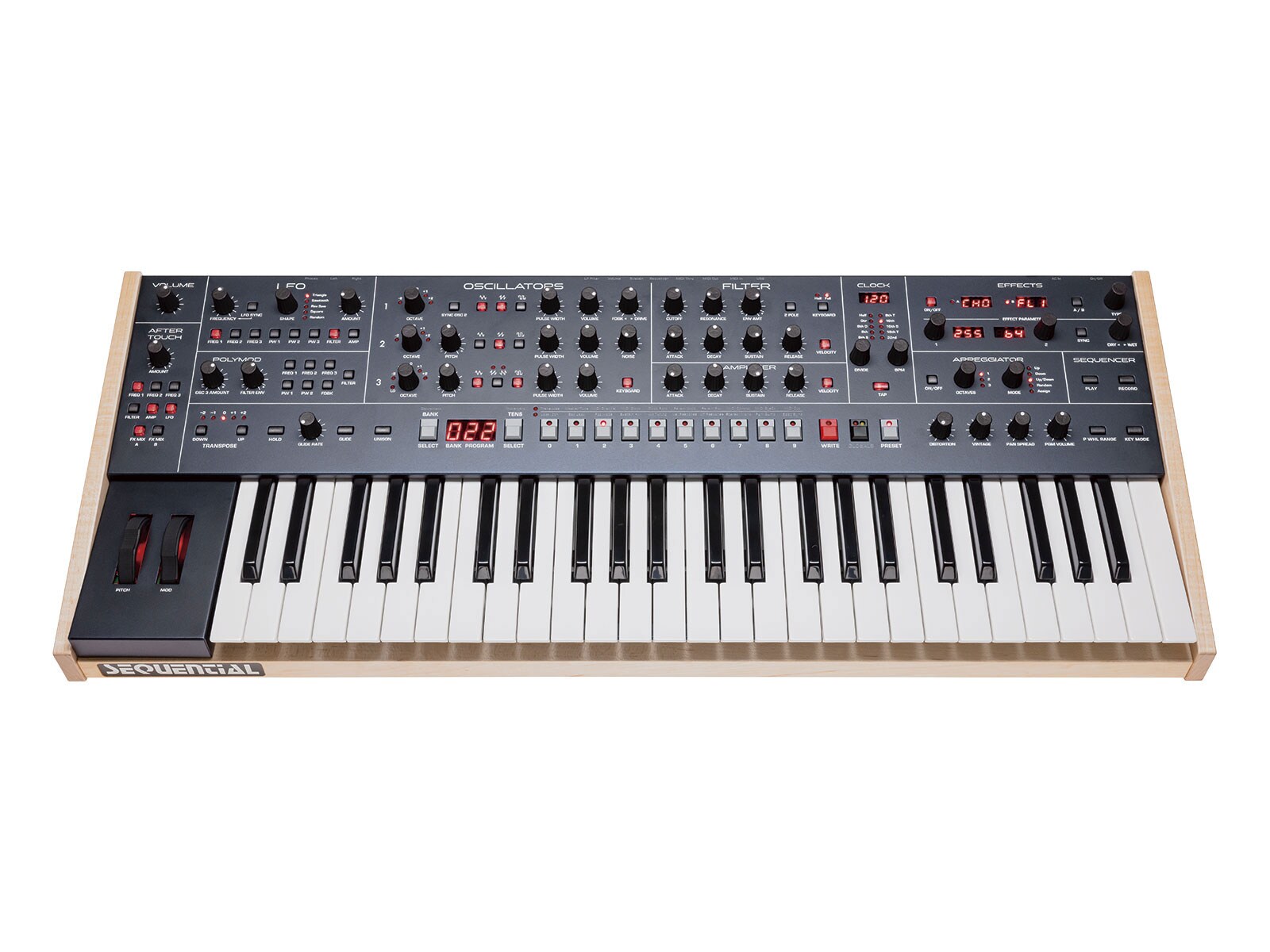

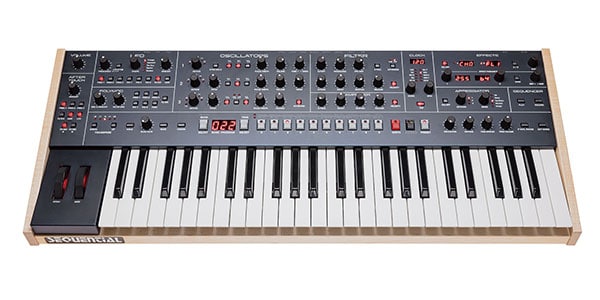

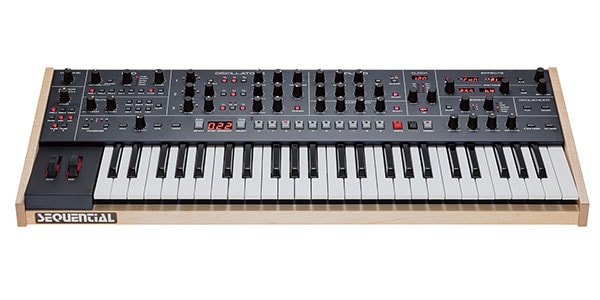

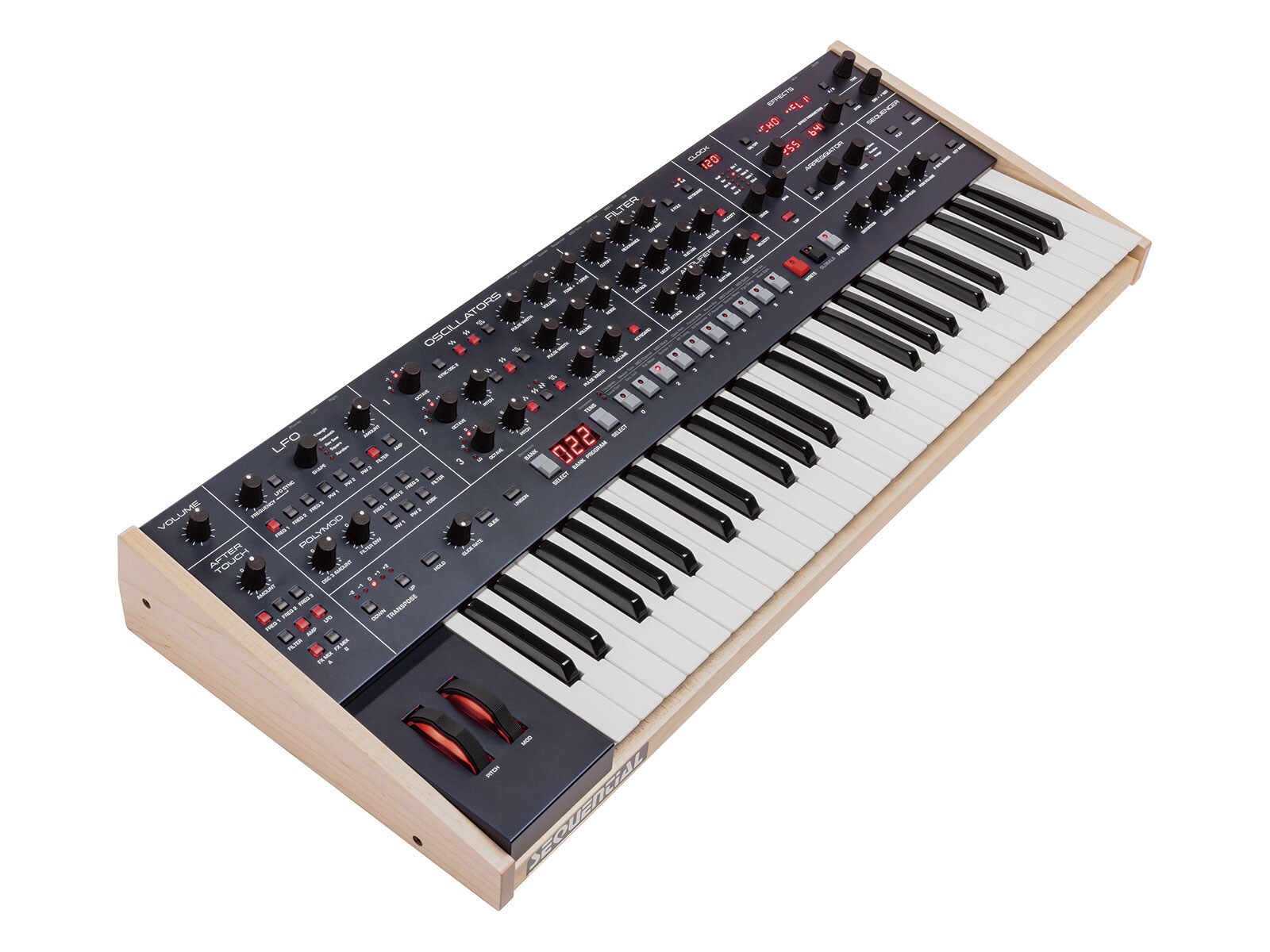

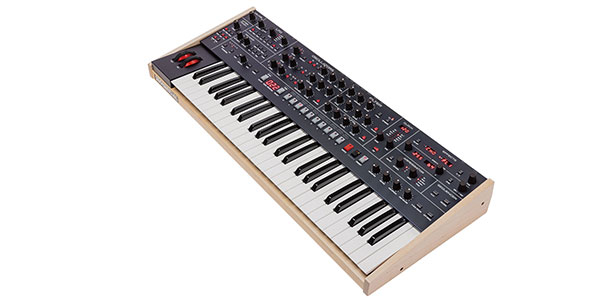

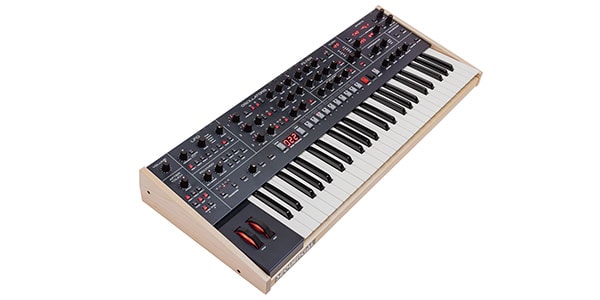

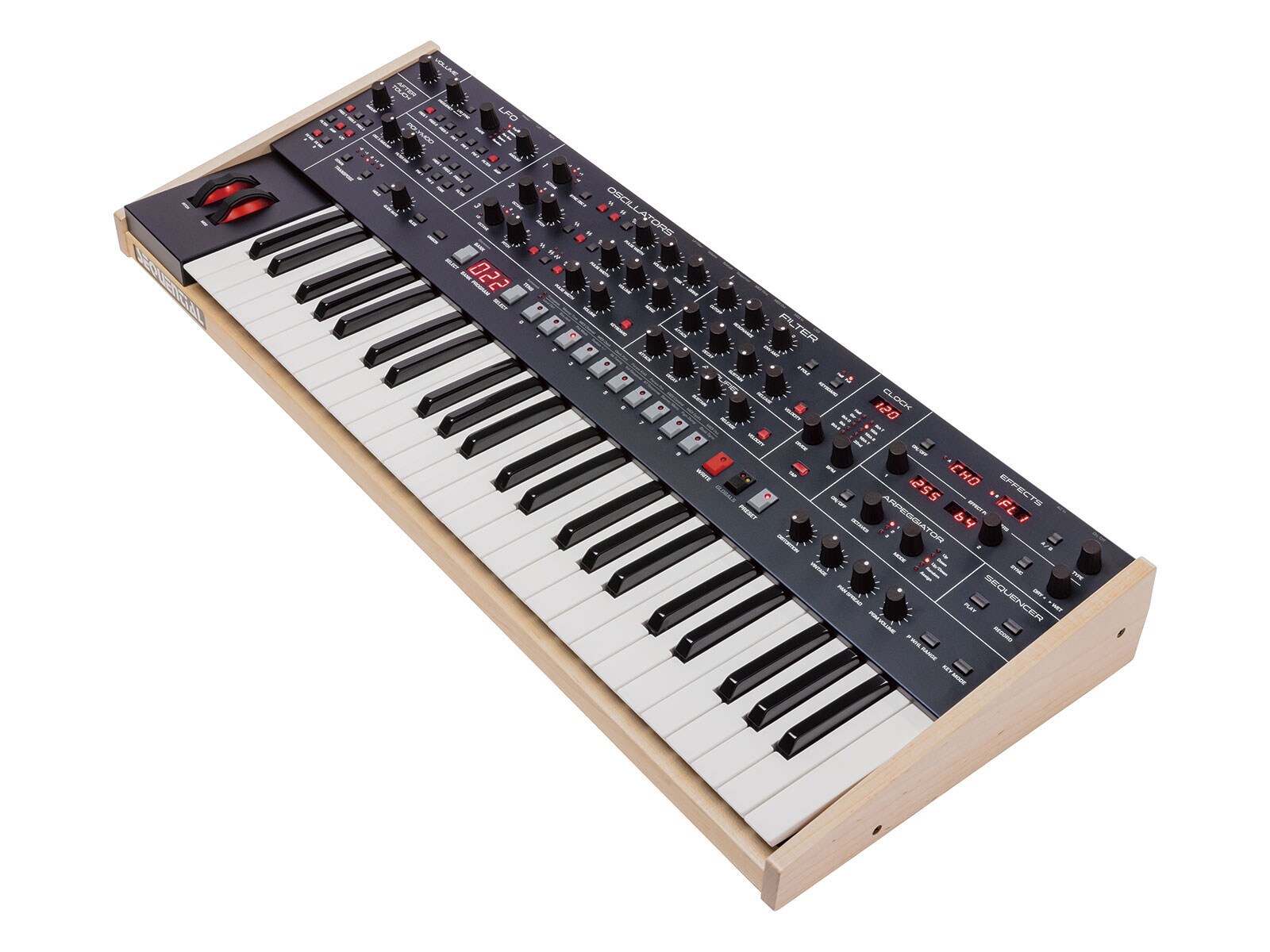

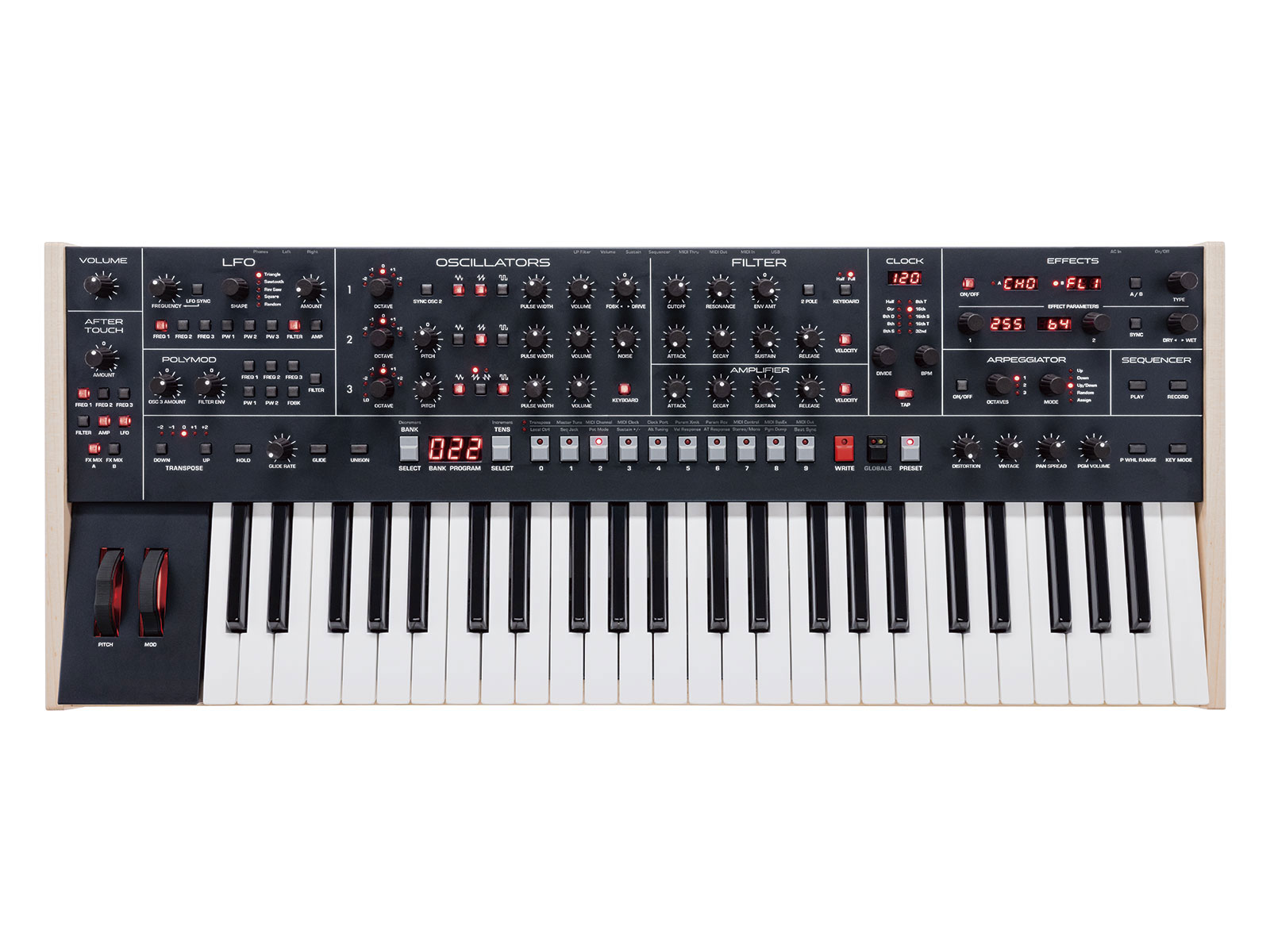

SEQUENTIAL/Trigon-6 is a 6-voice analog polyphonic synthesizer inheriting the classic sound of three VCOs and a ladder filter.

The thick and creamy classic sound of three oscillators and a ladder filter was first introduced at the dawn of synthesizers and is deeply etched in history. The Trigon-6 is SEQUENTIAL's polyphonic realization of this sound that everyone has heard at least once. SEQUENTIAL has redefined a new sound that transcends genres and styles in the modern era and has made new history here.

The factory bank contains 500 presets, ranging from classic fat and creamy synth basses to lead sounds with filter oscillation, to polyphonic sounds such as strings, brass, and pads, to modern sounds that take full advantage of the Trigon-6's features. The Trigon-6 is equipped with 500 preset programs.

Product Specifications
Oscillator
Has three discrete VCOs per voice
Multiple simultaneously selectable waveforms: triangular wave, sawtooth wave, inverted phase sawtooth wave (VCO 3 only), variable width pulse wave
Pulse width settable for each oscillator
Hard Sync: Oscillator 1 syncs to Oscillator 2
Keyboard tracking On/Off (oscillator 3)
Oscillator feedback/drive control to add saturation to the signal
White noise source
Keyboard pitch tracking On/Off
Low-pass filter
Discrete resonant low-pass ladder filter with switchable 2/4-pole per voice
Resonance control can be turned up to make the filter self-oscillating
Filter envelope can be set to amount in both positive and negative directions
Velocity modulation of envelope amounts
Keyboard tracking Off / Half / Full
Filter Envelopes
4-stage (ADSR type) envelope generator
Velocity modulation of envelope amp mounts
Amp Envelope
4-stage (ADSR type) envelope generator
Velocity modulation with envelope-amount
Low-Frequency Oscillator (LFO)
Five types of waveforms: sine, sawtooth, inverse sawtooth, square, random (sample & hold)
Clock sync (internal clock or external MIDI clock)
Initial Amplitude
Modulation Destinations: Oscillator 1 Frequencies, Oscillator 2 Frequencies, Oscillator 3 Frequencies, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Oscillator 3 Pulse Width, Filter Cutoff, Amp (VCA)
Polymodulation
Source: Filter Envelope (both positive and negative amounts), Oscillator 2 (both positive and negative amounts)
Destination: Oscillator 1 Frequencies, Oscillator 2 Frequencies, Oscillator 3 Frequencies, Oscillator 1 Pulse Width, Oscillator 2 Pulse Width, Filter Cutoff, Feedback Amount
Vintage knob
Replicates the characteristics of vintage synthesizers by changing parameters for each voice
Aftertouch
Source: Channel (monophonic) aftertouch (can be set to both positive and negative mounts)
Destination: Oscillator 1 frequency, Oscillator 2 frequency, Oscillator 3 frequency, LFO Amount, Amplifier Envelope Amount, Filter Envelope Amount, FX Mix A, FX Mix B
Clocks
Master clock: can be set by tapping the tempo
BPM control and display
MIDI clock sync
Arpeggiator
Settable note values: 16th note, triplet eighth note, eighth note, dotted eighth note, quarter note
1-3 octave range
Modes: up, down, up/down, random, assign mode
Sequencer
Polyphonic step sequencer with up to 64 steps
Effects
Stereo analog distortion
Dual 24bit 48kHz digital effects, reverb (room, hall, plate, spring), delays (total bandwise digital delay, BBD emulated delay), chorus, flanger, phase shifter, ring modulator
Delay can be synced to clock
True bypass function: full analog signal path when digital effects are off
Performance Controls
Full-size semi-weighted 4-octave keyboard with velocity and aftertouch
Pitch wheel & modulation wheel (has backlight)
Spring-loaded pitch wheel, range settable per program (+- 1 to 12 semitones)
Transpose control covers a range of 8 octaves
Hold switch keeps notes on
Polyphonic portamento
Unison (monophonic) mode: 1 to 6 voices, chord memory, key mode (note priority setting)
Preset switch (off switches to live panel mode)
Patch memory
500 user programs + 500 factory programs stored in 10 banks of 100 programs
Direct program access: switch directly between 10 programs in a set with a single button

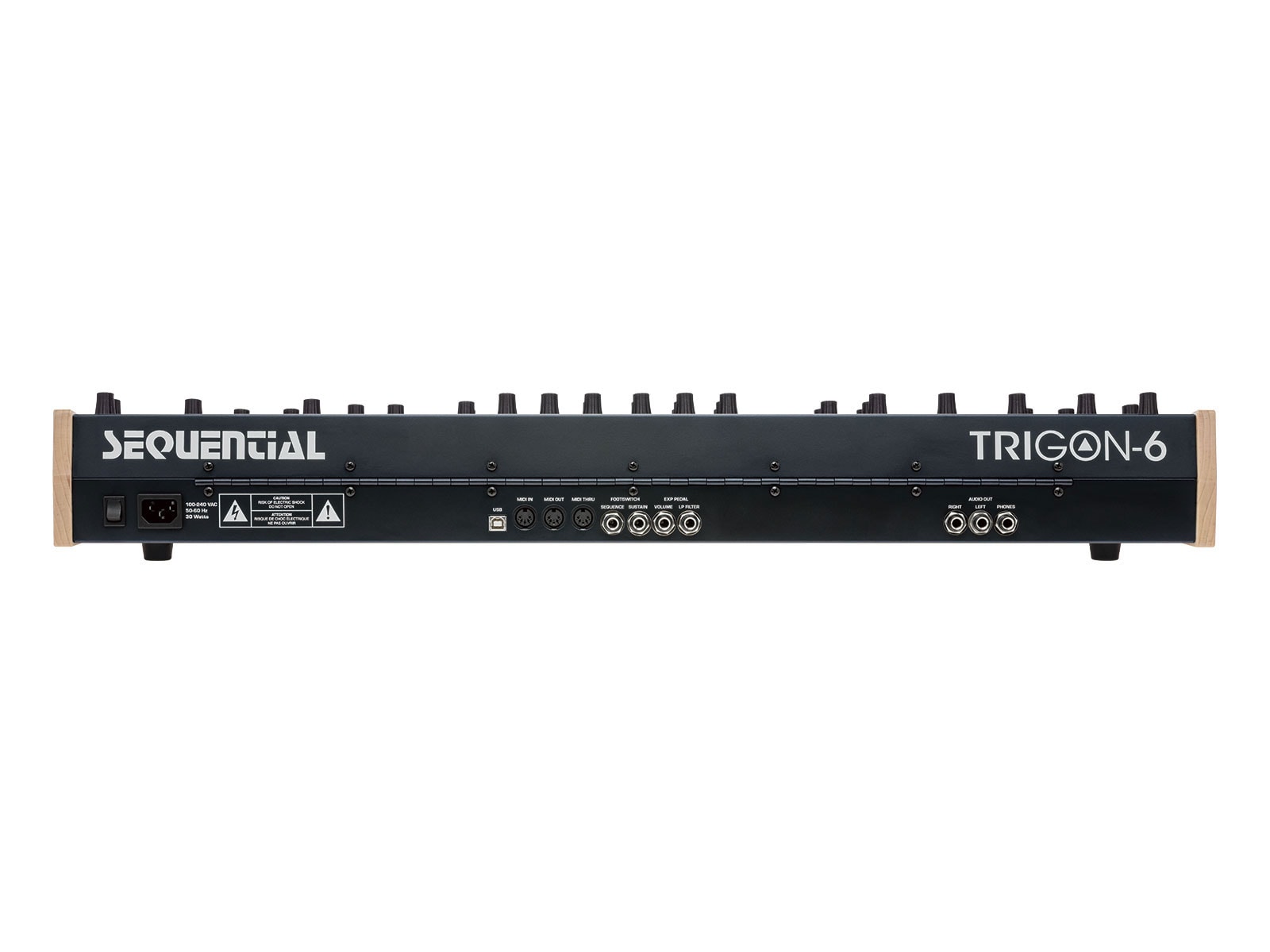

Input/Output
Audio outputs L/Mono, R (2 x 6.3mm phone jacks)
Headphone output (6.3mm stereo phone jack)
MIDI IN, MIDI OUT, MIDI THRU
Bi-directional MIDI communication via USB
Expression pedal input for low-pass filter cutoff
Expression pedal input for volume
Sustain footswitch input
Sequencer start/stop footswitch input
Power supply
IEC AC power inlet
100V - 240V AC, 50 - 60Hz - 30W
Compatible with power supplies from around the world
Miscellaneous
Maple side/front wood

Dimensions
Width: 80.7 cm
Depth: 32.3 cm
Height: 11.7 cm
Weight: 9.5Kg
Accessories：AC cable
