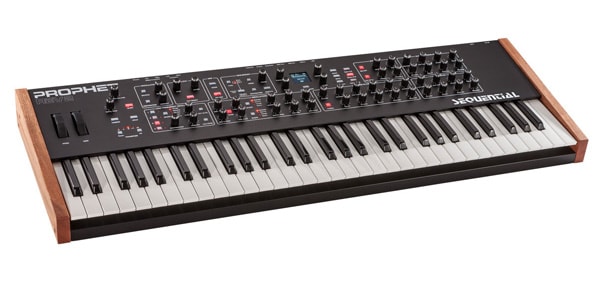

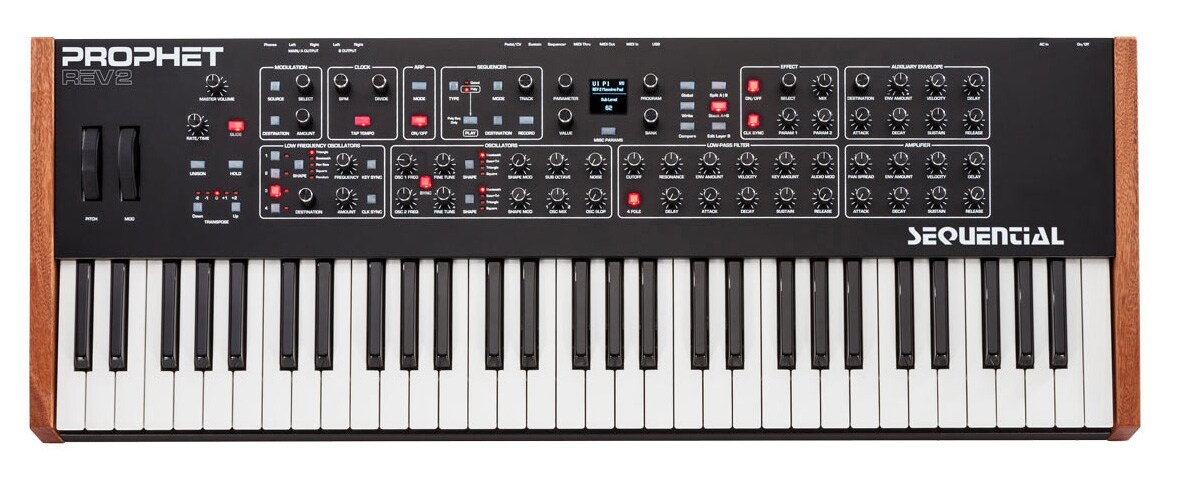

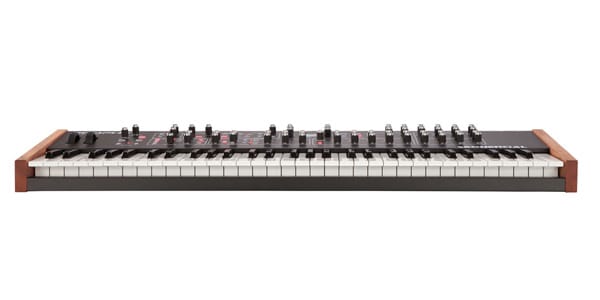

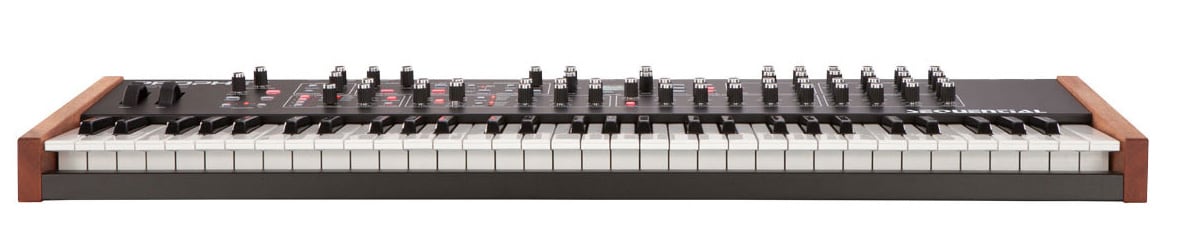

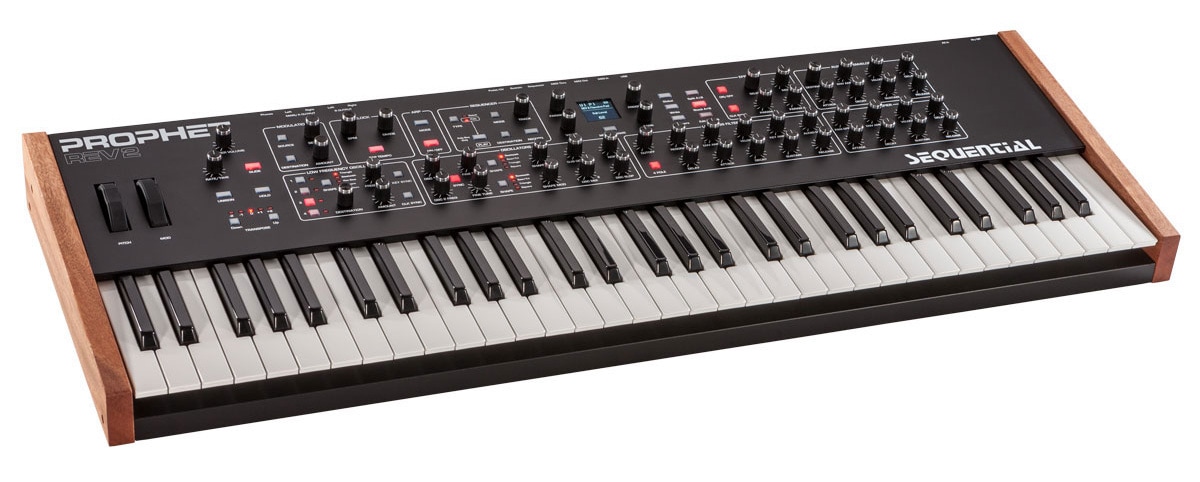

SEQUENTIAL（Dave Smith Instruments） / Prophet Rev2-16V

This analog polyphonic synthesizer is the successor to the hugely popular Prophet '08. It allows for a wide range of playing styles, from vintage sounds to rich, full sounds that take full advantage of its numerous voices.

■ Oscillators
Equipped with two digitally controlled oscillators (DCOs) per voice (Oscillator 1 has sub-octave)
Sawtooth wave, triangle wave, sawtooth wave/triangle wave mix, square wave (with pulse width modulation)
Glide (portamento) Individual rate can be set for each oscillator
Noise generator
Analog VCA
Hard sync
■ Filters
Equipped with one analog Curtis low-pass filter per voice
Selectable between 2-pole and 4-pole (4-pole mode allows self-oscillation)
■ Envelopes
Equipped with three envelope generators: for filter, for VCA, assignable
4-stage ADSR + Delay
Envelope 3 is loopable
■ Sequencer
Equipped with polyphonic step sequencer and gate sequencer
Polyphonic step sequencer has a maximum of 64 steps, a maximum of 6 notes per step, Ties and rests are programmable.
The gate sequencer has 16 steps x 4 tracks, allowing you to sequence notes or any parameter.
Each layer can be sequenced independently.
■LFO
Equipped with 4 LFOs.
Key sync can be set for each LFO.
■Modulation
Equipped with 8 modulation matrices.
■Arpeggiator
Equipped with a programmable arpeggiator.
Modes: Up, Down, Up/Down, Random, Assign Mode
Note Values: 16th note, Triplet 8th note, 8th note, Dotted 8th note, Quarter note
Range: 1 to 3 octaves
Relatchable
Note Repeat
■Controls
Full-size semi-weighted 5-octave keyboard (with velocity and aftertouch).
Equipped with 52 knobs and 20 buttons, allowing for intuitive editing with minimal hierarchical navigation.
Features a pitch wheel (with built-in spring) and an assignable modulation wheel.
■Memory
512 Factory Programs (128 programs x 4 banks)
512 User Programs (128 programs x 4 banks)
Each program can be saved in 2 layers (2 separate sounds)

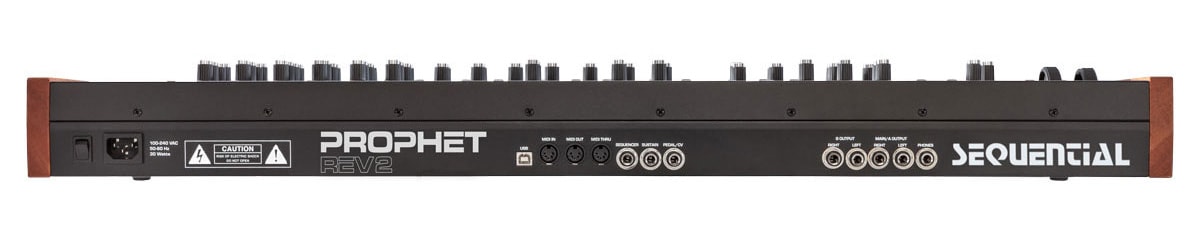

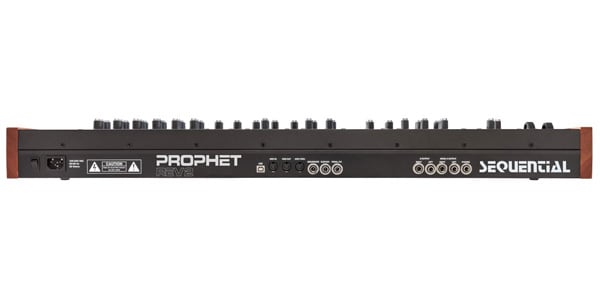

■Inputs/Outputs
MIDI: In, Out, Thru
USB: USB 2.0 (USB class compliant)
Main Stereo Output: 1/4 inch unbalanced
Output B Stereo Output: 1/4 inch unbalanced
Sustain Pedal Input: Can connect a normal on or normal off momentary switch
Pedal/CV Input: Can input an expression pedal or a 0V to 5V DC CV signal (protected from higher or negative voltages)
Headphone Output: 1/4 inch stereo phone jack
■Power Supply
IEC AC Power Inlet Built-in Power Supply
100V to 240V AC 50 - 60Hz
Power Consumption: 22 W
■External Dimensions & Weight
Side panels made of oiled African mahogany
External Dimensions: 32.26 cm x 89.20 cm x 9.65 cm
Weight: 9.3 kg
