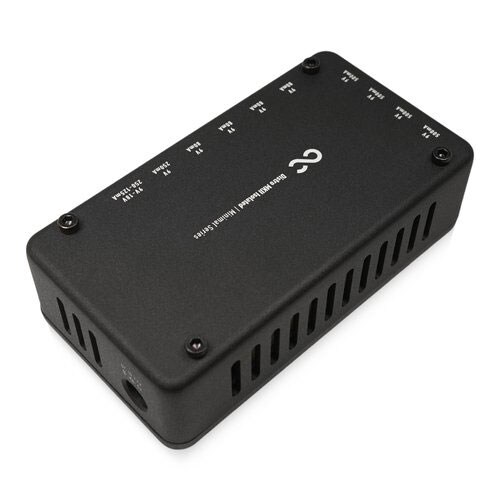

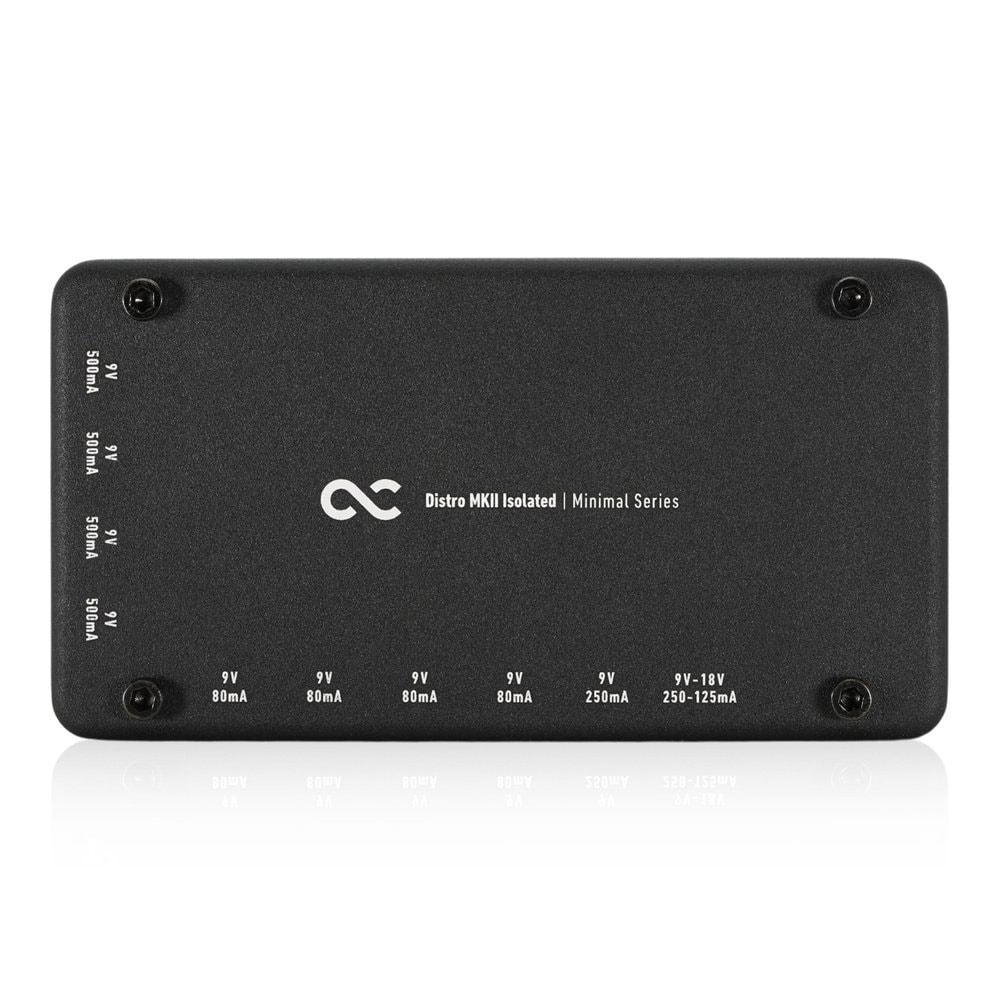

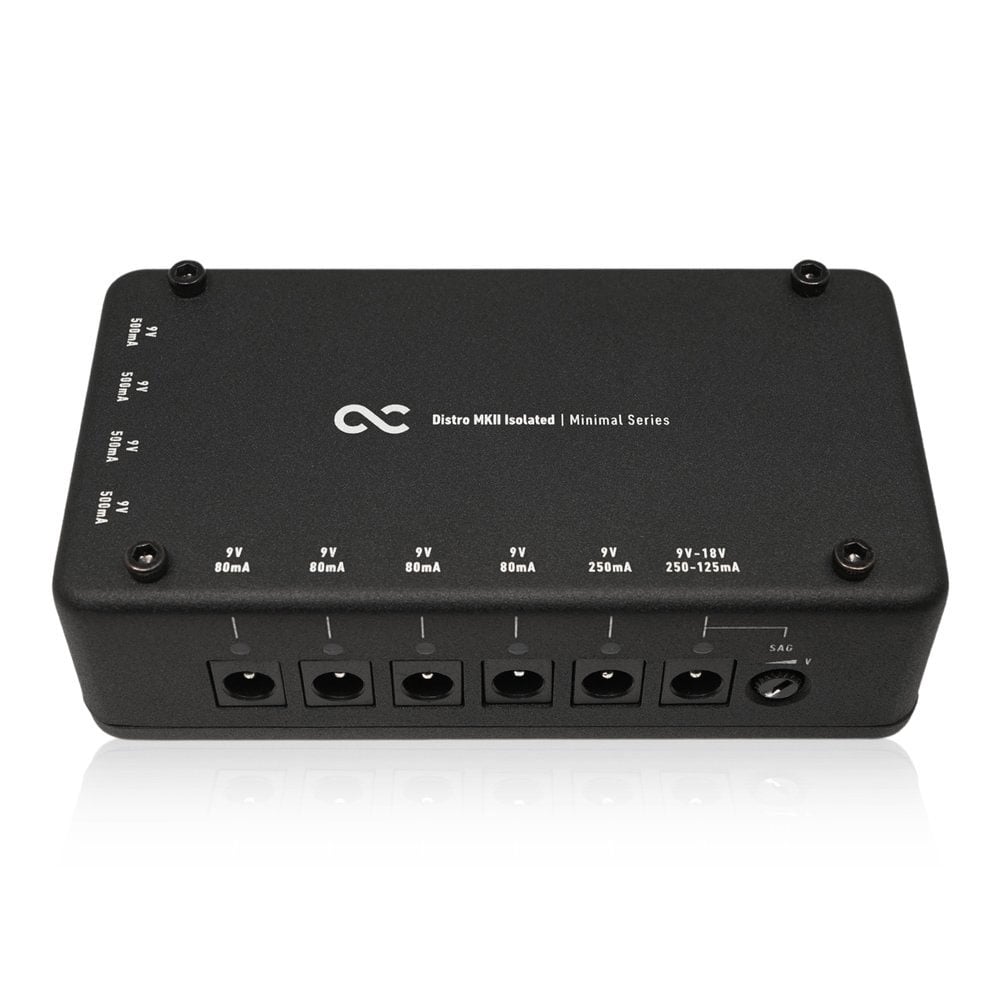

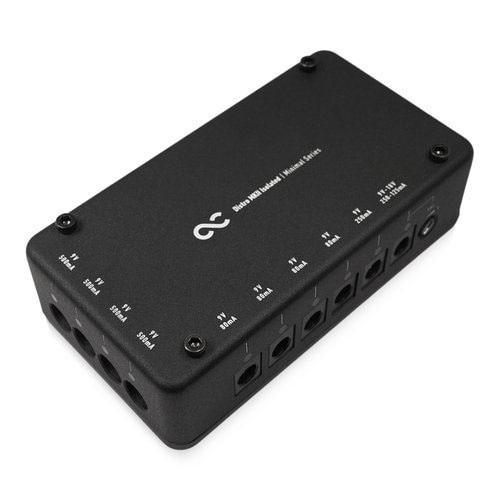

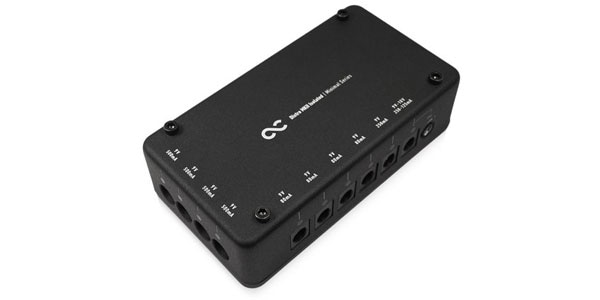

One Control / Minimal Series Distro MKII Isolated

The Minimal Series Distro MKII Isolated is an isolated power supply that is as compact as possible yet still provides complete independence of all outputs.

Despite its compact size, it has 10 DC Outs and can power many effects using a dedicated included adapter.
It has four 9V/500mA outputs. Today, it is not uncommon to have multiple digital effects and multi-effects devices on a pedalboard. Four large 500mA output jacks are incorporated to accommodate those effects requiring a large current draw.
These terminals can also run multiple compact pedals using branch cables such as the One Control Daisy Chain Five.
In addition, four 9V/80mA terminals are incorporated for connecting compact, low-current-consumption analog distortion effects, etc., and two 9V/250mA terminals are provided for connecting compact reverb effects and other effects with higher current consumption.
One of them can also be used to increase the voltage in the range of 9-18V (125mA at 18V) with the SAG knob.
In addition, each power supply terminal is independent, and a Y-boost cable is included to combine the two 9V terminals and output them as 18V. Using this cable, the two terminals can be used as a single 18V terminal to supply power at 18V.

What is an independent power supply?
A power supply is a piece of equipment that supplies power. Therefore, a standard adapter itself is also classified as a power supply. Still, generally speaking, a power supply is a device that can output power to multiple devices with a single unit.
Among these, a completely independent power supply is one in which all terminals are isolated (isolated). Although it is a single piece of equipment, each terminal can be used as a separate adapter.
Although a power supply is slightly larger than a typical branched power supply due to the more complex internal structure required for a single terminal, it has the great advantage that it can be used with many effects without any noise, even if digital and analog effects are mixed.
In addition, the 9V/80mA terminal can be used to avoid noise caused by substantial current capacitance, which can cause noise in old-style analog circuits when the current capacity supplied is large.
The Minimal Series Distro MKII Isolated has a large and small output terminal, allowing various effects to be used at their best performance.

Features
Fully independent power supply in a compact size
10 DC out jacks with large and small outputs
High-output 500mA jacks for digital effects
Small 80mA output terminal for optimal operation of analog pedals
SAG terminal with 9-18V adjustability
10 DC cables are included
10 DC cables included ・Boosting cable included to match the voltage by combining the two terminals

Specifications
4 x DC9V/500mA terminals
4 x DC9V/80mA terminal
1×DC9V/250mA terminal
1×DC9V/250mA to 18V/125mA SAG terminal
All outputs are center minus.

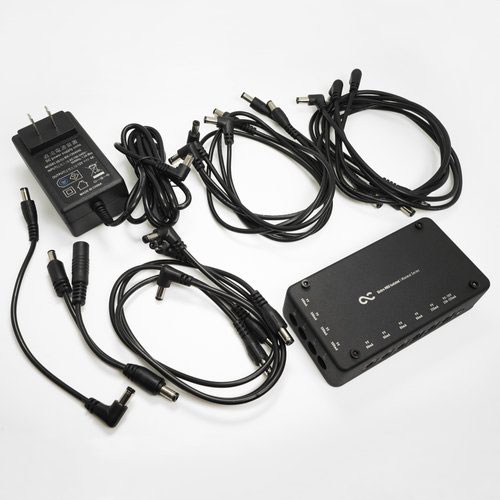

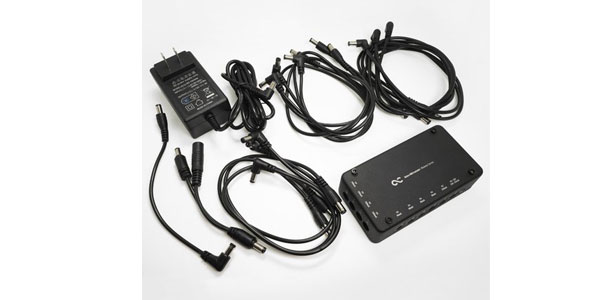

Accessories

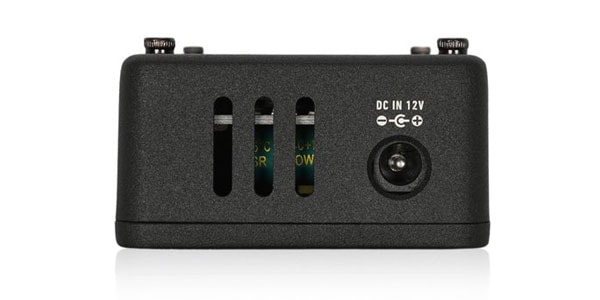

1 x dedicated 12V/4A adapter
1 x 15cm LS
3 x 30cm LS
3 x 50cm LS
3 x 70cm LS
1×Y-shaped voltage booster cable
Rubber feet

Size: 120Wx70Dx35H mm
Weight： approx. 393g
Type： Power supply
Adapter: DC12V
Battery powered: -
Control: SAG
