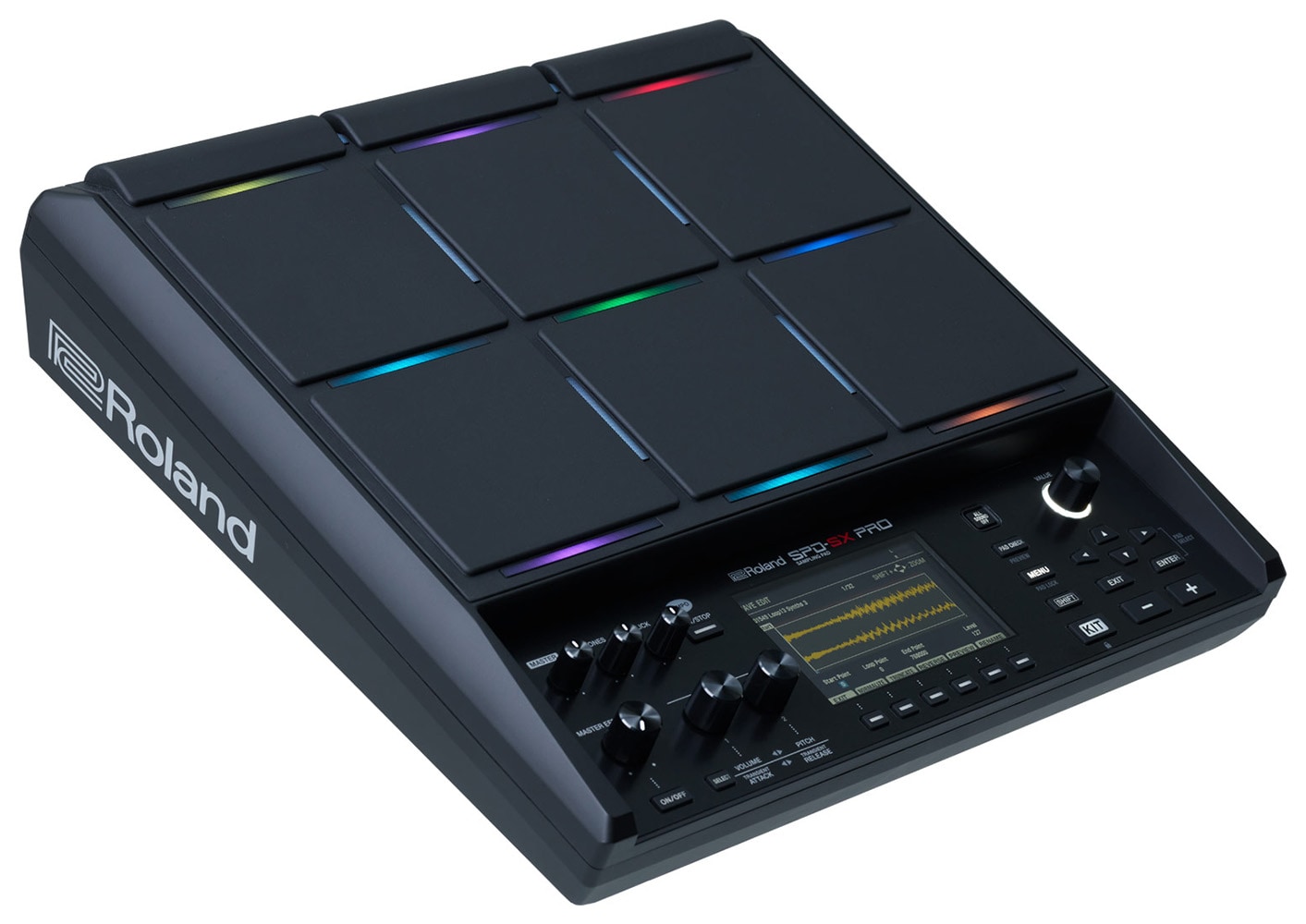

ROLAND / SPD-SX PRO

This flagship model of sampling pads utilizes sampling technology cultivated in previous products and has features that meet the advanced demands of professional drummers. With a large color display, customizable multi-colored pad LEDs, and a wide variety of outputs and TRIGGER IN jacks, it is a powerful partner on any stage.

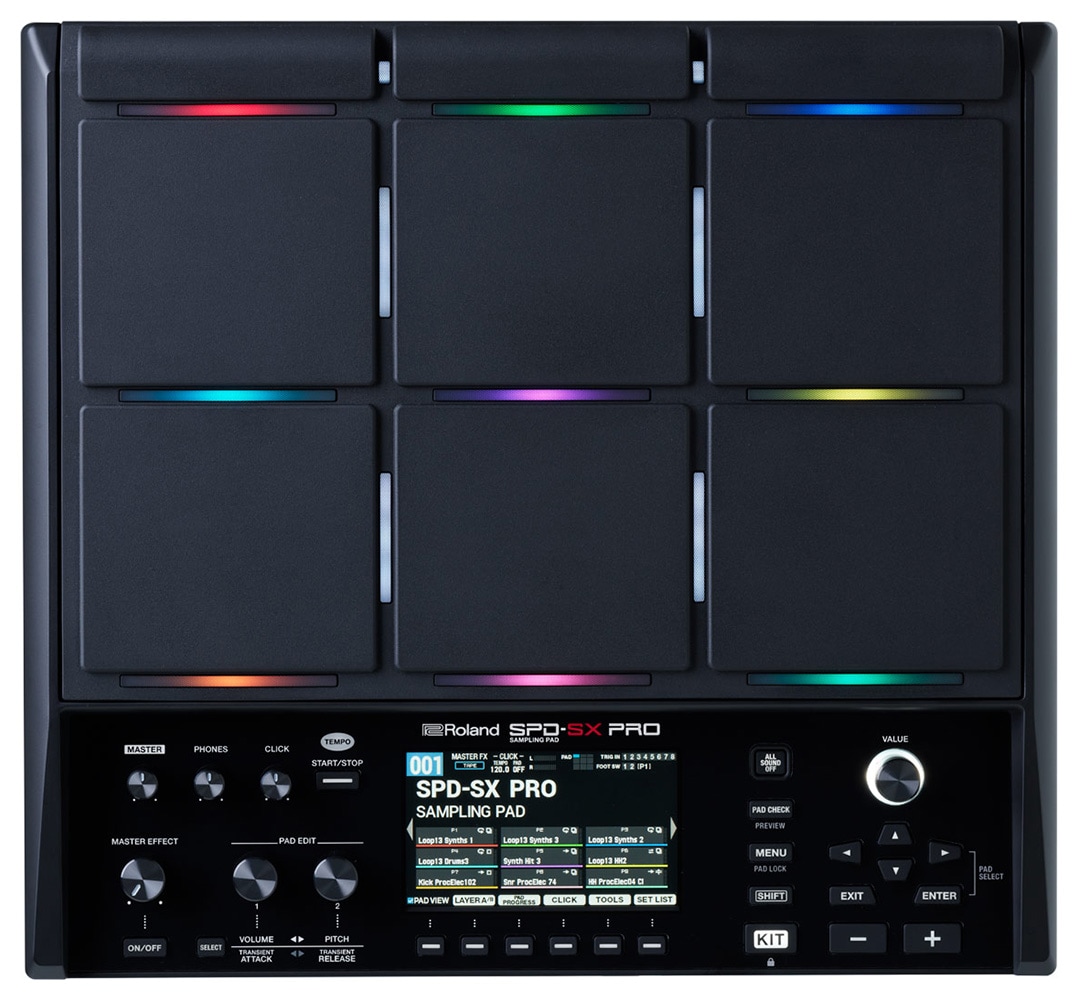

Built-in pads: 9 (with PAD LED/vertical LED)
Up to 8 external pads (sold separately) can be connected (when using Y cable (sold separately))
Maximum number of simultaneous sounds: 32 (including click sounds)
Number of Memorable Waves: 20,000
Pre-loaded data is included.
Internal storage: 32GB
Including preloaded data
Sampling Time
When sampling from AUDIO IN: 60 minutes per sampling
Resampling: 10 minutes per sampling
Internal data format: 16-bit linear
Sampling frequency: 48 kHz
Import format: WAV/AIFF/MP3
Number of kits: 200
Preloaded waves: 1,550+
Setlist: 32 (32 steps/setlist)
Kit Effects
Layer Equalizer (independent for each PAD LAYER A/B)
Layer transients (independent for each PAD's LAYER A/B)
Multi-effects (53 types) (4 channels per KIT)
Side-chain compressor (1 channel per KIT)
System Effects
Master Effects (53 types)
Master Compressor
Master Equalizer
USB audio recording and playback channels
Sampling frequency (original): 48 kHz
Sampling frequency (with sampling rate converter): 96kHz, 44.1kHz
Recording: 8 channels
Playback: 12 channels
Display: 4.3-inch graphic color LCD

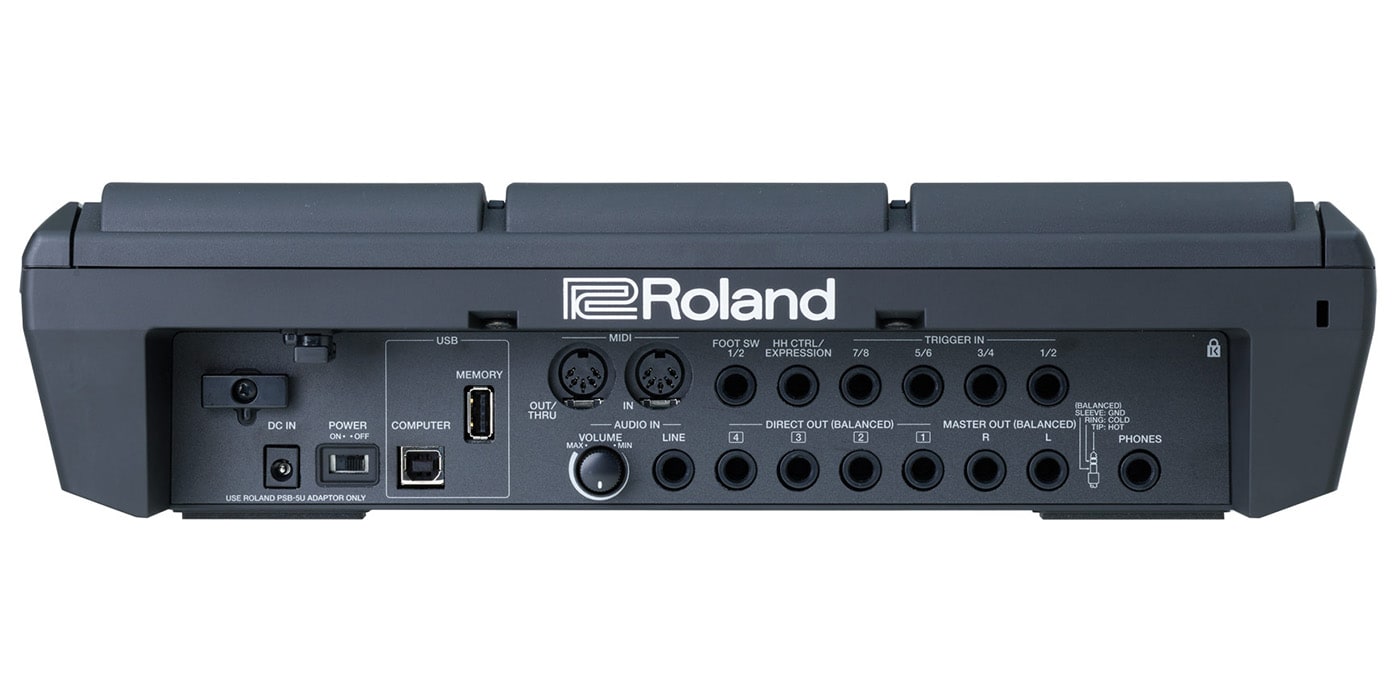

Connections
PHONES jack (stereo standard type)
MASTER OUT jacks (L, R) (BALANCED) (TRS standard type)
DIRECT OUT jacks x 4 (MONO) (BALANCED) (TRS standard type)
AUDIO IN jacks (stereo standard type) (TRS standard type) (with VOLUME control)
TRIG IN jack x 4 (1/2, 3/4, 5/6, 7/8) (TRS standard type)
FOOT SW jack x 1 (1/2) (TRS standard type)
HH CTRL/EXPRESSION terminal (TRS standard type)
MIDI terminal (IN, OUT/THRU)
USB COMPUTER terminal: USB B type (High-Speed USB, USB-AUDIO, USB-MIDI, APP)
USB MEMORY terminal: USB A type (High-Speed USB, backup/restore, SAMPLE import/export)
DC IN terminal power supply DC 12V (AC adapter)
Current consumption: 1,500 mA
Accessories
Quick Start
Safety Precautions for Use" flyer
Safety Precautions / Precautions for Use" leaflet
AC adapter
Warranty card
Optional accessories
Pads (PD series, PDX series, BT-1)
Cymbals (CY series)
Hi-hats (VH-10, VH-11)
Kick (KD series, KT series)

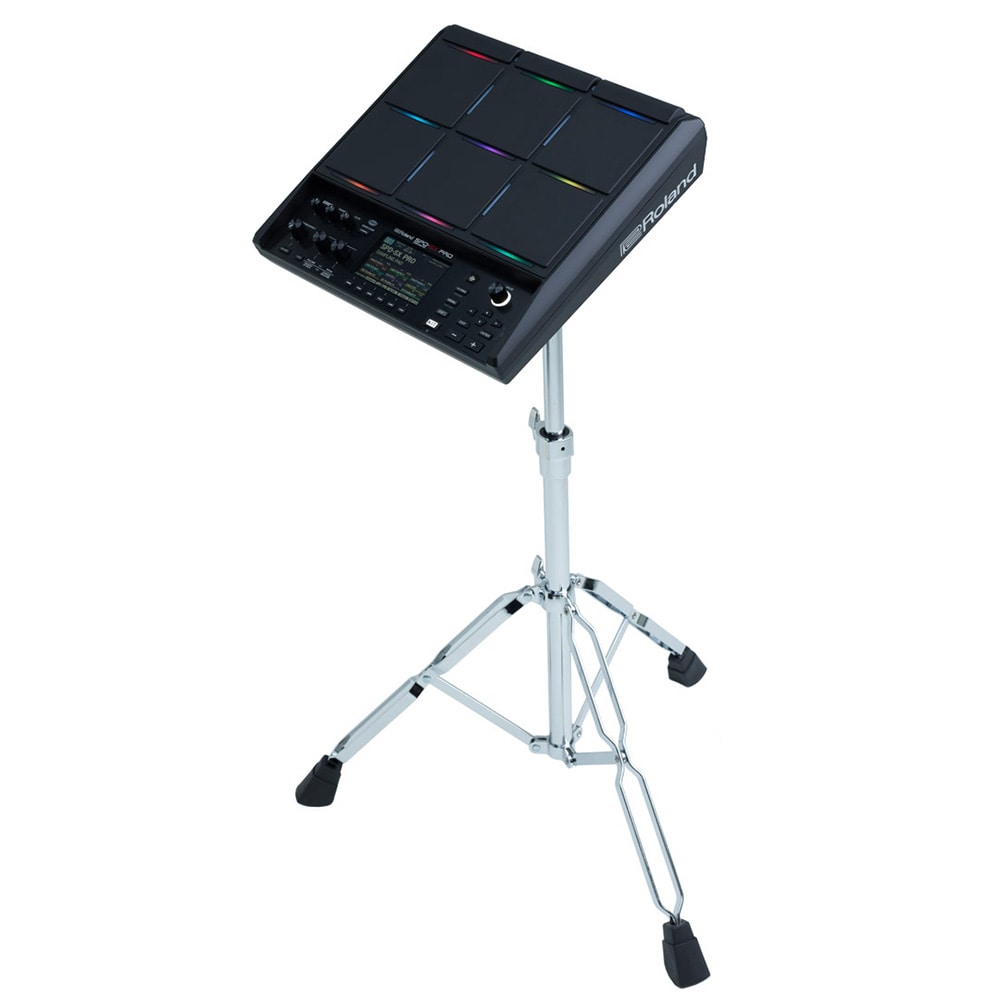

Pad Stands (PDS-20, PDS-10)
All Purpose Clamp (APC-33)
Acoustic drum triggers (RT-30K, RT-30HR, RT-30H)
Hi-hat pedals (FD-8, FD-9, VH-10, VH-11)
Expression pedal (BOSS EV-30)
Pedal switch (DP-2)
Footswitch (BOSS FS-5U, FS-6, FS-7)
Y cable (PCS-31L) (stereo standard plug ←→ standard L-type plug x 2)
USB memory stick
Dimensions: W360 mm, D330.3 mm, H92.9 mm
Weight: 3.0 kg (excluding AC adapter)
