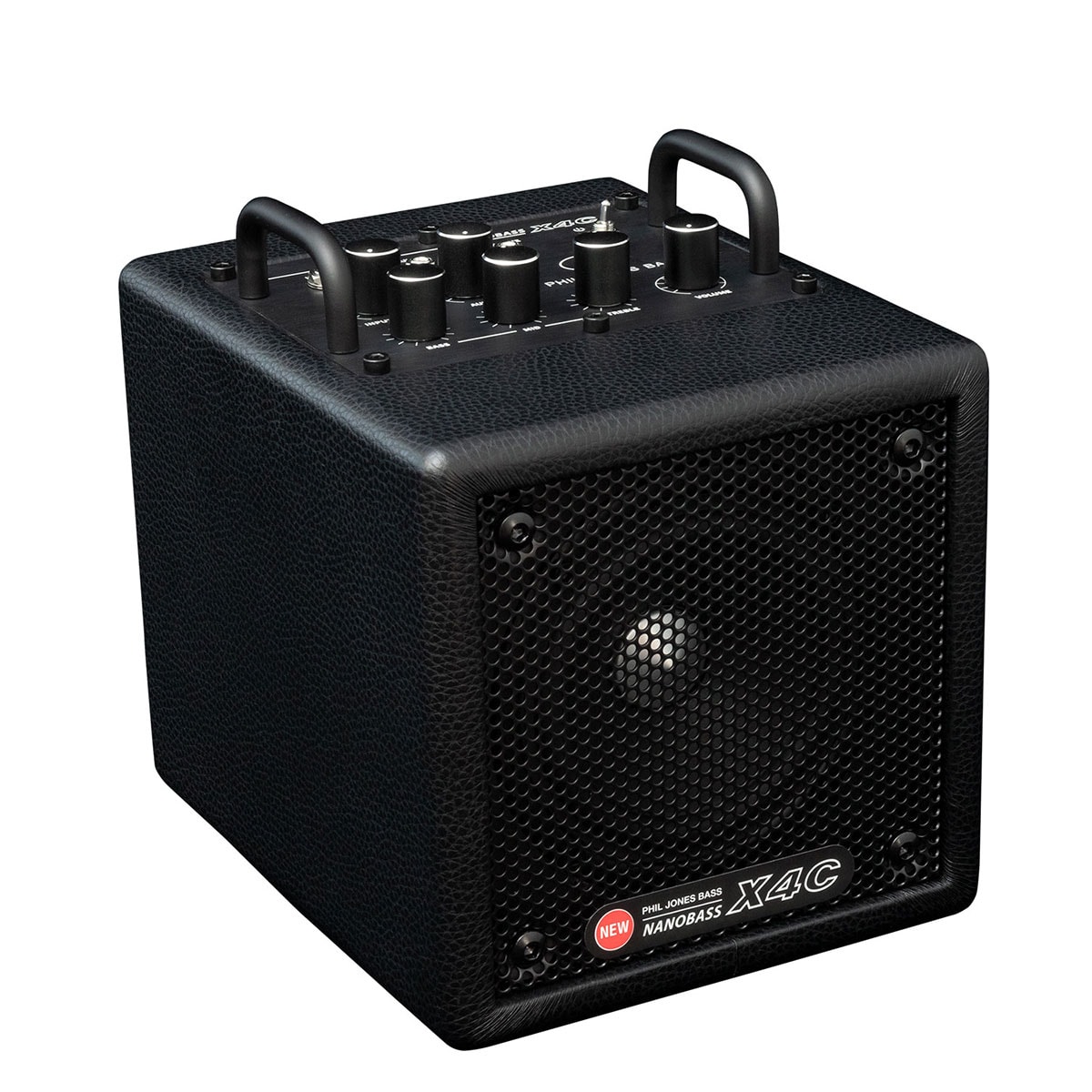

PJB（PHIL JONES BASS） / NANOBASS X4C Black

A new model compatible with a mobile battery has been added to the standard small bass amp series. With added mobility, it can be used in even more places. The combination of a high-performance 4-inch speaker and a passive radiator RALFER delivers rich bass sounds that you would never imagine from its compact size. With a flat and wide-range frequency response, this high-grade amp can be used not only as a bass amp, but also for guitars, keyboards, and more. It also supports Bluetooth like the X4.

■Bass combo amplifier
■Black
■Output: 35W (when using AC)
■Speakers: PJB Custom 4"" x1, RALFER passive radiator

■Frequency response: 68Hz - 15kHz
■Input: INPUT (1/4""), AUX (3.5mm stereo mini), Bluetooth (select one for AUX/BT)
■Bluetooth standard: 5.0 (SDC, AAC, aptX, aptX HD compatible)
■Controls: Input Level, 3bandEQ, AUX/BT Volume, Master Volume
・Bass 100Hz, +/-15dB
・Mid 1kHz (Band width 120Hz-10kHz), +/-15dB
・Treble 10kHz, +/-15dB
・Each time you press AUX/BT Volume, AUX/BT will switch. Press and hold to disconnect BT.
■Output: Headphone out (3.5mm stereo mini) [CR]
■Power supply: AC100-240V, USB-C 12-20V/1.5-2.25A
■Accessories: AC cord

Power can be supplied using a commercially available mobile battery. Please use a battery that can output a voltage of 12V or more that complies with the USB PD standard. USB power cannot be output, only power supply. When the battery is connected and ready to use, the LED next to the USB-C socket will light up green. It may take a few seconds for the LED to light up. [CR]

[Conditions for batteries that can be used]
1. Mobile battery compatible with USB PD (PD=USB standard)
2. USB output is 12-20V/1.5-2.25A

*Please note that it will not work with batteries with a 5-9V output. Also, we do not guarantee that it can be used with all batteries.
*The amplifier's output, sound quality, and usable time will change depending on the battery specifications. Please check the manual for details.
*With some batteries, the protection circuit may shut down the amplifier if the input/output is too high.
*Batteries are not included.

■Size: 160 (W) x 200 (H) x 197 (D) mm
■Weight: 2.6 kg
