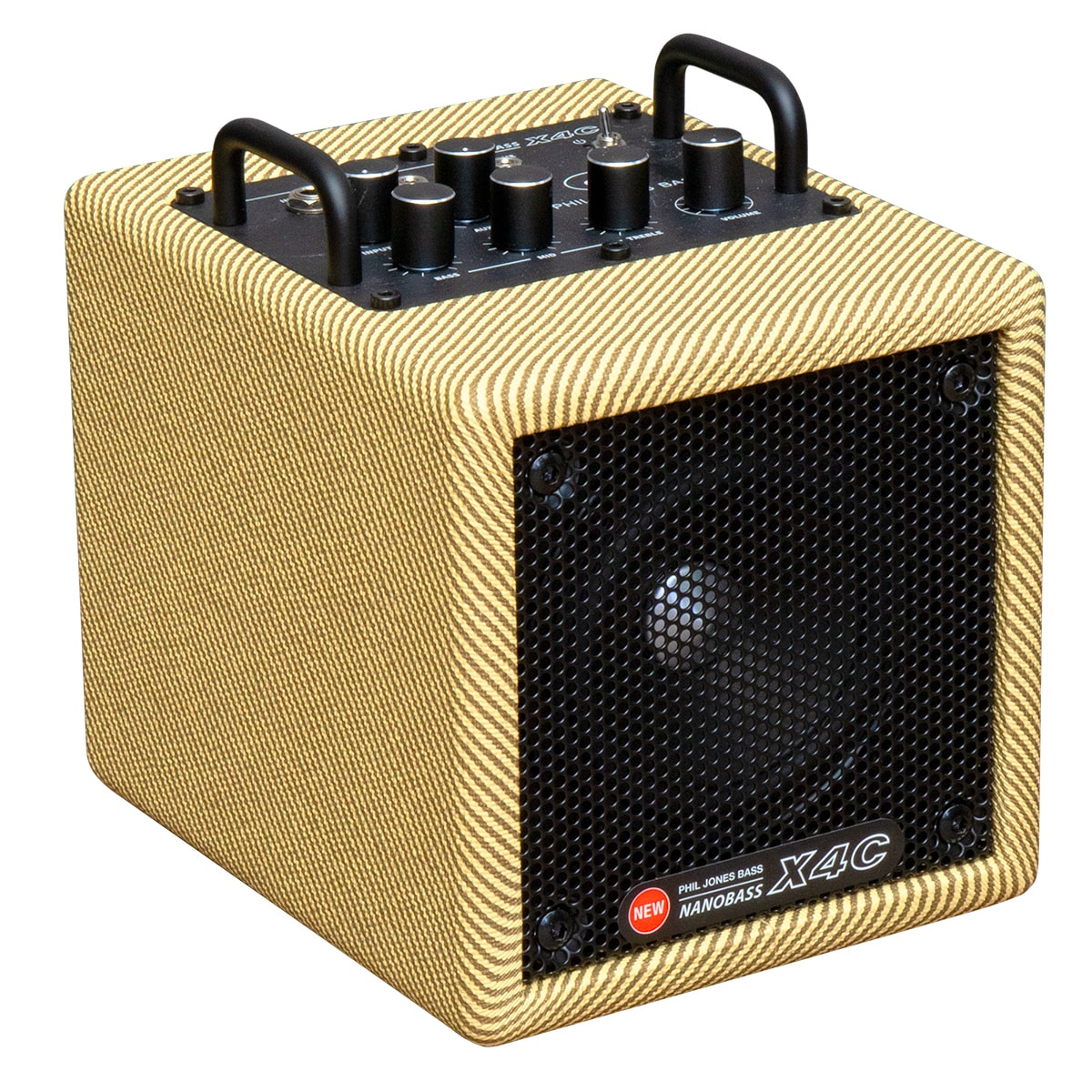

PJB（PHIL JONES BASS） / NANOBASS X4C Tweed

A model compatible with mobile batteries has been added to the standard compact bass amp series. With the addition of mobility, it can be used in a wider range of places. It combines a high-performance 4-inch speaker with a passive radiator RALFER to deliver rich bass that you wouldn't expect from its compact size

■Combo amp for bass guitar
■Tweed
■Output: 35W (when using AC)
■Speaker: PJB Custom 4“ x1, RALFER passive radiator

■Frequency response: 68Hz - 15kHz
■Inputs: INPUT (1/4”), AUX (3.5mm stereo mini), Bluetooth (select either AUX or BT)
■Bluetooth standard: 5.0 (SDC, AAC, aptX, aptX HD compatible)
■Controls: Input Level, 3bandEQ, AUX/BT Volume, Master Volume
・Bass 100Hz, +/-15dB
・Mid 1kHz(Band width 120Hz-10kHz), +/-15dB
・Treble 10kHz, +/-15dB
・AUX/BT Volume: Pressing the button switches between AUX and BT. Pressing and holding the button for a long time disconnects the BT connection.
■Output: Headphone out (3.5mm stereo mini)

■Power supply: AC100-240V, USB-C 12-20V/1.5-2.25A
■Accessories: AC cord

You can supply power using a commercially available mobile battery. Please use a battery that can output a voltage of 12V or more that supports the USB PD standard. It is not possible to output USB power, only to supply power. When the battery is connected and ready to use, the LED next to the USB-C socket will light up green. It may take a few seconds for the LED to light up.


【Conditions for useable batteries】
1. USB PD-compatible mobile battery (PD is a USB standard)
2. USB output 12-20V/1.5-2.25A

Please note that it will not work with batteries that output 5-9V. Also, it is not guaranteed to work with all batteries.
The output of the amplifier, sound quality and usable time will vary depending on the battery specifications. For details, please check the manual.
With some batteries, the protection circuit may work and stop the amplifier when there is excessive input/output.
Batteries are not included.

■Size: 160(W) x 200(H) x 197(D)mm
■Weight: 2.6kg
