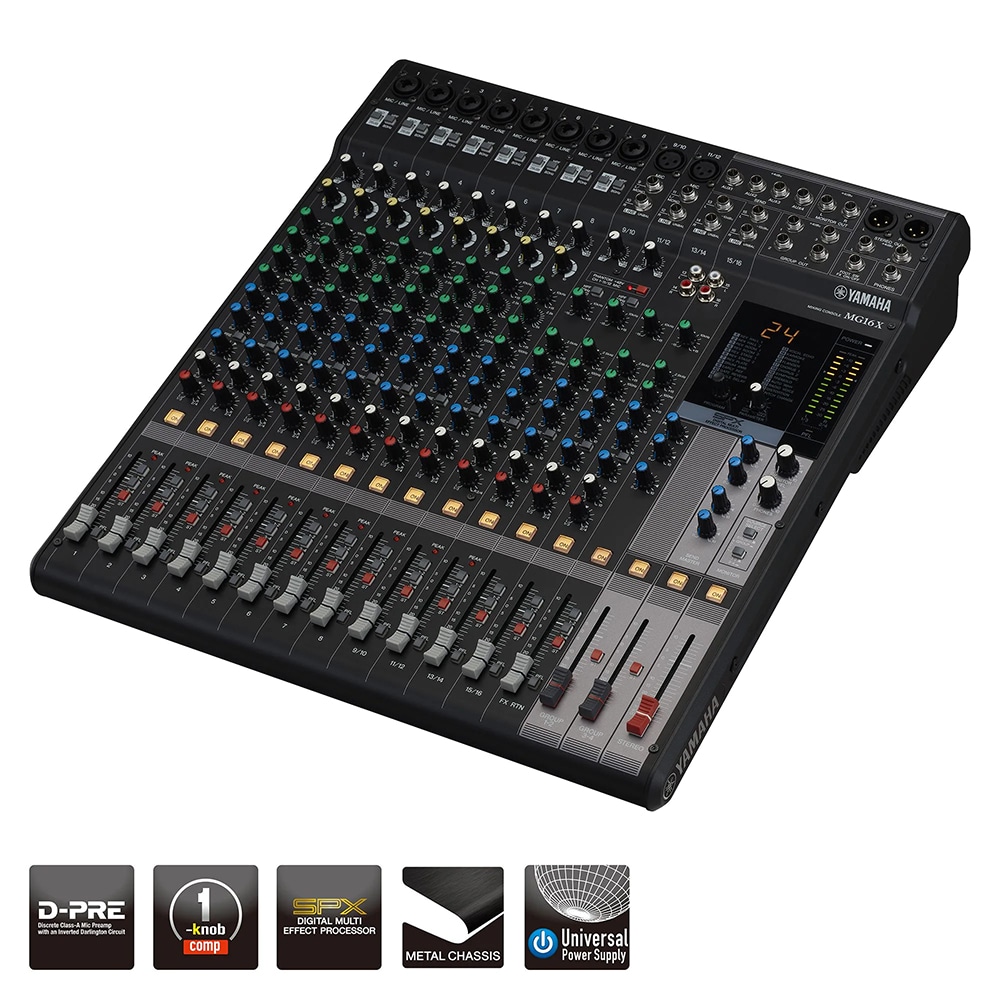

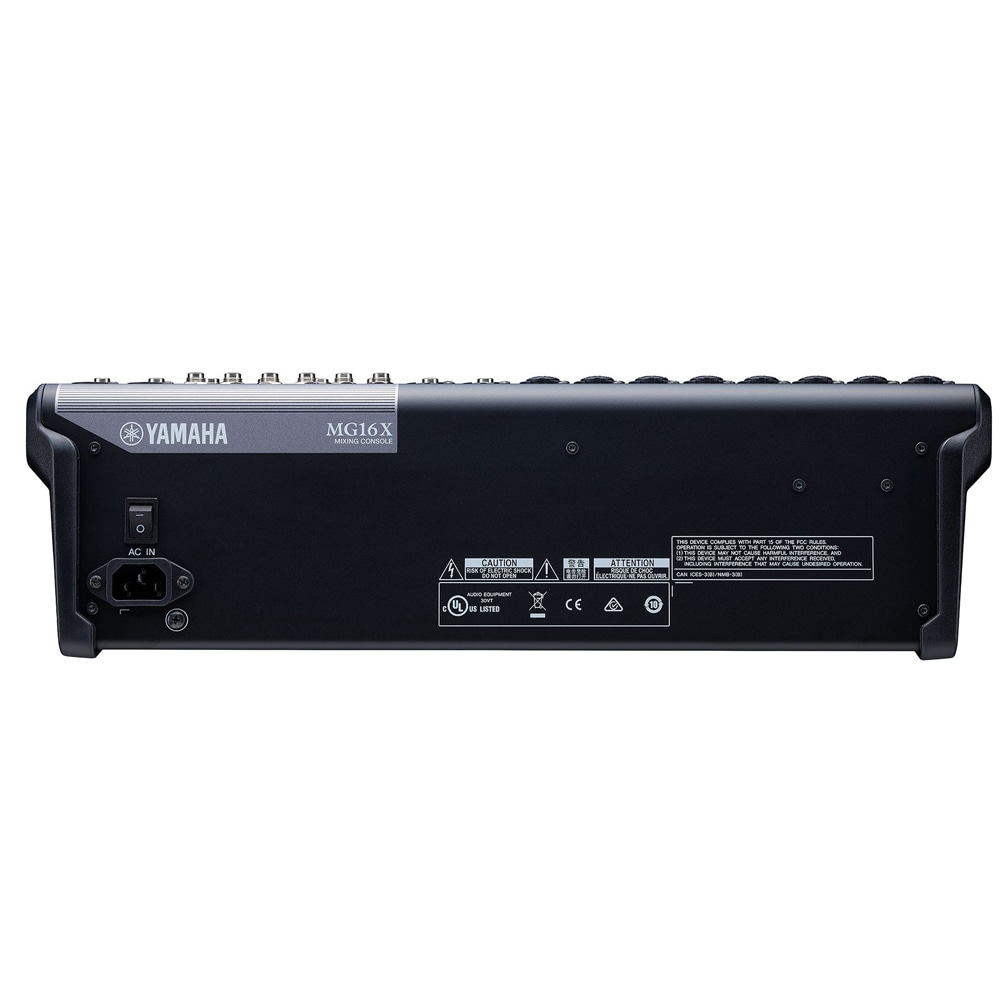

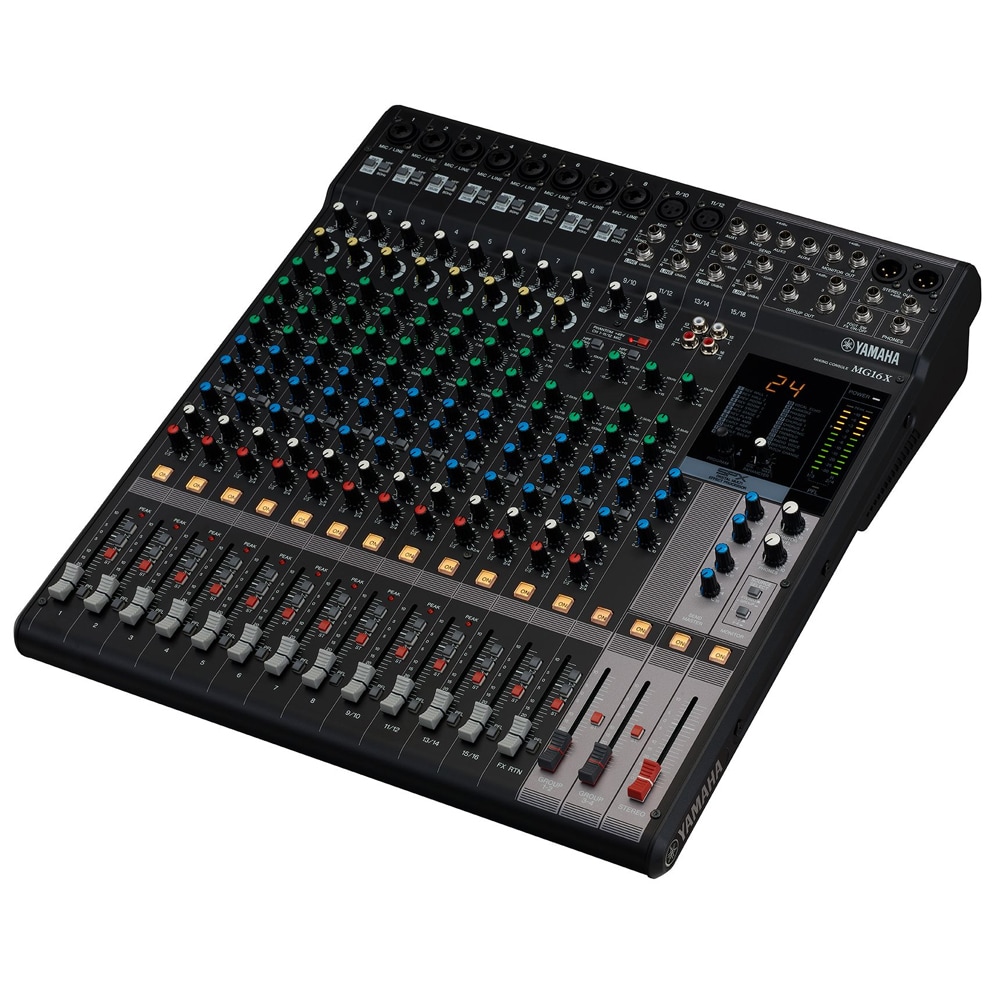

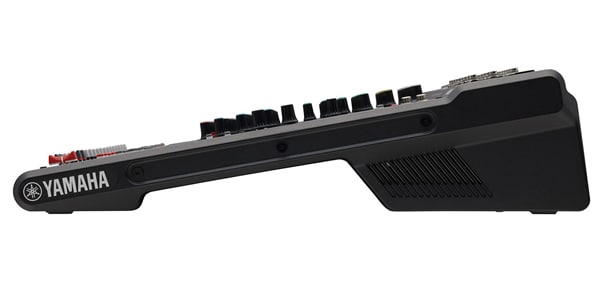

YAMAHA / MG16X

The X model comes equipped with SPX digital effects as standard, meeting the needs of music users as well as businesses and public facilities to enrich and deepen the sound of live performances and speeches.

■Type: Analog mixer
■Number of mono channels: 8
■Number of stereo channels: 4
■EQ: 3-band MID variable (mono ch), 3-band (stereo ch)
■AUX: 3 + built-in FX
■Groups (buses): 4
■Digital effects: 1
■Dimensions (W x H x D): 444 x 130 x 500 m
■Weight: 6.8 kg
■Details: ■Input section using microphone preamplifier ""D-PRE"" and custom-made op-amps
The input section is equipped with a discrete Class-A microphone preamplifier ""D-PRE"". The head amplifier section uses an inverted Darlington circuit with a multi-stage configuration of amplification elements, and is characterized by a sound quality with a plump tension and luster in the mid-low range. The custom-made op-amp ""MG01"" is used to achieve a rich bass feeling and a relaxed treble. The input terminal uses a combo jack and is compatible with XLR and TRS phone. A PAD circuit that attenuates the input signal level also allows line-level input to be received via XLR.

■ Equipped with 24 types of high-quality ""SPX digital effects""
Since its release in 1985, the digital multi-effect processor ""SPX"" has been popular with engineers around the world. The built-in 24 types of editable digital effects can color live performances and speeches to a richer, deeper sound. The reverb and delay in particular achieve high quality, expanding the range of realistic spatial expression while maintaining a natural texture. By connecting the optional foot switch ""FC5"", effects can be turned on and off with foot operation.

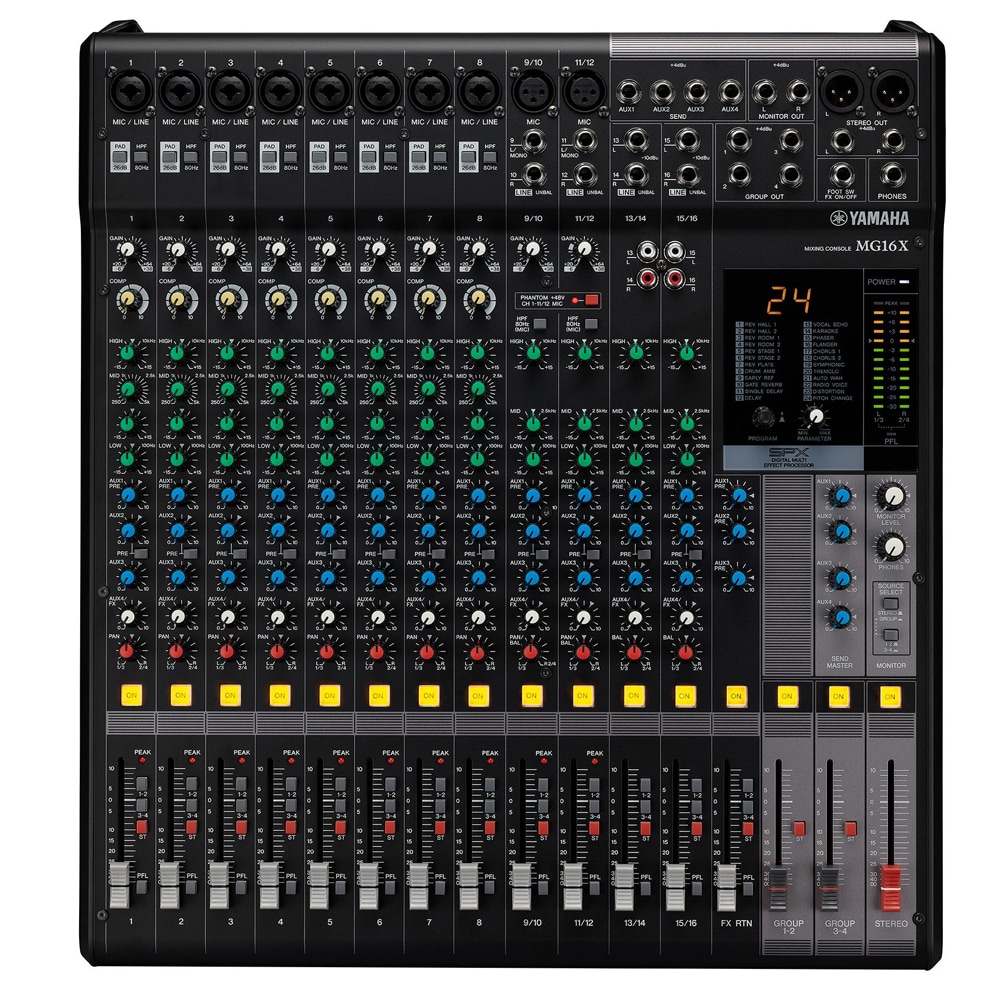

■ Gray color is used for the master section to enhance the visual effect
In order to quickly check the location of the master control even when a large number of audio equipment is installed at an event, etc., a new gray color with a high visual effect has been adopted for the master section around the faders and terminals, which were previously blue.

■ When combined with optional items sold separately, it can also be installed on a microphone stand or fixed equipment
Despite its robust metal chassis, it is lightweight and can be quickly and easily installed in a variety of locations. The MG10X can be mounted on a microphone stand using the optional BMS-10A adapter, and the MG12X comes with an optional rack mount kit, the RK-MG12. The MG16X comes with a rack mount kit.

*When we provide repairs/support, we generally do not provide replacement units. In the event of a malfunction, please return the unit to us, and we or the manufacturer will handle the issue in accordance with our support regulations.
