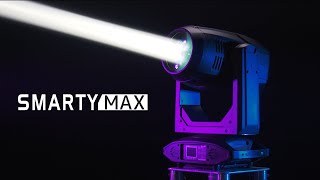

ELATION / SMARTY MAX

Variations

A moving head with three functions: beam, spot, and wash. The light source is a Philips MSD FlEX Platinum400. It creates a vivid stage effect.

■ SOURCE
- 305W 6,500K RGBMA LED Engine
- 30,000 Hour Average LED Life*
- *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

■ PHOTOMETRIC DATA
- 10,100 Total Lumen Output
- CRI 92
- Zoom Range 7° - 42°
- Beam Angle 7.5° - 39.9°
- Field Angle 8.6° - 44.2°

■ EFFECTS
- Motorized Zoom
- Variable Frost Filter
- 4 Facet Prism
- Motorized Iris
- Variable 16-bit Dimming Curve Modes
- High Speed Electronic Shutter and Strobe
- Pan Angle: 540° (630°)
- Tilt Angle: 270°

■ COLOR
- RGBMA Color Array
- CMY Emulation
- Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Virtual Gel Swatch Book

■ GOBOS
- 2×6 Rotating / Indexing Interchangeable Glass Gobos
- Animation Wheel

■ CONTROL / CONNECTIONS
- 4 DMX Channel Modes (RGBMA 31 / 41) (CMY 29 / 37)
- 16-bit Pan, Tilt, and Dimming Control
- DMX Adjustable LED Frequency
- DMX, RDM Protocol Support
- 4 Button Touch Control Panel
- Full Color 180° Reversible LCD Menu Display
- Locking 5pin XLR Connector In/Out
- IP65 Locking Power Connector In/Out
- Wired Digital Communication Network

■ SIZE / WEIGHT
- Length: 16.0” (407mm)
- Width: 10.1" (256mm)
- Vertical Height: 27.4" (698mm)
- Weight: 46.3 lbs. (21kg)

■ ELECTRICAL / THERMAL
- AC 100-240V 50/60Hz
- 466W Max Power Consumption
- 14°F to 113°F (-10°C to 45°C)
- BTU/hr (+/- 10%) 1589.06

■ APPROVALS / RATINGS
- CE | cETLus | IP20
