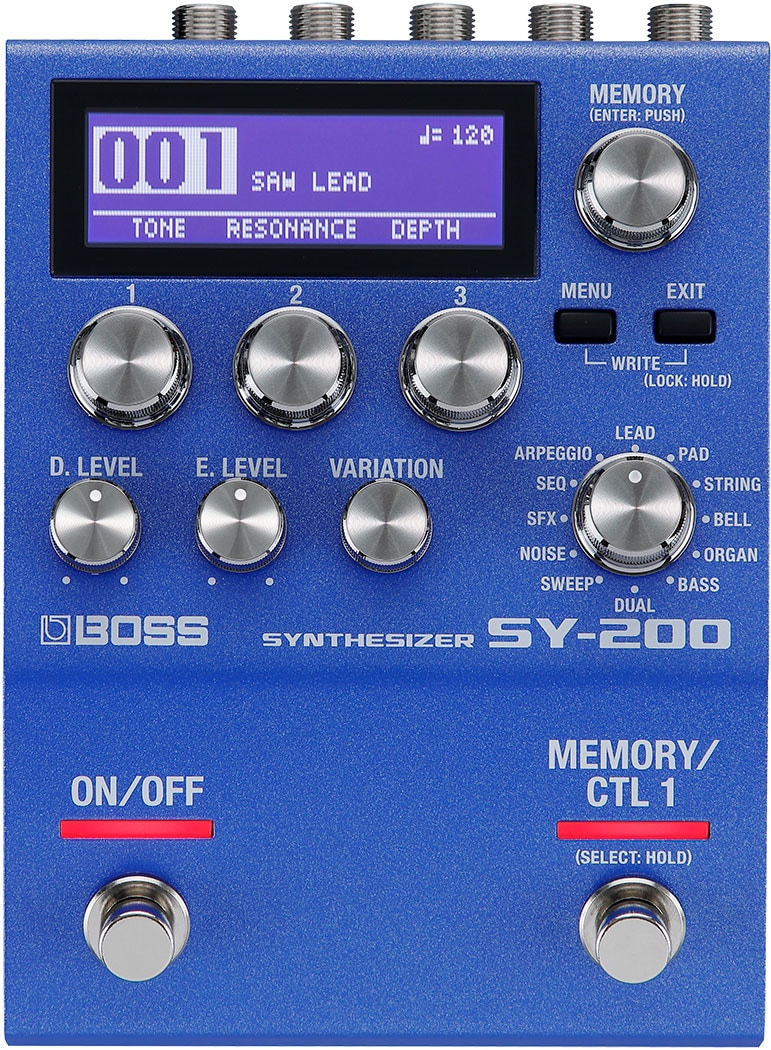

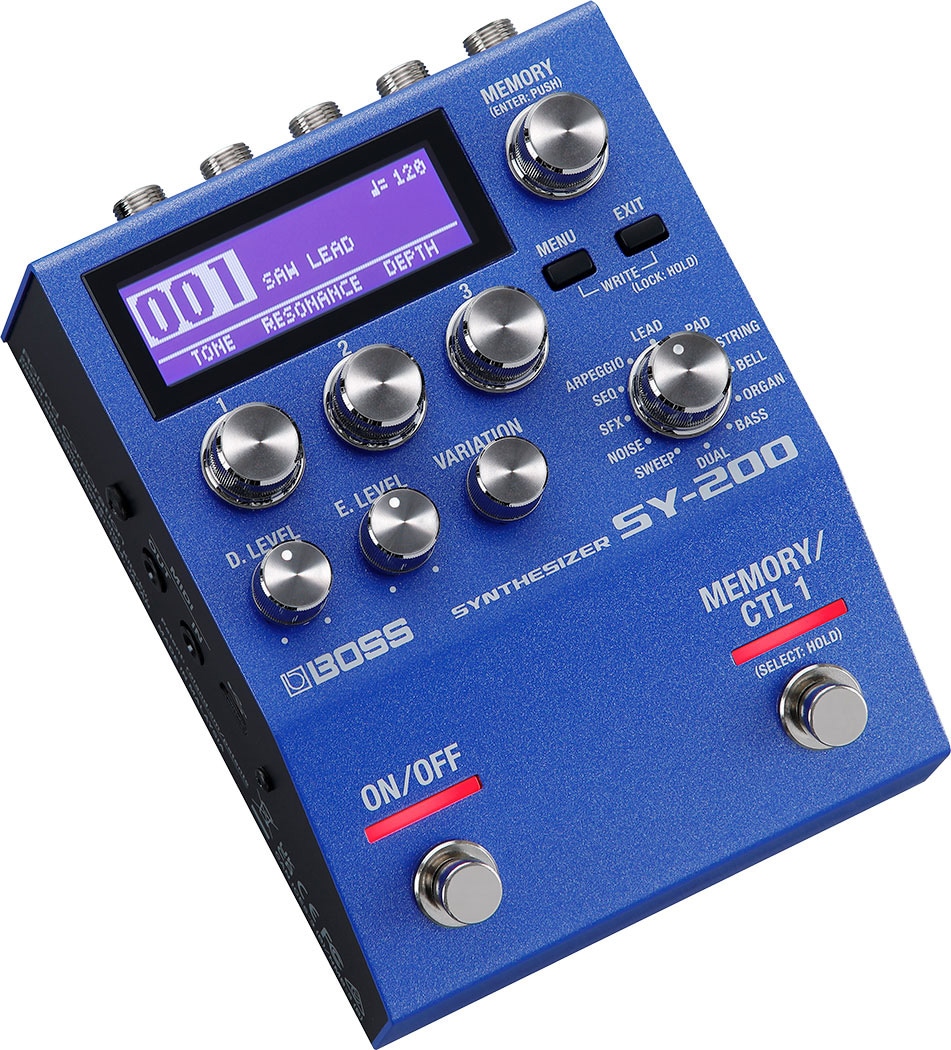

BOSS / SY-200 Synthesizer

The SY-200 Synthesizer is a guitar synthesizer with a wealth of analog-style synthesizer sounds. Not only does it have a latency-free natural playing feel, but it also supports polyphony, so you can play chord strokes without stress.

■ Effector for guitar
■ Guitar synthesizer

■ Features
1. Advanced BOSS polyphonic guitar synth technology in a sophisticated 200 series enclosure
2. 12 analog-style synth categories stand by for a wide variety of variations. Selectable from a total of 171 tones
3. Three parameter knobs for adjusting the sound
4. Up to 128 favorite settings can be saved in the built-in memory
5. Quick setup is possible with the main body knob and large display
6. Can be used with any guitar / bass without the need for a dedicated pickup
7. Latency-free natural playing feel
8. MEMORY / CTL1 switch that can be assigned not only patch changes but also hold and pitch control.
9. Guitar and synth sound volumes can be individually adjusted / blended with two independent knobs
10. Equipped with a SEND / RETURN terminal that can also be used for parallel output. Can be smoothly integrated with the pedal board.
11. Optimize the synth engine for guitar / bass by switching modes
12. Equipped with an external foot switch, expression pedal, and a full range of control terminals for MIDI control.
13. Equipped with a MIDI terminal (stereo mini type) (using an optional BMIDI-5-35 cable)
14. Micro USB port for firmware update
15. Uses the separately sold AC adapter PSA-100S or a dual power supply system using three AA batteries.
■ Specifications
● Sampling frequency: 44.1kHz
● AD, DA conversion: 24-bit
● Internal operation: 32-bit floating point
● Type: 12 types LEAD, PAD, STRING, BELL, ORGAN, BASS, DUAL, SWEEP, NOISE, SFX, SEQ, ARPGGIO
● Memory: 128
● Standard input level INPUT, RETURN: -10dBu
● Maximum input level INPUT, RETURN: + 7dBu
● Input impedance INPUT, RETURN: 2M Ω
● Specified output level OUTPUT, SEND: -10dBu
● Maximum output level OUTPUT, SEND: + 7dBu
● Output impedance OUTPUT, SEND: 1k Ω
● Recommended load impedance OUTPUT, SEND: 10k Ω or more
● Bypass: Buffered
● Control: ON / OFF switch, MEMORY / CTL 1 switch
TYPE Knob, MEMORY Knob, 1 Knob, 2 Knob, 3 Knob, D. LEVEL Knob, E. LEVEL Knob, VARIATION Knob
MENU button, EXIT button
● Display: Graphic LCD (132 x 32 dots, backlit)

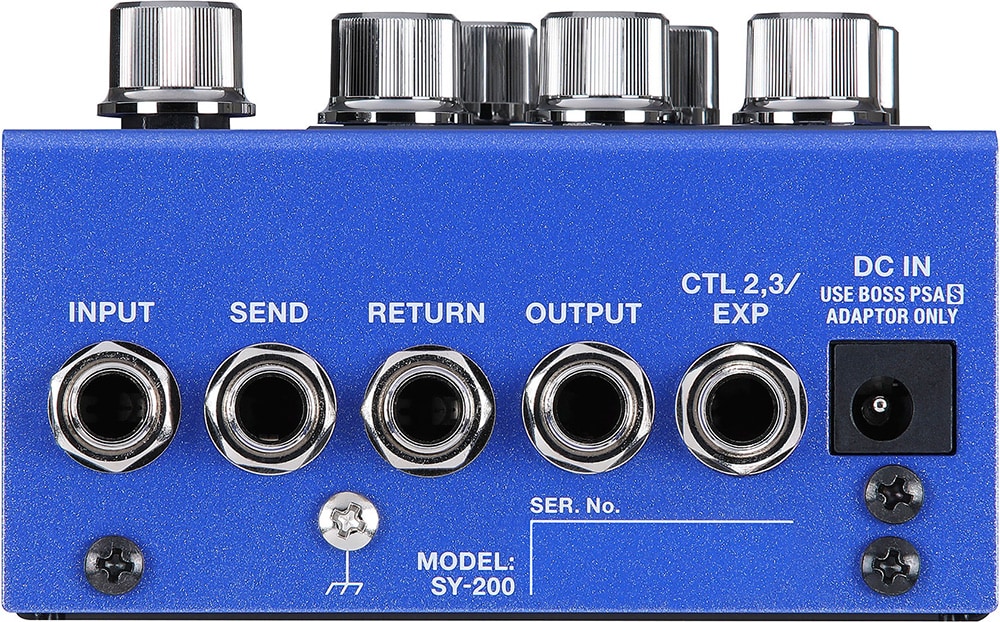

● Connection terminal INPUT, OUTPUT, SEND, RETURN terminal: Standard type
CTL 2, 3 / EXP terminal: TRS standard type
MIDI (IN, OUT) terminal: Stereo mini type
DC IN terminal
USB terminal: USB micro B type (program update only)
● Power supply: Alkaline battery (AA type) x 3, AC adapter (sold separately)
● Current consumption: 230mA
● Battery life during continuous use Alkaline battery: Approximately 5 hours * Depends on usage conditions.
● External dimensions: 101 (width) x 138 (depth) x 63 (height) mm (excluding rubber feet)
101 (width) x 138 (depth) x 65 (height) mm (including rubber feet)
● Mass: 630g, 700g (including batteries)
● Accessories: Instruction manual, "Safety Precautions" leaflet, Alkaline battery (AA type) x 3, Rubber feet x 4, Warranty card
