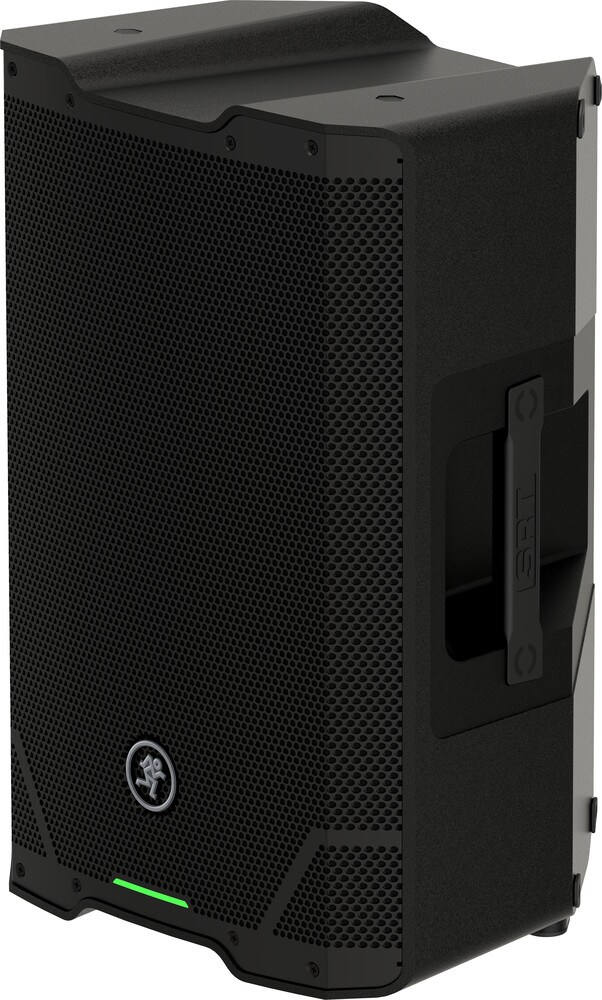

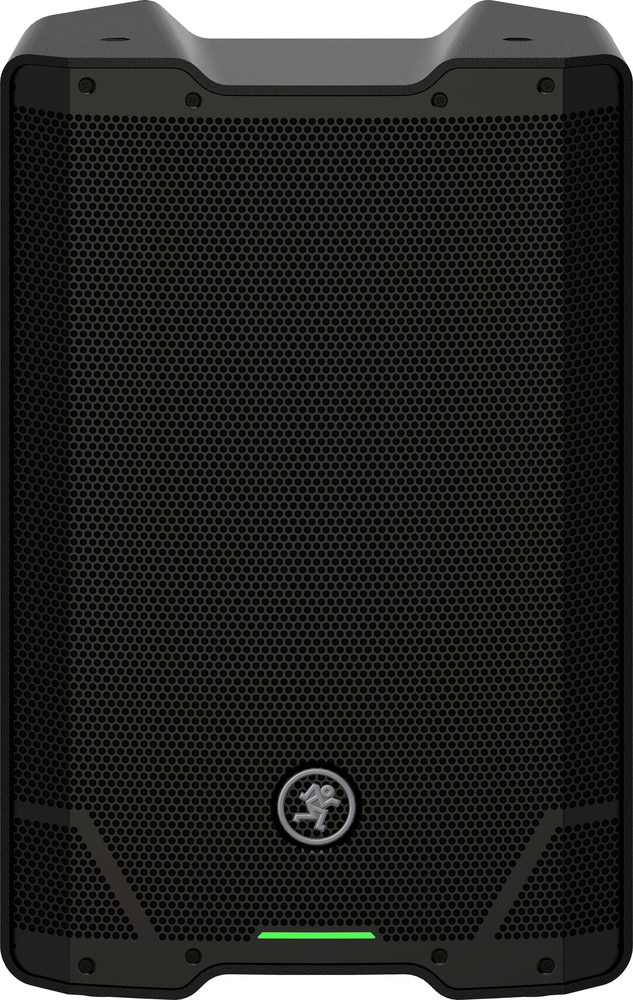

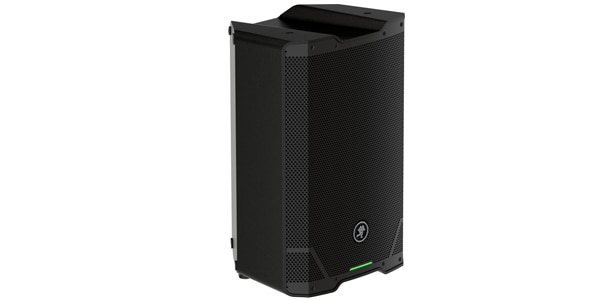

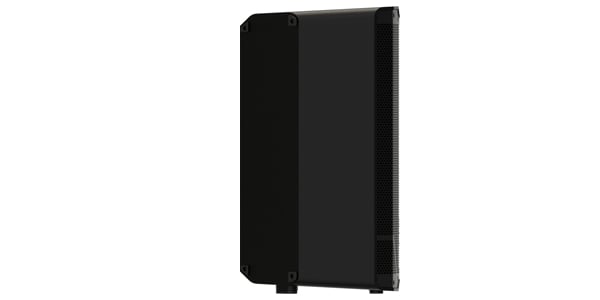

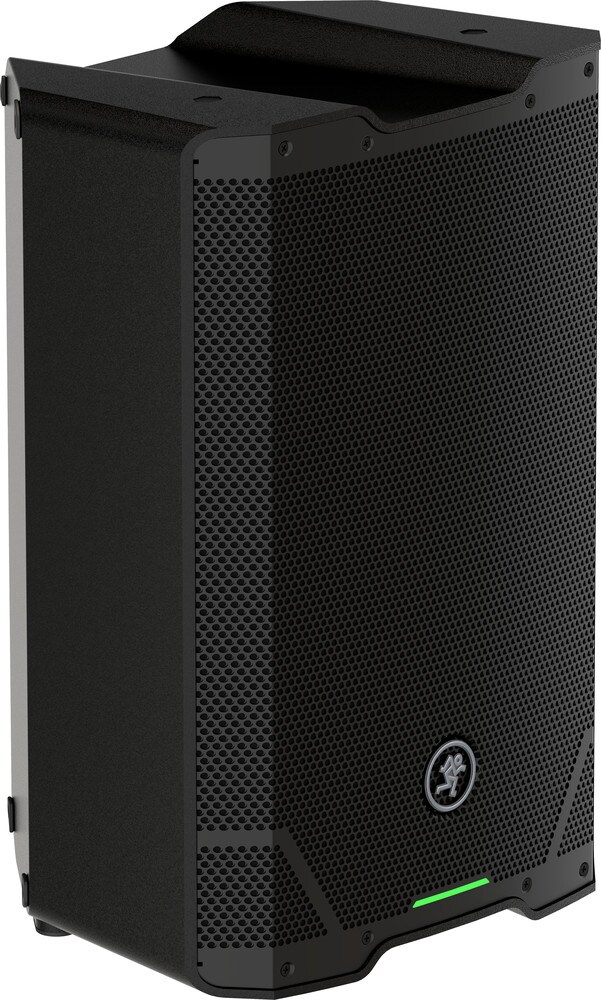

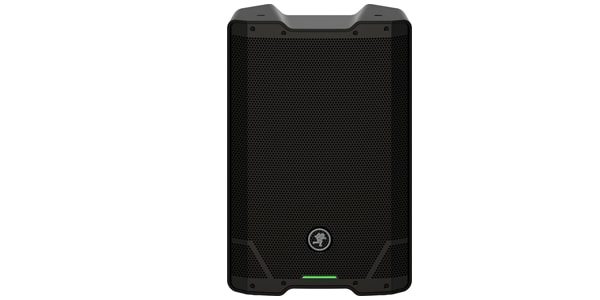

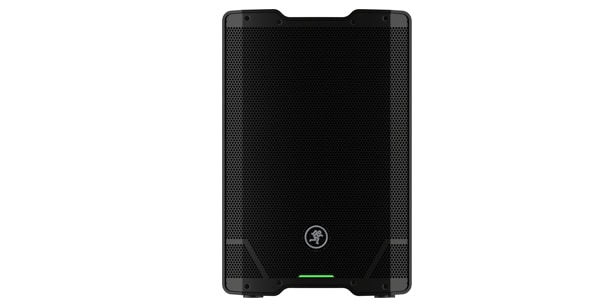

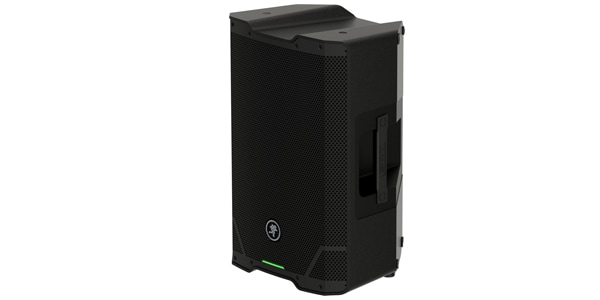

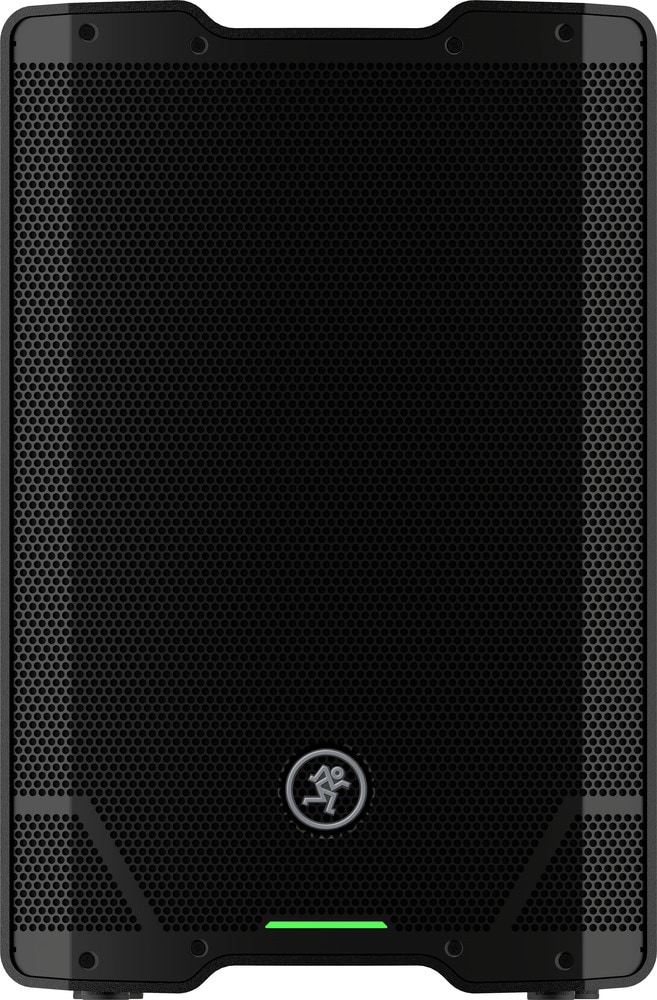

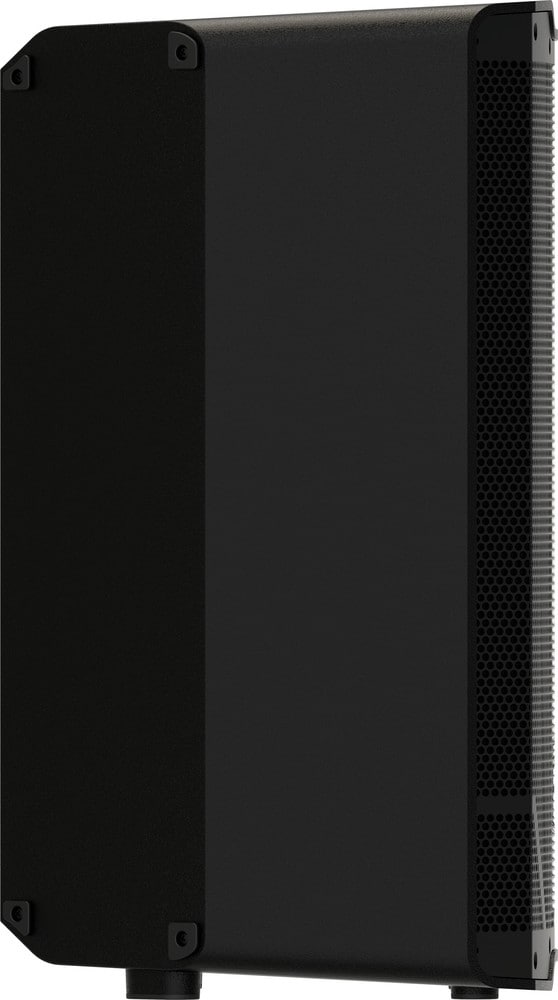

MACKIE / SRT210 powered speaker

The Mackie SRT210 is a 10-inch 2-way powered speaker that has the latest features and operability used in high-end models, and anyone can easily set up according to the site. With the latest sound processing technology, high-power 1600W power amplifiers, and the SRT Mix Control app installed on your Bluetooth device.

■ Powered speaker
■ 10 inch, 2 way
■ 1600W
■ Supports wireless control
■ Bluetooth music can be played
■ Frequency characteristics (-10dB): 47Hz? 20kHz
■ Maximum sound pressure level: 128dB
■ Directivity angle: 90 ° (horizontal) x 60 ° (vertical)

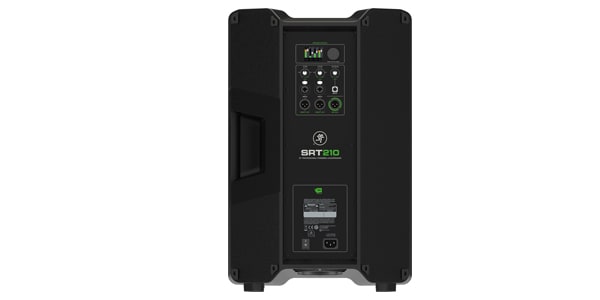

■ Input:
Two independent monaural XLR / TRS combos for mics, lines, instruments and any input
4ch digital mixer equipped with stereo mini AUX input independent of input ■ Output terminal:
Input Ch1, Ch2 Direct out 1 each + Monaural mix out x 1 ■ Installation method: Direct placement, pole / stand mount (angle changeable), floor monitor, vertical suspension (M10 fly point) ■ Power supply: Universal power supply (100? 240) VAC)
■ Dimensions: Height: 584 mm, Width: 384 mm, Depth: 328 mm
■ Weight: 14kg
■ 1

Sound faithful to the original sound
The SRT Series 1600W Powered Loudspeaker is a powered loudspeaker that not only boasts higher output than any other speaker in its class, but also has excellent design and operability, and realizes a higher-grade sound.

Rugged design
Mackie's design and development concept "Tank-class rugged" design is not limited to enclosures. Whether it's a full-day event, five spectators, or 500 spectators, the SRT series will continue to play the sound that will liven up the event to the end.

High-end model technology
We've introduced a wealth of cutting-edge technology from Mackie's top models, including Advanced Impulse DSP, input overload protection, Bluetooth wireless streaming and control. A power drowspeaker with state-of-the-art features at an affordable price.

State-of-the-art control technology
You can wirelessly control the built-in 4ch digital mixer that uses a full-color display from the Bluetooth wireless control app SRT Mix Control.

Features
Achieve professional sound
・ 1600W class D power amplifier with highly reliable and stable operation design
-Custom-designed speaker unit for high-intelligibility sound
-Lightweight design, excellent portability, yet "tank-class sturdy" design
・ Universal power supply that uses power factor collection technology to ensure stable drive even in venues where the power supply is unstable
Advanced Impulse DSP Technology
・ Eliminates useless low frequencies, non-sounding mid frequencies, and jarring high frequencies to achieve high-definition sound anywhere in the room.
・ High-precision crossover, phase and speaker driver time alignment, and fine tuning for a well-balanced sound.

Custom designed Sym-X Horn
・ Minimize distortion and increase output to increase the efficiency of the HF driver unit.
-Provides a flat sound at the crossover point of the high-frequency driver and low-frequency driver, and realizes a smooth mid-high range.
・ Succeeded in drawing out the best performance from the high-frequency driver unit while maintaining flat characteristics at the crossover point.
・ Cover area horizontal 90 ° vertical 60 °
Limiter and protection circuit that does not affect the sound quality and sound balance
-Processing module that monitors and protects the amplifier in real time
・ Sound quality and balance that are not affected even if the limiter is applied to the maximum
-Protection circuit that optimally tunes the audio signal via multi-band compression and limiter to minimize the effect on sound quality and audio output.
・ Input limiter that constantly monitors the input signal

SRT Mix Control Built-in 4ch digital mixer with Bluetooth control
-Two independent XLR / TRS combo inputs that can handle various sound sources such as microphones, lines, and musical instruments.
-Independent stereo mini AUX input
-Wireless streaming music from Bluetooth? Compatible devices
・ High-resolution full-color display with a single knob that allows instant access to the mixer and processor for intuitive operation
-Adjustable channel level and EQ
・ Voicing mode that can be selected according to the application and venue
・ Time correction delay (up to 30m) that is convenient when installing a delay tower
・ Up to 10 patterns of user presets that can be saved
・ Contrast controllable screen saver
・ 4-digit passcode lock to prevent erroneous operation
-Changeable front LED: ON / OFF, level monitoring
Wireless control of all features with the SRT Connect app
・ All functions and settings such as EQ, level, and preset can be performed wirelessly from a smartphone with the SRT Connect app installed.
・ Two SRT series can be linked and wireless streaming and wireless control can be accessed with one Bluetooth device.
・ Equipped with the latest Bluetooth technology, it is possible to link two speakers up to 100 m apart.
-It can be set not only as a stereo speaker but also as a dual zone mode, and it is also possible to control the speakers installed in two places individually.
・ Instantly set up the optimum sound for anyone

Options for various installations
-Dual angle enclosure that can be used as a high performance floor monitor
-Two pole mounts with selectable angles (0 °, -7 °) -7 ° mode is effective when installing the speaker in a high place
・ M10 fly point that can be installed vertically
