TASCAM / US-2x2HR オーディオインターフェイス

人気オーディオインターフェイスのUSシリーズがリニューアル！192kHzに対応し、音質やドライバの安定性が向上。iOSデバイスの接続にも対応し、ステレオ/モノラル切り替え可能なループバック機能を搭載。また、配信ソフトウェアOBSに公式対応。以前のUSシリーズから高評価を得ていた音質を、ライブ配信やポッドキャストでも積極的に活用することができます。　安心のサウンドハウス3年保証付き！

■Accessories
US-2x2HR
USB cable (Type-A-Type-C)
DAW Software Installation Guide
DAW Plugin Software Installation Guide
Instruction manual (with warranty)

■Specifications
Sampling frequency 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Number of quantization bits 24 bits

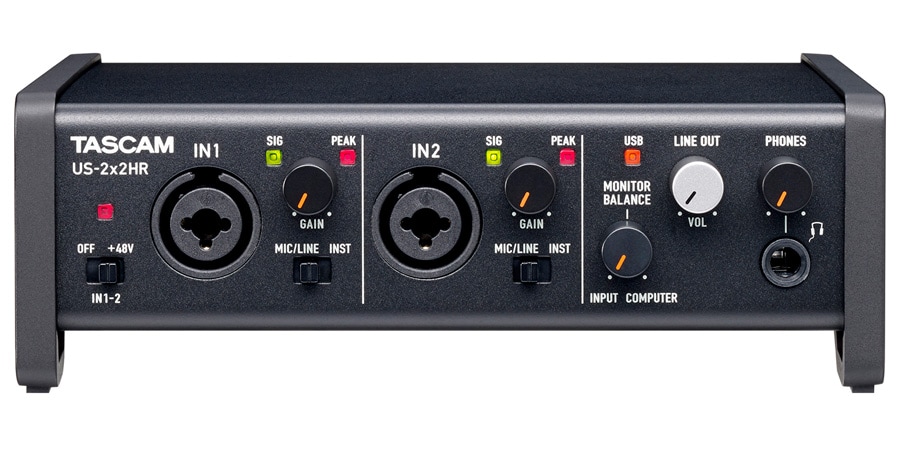

Analog audio input
MIC input IN 1 / IN 2
Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), balance
Input impedance 2.2k Ω
Maximum input level
(GAIN: MIN) + 9dBu (2.183Vrms)
Gain width 56dB
INST input IN 1 / IN 2
Connector 6.3mm (1/4 ") TS standard jack (T: HOT, S: GND), unbalanced
* When the [MIC / LINE INST] switch is set to [INST]
Input impedance 1MΩ or more
Maximum input level
(GAIN: MIN) + 10dBV (3.162Vrms)
Gain width 56dB
LINE input IN 1 / IN 2
Connector 6.3mm (1/4 ") TRS standard jack (T: HOT, R: COLD, S: GND), balanced
* When the [MIC / LINE INST] switch is set to [MIC / LINE]
Input impedance 10kΩ
Maximum input level
(GAIN: MIN) + 20dBu (7.746Vrms)
Gain width 56dB

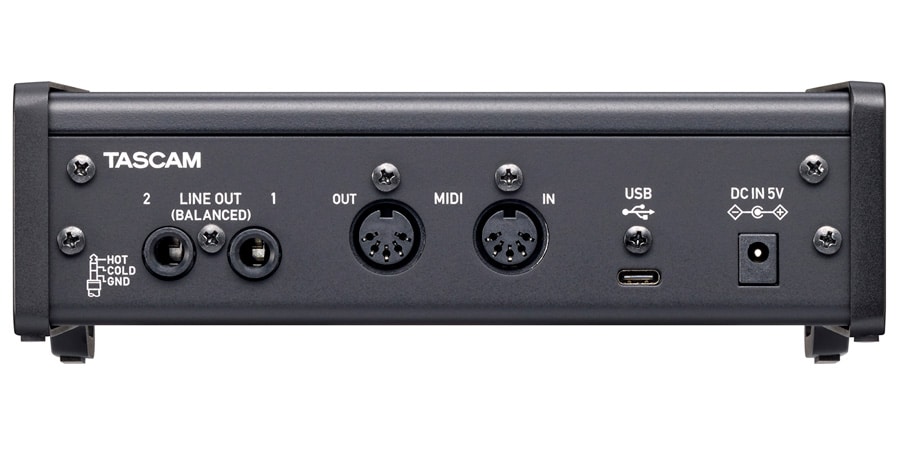

Analog audio output
LINE output 1-2
Connector 6.3mm (1/4 ") TRS standard jack (T: HOT, R: COLD, S: GND), balanced
Output impedance 210Ω
Specified output level + 4dBu (1.228Vrms)
Maximum output level + 20dBu (7.746Vrms)
Headphone output
Connector 6.3mm (1/4 ") stereo standard jack
Maximum output level 18mW + 18mW or more
(THD + N 0.1% or less, with 32Ω load)
MIDI IN / OUT
Connector Din 5 pin
Format Standard MIDI format
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
Power supply
USB bus power when connected to a computer
Dedicated AC adapter (TASCAM PS-P520U, sold separately)
Dedicated AC adapter for iOS / iPad OS connection (TASCAM PS-P520U, sold separately)
Power consumption 1.75W
External dimensions 186 (W) x 65 (H) x 160 (D) mm (including protrusions)
Mass 1.1kg
Operating temperature 5 to 35 ° C
Accessories USB cable (Type-A-Type-C), DAW software installation guide, DAW plug-in software installation guide, instruction manual (with warranty)


Audio performance
Microphone amplifier EIN (input conversion noise) -128dBu or less
Frequency characteristic
MIC / LINE input
44.1k / 48k Hz 20Hz-20kHz, + 0dB / -0.4dB (JEITA)
88.2k / 96k Hz 20Hz-40kHz, + 0dB / -0.4dB (JEITA)
LINE output
44.1k / 48k Hz 20Hz-20kHz, + 0.2dB / -0.1dB (JEITA)
88.2k / 96k Hz 20Hz-40kHz, + 0.2dB / -0.4dB (JEITA)
Total Harmonic Distortion (THD + N) 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob minimum, 20kHz SPCL LPF)
0.0011% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob minimum, 20kHz SPCL LPF)
0.0012% (LINE OUT, 1kHz sine wave,
-4dBFS input, LINE OUT knob maximum, 20kHz SPCL LPF)
S / N ratio 110dB (MIC IN, GAIN knob minimum, 20kHz SPCL LPF + A-Weight)
108dB (LINE IN, GAIN knob minimum, 20kHz SPCL LPF + A-Weight)
110dB (LINE OUT, LINE OUT knob maximum, 20kHz SPCL LPF + A-Weight)
Crosstalk 95dB or more (MIC / LINE → LINE OUT, 1kHz sine wave, GAIN knob minimum)


Operating conditions
Windows
Compatible PC Windows compatible PC equipped with USB 2.0
CPU / Clock Dual-core processor 2GHz or higher (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM, MIDI
Mac
Compatible PC Mac equipped with USB 2.0
CPU / Clock Dual-core processor 2GHz or higher (x86)
Memory 2GB or more
Drivers Core Audio, Core MIDI
iOS / iPadOS
Driver Core Audio * Apple genuine Lightning-USB camera adapter (sold separately) is required to connect an iOS device equipped with a Lightning connector.


Supported OS
Windows
Windows 10 (October 2020 Update) New, Windows 8.1, Windows 7
Mac
macOS Big Sur New, macOS Catalina, macOS Mojave, macOS High Sierra (10.13)
iOS
iPadOS 14 New, iOS 14 New, iPadOS, iOS 13, iOS 12
