LABGRUPPEN / CM41

A 4-channel analog mixer manufactured by LABGRUPPEN. It also has a channel for announcements, and comes standard with a function (ducking function) that automatically mutes other channels when an announcement is made in a store, etc.

■4 channel input, 1 channel output Commercial mixer

- Mutes other channels (ducking function) during announcements, suitable for paging microphones

- Can connect GPI remote volume control using standard RJ-45 connector and Ethernet cable

- Comes with a mounting kit for mounting to an EIA rack or shelf

- Euroblock type mic/line input/output connectors

- Auto standby/power on reduces power consumption to less than 1W during standby

■ Introduction

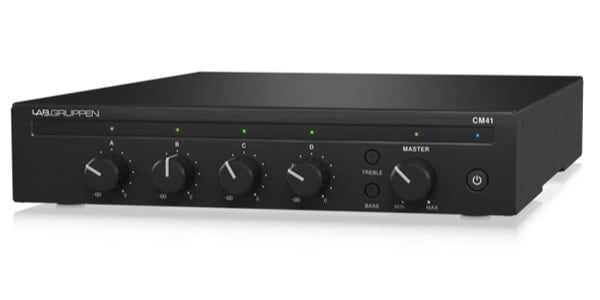

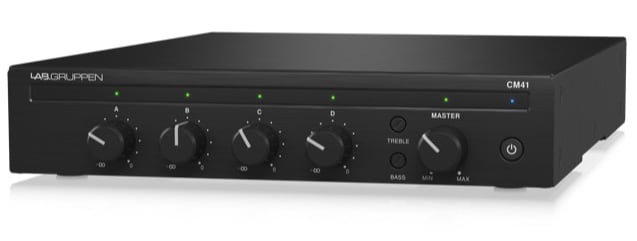

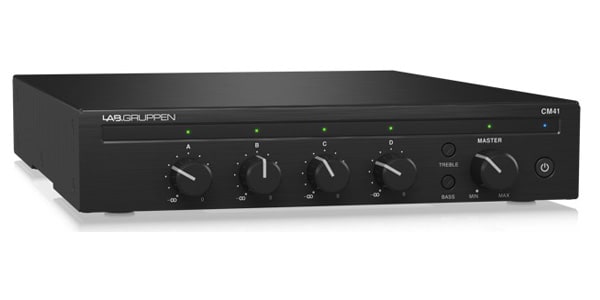

CM41 is a half-rack mixer that was born as part of the CA amplifier series lineup.

It can mix 4 independent mic/line inputs and easily connect to a CA amplifier.

CM41 also comes with a channel for announcements, and comes standard with a function (ducking function) that automatically mutes other channels when making announcements in stores, etc.

It also has an auto standby mode, and consumes less than 1W of power during standby, so it is an environmentally friendly setting even if you forget to turn the power on/off.

■Specifications
○Mixer function
・Input/output: 4 channel input and 1 channel output

○Audio input
・Mic/line priority input channel: 1 x 5-pin Euroblock connector (Channel A)
・Mic/line input channel (including RCA input): 3 x 3-pin Euroblock connector 3x Stereo RCA (Channels B, C, D)
・Impedance: Balanced mic/line 20kΩ Unbalanced line/RCA 10kΩ
・Maximum input level: 4.88 V (+16 dBu)
・Phantom power (mic input): 48V

○Audio output
・Output: 3-pin Euroblock connector
・Gain range: -∞ - +10dB
・Maximum output: 9.6 V (+22 dBu)

○Controls

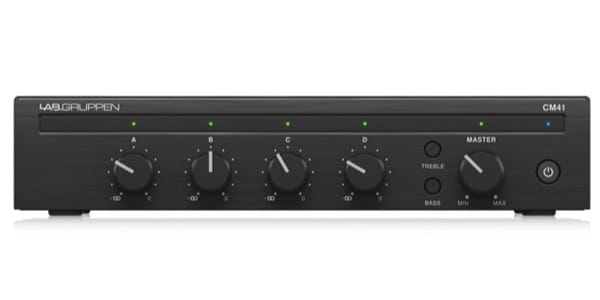

・Front: Power standby button, input/output gain control, tone control (bass/treble)

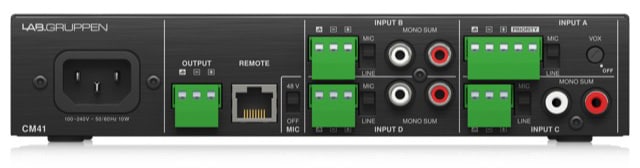

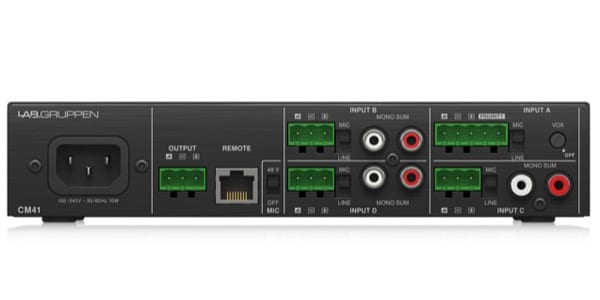

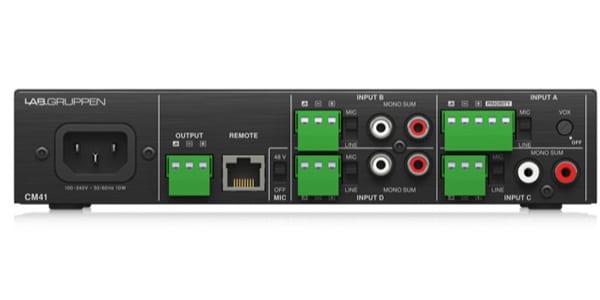

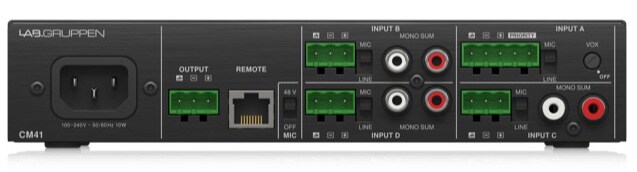

・Rear : Mic/Line switch, Vox/ducking threshold control, phantom power

○Tone controls
・Bass: ±10 dB @ 100 Hz
・Treble: ±10 dB @ 10 kHz

○Displays
・Power: On (blue), Forced Standby (red), Standby (yellow)

○Input
・Signal (green LED): >12.3 mV (-36 dBu)
・Clip (red LED): 3 V (+12 dBu)

○System
・Remote connector: RJ45 Ethernet connector

○Performance
・Distortion: <0.05%
・Frequency response: 20 Hz to 20 kHz, +0.5 / -1 dB
・Crosstalk (2-channel model): >70 dB
・S/N: >97 dBA

○Power, voltage, fuse
・Mains: 100-240 V~, 50/60 Hz Universal
Fuse: T 3.15 A L 250 V
Power consumption: 10W
Power connector: Standard IEC connector
Dimensions and weight
Dimensions (H x W x D): 44 x 218 x 299 mm
Weight: 2.1 kg
Finish: Brushed black anodized chassis, black steel bottom
Certifications: CE, WEEE, CCC, cTUVus, PSE, RCM, RoHS, FCC part 15 Class B
