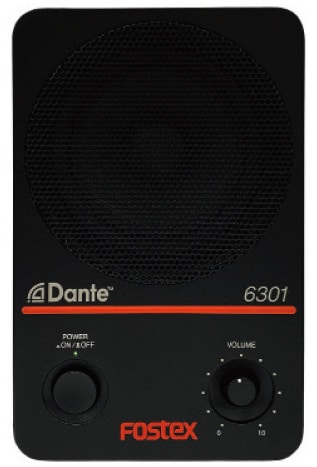

The 6301DT is an active speaker. It employs a cone-type full-range speaker to deliver a stable sound. It features a robust die-cast aluminum enclosure.
The 6301DT is a compact active speaker that incorporates Dante? audio network functionality, developed by Audinate, into the 6301 series of monitor active speakers with a built-in 20W power amplifier, which has a long track record of use in the broadcasting equipment industry and other sectors.
■Features
Features a cone-type full-range speaker for stable sound.
●Compact design common to the series allows for space-saving installation.
●Features a robust die-cast aluminum enclosure.
●Flat design with reduced protrusions for switches and knobs to prevent damage in the event of accidental tipping.
●Features a switching power supply circuit compatible with AC 100V to 240V power supplies.
*Product warranty is limited to use within Japan.
●Can output either or both of any two channels of digital signals extracted from the Dante? network signal.
●Equipped with Dante? Ultimo chip. Supported sampling frequencies: 44.1/48/88.2/96 kHz
●By attaching the separately sold wall mounting angle EB-6301, angle adjustment and wall mounting are possible.
■Main Specifications
●Speaker Section
Enclosure Type: Sealed (Material: Die-cast aluminum)
Built-in Unit: 1 x 10cm cone-type full-range unit
Frequency Response: 70Hz - 15kHz
Output Sound Pressure Level: 85dB/W (1m)
Maximum Output Sound Pressure Level: 98 dB
●Amplifier Section
Rated Output: 20W
Input Terminals: Analog unbalanced/φ6.3 mm (1/4"") TS phone, Dante/RJ45 (CAT5e or higher)
THD: 0.05% (at 1 kHz, 1 W output)
Residual Noise: -65 dBV
●General Specifications
Dimensions: 120 (W) x 189 (H) x 120 (D) mm (including maximum protrusions)
Weight: Approx. 2.3 kg
Power Supply: AC 100V V 240 V, 50/60 Hz
Power Consumption: 10 W *This product does not have an auto-standby function.
Accessories: Power cord (approx. 2m) x 1
■Model Differences
【6301NB】Equipped with unbalanced analog input.
【6301NE】Equipped with balanced analog input (electronically balanced) and unbalanced analog input.
【6301NX】Equipped with balanced analog input (transformer type) and unbalanced analog input.
【6301ND】Equipped with AES/EBU digital input/through output and unbalanced analog input.

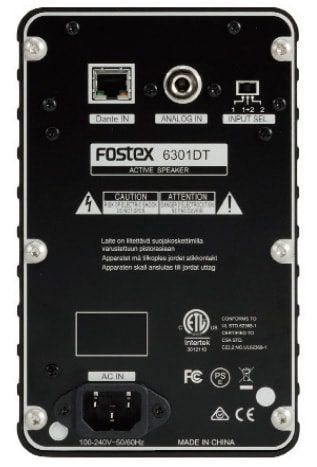

【6301DT】Equipped with unbalanced analog input and Dante/RJ45 input.
