Fostex / 6301NE

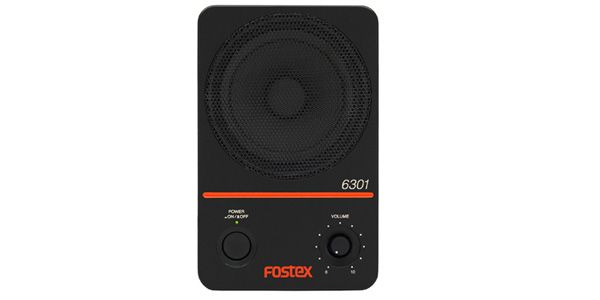

The 6301NE is an active monitor speaker. It has a built-in 20W power amplifier. It employs a 10cm cone-type full-range speaker to deliver a stable sound. It is equipped with balanced analog input (electronically balanced) and unbalanced analog input.

The latest series of the 6301, a compact active monitor speaker that has been used in broadcasting equipment and small-scale sound reinforcement for over 30 years.

■Features

●Amplified monitor speaker suitable for various audio monitoring and small-scale sound reinforcement applications.

●Employs a 10cm cone-type full-range speaker for stable sound.

●Built-in 20W power amplifier for stable sound despite its compact size.

●All ??models feature a Class D (PWM) power amplifier. Compared to the previous model (6301B-H series), the rated output has increased from 10W to 20W while reducing power consumption. It also features an eco-friendly design with a standby mode (compliant with the European ErP directive).

●Standby mode reduces power consumption to less than 0.5W after approximately 25 minutes if the input signal level remains below a certain level. It instantly returns to normal mode when the input signal level exceeds a certain level.


● Extended frequency response range from 80-13,000Hz in the previous model to 70-15,000Hz.

● Inlet-type power cable.

● Switching power supply for worldwide use. *Product warranty applies only to use in Japan.

● Same width and height as the previous model (6301B-H series), allowing for replacement without changing the installation location.

● Robust aluminum die-cast enclosure.

● Wall mounting and angle adjustment are possible using the separately sold optional wall mounting angle ""EB-6301"".

■Specifications

●Speaker Section

Enclosure Type: Sealed (Material: Die-cast aluminum)

Built-in Unit: 1 x 10cm cone-type full-range unit

Frequency Response: 70Hz - 15kHz

Output Sound Pressure Level: 85dB/W (1m)

Maximum Output Sound Pressure Level: 98dB

●Amplifier Section

Rated Output: 20W

Analog Input:

Unbalanced: Φ6.3mm (1/4″) TS phone, Input Sensitivity: -14dBV (0.2Vr.m.s), Input Impedance: 10kΩ or higher

Balanced: XLR-3-31 type, Input Sensitivity: +4dBu (1.2Vr.m.s), Input Impedance: 10kΩ or higher

THD: 0.05% (at 1kHz/1W output)

Residual Noise: -70dBV

●General

External Dimensions: 120(W) x 189(H) x 120(D) mm (including maximum protrusions)

Weight: 2.23kg

Power Supply: AC100-230V (50/60Hz)

*Product warranty is limited to use in Japan.

Power Consumption: 10W (Standby mode: 0.5W or less / Complies with European ErP Directive)

Accessories: Power cable (2m)

■Model Differences

【6301NB】Equipped with unbalanced analog input.

【6301NE】Equipped with balanced analog input (electronically balanced) and unbalanced analog input.

【6301NX】Equipped with balanced analog input (transformer type) and unbalanced analog input.

【6301ND】Equipped with AES/EBU digital input/through output and unbalanced analog input.
