ADAM AUDIO / T8V

Professional-grade 2-way studio monitors. Featuring U-ART tweeters that efficiently move air and a new Class D amplifier with superior dynamic range, these speakers achieve a maximum SPL of 118dB (per pair). Uniform radiation characteristics provide a wide sweet spot, making them suitable for music with a low center of gravity and a bass-heavy sound.

■Studio Monitor

■Powered

■8""

■LF70W/HF20W

■1 unit

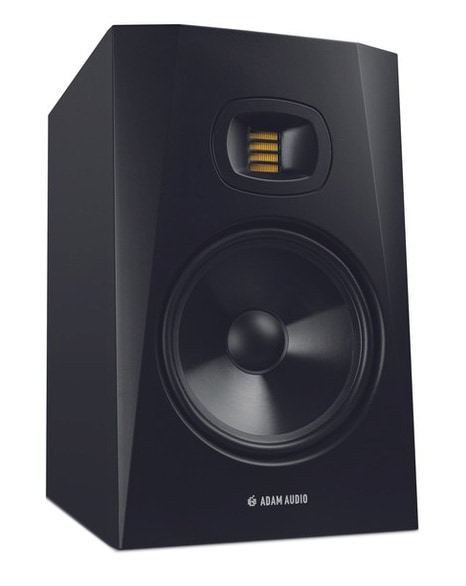

The T8V is a cost-effective, professional-grade 2-way studio monitor equipped with an 8-inch woofer. Developed based on the same technology, functionality, and quality standards as existing T-series models, the T8V delivers best-in-class characteristics and sound performance.

The T8V incorporates many technologies to enhance speaker performance, such as the U-ART tweeter that efficiently moves air in a 4:1 ratio and a new Class D amplifier with excellent dynamic range. These components combine to achieve a generous maximum SPL of 118dB (pair). The tweeter, which reproduces high frequencies, extends its characteristics down to 25kHz, and combined with the HPS waveguide that optimizes radiation characteristics, it provides a wide sweet spot and highly accurate sound reproduction. The low frequencies extend down to 33Hz, making it a speaker that can adequately handle music centered on a low center of gravity bass.

The T8V is an ADAM product that can be used even on a limited budget. This is an excellent choice for anyone considering using Audio's 8-inch monitors. Product registration extends the warranty by 5 years, making it a superior monitoring tool that you can use for many years without worrying about quality issues.

■ Equipped with a 1.9"" U-ART tweeter

・Efficiently moves air in a 4:1 ratio, reproducing complex high-frequency transients directly and quickly.

・Reduced ear fatigue even during extended use.

・Folded diaphragm prevents breakup and minimizes distortion.

・With approximately 2.5 times the effective area compared to conventional piston-type tweeters, it achieves a superior dynamic range.

■ 2-way vertical monitor with an 8"" woofer

High-resolution stereo image

■ Maximum SPL: ? 118 dB (pair @ 1m)

Powerful sound free from compression even at high volumes.

■ Simple acoustic adjustment with high/low shelving EQ

Optimization for listening environments and adjustment to suit your preferences are possible.

■ HPS waveguide inherited from the S SERIES

* Uniform directivity for a stable, low-vibration sound image across a wide listening area.

* Reduces primary reflections caused by mixing consoles, desks, etc.

* Rear-firing bass reflex port

Rich bass reproduction with minimal compression

* DSP-based crossover design

Smooth frequency response preventing interference between units in the musically important midrange band

* Acoustically optimized cabinet shape

Reduces unwanted reflections caused by the cabinet

* Lightweight polypropylene woofer

Prevents diaphragm breakup even at high volumes, achieving excellent transient response

* Linear frequency response: 33 Hz to 25 kHz

Uncolored reproduction capability across a wide frequency range

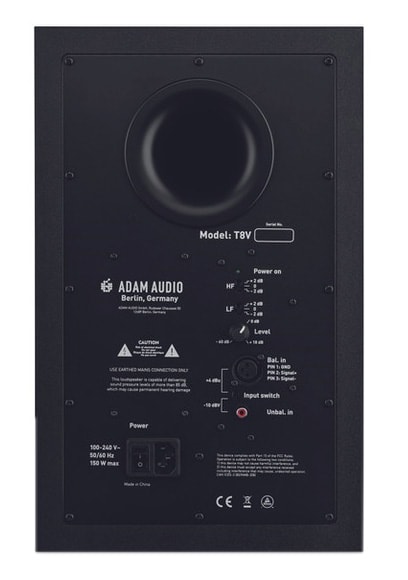

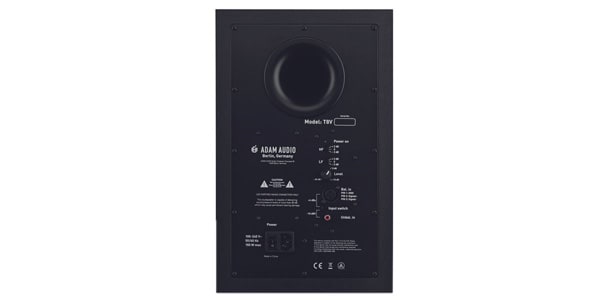

* Analog inputs compatible with XLR and RCA

Optimized line signal inputs for balanced and unbalanced connections

* 2-year parts warranty, extendable to 5 years with product registration

Maximum 5-year parts warranty

* 1-year distributor warranty including repair work



* Controls

Input Sensitivity: 2

Gain: Adjustable

High Shelf EQ: -2 dB, 0 dB, +2 dB

Low Shelf EQ: -2 dB, 0 dB, +2 dB

Crossover Frequency: 2.6 kHz

Maximum Power Consumption: 150 W

Weight: 9.8 kg

Dimensions (H x W x D): 400 mm x 250 mm x 335 mm
